0.96 Inch IPS LCD TFT Display Module — Vivid Color for Your DIY Projects
Bring your maker projects to life with this compact 0.96 inch IPS LCD TFT Display Module. Featuring a crisp 160×80 HD resolution with 65K color support, an SPI interface, and the reliable ST7735S driver IC, this screen is perfect for Raspberry Pi, Arduino, and a wide range of electronics DIY builds. Its all-angle IPS panel ensures vibrant, wide-viewing-angle color no matter how it's mounted. Made in Mainland China.
Key Features
- Screen Size: 0.96 inch IPS LCD TFT
- Display Mode: Normally Black IPS — wide viewing angles in all directions
- Resolution: 160×80 RGB dots (80RGB×160 dot-matrix)
- Color Depth: 65K colors for rich, detailed visuals
- Driver IC: ST7735S
- Interface: SPI (Serial Peripheral Interface)
- Operating Voltage: 3.3V

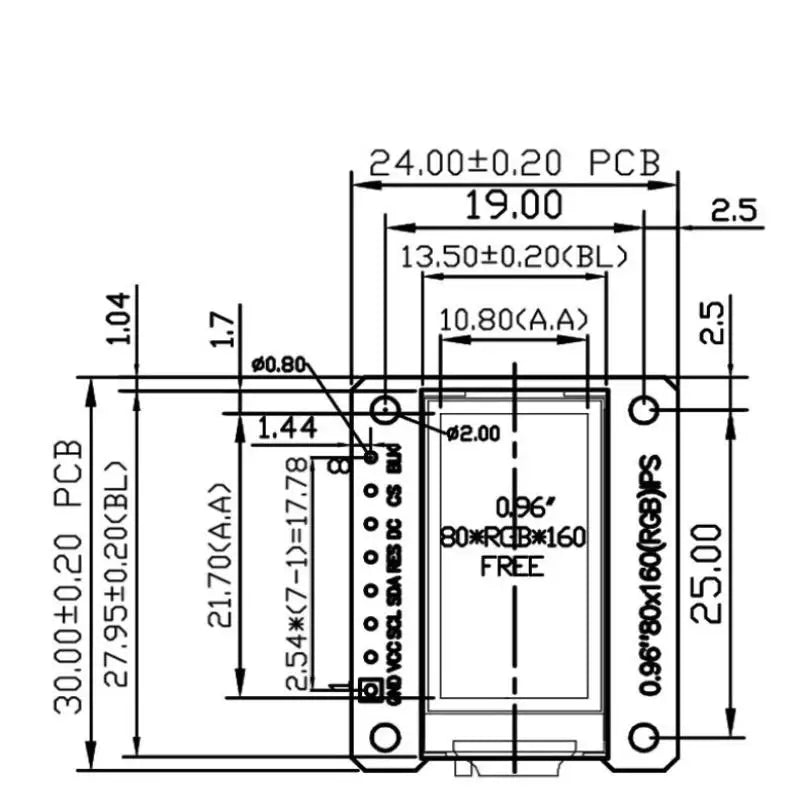

- Active Display Area: 10.8mm (W) × 21.7mm (H)
- Dot Pitch: 0.135mm (H) × 0.1356mm (V)

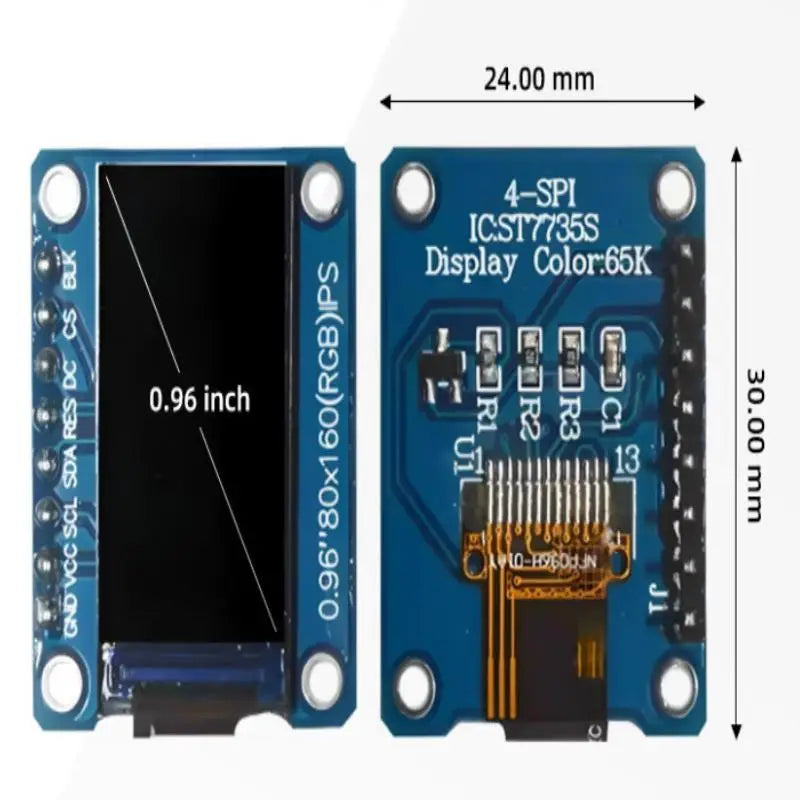

- Overall Dimensions: 24mm (W) × 30mm (H) × 2.8±0.1mm (T)
- Operating Temperature: -20°C to 70°C
- Compatible With: Raspberry Pi, Arduino, STM32, and other microcontrollers
- Typical Applications: Industrial automation, DIY electronics, embedded systems, data dashboards

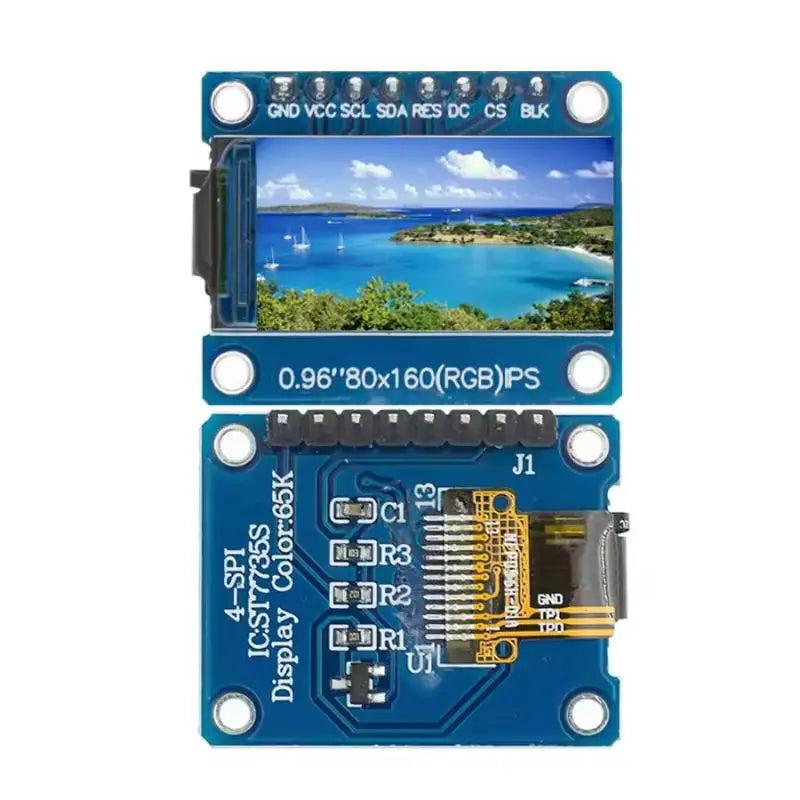

Pin Descriptions
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | GND | Ground |
| 2 | VCC | Power supply 3.3V |
| 3 | SCL | Serial clock pin |
| 4 | SDA | Serial data input |
| 5 | RES | LCM Reset pin — pull low to initialize, keep high during normal operation |
| 6 | DC | Data/Command control |
| 7 | CS | Chip Select |
| 8 | BLK | Backlight control pin |
What's in the Box
- 1 × 0.96 Inch IPS LCD TFT Display Module (ST7735S, SPI, 3.3V)
Important Notes
- Product images may not reflect actual size — please refer to dimensions listed in the specifications above.
- Minor measurement differences may occur due to manual measurement.
- Actual color may vary slightly from screen images due to monitor differences.
- No battery included.
Explore More from Our Store
Check out other useful tools and DIY accessories:
- 10Pcs Wooden Handle Nylon Bristle Paint Brush — Hand Tool Set
- 1pc Precision Japanese Double-Edged Hand Saw — SK5 Steel Mini Saw
- 10CM Wireless LED Motion Sensor Night Light — Type-C Rechargeable
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: Is this 0.96 inch TFT display module compatible with Raspberry Pi and Arduino?
A: Yes! This display module uses a standard SPI interface and the ST7735S driver IC, which is widely supported by Raspberry Pi, Arduino, STM32, and most popular microcontroller platforms. Libraries for ST7735S are available for all major development environments.
Q: What voltage does this LCD TFT display module require?
A: This module operates at 3.3V. Ensure your microcontroller or development board provides a 3.3V logic level to avoid damaging the display. It is not directly compatible with 5V logic without a level shifter.
Q: How many colors can this 160×80 IPS display show?
A: The display supports 65K (65,536) colors at a resolution of 160×80 pixels, providing vivid and detailed graphics suitable for data readouts, icons, and simple animations in your DIY electronics projects.
