1073 Universal Electric Rim Lock Coil Driver – Door Lock Part

HUXUAN 1073 Universal Electric Rim Lock Coil Driver

Keep your access control system running smoothly with this high-quality electromagnetic actuator coil assembly for electric rim locks. Designed as a direct replacement for the 1073 model, this coil driver delivers a stable, reliable driving force to ensure your security door operates correctly every time. Ideal for maintenance technicians, locksmiths, property managers, and DIY installers replacing worn or failed lock components.

Made in Mainland China.

Key Features

• Universal Compatibility: Designed to fit 1073-series electric rim locks used in residential and commercial security doors.
• Wide Voltage Range: Operates on DC 8–18V with a working current of DC 1.5–3A, making it compatible with most access control power supplies.
• Low Coil Resistance: 3.6Ω coil resistance for efficient electromagnetic actuation.
• Durable Construction: Built from a combination of metal and plastic for long-lasting performance in demanding environments.
• Quick Actuation: Under normal conditions, a one-second energizing pulse is sufficient to trigger the lock mechanism.
• Direct Replacement: Straightforward swap-in replacement to restore your electric door lock to full working order without replacing the entire lock body.

Specifications

Important Usage Note

The coil's continuous energizing time must not exceed 3 seconds. If coil burnout occurs repeatedly, check your power supply, access control panel, or building intercom system to ensure the unlock signal duration is set to 3 seconds or less. Under normal operating conditions, a one-second pulse is all that is needed to open the door.

What's in the Box?

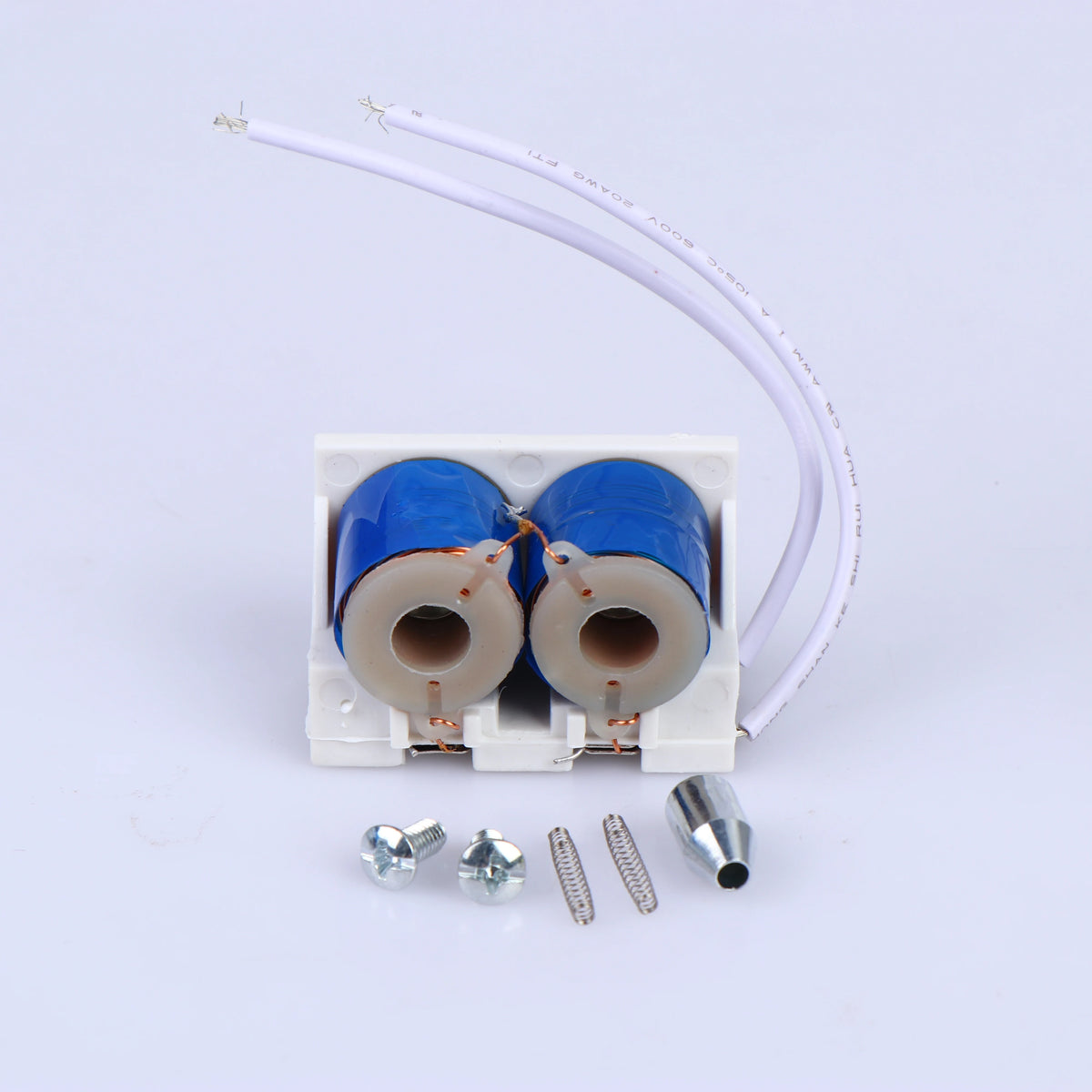

• 1 × 1073 Electric Rim Lock Coil Driver

You May Also Like

• Wireless LED Motion Sensor Night Light – Type-C Rechargeable
• 360-Degree Refrigerator Storage Rotating Tray
• 10Pcs Wooden Handle Nylon Bristle Paint Brush Set

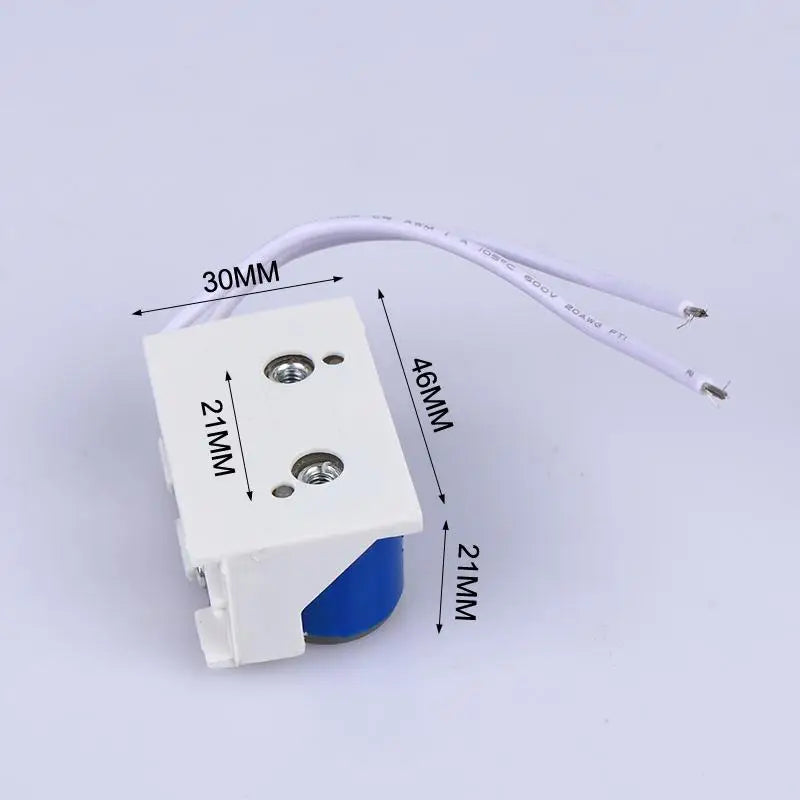

Note: Please allow 2–3% dimensional variance due to manual measurement. Color may vary slightly between product images and the actual item due to differences in monitor calibration.

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What voltage does the 1073 electric rim lock coil driver require?

A: This electric rim lock coil driver operates on DC 8–18V with a working current of DC 1.5–3A, making it compatible with the majority of standard access control power supplies and building intercom systems.

Q: How long can the coil be continuously energized?

A: The coil should not be continuously energized for more than 3 seconds. Under normal operating conditions, a one-second pulse is sufficient to actuate the lock. Exceeding the 3-second limit may result in coil damage. If burnout is occurring, review your access control panel or intercom system timing settings.

Q: Is this coil driver compatible with my security door lock?

A: This coil driver is designed as a universal replacement for 1073-series electric rim locks commonly used in residential and commercial security doors. Always verify your existing lock model number before purchasing to ensure compatibility.

Q: Does this come with installation instructions?

A: The package includes 1 coil driver unit. Installation is typically straightforward for anyone familiar with electric lock maintenance. If you are unsure, we recommend consulting a qualified locksmith or access control technician.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
