10A Latching E-Stop Push Button Switch 1NC 22mm CNC Emergency Stop

10A Latching Emergency Stop Button Switch – 1NC, 22mm Mounting, IP40

Keep your machinery and industrial equipment safe with this heavy-duty 10A Emergency Stop (E-Stop) Push Button Switch. Featuring a bold red mushroom head, self-locking latching mechanism, and waterproof construction, this switch is built for fast, reliable shutdowns in control panels, CNC machines, production lines, and more. Made in Mainland China.

Key Features

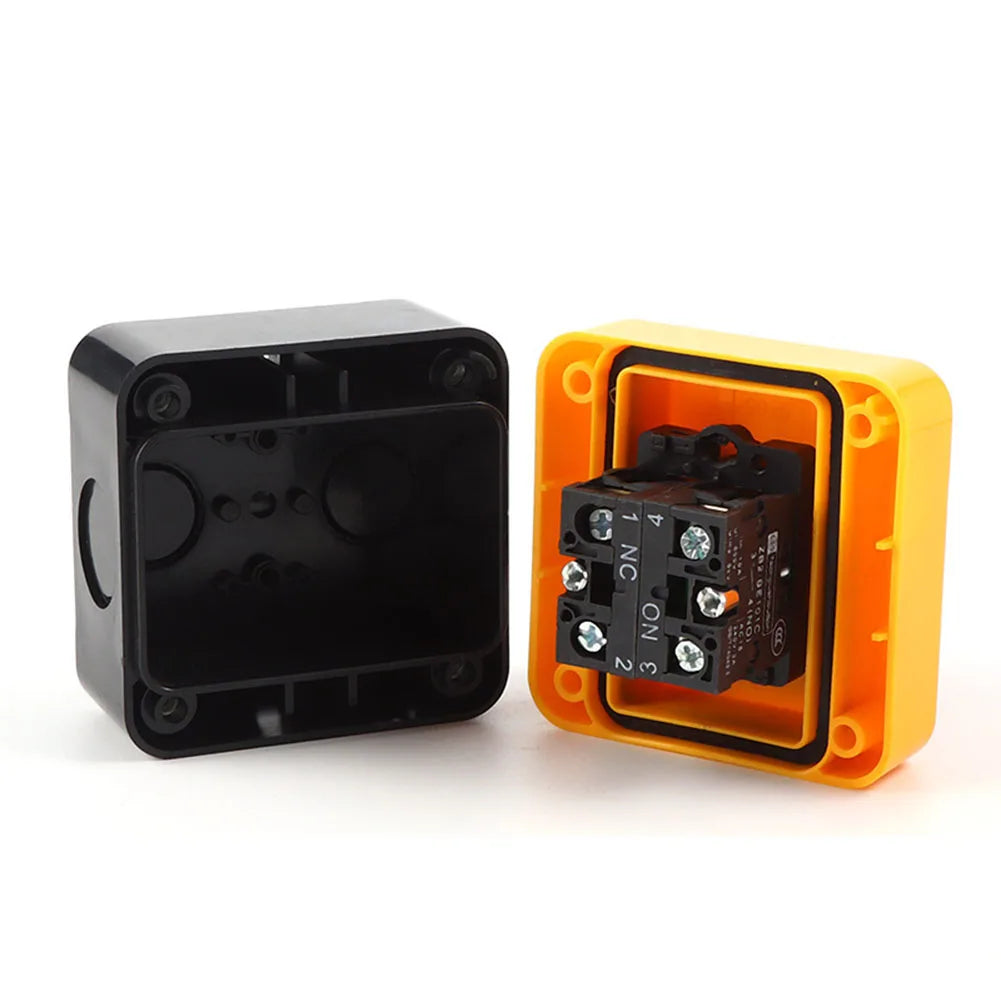

• Robust Electrical Performance: Rated at 10A and 110V–400V, with a 1NC contact configuration and DPST pole design. Compatible with electromagnetic starters, contactors, relays, and a wide range of automatic control circuits.

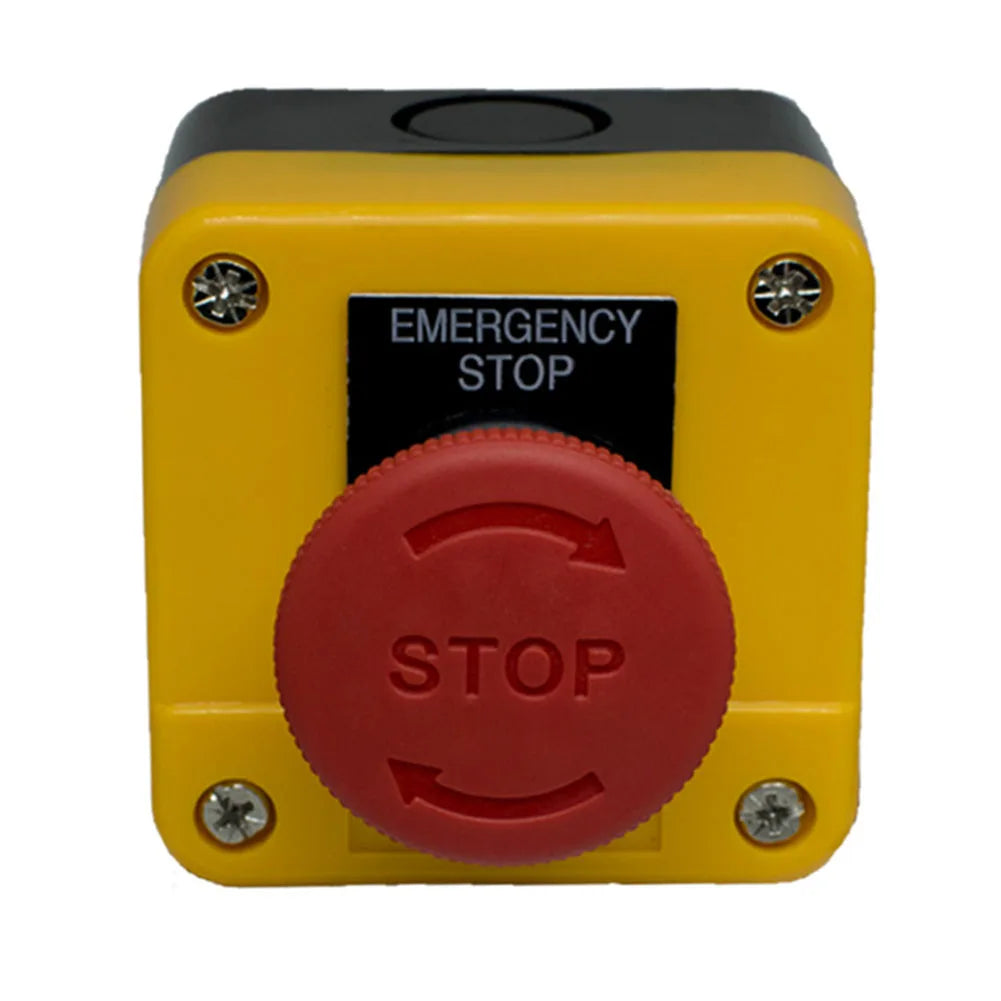

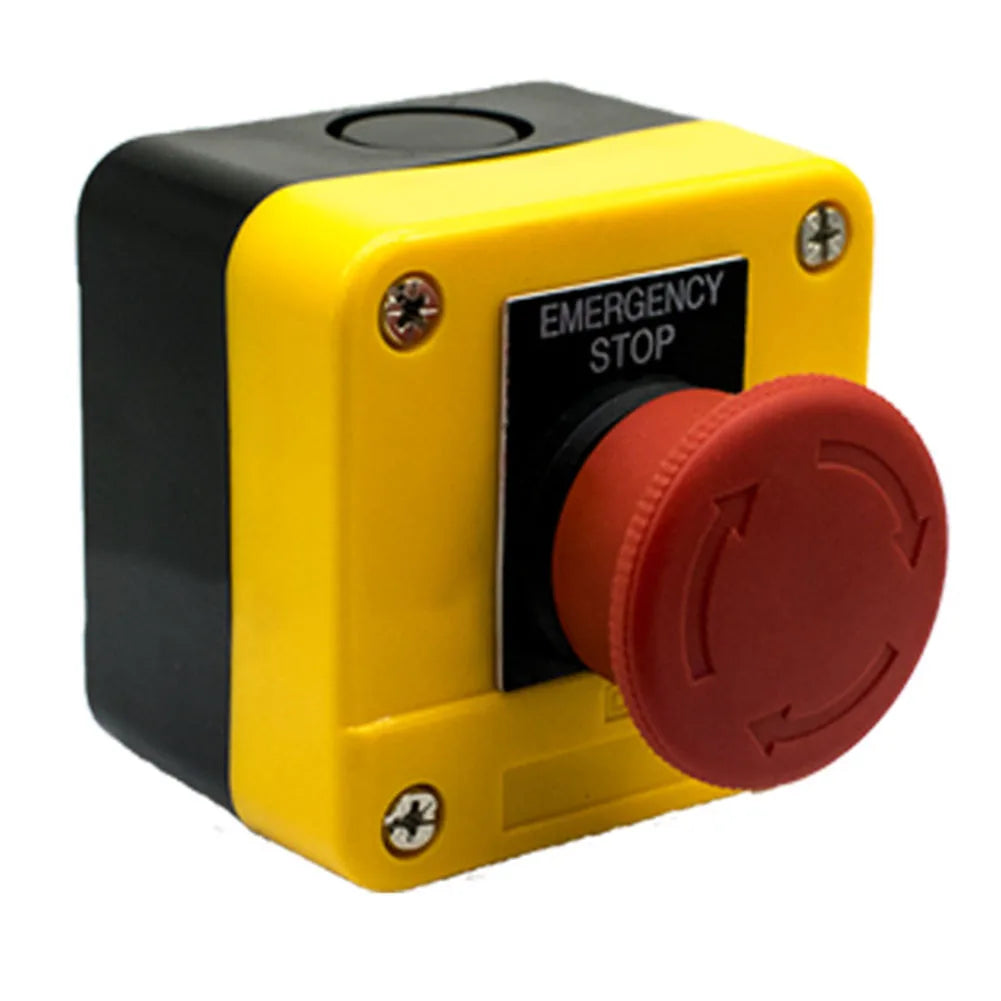

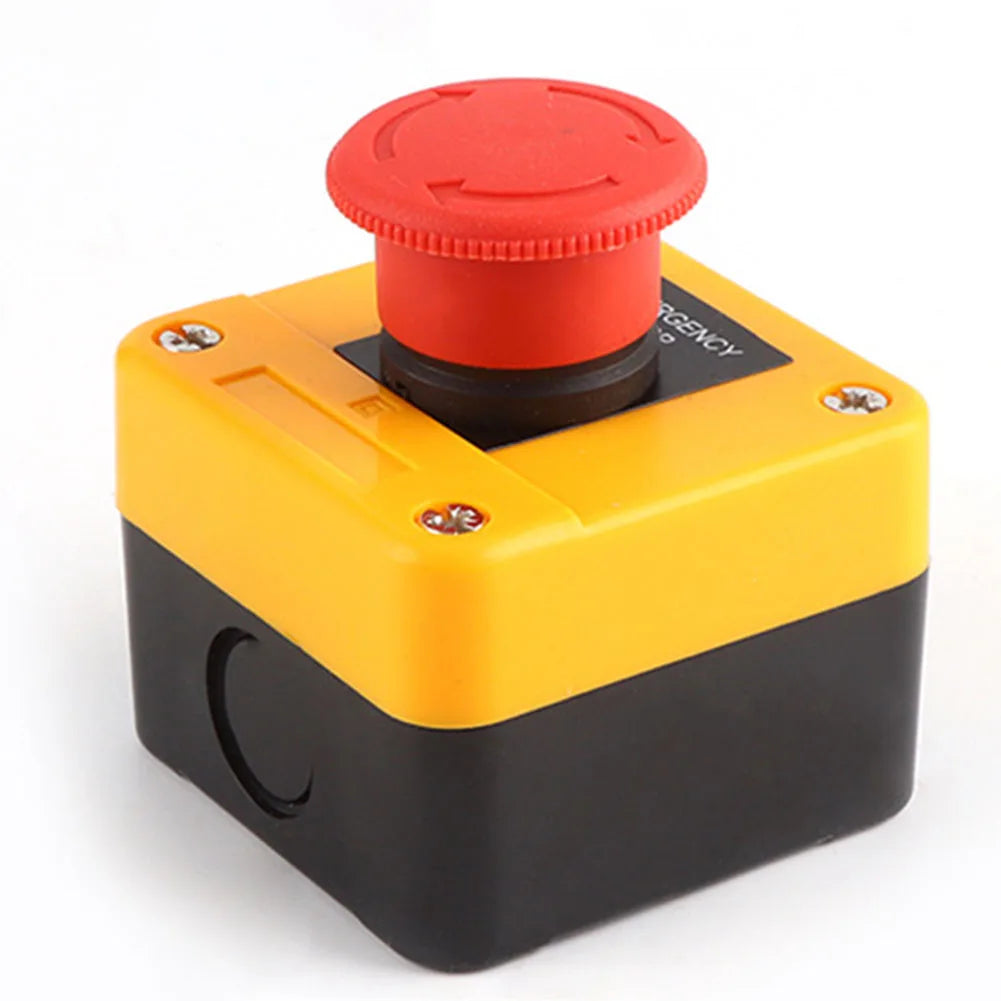

• Self-Locking Latching Design: Press the large 40mm red mushroom head to instantly halt connected equipment — it locks firmly in place to prevent accidental restart. To reset, simply press and rotate in the direction of the arrow indicator. Fast, intuitive, and dependable.
• Waterproof Sealing: Built-in waterproof rubber ring provides strong moisture protection, keeping water droplets and splashes from entering the switch housing and extending the device's service life.

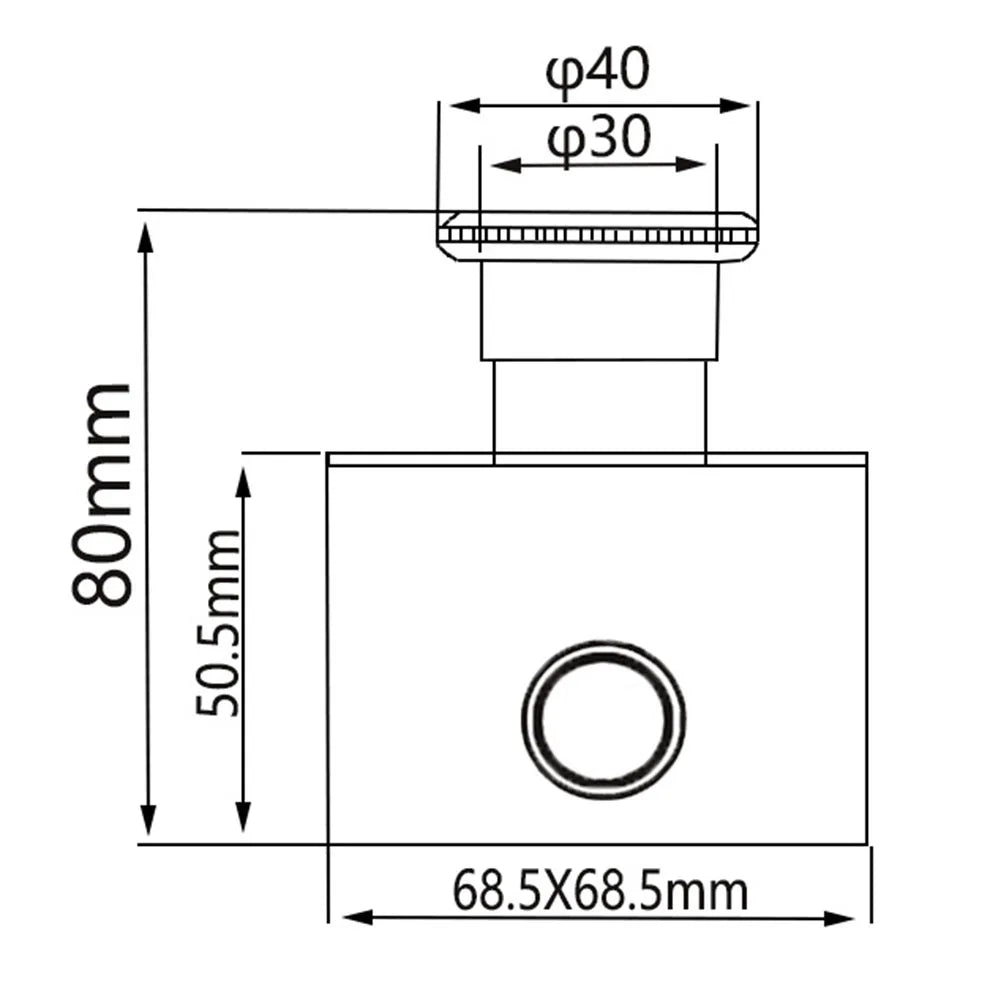

• Easy Panel Installation: Standard 22mm mounting hole diameter fits most control panels and machine enclosures with ease. Compact overall dimensions of 68.5 × 68.5 × 50.5mm keep your setup tidy and accessible.
• Wide Application Range: Ideal for CNC machinery, industrial production lines, automated equipment, and any electrical system requiring a clearly visible, immediately accessible stop control.

Specifications

Package Contents

• 1× E-Stop Push Button Switch

Note: Monitor color calibration may cause slight differences in displayed color vs. actual product. Minor measurement tolerances of ±1–2mm may apply.

You Might Also Like

• 10Pcs Wooden Handle Nylon Bristle Paint Brush – Hand Tool Set
• 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel, Portable Mini

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What does the 1NC configuration mean on this emergency stop button switch?

A: "1NC" stands for 1 Normally Closed contact. In its default (unpressed) state, the circuit is closed and current flows normally. When the mushroom head is pressed, the contact opens and interrupts the circuit, stopping the connected equipment immediately. This is the standard configuration for emergency stop switches used in industrial and CNC control systems.

Q: How do I reset the switch after pressing the emergency stop button?

A: This switch uses a latching (maintained) mechanism, meaning it stays locked in the pressed/off position after activation. To reset, simply press the mushroom head down slightly and rotate it in the direction shown by the arrow indicator on the button head. It will spring back to the released position, restoring circuit continuity.

Q: Is this E-stop button switch compatible with 240V systems?

A: Yes. The switch is rated for 110V to 400V, making it fully compatible with 240V single-phase and many three-phase industrial systems. With a 10A current rating and 1000V dielectric strength, it offers reliable performance across a broad range of electrical control applications.

Q: What panel cutout size is required to install this emergency stop switch?

A: This switch requires a standard 22mm diameter mounting hole — a common size found on most commercial and industrial control panels, enclosures, and CNC machine housings, making installation straightforward without special tooling.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
