10MHz OCXO Board – High Stability Crystal Oscillator for DIY

10MHz OCXO Frequency Standard Board – Sinewave & Square Wave Output for DIY Electronics

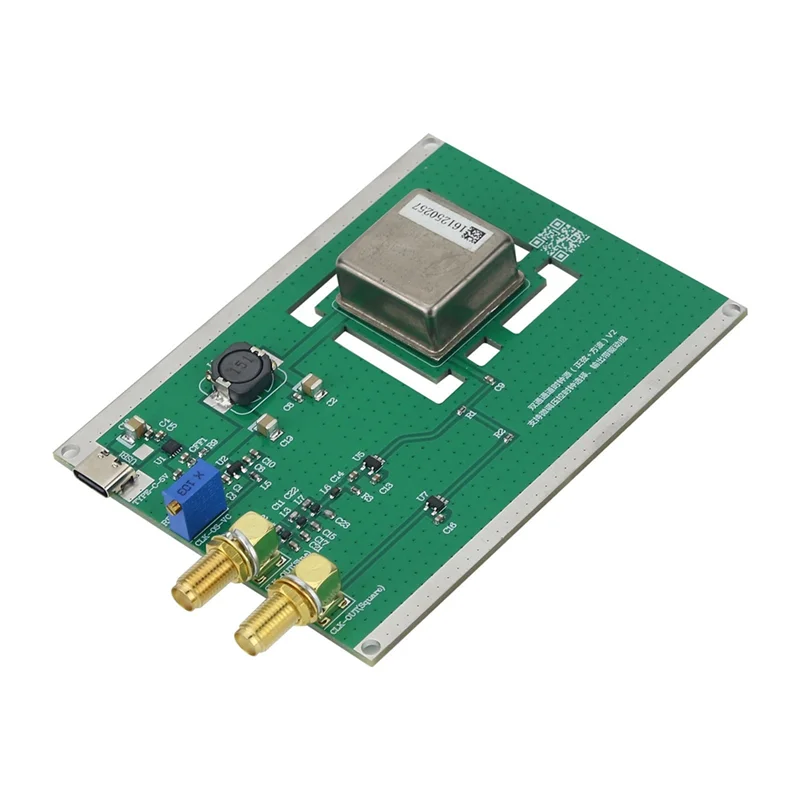

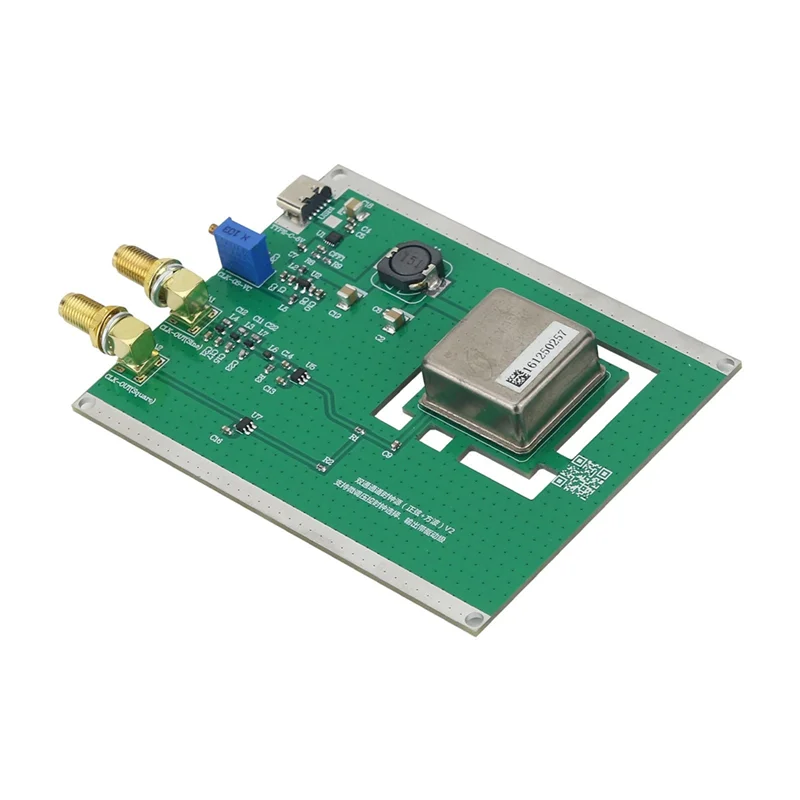

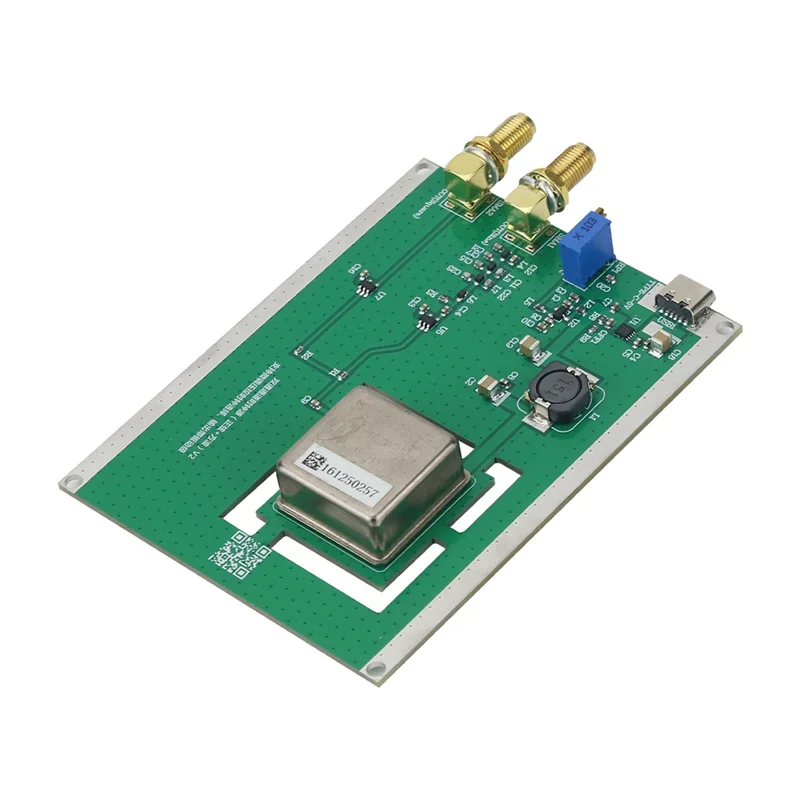

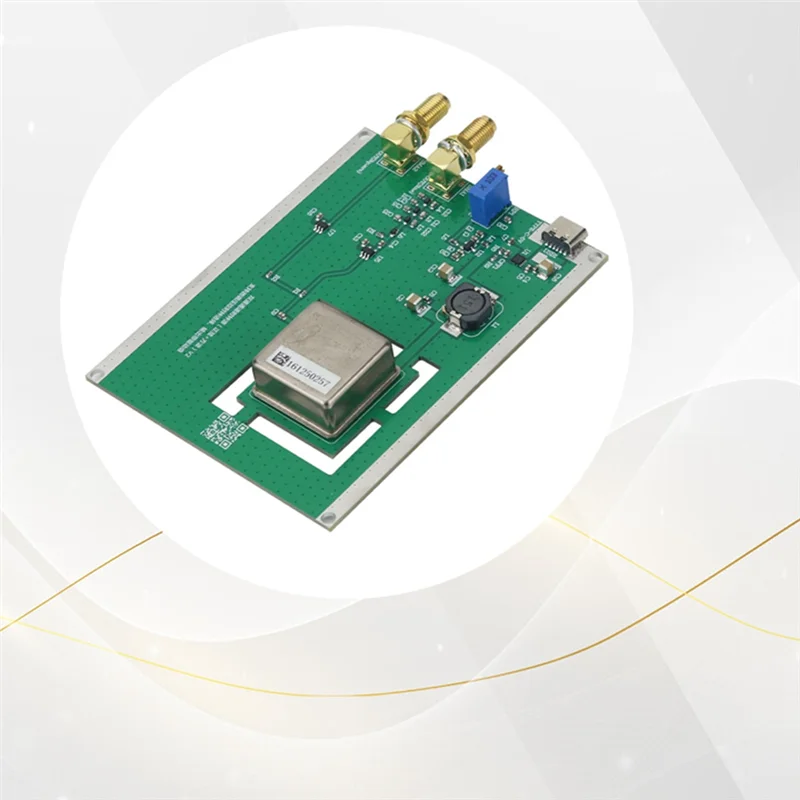

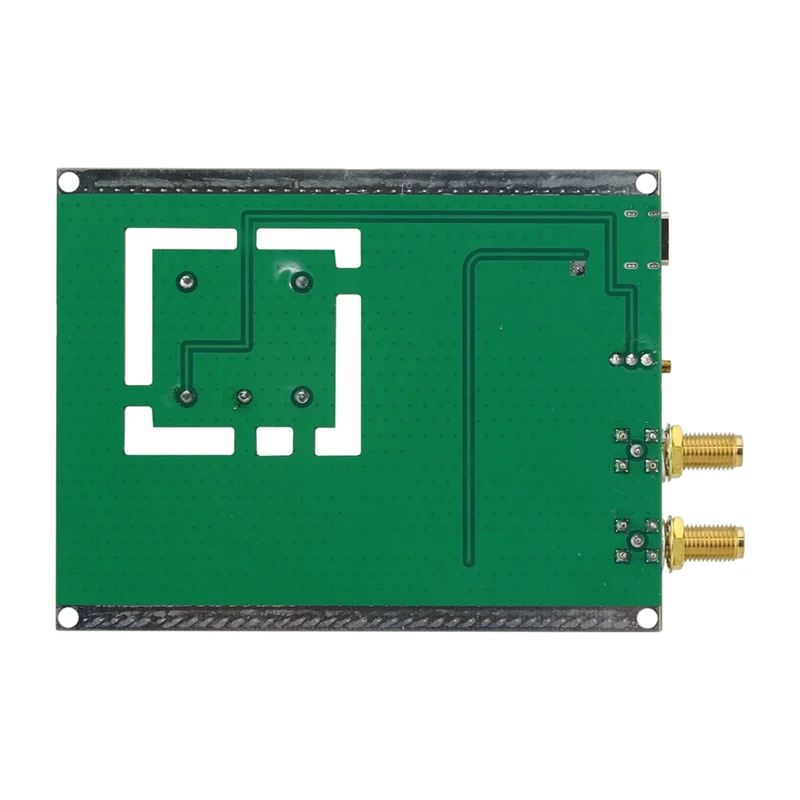

Take your DIY electronics, instrumentation, and RF projects to the next level with this 10MHz OCXO (Oven-Controlled Crystal Oscillator) Board. Engineered for high frequency stability, this compact PCB module delivers both sinewave and square wave outputs, making it an ideal precision reference clock for telecommunications, test equipment, amateur radio, and electronic experimentation.

Key Features

• TYPE-C Powered: Convenient USB Type-C power input for easy integration into modern lab and DIY setups.
• RF-Specific LDO Power Supply: Dedicated low-dropout regulator ensures ultra-clean, stable power delivery to the crystal oscillator for maximum frequency consistency.
• High-Precision Voltage-Controlled Clock (VCXO) Port: A high-accuracy voltage reference input allows fine-tuning of frequency output for demanding applications.
• Dual Output Modes:
  • Sinewave Output: 10MHz / 3 dBm (1Vpp) — shaped by a 7th-order elliptical low-pass filter for clean, low-harmonic output.
  • Square Wave Output: 10MHz / 13 dBm — driver IC capable of directly driving a 50-ohm load.
• Versatile Applications: Ideal for telecommunications, precision instrumentation, frequency counters, SDR setups, and a wide range of electronic experiments.
• Compact PCB Design: Type OCXO-10M-2525, green PCB, easy to integrate into existing projects.

Technical Specifications

What's in the Box

• 1 × 10MHz OCXO Board

Note: Product appearance and printed markings may vary slightly between production batches but do not affect functionality. Color may appear slightly different depending on your display settings. Measurement tolerance: ±1–3 cm.
