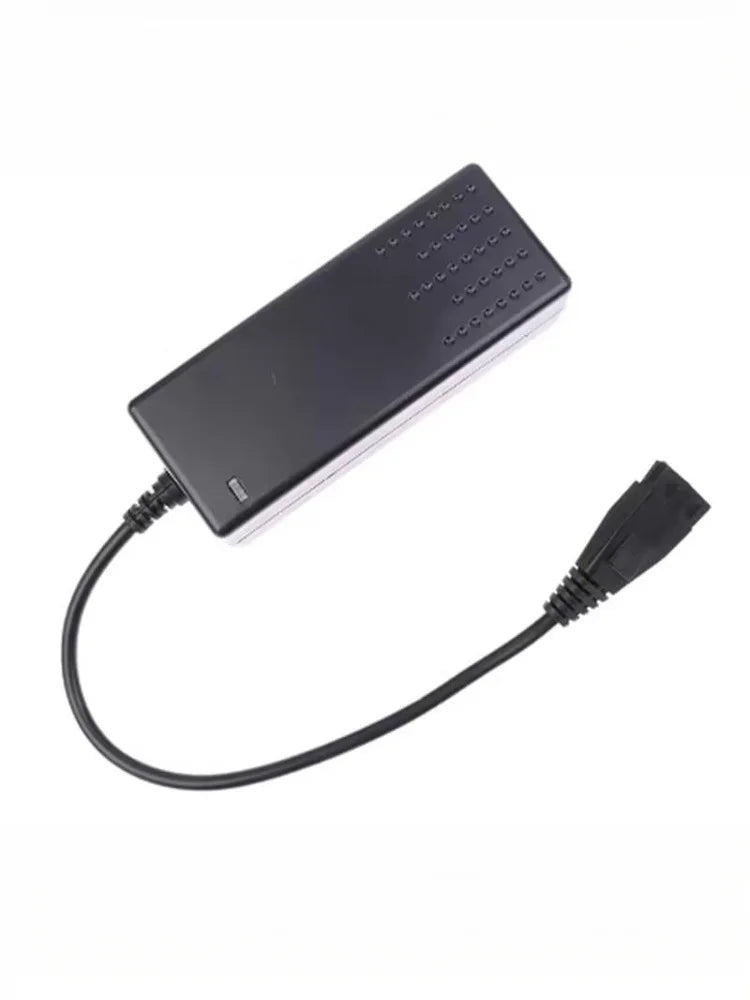

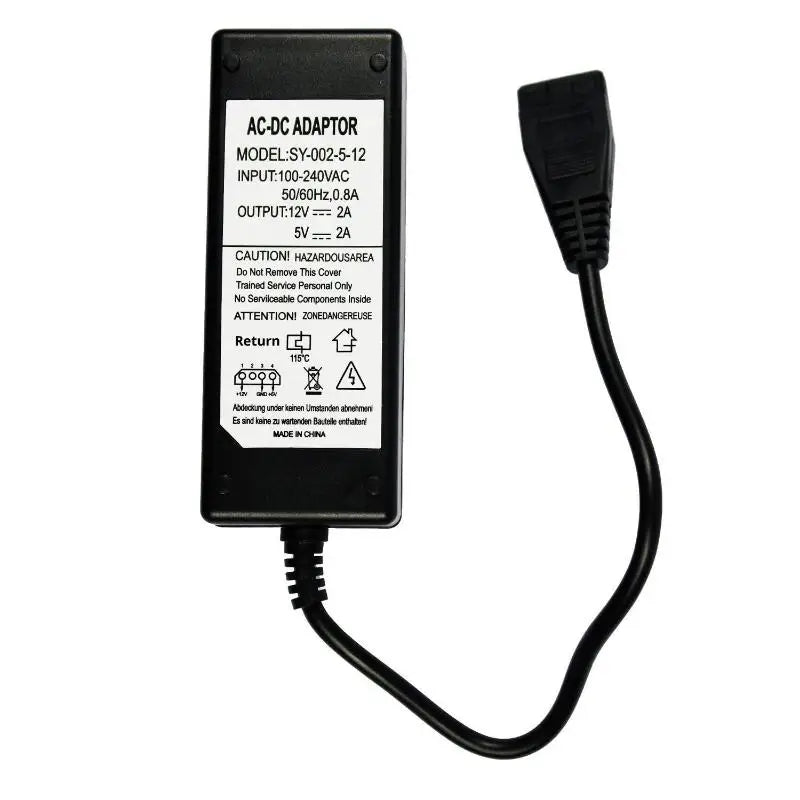

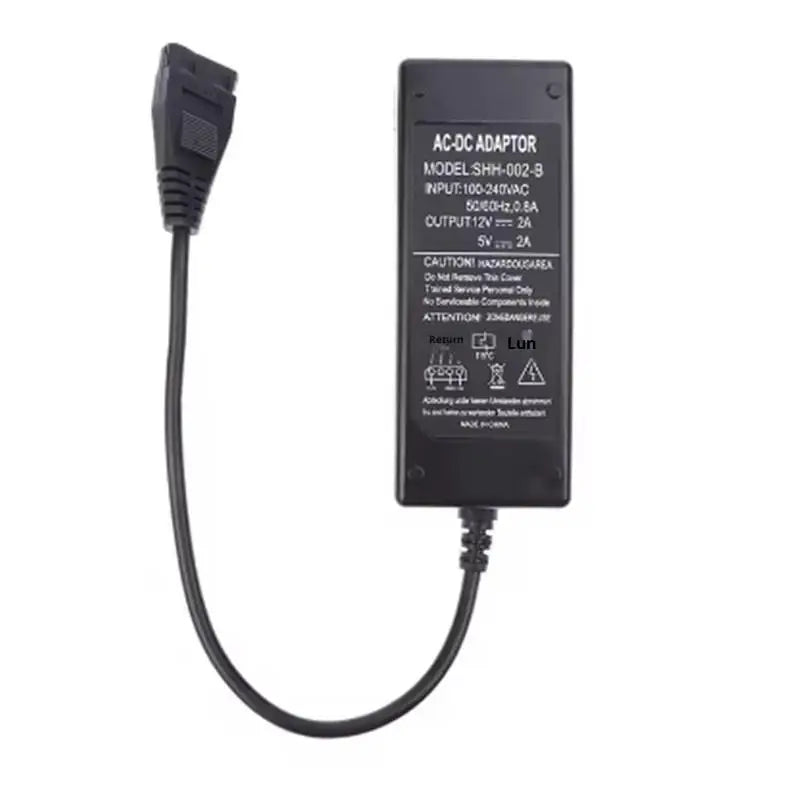

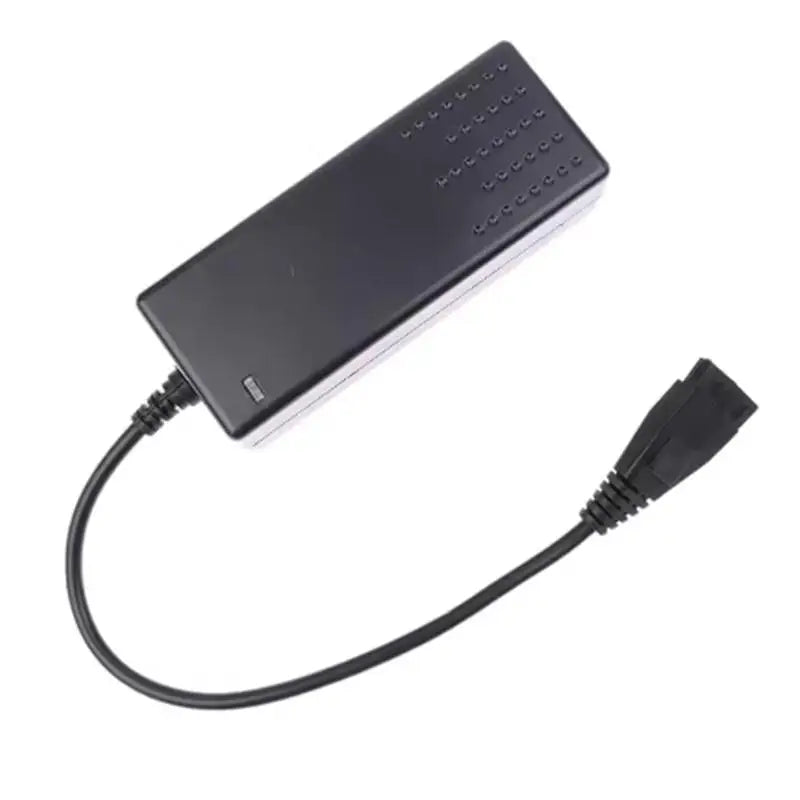

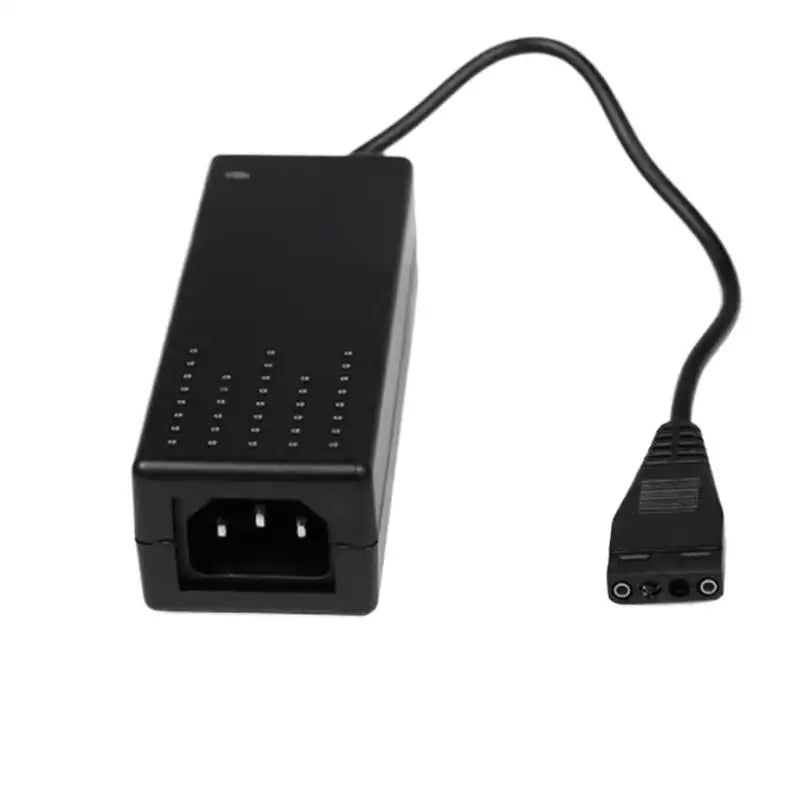

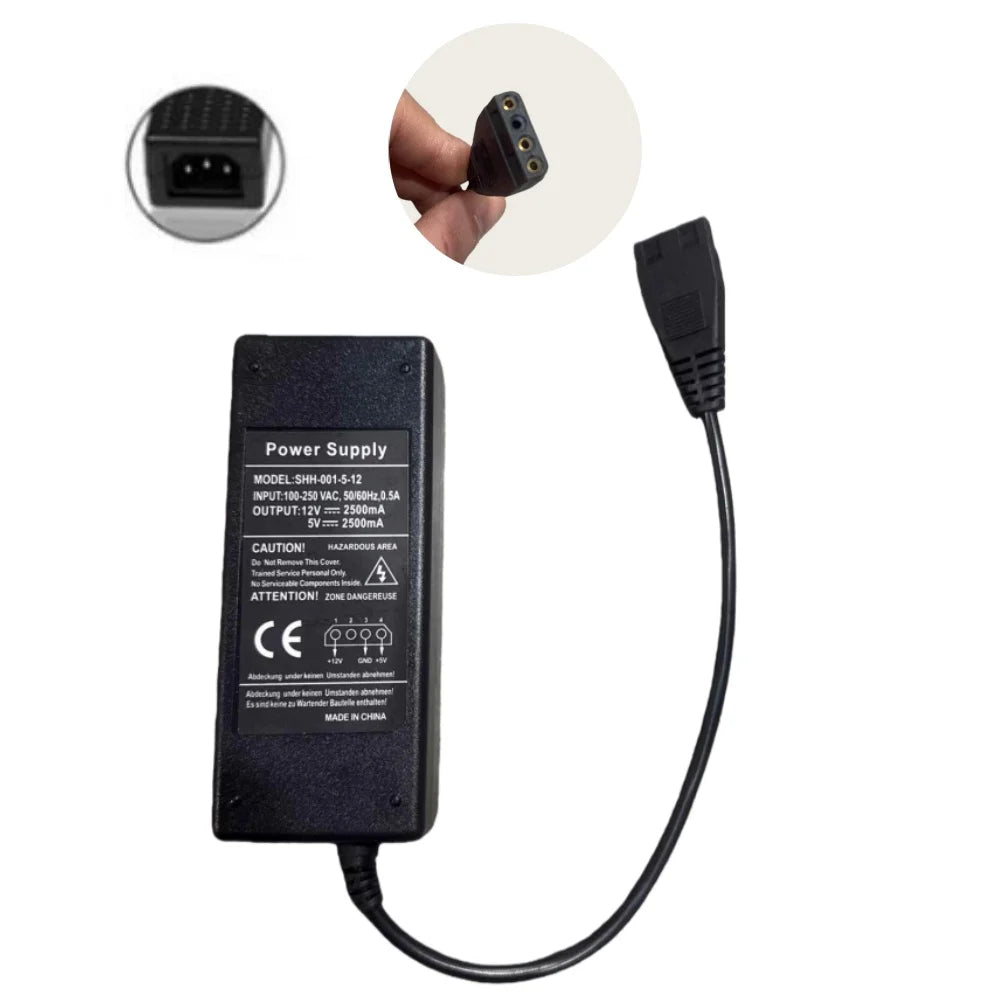

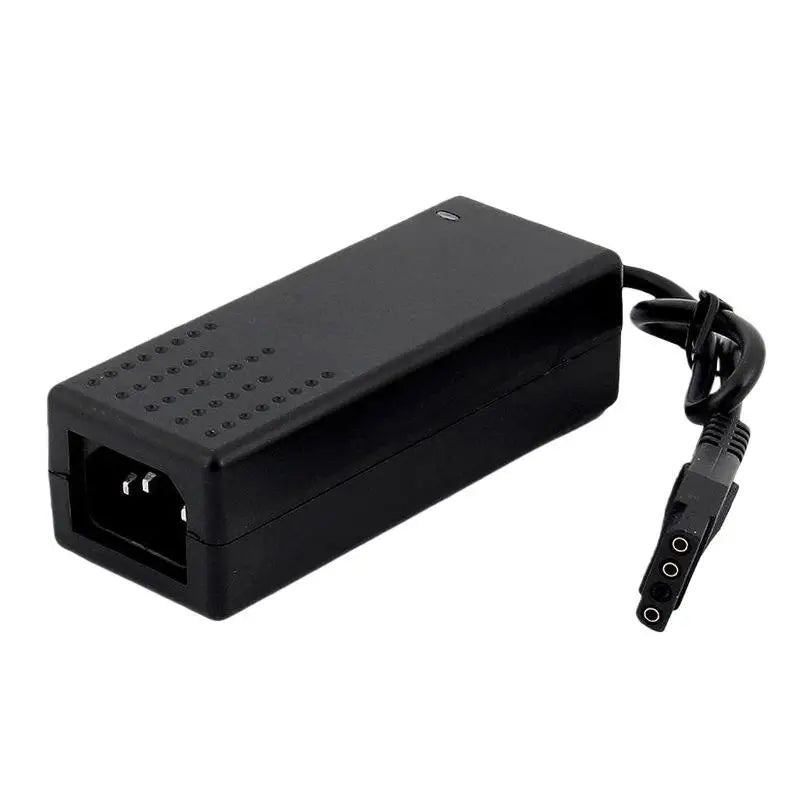

12V/5V 2A IDE/SATA Power Supply Adapter for HDD & CD-ROM

$12.43 USD $13.94 USD

Power Your IDE & SATA Drives with Ease

The HUXUAN 12V/5V 2A IDE/SATA Power Supply Adapter is a compact, reliable solution for powering 3.5" IDE hard drives, 5.25" IDE optical drives, CD/DVD-ROM drives, and SATA hard disk drives (SATA requires a separate power adapter cable). With worldwide AC input compatibility (100V–240V, 50–60Hz), this adapter works seamlessly across the globe, making it a go-to tool for DIY PC builders, data recovery enthusiasts, and tech hobbyists alike.

Key Features

Universal AC Input: Compatible with AC 100V–240V, 50–60Hz — works worldwide right out of the box.
Dual Output Voltage: Delivers stable DC 12V and 5V output for powering IDE and SATA storage devices.
2A Rated Output Current: Provides sufficient current (up to 2A) to run hard drives and optical disc drives reliably.
Built-In Protection: Equipped with short circuit protection, overload protection, and overvoltage protection for safe, worry-free operation.
High Efficiency: Operating efficiency of 80–85% with minimal DC ripple (100mVp-p) for clean, stable power delivery.
Low Operating Temperature: Runs cool (0°C–50°C) for extended service life and long-term reliability.
Compact & Lightweight: High power density in a small form factor — easy to store and use in tight spaces.
100% Burn-In Tested: Every unit undergoes full-load high-temperature aging tests for quality assurance.
Strong Insulation: High electrical strength and excellent insulation performance for safe handling.

Specifications

Input Voltage: AC 100–240V
Input Frequency: 50–60Hz
Output Voltage: DC 12V / 5V
Rated Output Current: 2A (2000mA)
Current Output Range: 0–2A (do not exceed 2A for more than 5 minutes)
Output Voltage Regulation: ±5%
Output Ripple & Noise: 100mVp-p
Working Efficiency: 80–85%
Operating Temperature: 0°C – +50°C
Storage Temperature: -20°C – +85°C
Output DC Connector: 4-pin IDE (Molex)
Output Cable Length: 0.5 meters
Material: Plastic + Metal

Compatibility

3.5" IDE Hard Disk Drives
5.25" IDE Optical Drives
CD/DVD-ROM Drives
SATA Hard Disk Drives (requires a separate SATA power adapter cable, not included)

What's in the Box

1× IDE Power Supply Adapter

Note: Data transfer cables are NOT included and must be purchased separately.

Made in Mainland China.

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What types of drives does this IDE/SATA power supply adapter support?

A: This adapter supports 3.5" IDE hard disk drives, 5.25" IDE optical drives, and CD/DVD-ROM drives directly via the included 4-pin IDE (Molex) connector. It can also power SATA hard disk drives, but you will need to purchase a separate SATA power adapter cable — it is not included.

Q: Is this power adapter compatible with power outlets outside of the US?

A: Yes! This adapter accepts a worldwide AC input range of 100V–240V at 50–60Hz, making it compatible with power outlets in North America, Europe, Asia, Australia, and beyond. Just make sure you have the appropriate plug adapter for your region's outlet type.

Q: Does the adapter include data transfer cables for the hard drive?

A: No, this product provides power only. Data transfer cables (IDE ribbon cables or SATA data cables) are not included and must be purchased separately. The package contains one IDE power supply adapter only.

Q: What safety protections are built into this power adapter?

A: This adapter features three layers of built-in protection: short circuit protection, overload protection, and overvoltage protection. Every unit also undergoes 100% full-load high-temperature burn-in testing before shipping to ensure reliable, safe performance.
