15A Ideal Diode Solar Anti-Backflow Protection Module – 10 Pack

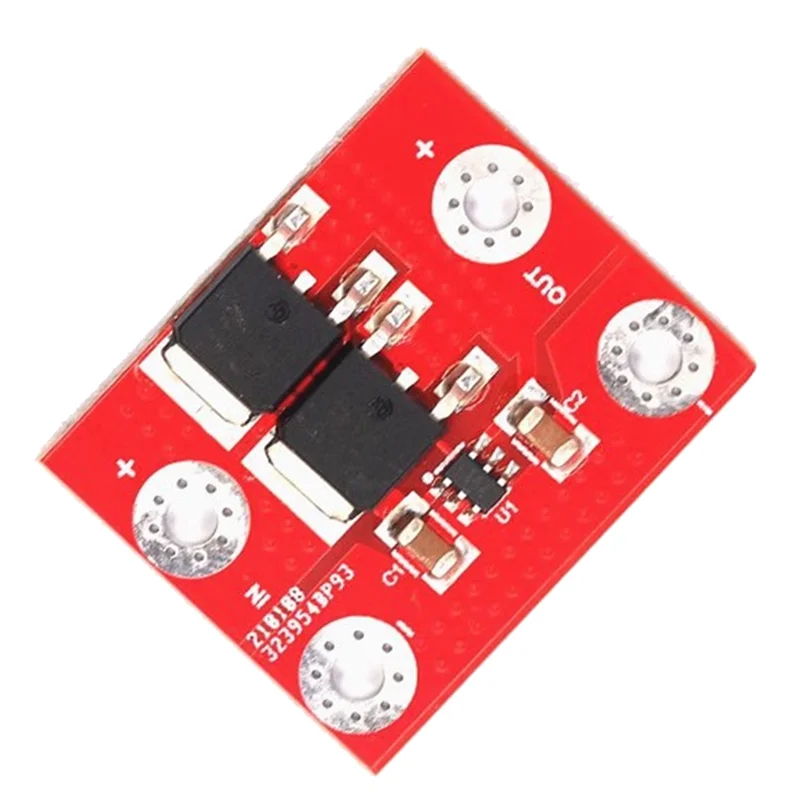

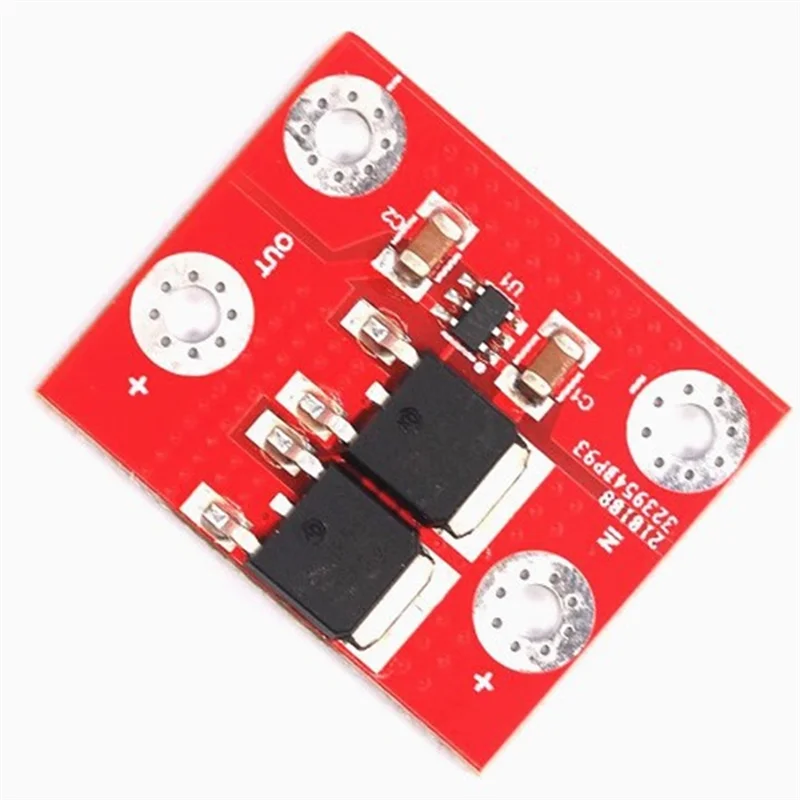

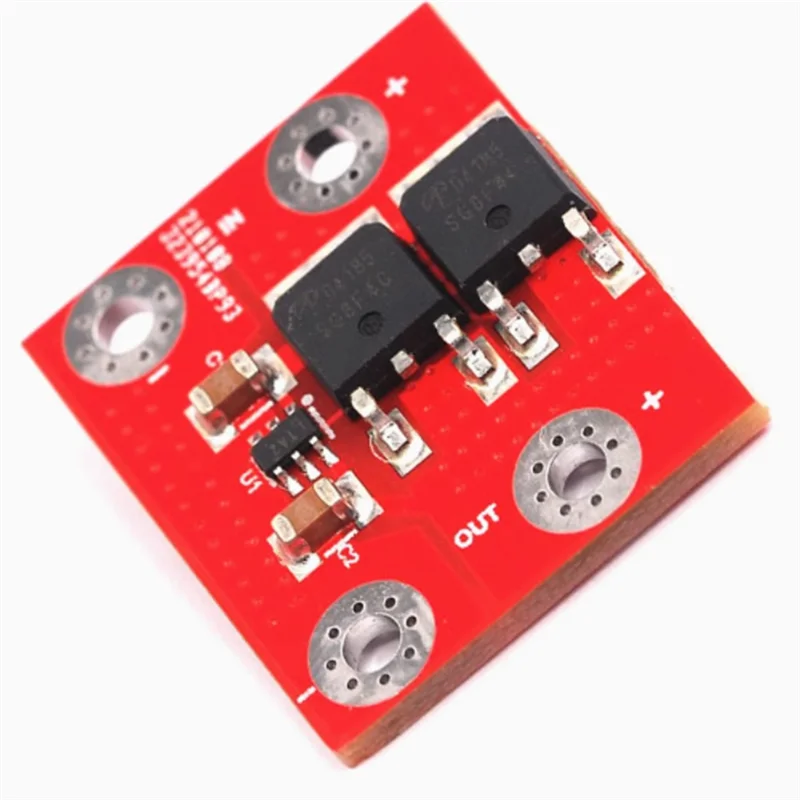

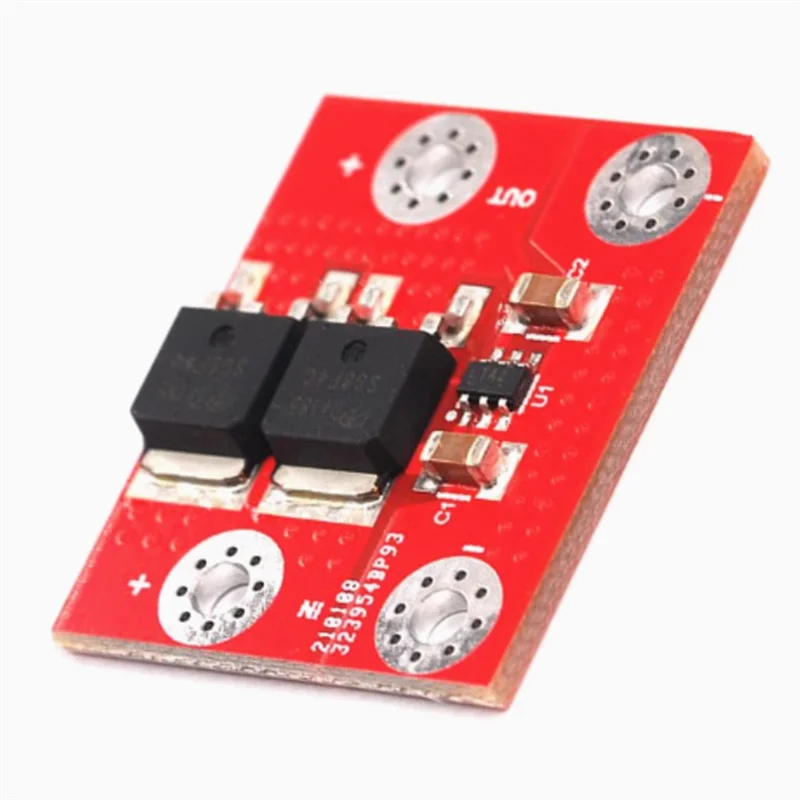

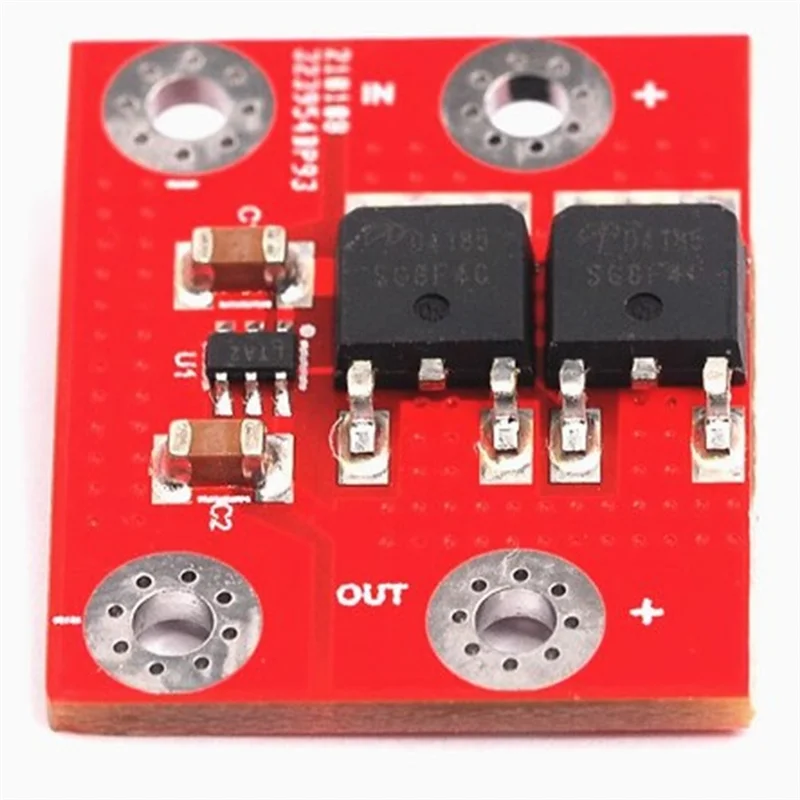

Keep your solar energy system, battery charging circuits, and irrigation power setups running efficiently with this 10-piece set of 15A Ideal Diode Protection Modules. Engineered to prevent reverse current flow and backflow, these compact PCB-based modules are an essential safeguard for low-voltage DC solar and battery applications. Rated for voltages up to 28V and a continuous current of 15A, they offer a reliable and reusable solution for protecting your power circuits.
Key Features
- Anti-Backflow & Anti-Reverse Protection: Prevents unwanted reverse current from draining your battery or damaging your solar panels and charge controllers.
- 15A / 3–28V Rating: Suited for low-voltage DC systems below 75V DC, including solar panels, battery banks, and irrigation power circuits.
- Ideal Diode Technology: Significantly lower voltage drop compared to traditional Schottky diodes, improving system efficiency and reducing heat generation.
- Durable PCB Construction: Built on a robust red & black PCB board for reliable long-term performance.
- Reusable & Versatile: Can be used across multiple projects and reinstalled as needed.
- Pack of 10: Great value — stock up for multiple installations or keep spares on hand.
Specifications
- Model: AAAEL-3-28V
- Current Rating: 15A
- Voltage Range: 3V – 28V DC
- Material: PCB
- Color: Red & Black
- Quantity: 10 pieces per pack
- Reusability: Reusable
- Country of Origin: Made in China
Package Contents

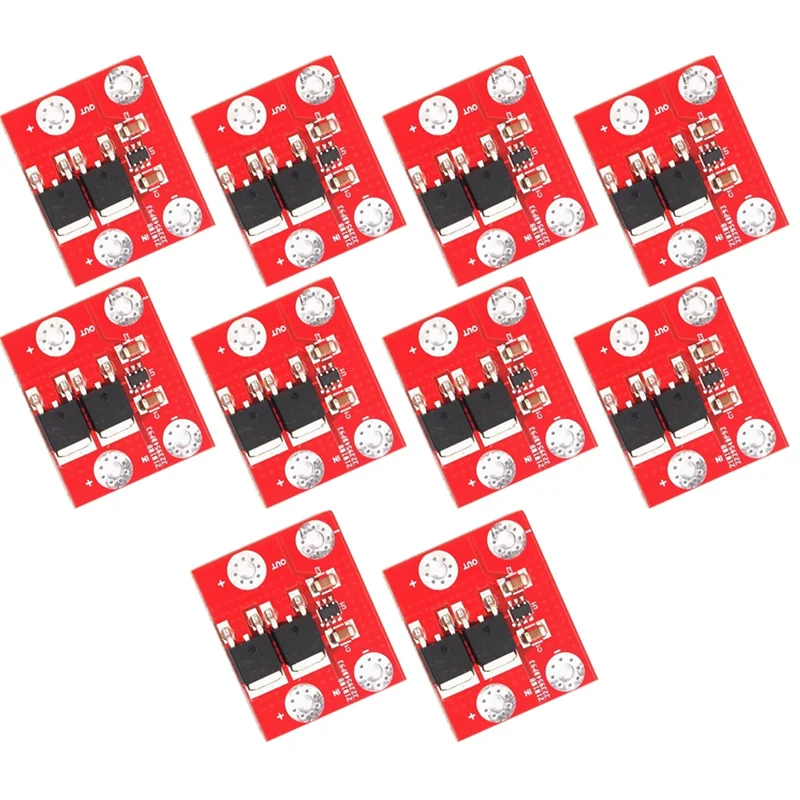

- 10 × 15A Ideal Diode Protection Module
Note: Only the above package contents are included. Other products shown are not included. Colors may vary slightly due to lighting and display differences. Measurement tolerance: ±1–3cm.
Related Products You May Like
- 10Pcs Wooden Handle Nylon Bristle Paint Brush – Hand Tool Set
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel
- 1pc Stainless Steel Gardening Shovel – Soil Turning & Weed Removal
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is an ideal diode module and how does it differ from a standard diode?
A: An ideal diode module uses a MOSFET-based circuit to mimic the function of a standard diode but with a much lower forward voltage drop (often less than 0.1V vs. 0.3–0.6V for Schottky diodes). This means less energy is wasted as heat, making it far more efficient for solar panel and battery charging applications where every bit of power counts.
Q: What applications are these 15A ideal diode modules suitable for?
A: These modules are ideal for solar energy systems (preventing reverse current from batteries back to panels), multi-battery parallel charging setups, irrigation power circuits, and any low-voltage DC system (3–28V, up to 15A) where backflow or reverse current protection is needed.
Q: Can I connect multiple modules in parallel for higher current applications?
A: Yes. Multiple ideal diode modules can be connected in parallel to handle higher total currents, as long as the voltage remains within the 3–28V DC operating range. Always ensure proper heat dissipation and circuit balancing when paralleling modules.
Q: Are these modules reusable and suitable for DIY projects?
A: Absolutely. These PCB-based modules are fully reusable and are popular among DIY electronics enthusiasts, solar hobbyists, and professional installers alike. Their compact form factor makes them easy to integrate into a wide range of custom circuit builds.
