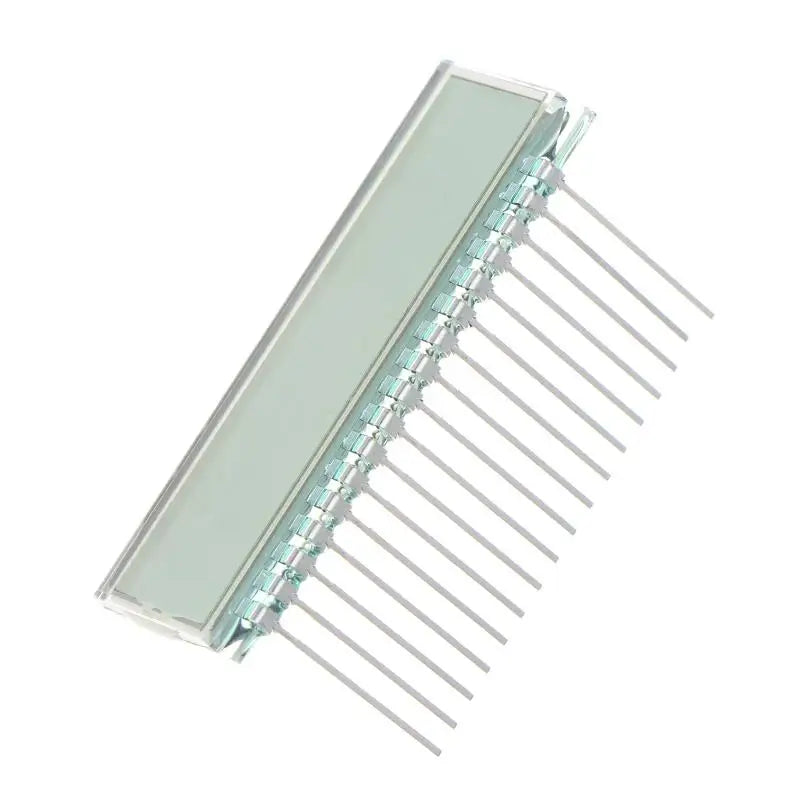

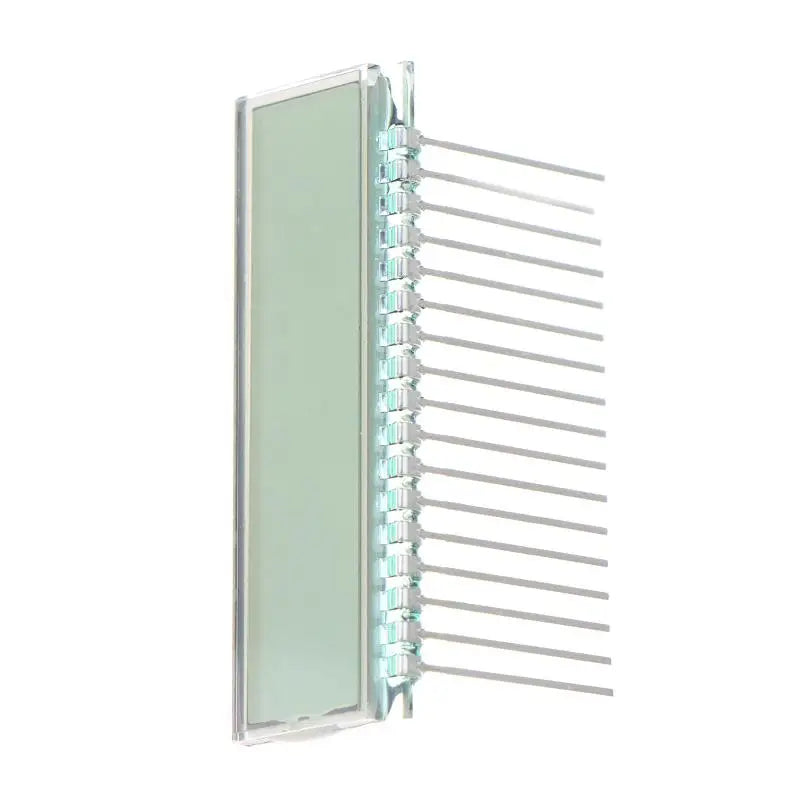

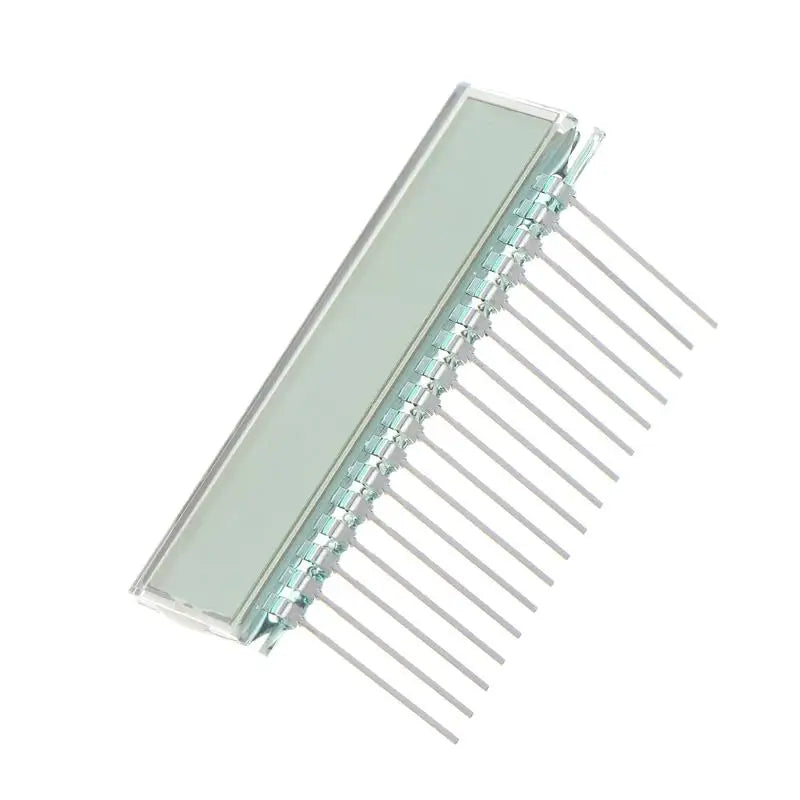

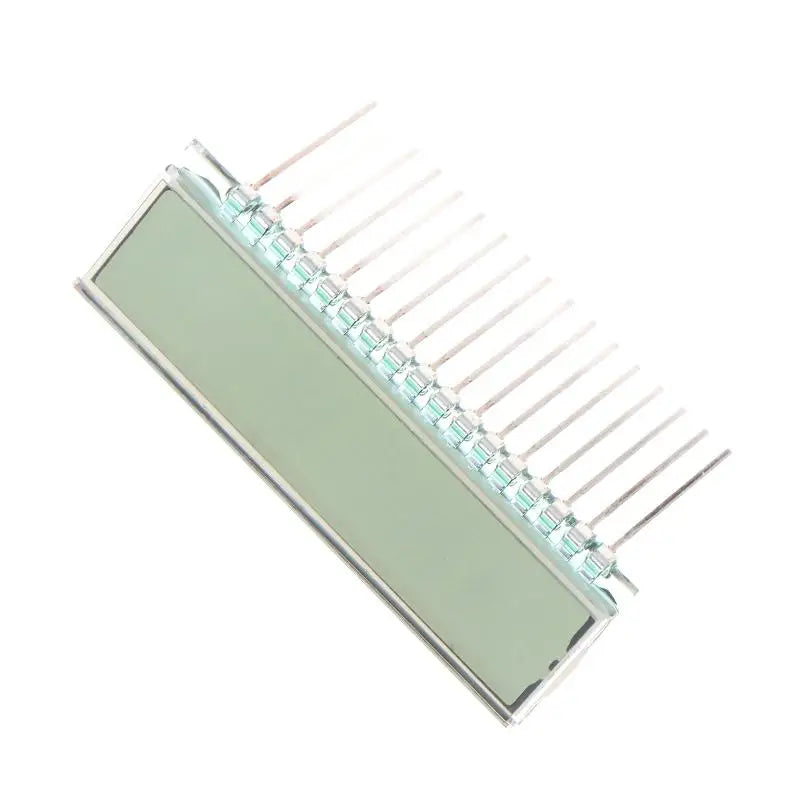

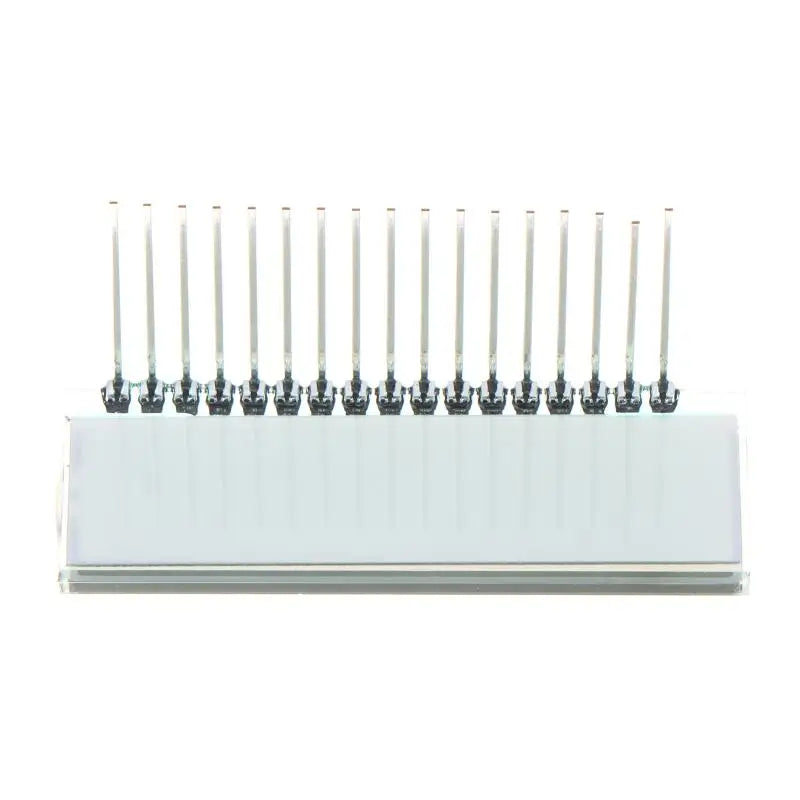

17-Pin TN Positive 6-Digit Segment LCD Display Panel — 3V, No Backlight
Upgrade your electronics projects with this compact, high-quality 17-Pin TN Positive 6-Digit 8-Character Segment LCD Panel. Operating at 3V without a backlight, this glass-and-metal display is ideal for embedded systems, DIY electronics, digital meters, counters, and custom instrument builds. Available in convenient packs of 1, 2, or 5 panels to suit any project scale. Made in Mainland China.
Key Specifications
- Type: TN Positive Segment LCD
- Pin Count: 17 Pins
- Display: 6-Digit, 8-Character Segment
- Operating Voltage: 3V
- Backlight: None
- Material: Glass + Metal

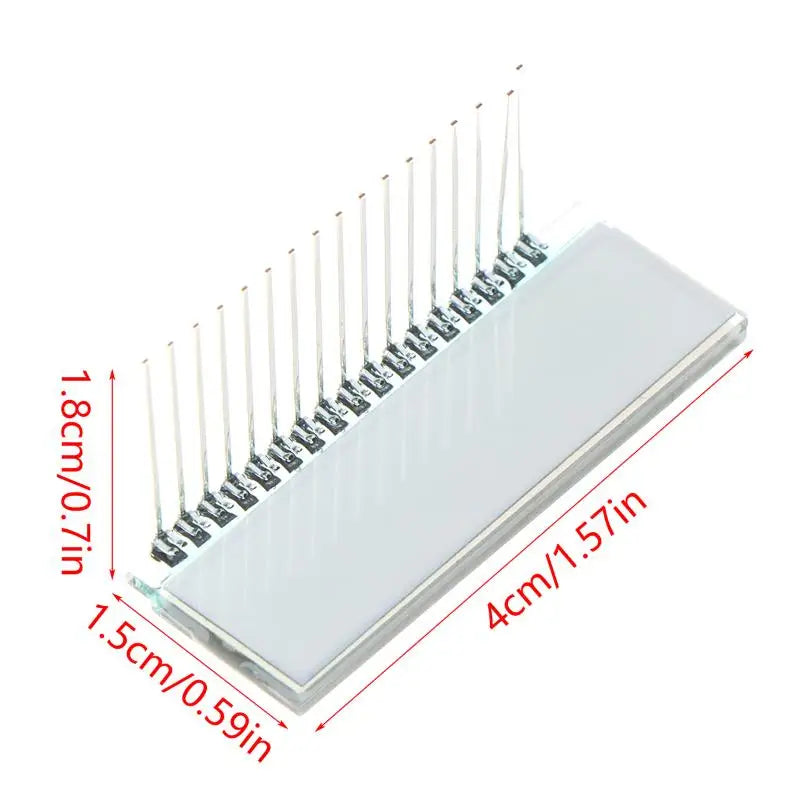

- Dimensions: 4 × 1.5 × 1.8 cm (1.57 × 0.59 × 0.70 in)
- Battery: Not included
- Pack Options: 1 PCS / 2 PCS / 5 PCS
Why Choose This LCD Panel?
- ✅ Compact & Lightweight — Easy to integrate into tight PCB layouts and enclosures
- ✅ 6-Digit Readout — Clearly displays numeric and segmented characters for meters, clocks, and counters
- ✅ Low-Voltage Operation — Runs efficiently at 3V, perfect for battery-powered or low-power designs
- ✅ No Backlight — Reduces power consumption, ideal for ambient-light or reflective display applications
- ✅ Durable Construction — Glass + metal build ensures reliability in embedded and hobbyist electronics projects
- ✅ Multi-Pack Value — Stock up with 1, 2, or 5 panels for prototyping, production runs, or replacements
What's in the Box
- 1, 2, or 5 × 17-Pin TN Segment LCD Panel (as selected)
Important Notes
- Product photos are for reference only and may not reflect exact size — please refer to the listed dimensions.
- Allow ±5–10 mm tolerance due to manual measurement.
- Actual color may vary slightly due to monitor settings and lighting conditions.
Explore More From Our Store
Looking for more tools and project essentials? Check out these popular picks:
- 10Pcs Wooden Handle Nylon Bristle Paint Brush — Hand Tool Set
- 1PC Precision Japanese Double-Edged Hand Saw — SK5 Steel, Portable Mini
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What is the operating voltage of this TN segment LCD panel?
A: This 17-Pin TN segment LCD panel operates at 3V, making it well-suited for low-power embedded systems, microcontroller projects, and battery-operated devices.
Q: Does this LCD panel come with a backlight?
A: No, this is a no-backlight TN positive LCD panel. It is designed for use in ambient or reflective lighting conditions and draws minimal power as a result.
Q: How many digits and characters can this LCD display show?
A: The panel features a 6-digit, 8-character segment layout, suitable for displaying numbers, time, counts, and other segmented numeric data in your electronic builds.
Q: What are the physical dimensions of each LCD panel?
A: Each panel measures approximately 4 × 1.5 × 1.8 cm (1.57 × 0.59 × 0.70 in). Please allow a ±5–10 mm tolerance due to manual measurement.
Q: Can I buy multiple panels at once?
A: Yes! This listing is available in packs of 1, 2, or 5 panels, so you can choose the quantity that best fits your project or production needs.
