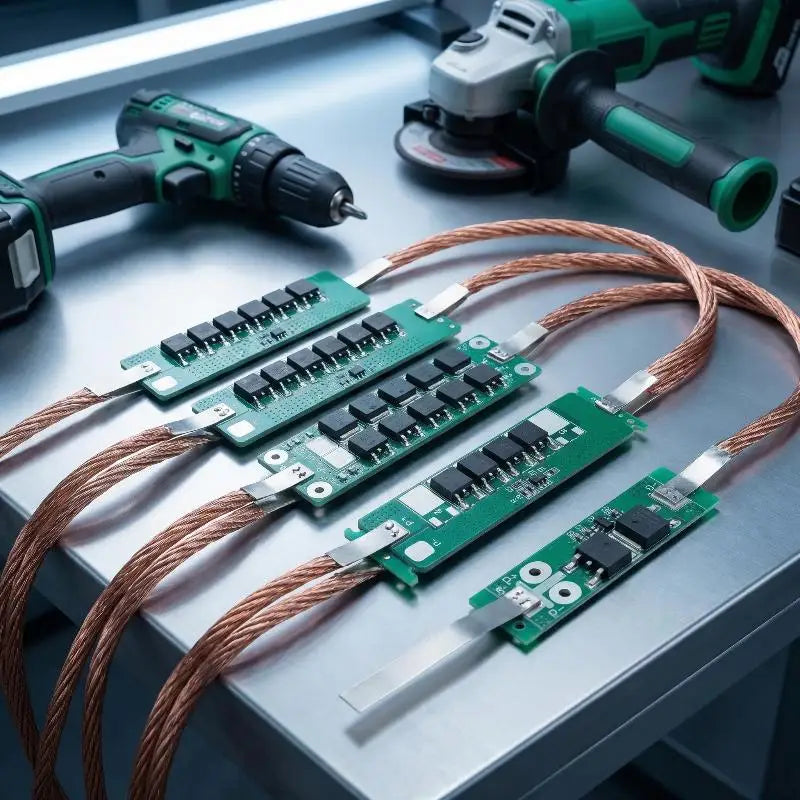

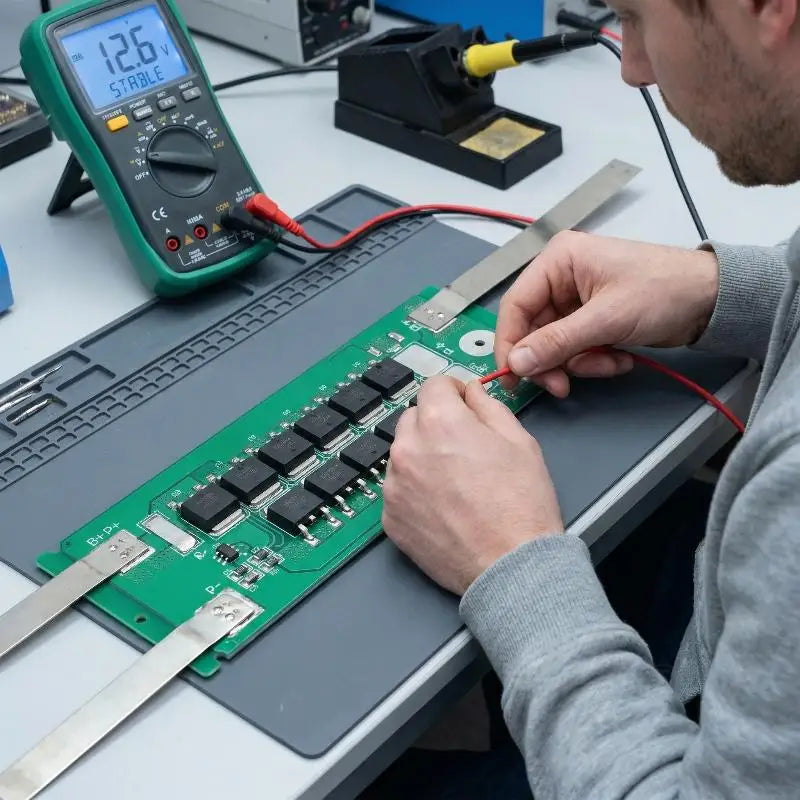

1S BMS Battery Protection Board — 3.2V / 3.7V Li-ion & LiPo, 5A to 25A
Keep your single-cell lithium battery pack running safely and efficiently with this versatile 1S Battery Management System (BMS) Protection Board. Compatible with 3.2V LiFePO4 and 3.7V Li-ion / LiPo cells, this compact PCM board actively guards against overcharge, over-discharge, overcurrent, and short-circuit events — making it an ideal solution for solar street lamps, DIY battery packs, e-bikes, power tools, and more.

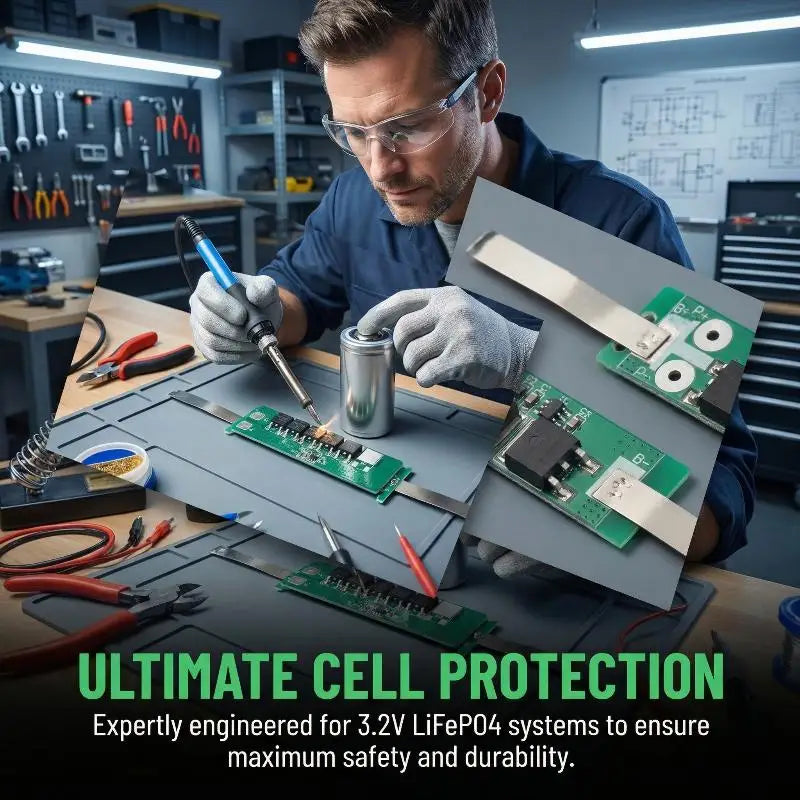

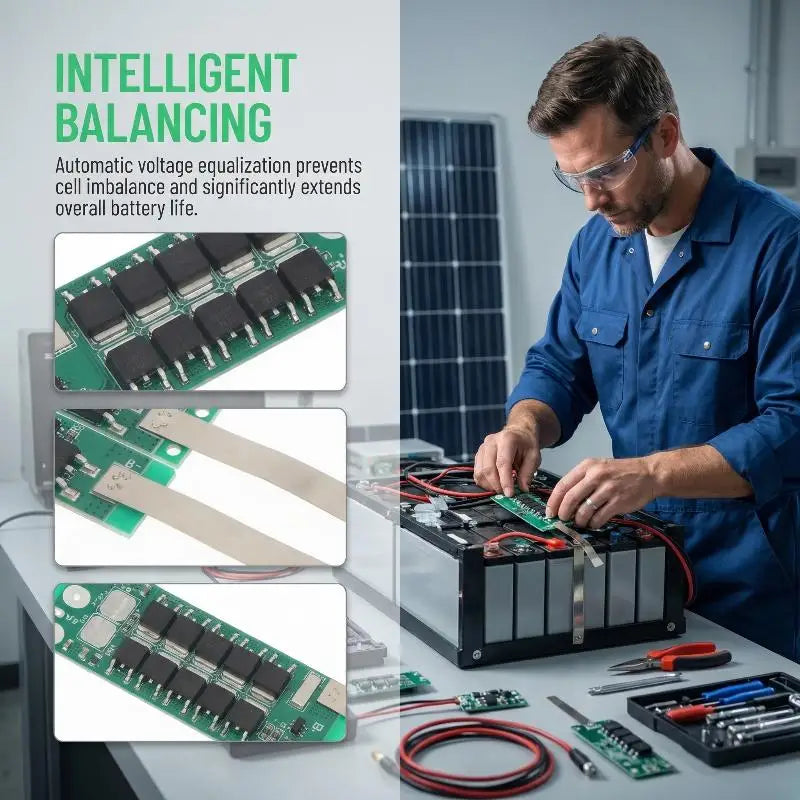

Key Features

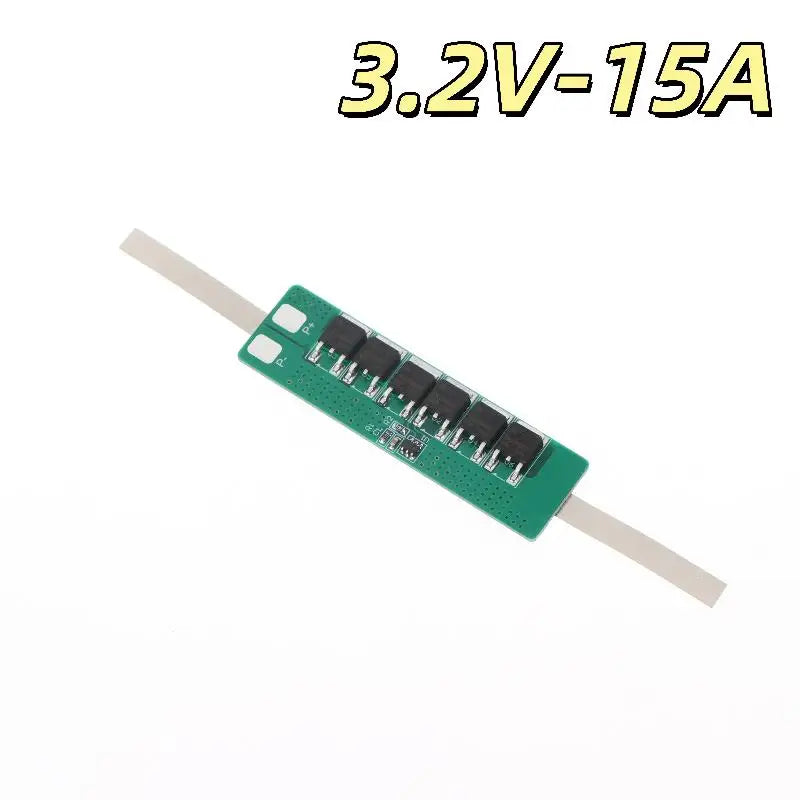

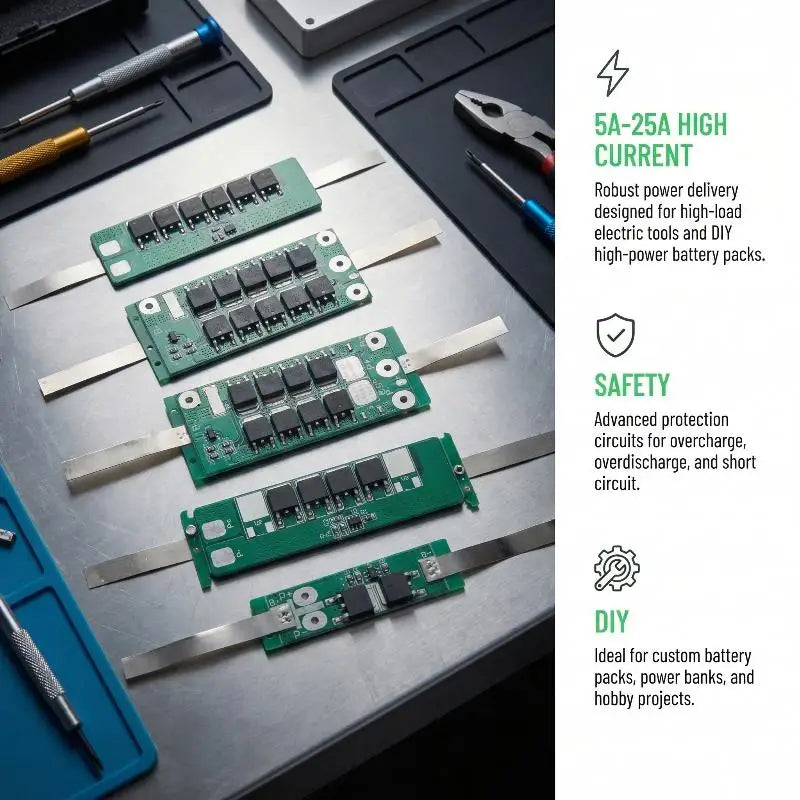

- Wide Current Range: Available in 5A, 10A, 15A, 20A, and 25A continuous discharge ratings to suit your specific application.
- Dual Cell Chemistry Support: Works with 3.2V LiFePO4 (LFP) and 3.7V Li-ion / LiPo single-cell configurations.
- Overcharge Protection: Cuts off charging at 3.6–3.75V (LFP) or 4.25V (Li-ion) with a detection delay of just 0.5–1 second.
- Over-Discharge Protection: Disconnects load at 2.0–2.3V (LFP) or 2.7V (Li-ion) to preserve long-term cell health.
- Overcurrent & Short-Circuit Protection: Rapid 12–40ms overcurrent detection and 250–300ms short-circuit detection keep both battery and load safe.
- Automatic Recovery: Overcurrent and short-circuit protection resets automatically or upon charger/load reconnection — no manual reset required.
- Ultra-Low Quiescent Current: ≤30µA in operating mode and ≤20µA in sleep mode for minimal idle drain.
- Low On-Resistance: ≤50mΩ (standard) / ≤20mΩ (high-current variants) for efficient power delivery.
- Durable Construction: Plastic + metal build measuring 110 × 40.5 mm for easy integration into battery enclosures.
Technical Specifications
| Supported Cell Types | Li-ion, LiPo (3.7V) / LiFePO4 (3.2V) |
| Continuous Discharge Current | 5A / 10A / 15A / 20A / 25A |
| Transient Discharge Current | 8–30A / 10–50A |
| Charging Voltage | 3.6–3.75±0.05V / 4.25±0.025V |
| Overcharge Detection Voltage | 3.6–3.75±0.05V / 4.25±0.025V |
| Over-Discharge Detection Voltage | 2.0–2.3±0.05V / 2.7±0.05V |
| Short-Circuit Detection Delay | 300ms / 250ms |
| Main Circuit Resistance | ≤50mΩ / ≤20mΩ |
| Operating Current | ≤30µA |
| Sleep Mode Current | ≤20µA |
| Board Size | 110 × 40.5 mm |
| Material | Plastic + Metal |
| Package Contents | 1× BMS Protection Board |

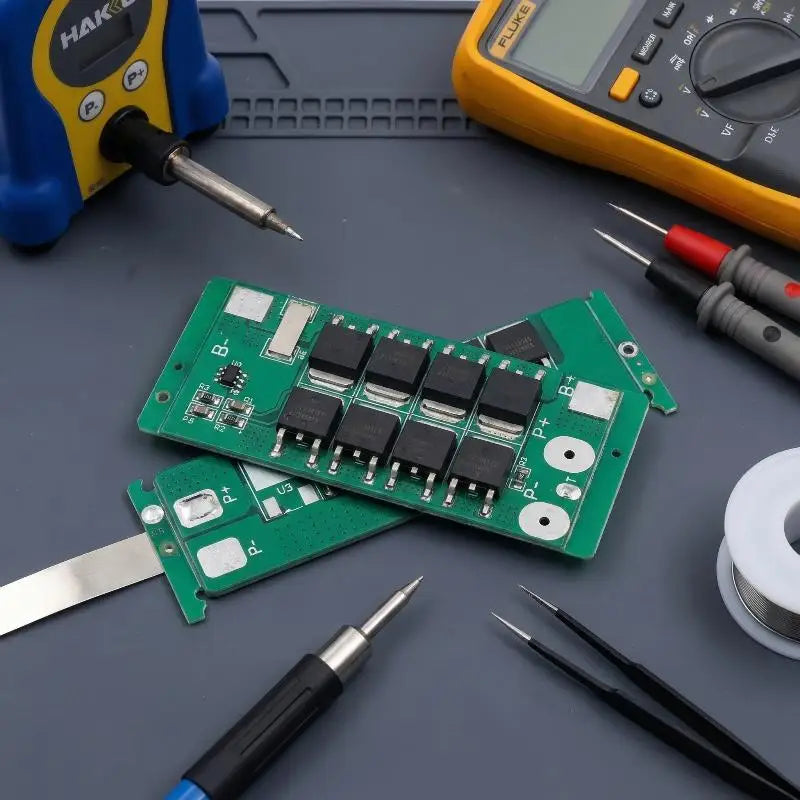

Wiring Guide
- B+ — Connect to the positive terminal of the battery cell
- B− — Connect to the negative terminal of the battery cell
- P+ — Output / Input positive terminal (charger & load)
- P− — Output / Input negative terminal (charger & load)
Made in Mainland China.
You May Also Like
- 10Pcs Wooden Handle Nylon Bristle Paint Brush — Hand Tool Set
- 1pc Precision Japanese Double-Edged Hand Saw — SK5 Steel, 6-Inch Blade
- 1pc Professional Heavy-Duty Pruning Shears with Anti-Slip Handle
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What battery chemistries is this 1S BMS protection board compatible with?
A: This BMS board supports both 3.7V Li-ion / LiPo single cells and 3.2V LiFePO4 (LFP) single cells. The overcharge, over-discharge, and charging voltage thresholds differ between the two chemistries, so be sure to select the correct current rating and voltage configuration for your specific battery type.
Q: How does the overcurrent and short-circuit protection recover?
A: The board features automatic recovery for both overcurrent and short-circuit events. Protection will reset either automatically after a fault clears, or by reconnecting the charger or disconnecting the load — no manual button or reset procedure is needed.
Q: Which current rating should I choose for my application?
A: Choose a continuous discharge current rating that meets or slightly exceeds your load's maximum draw. For example, a 10A motor load would be best paired with the 15A or 20A board to allow headroom for transient current spikes. Always check your application's peak current requirement before selecting a rating.
Q: Can this BMS board be used for solar street lamp applications?
A: Yes. This board is well-suited for solar street lamp charge and discharge management. It handles both the charging input from a solar controller and the discharge output to the LED load, while protecting the lithium cell from overcharge during daytime charging and over-discharge during nighttime operation.
