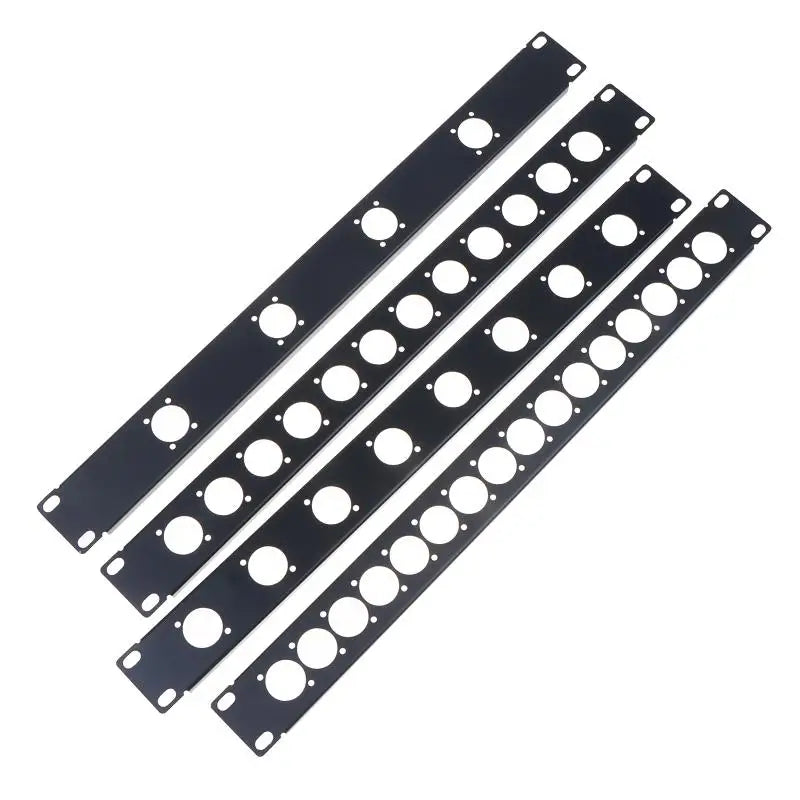

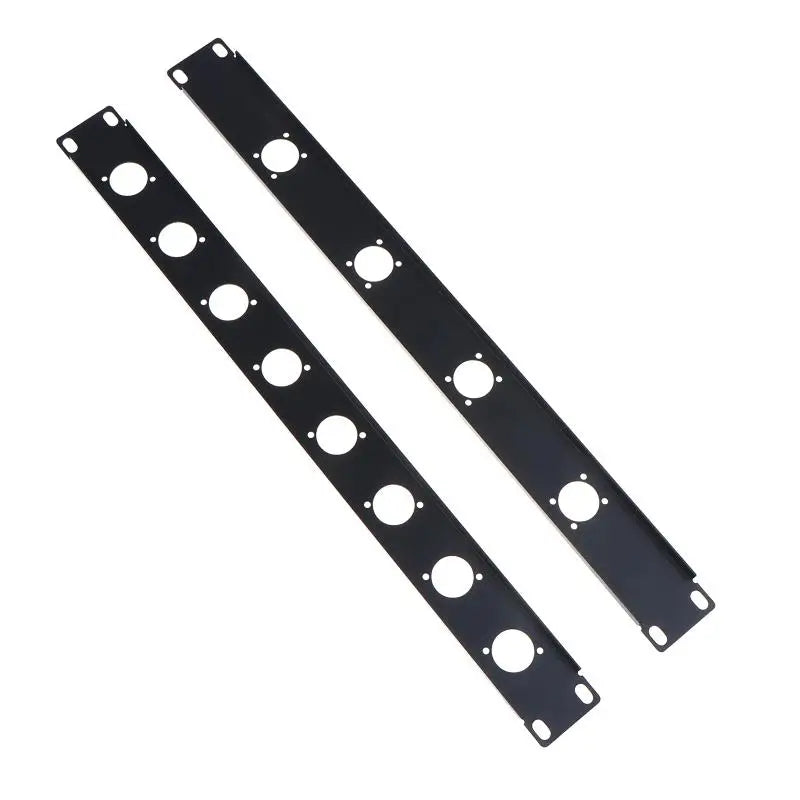

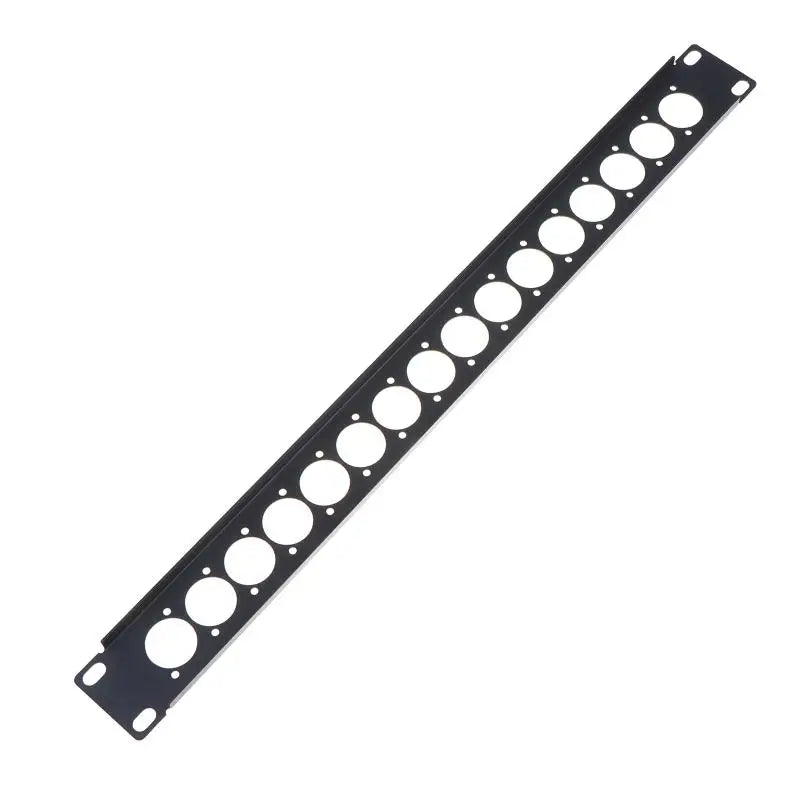

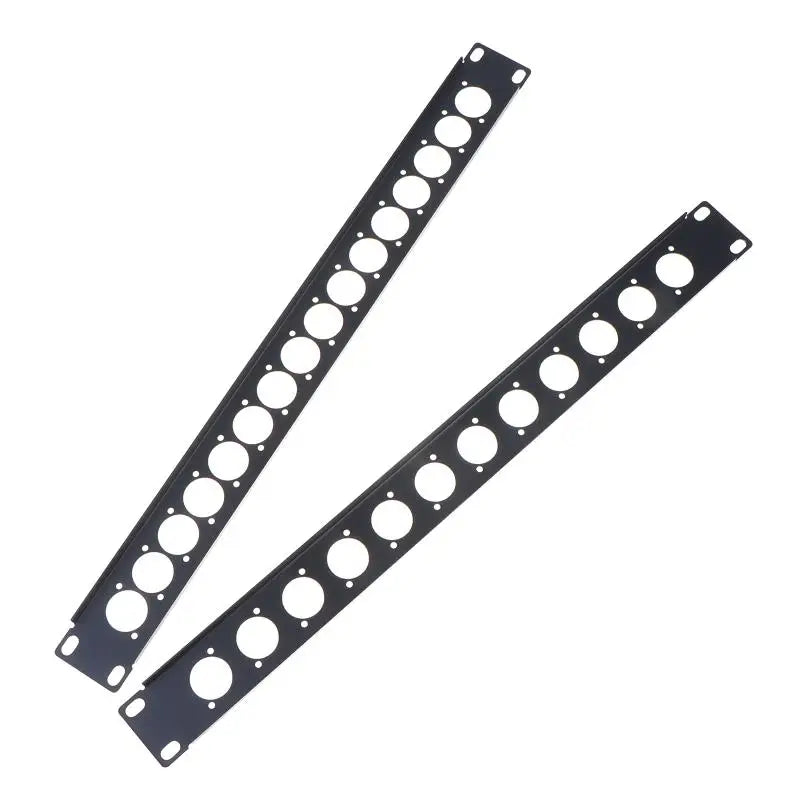

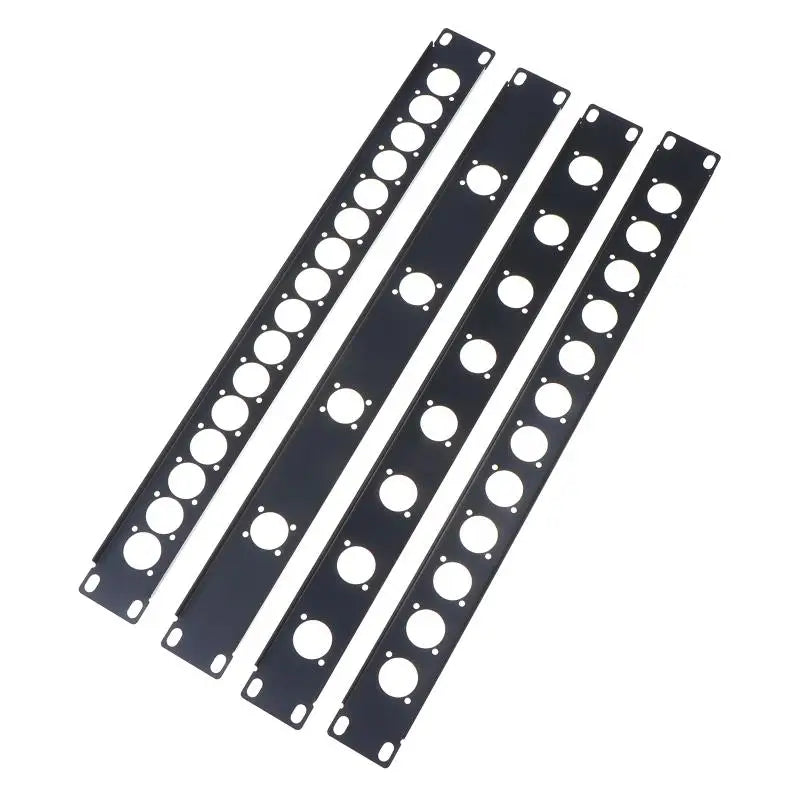

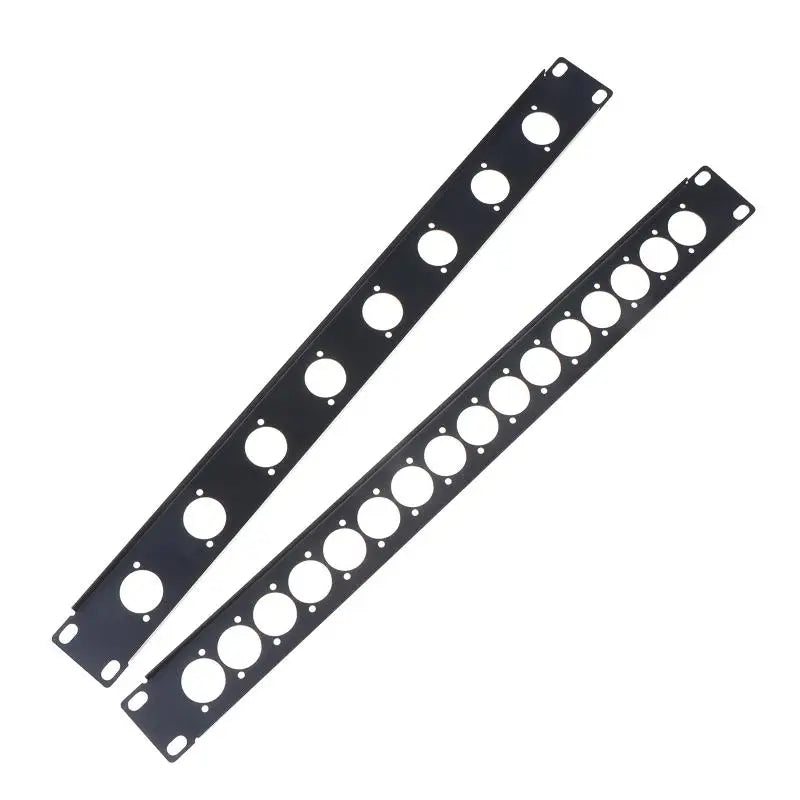

HUXUAN 1U Rack Patch Metal Panel – 4, 8, 12 & 16 Way XLR Connector Mount
Bring professional-grade organization to your studio, stage, or broadcast rack with the HUXUAN 1U Rack Patch Panel. Designed for 19-inch standard racks, this robust metal panel accommodates 4, 8, 12, or 16 XLR connector ports, making cable management clean, fast, and confusion-free. Made in Mainland China.
Key Features
- Clear Digital Port Labeling: Every port hole is printed with sequential numbers (e.g., 1–4, 1–8, 1–12, or 1–16) for instant identification — no more tracing cables under pressure during live shows or studio sessions.
- Detachable Jumper Rack Design: Removable sections behind the punch area let you install or swap connectors without dismounting the entire panel, drastically reducing reconfiguration time.
- Powder-Coated Metal Construction: The durable black powder-coat finish resists scratches, corrosion, and everyday wear, while also providing EMI shielding and solid mechanical protection for your connectors.
- Standard 19" Rack Compatible: Fits any standard 1U rack space (48.3 × 4.4 cm / 19.0 × 1.73 in), compatible with flight cases, rack cabinets, and studio furniture.
- Versatile Multi-Way Options: Choose from 4, 8, 12, or 16 channel configurations to perfectly match your cable routing needs.
Specifications
- Brand: HUXUAN
- Material: Metal (powder-coated)
- Dimensions: 48.3 × 4.4 cm (19.0 × 1.73 in)
- Color: Black
- Channel Options: 4 / 8 / 12 / 16 Way
- Connector Type: XLR / Speaker Jack
- Origin: Made in Mainland China
Ideal Applications
- Professional audio racks & studio furniture
- Live sound stage boxes & snake systems
- Broadcast & video production racks
- Custom patch bays & signal distribution setups
- DIY amplifier or speaker processor installations
- Flight case builds for touring musicians and AV technicians
Package Contents
- 1 × Punched Blind Panel
- Note: Mounting screws are not included.
Please Note: Product images may not reflect actual size — refer to specifications above. Minor measurement variations may occur. Monitor color calibration may affect perceived color.
You May Also Like
- 10Pcs Wooden Handle Nylon Bristle Paint Brush – Hand Tool Set
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel, Portable Mini
- 1pc Professional Heavy-Duty Pruning Shears with Anti-Slip Handle
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What rack size does this XLR patch panel fit?
A: This panel is a standard 1U size measuring 48.3 × 4.4 cm (19.0 × 1.73 in), designed to fit any 19-inch rack enclosure, flight case, or studio rack cabinet.
Q: Does the patch panel come with mounting screws?
A: No, mounting screws are not included in the package. You will need standard rack-mount screws (M6 or 10-32, depending on your rack) to secure the panel.
Q: Can I install XLR connectors myself, or do they come pre-installed?
A: This panel ships as a punched blank — the XLR connectors are not pre-installed. The detachable jumper rack design makes it easy to fit your own XLR or speaker jack connectors without removing the entire panel from the rack.
Q: Is this panel compatible with flight cases?
A: Yes! The standard 1U 19-inch form factor makes it fully compatible with flight cases, portable stage racks, and fixed studio rack furniture.
