2-Row Ball Bearing Cam Cleat with Stainless Steel 316 Leading Ring
Take control of your sailing lines with this high-performance composite 2-row ball bearing cam cleat. Engineered for sailors, boat owners, and marine enthusiasts, this cam cleat delivers smooth, reliable line management with a flared fast-entry design and a durable stainless steel 316 leading ring. Compact and lightweight, it handles ropes from 3–12 mm with a maximum working load of 300 kg — making it a dependable choice for halyards, sheets, control lines, and more.
Made in Mainland China.
Key Features
- 2-Row Ball Bearing System — Smooth cam action for effortless line engagement and release, even under load.
- Stainless Steel 316 Leading Ring — Corrosion-resistant ring guides your rope precisely into the cleat for consistent performance in marine environments.
- Progressive Cam Tooth Design — Maximises holding power across all line types while minimising wear on both the cam and your rope.
- Flared Entry — Allows fast, easy line engagement and quick release — ideal for high-pressure sailing moments.
- Lightweight Composite Body — Small footprint, excellent wear-resistance, and built to handle demanding conditions.
- Easy Disassembly — Tool-friendly design for straightforward maintenance and cleaning.
Technical Specifications

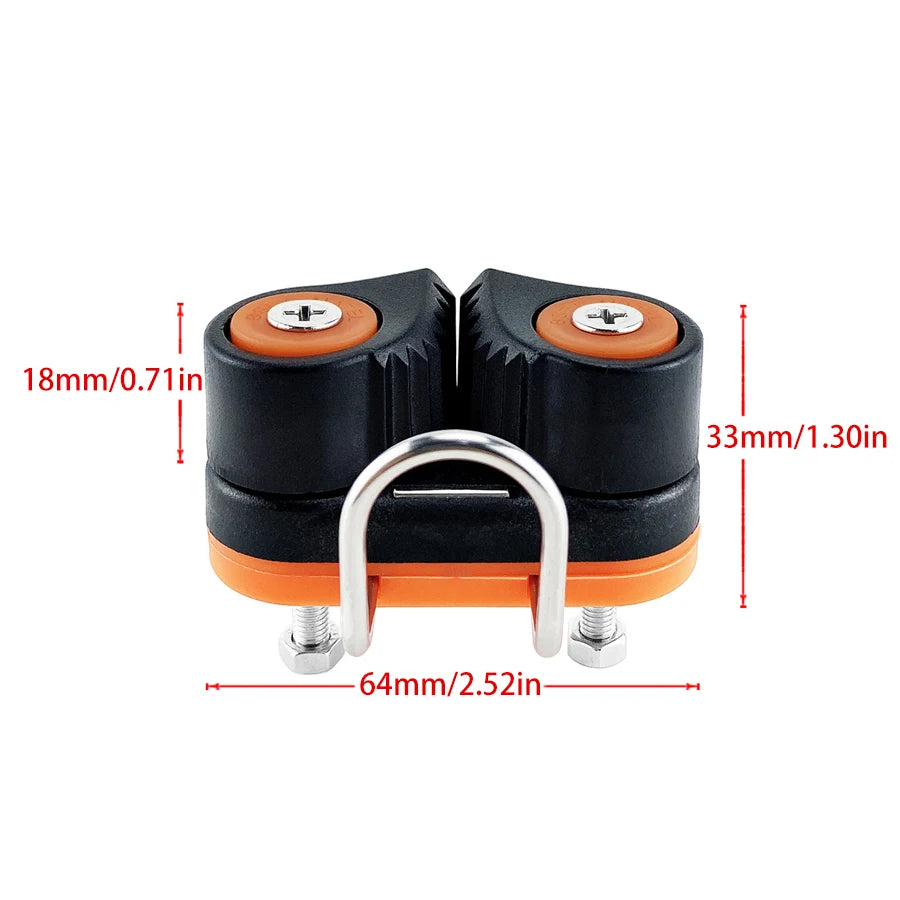

- Width: 64 mm
- Height: 33 mm
- Center-to-Center Hole Spacing: 38 mm

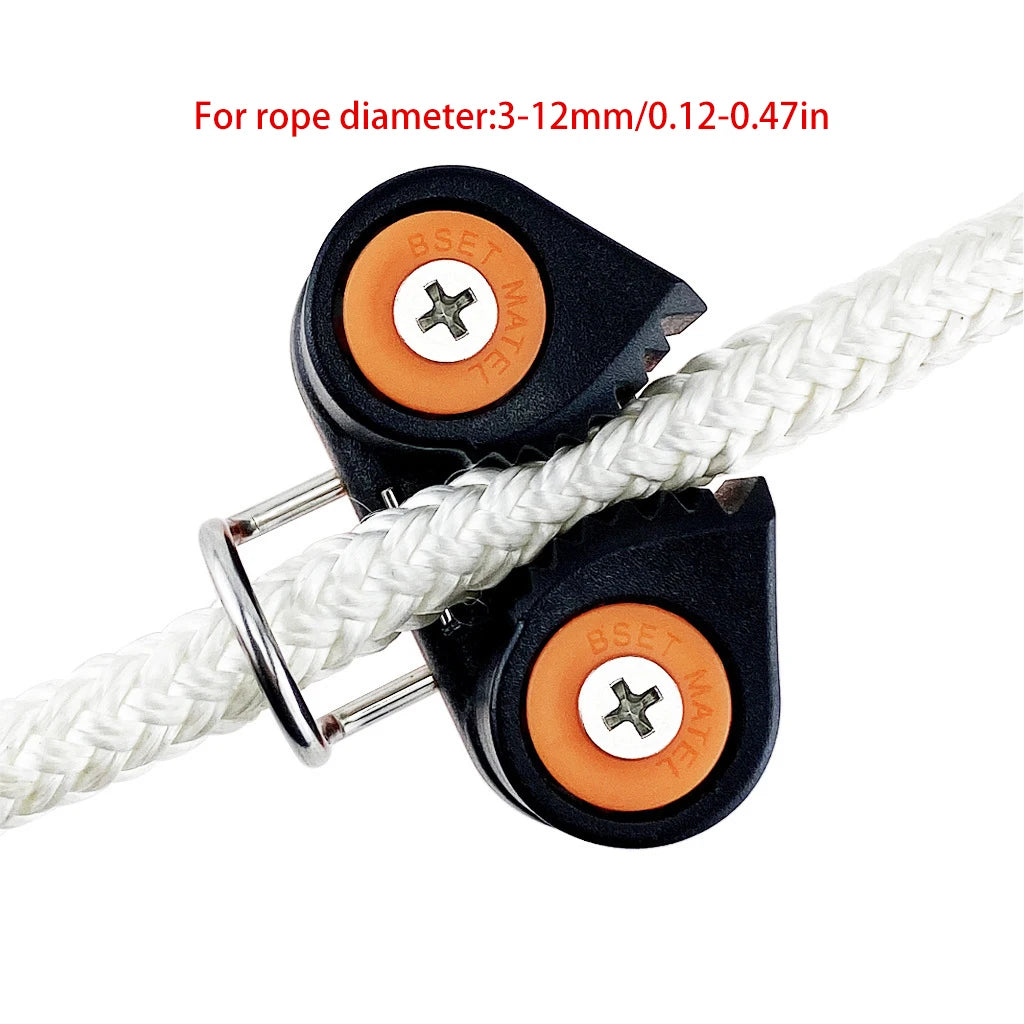

- Compatible Rope Diameter: 3–12 mm
- Max. Working Load: 300 kg
- Breaking Load: 900 kg
- Leading Ring Material: Stainless Steel 316
Ideal For
- Sailboats, dinghies, and keelboats
- Halyards, sheets, and control lines
- Rope wire fairlead applications
- Any deck hardware setup requiring reliable, fast-action rope management
You Might Also Like
Looking for more practical tools and accessories? Check out these popular items in our store:
- 1pc Precision Japanese Double-Edged Hand Saw - SK5 Steel, Fine-Toothed for Carpentry and Gardening
- 1pc Professional Heavy-Duty Pruning Shears with Anti-Slip Handle Design
- 1pc Stainless Steel Gardening Shovel for Soil Turning and Weed Removal
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What rope sizes are compatible with this cam cleat?
A: This ball bearing cam cleat is designed to accommodate rope diameters from 3 mm up to 12 mm, making it versatile enough for most standard sailing lines, halyards, and sheets.
Q: What is the maximum working load of this cam cleat?
A: The maximum working load is 300 kg, with a breaking load of 900 kg. This makes it suitable for a wide range of sailing and marine line management applications.
Q: Is the leading ring corrosion-resistant for saltwater use?
A: Yes. The leading ring is made from Stainless Steel 316, which is specifically chosen for its superior corrosion resistance in saltwater and marine environments, ensuring long-lasting durability.
Q: How is this cam cleat mounted to the boat?
A: The cleat features a center-to-center hole spacing of 38 mm, allowing straightforward bolted installation onto standard deck surfaces. It is compatible with most marine hardware mounting setups.
