30A AC Current Sensing Switch Sensor – Induction Relay Switch

AAAEL-M3050 30A AC Current Sensing Switch – Reliable Induction Relay for PLC & Automation

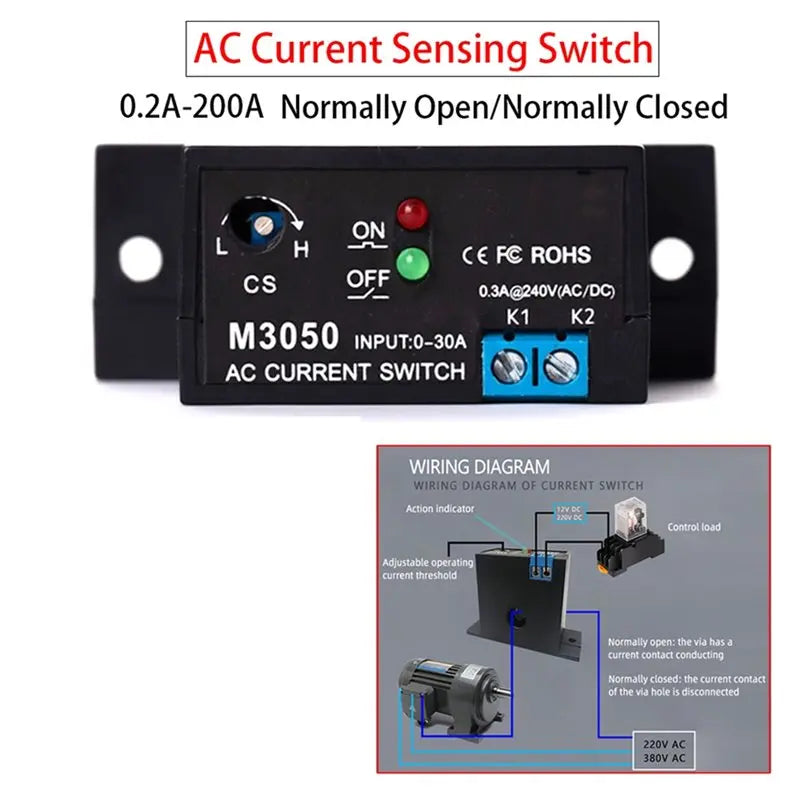

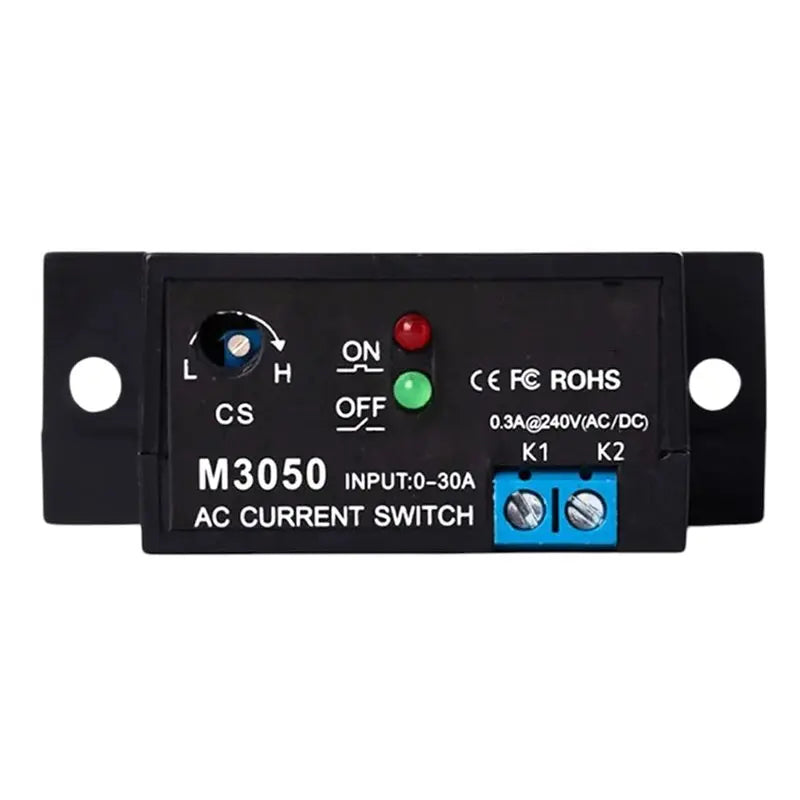

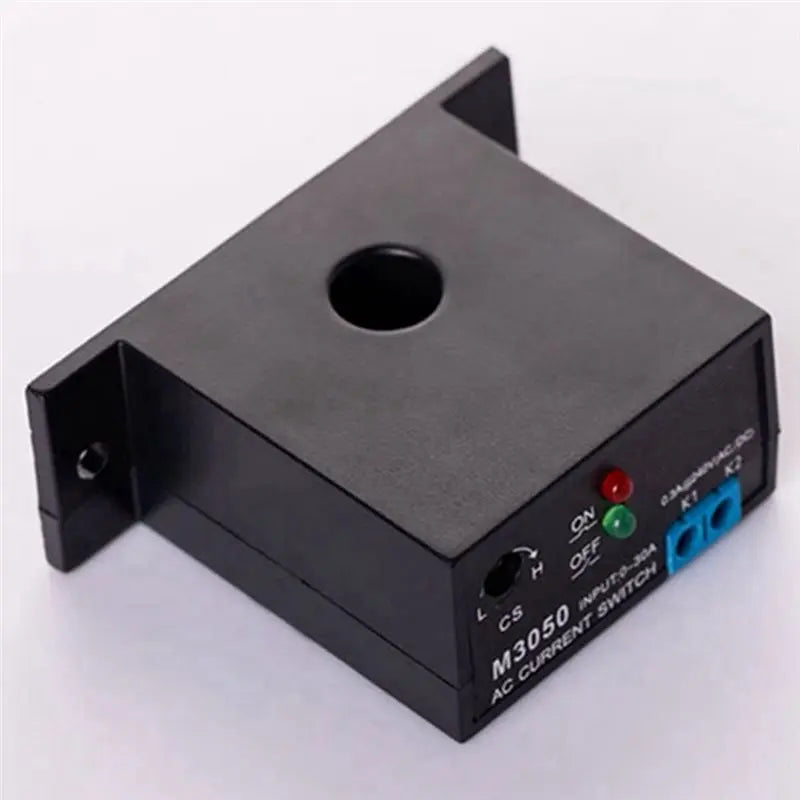

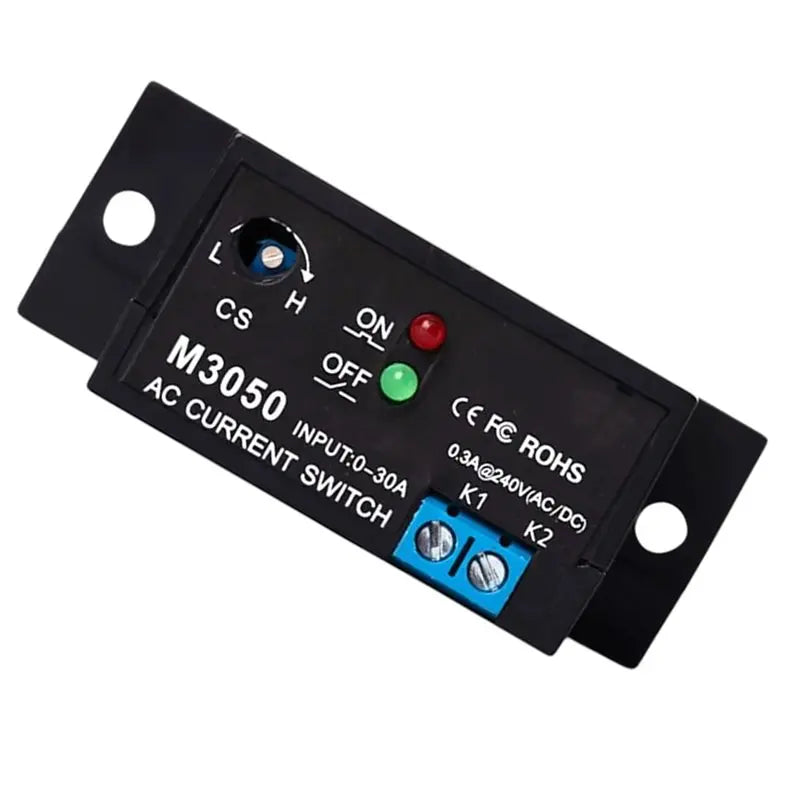

The AAAEL-M3050 AC Current Sensing Switch delivers precise, non-contact detection and control of AC currents from 0.2A to 30A. Operating on the principle of mutual induction, this compact relay switch outputs a configurable switch signal — normally open (N.O.) or normally closed (N.C.) — making it an ideal solution for PLC signal monitoring, over-limit detection, and automated current control applications. Made in Mainland China.

Key Features

• Mutual Induction Technology: Accurate, non-invasive AC current detection without direct contact with the monitored conductor.

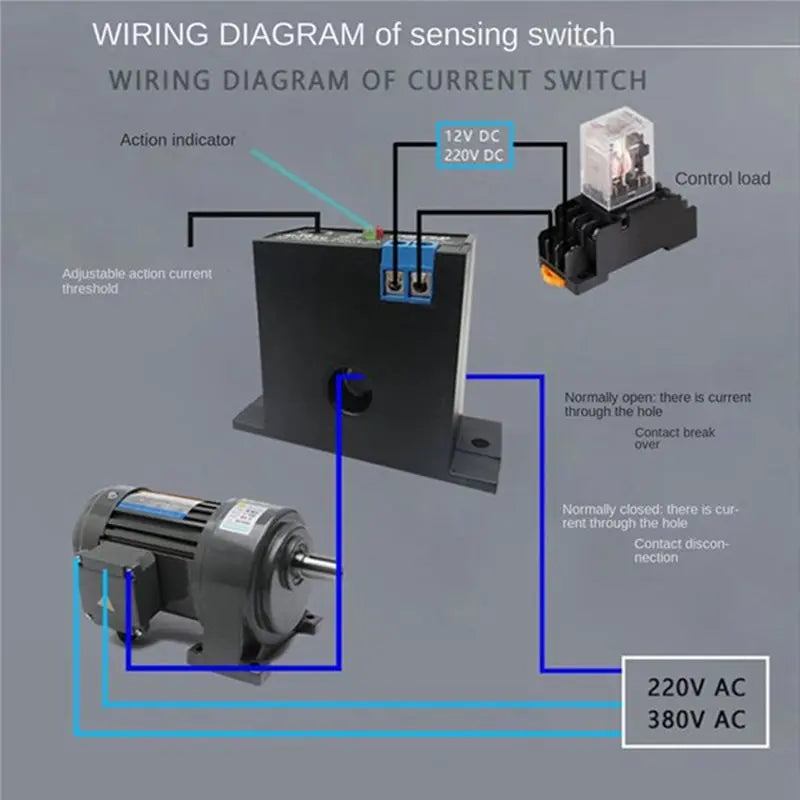

• Configurable Output: Switch signal can be set to normally open (N.O.) or normally closed (N.C.) to suit your application wiring requirements.
• LED Status Indicator: Built-in LED provides real-time visual feedback of the device's operating state.
• Durable ABS Housing: Heat-resistant ABS plastic construction ensures long-term reliability and enhanced safety in demanding environments.
• Wide Monitoring Range: Detects AC currents from 0.2A to 30A with a fast response time of less than 200ms.

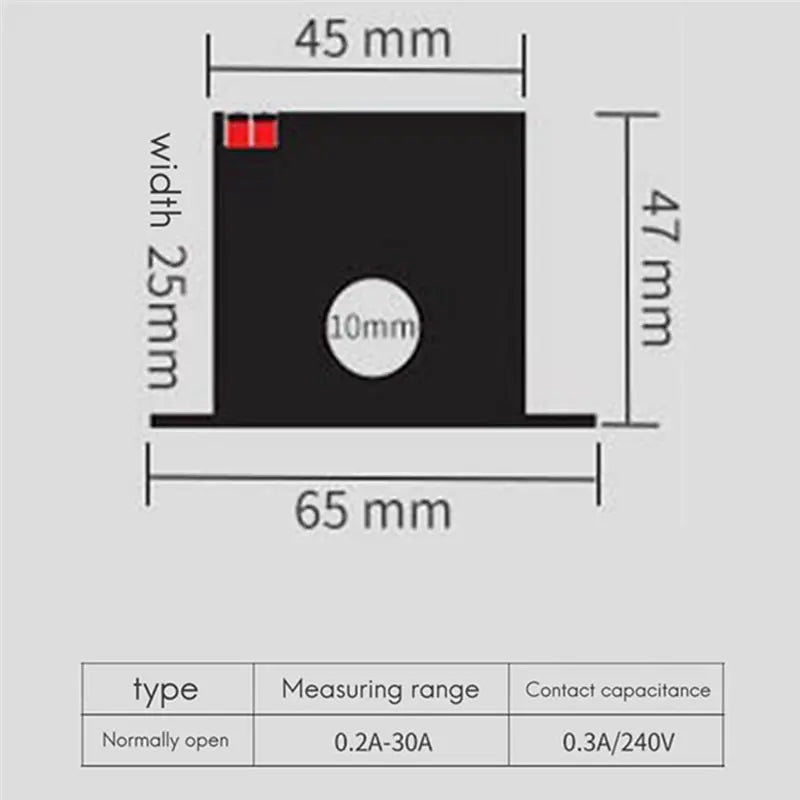

• Compact & Versatile: Measures just 65×47×25mm, fitting neatly into control panels and automation setups.
• Wide Operating Temperature: Performs reliably from -20°C to 55°C (-4°F to 131°F).
• Superior to Traditional Protectors: Outperforms conventional transformers and thermal protectors by isolating the current and providing a clean switch signal output.

Specifications

Package Contents

• 1 × M3050 Current Sensing Switch Sensor

Note: Only the above package content is included. Other products shown are not included. Due to light reflection and display differences, the item's color may appear slightly different from photos. Measurement tolerance: ±1–3cm.

You May Also Like

• 10Pcs Wooden Handle Nylon Bristle Brush Set – Hand Tool Set
• 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel, Portable Mini
• 1pc Professional Heavy-Duty Pruning Shears with Anti-Slip Handle

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the current sensing range of the AAAEL-M3050 current sensing switch?

A: The AAAEL-M3050 AC current sensing switch monitors AC currents in the range of 0.2A to 30A, making it suitable for a wide variety of low-to-mid power electrical monitoring and control applications.

Q: Can the output signal of this current sensing switch be configured for both N.O. and N.C. operation?

A: Yes. The output switch signal of the M3050 can be configured as either normally open (N.O.) or normally closed (N.C.), providing flexibility to match different PLC and automation circuit requirements.

Q: How fast does the current sensing switch respond to a change in AC current?

A: The device features a response time of less than 200ms, ensuring prompt signal output when the monitored current crosses the set threshold — ideal for time-sensitive automation and monitoring systems.

Q: Is this current sensing switch suitable for use in industrial control panels?

A: Absolutely. With its compact 65×47×25mm footprint, durable heat-resistant ABS housing, and wide operating temperature range of -20°C to 55°C, the M3050 is well-suited for installation in control panels, PLC cabinets, and various industrial automation environments.
