4-in-1 Multi-Frequency Remote Duplicator 286–868MHz Rolling Code
4-in-1 Multi-Frequency Remote Duplicator 286–868MHz Rolling Code
4-in-1 Multi-Frequency Garage Door & Gate Remote Duplicator
Tired of losing or replacing expensive garage door and gate remote controls? The XM-1810 Multi-Frequency Duplicator is your all-in-one solution for cloning existing remote key fobs quickly and easily — no programming expertise required. With a wide operating range of 286–868MHz, this handheld transmitter is compatible with the vast majority of rolling code and fixed code garage door openers, gate controllers, and access systems.
Built with a durable ABS + zinc alloy shell, this compact transmitter (60×30×13mm) is designed to handle everyday use while staying lightweight and pocket-friendly. Whether you need a backup remote or want to consolidate multiple remotes into one, the XM-1810 makes it simple.
Made in China.
Key Features

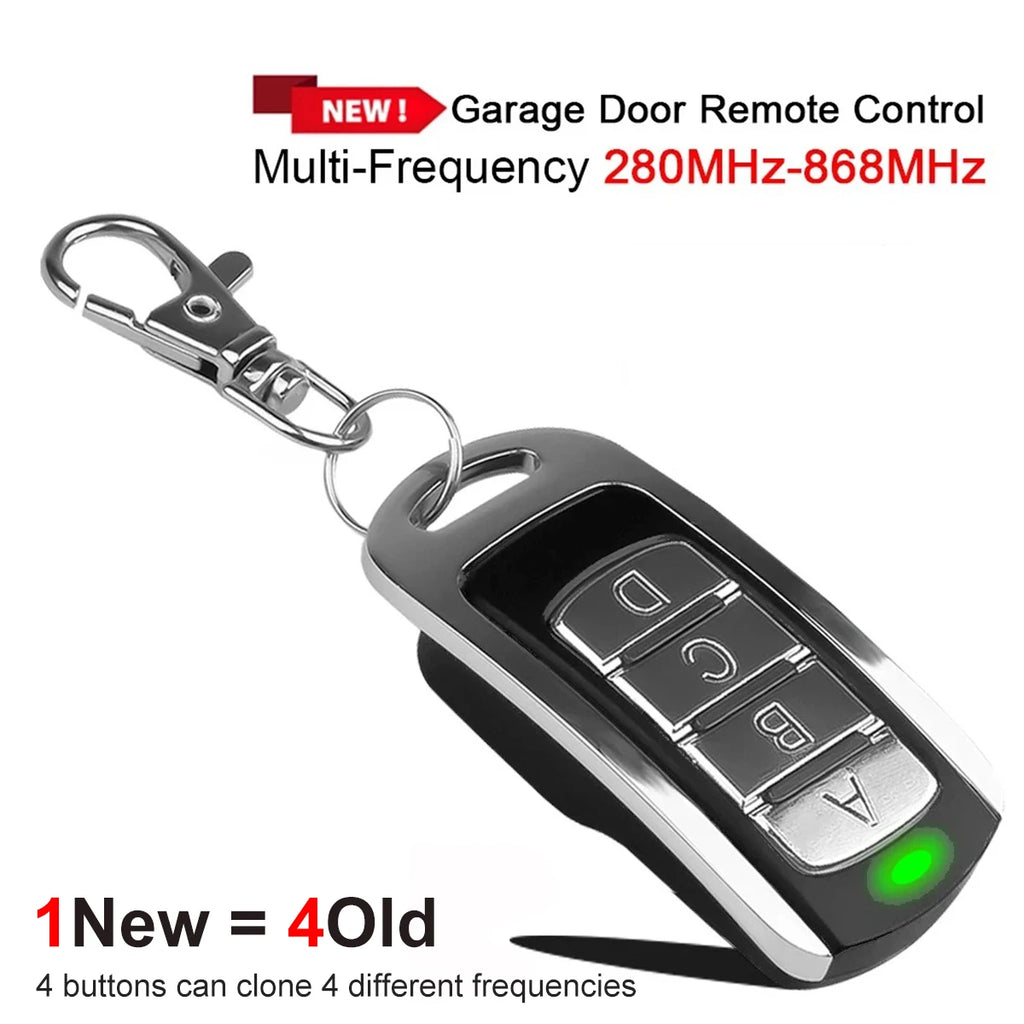

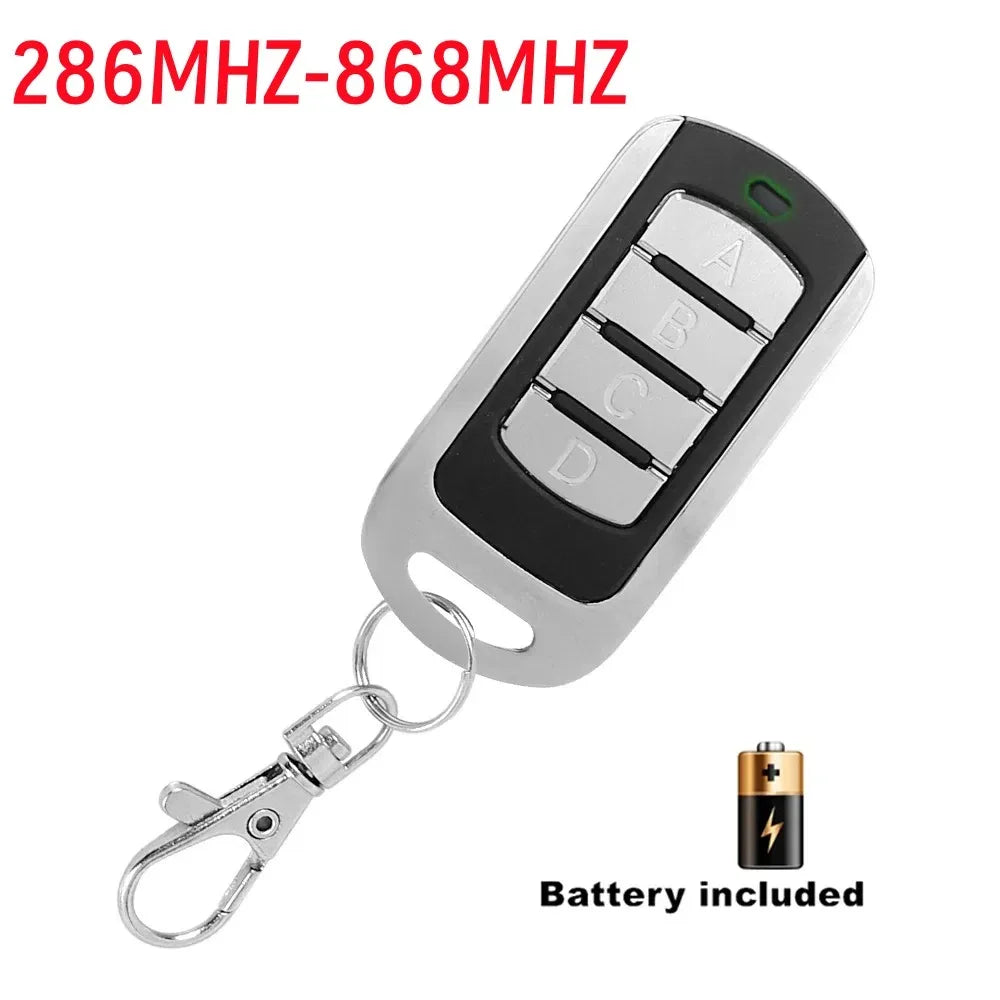

- 4-in-1 Multi-Frequency: Covers 286–868MHz including 433MHz and 868.35MHz — works with a broad range of gate and garage door systems
- Rolling Code & Fixed Code Support: Compatible with popular encoding chips including 2260, 2262, PT2264, 1527, HCS300, HCS200, HT600, HT680, and many more
- Easy One-Step Cloning: Simply hold your original remote next to the duplicator, press the copy button, and the LED indicator confirms a successful copy in seconds
- Code Clear & Recovery: Easily wipe stored codes and restore previously saved codes using simple button combinations
- Low Power Consumption: Static current under 0.15µA — powered by two CR2016 button cell batteries for long-lasting use
- ASK Modulation: Reliable signal transmission with 3–6dBm transmitting power

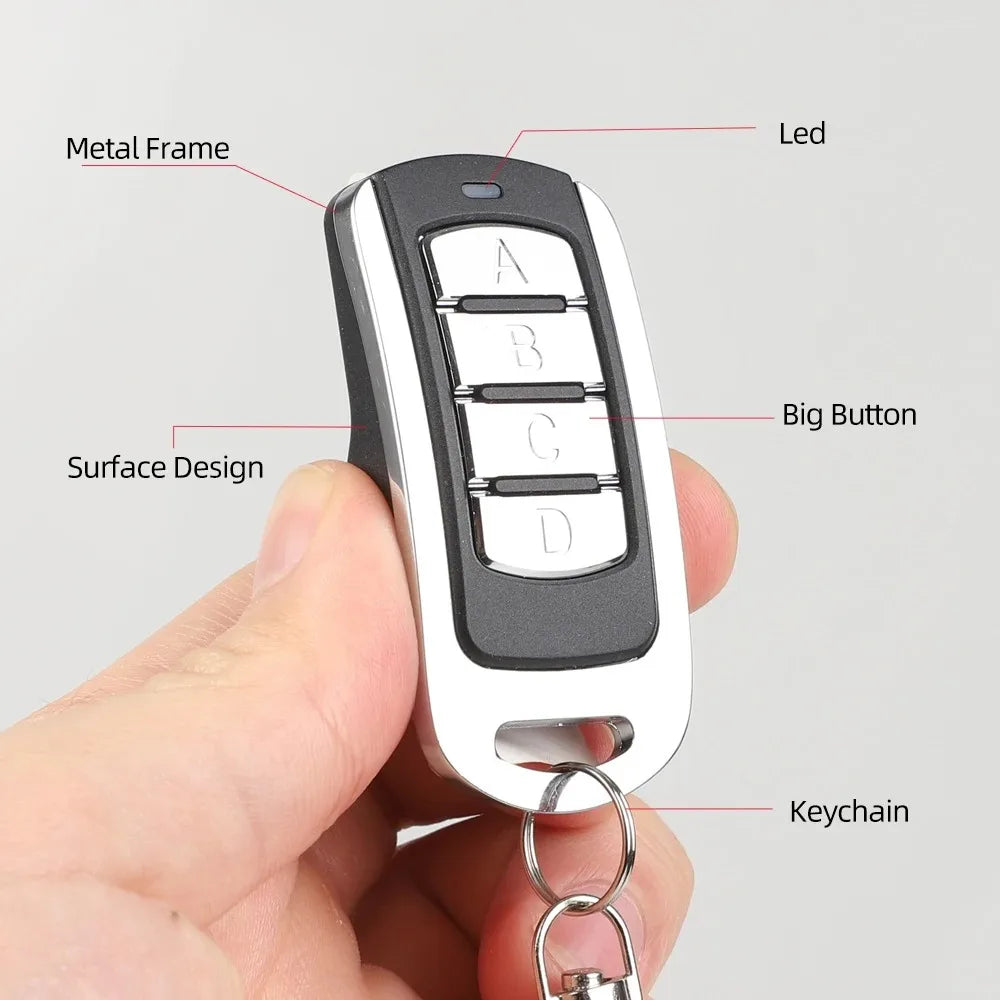

- Compact & Portable: Slim, handheld form factor fits easily on a keychain or in a pocket
Technical Specifications
| Model | XM-1810 |
| Working Frequency | 286–868MHz (Multi-Frequency) |
| Transmitting Power | 3–6dBm |
| Modulation Mode | ASK |
| Working Voltage | DC 6V |
| Emission Current | ≤21mA |
| Static Current | <0.15µA |
| Shell Material | ABS + Zinc Alloy |
| Battery | CR2016 Button Cell × 2 |
| Dimensions | 60 × 30 × 13mm |
Compatible Chips
2260, 2262, PT2264, 5326, SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6041, SMC918 series, 527, 1527, 2240, HCS101, HCS200/HCS201 (partial code), HCS300/SCH3001 (partial code), and select single-chip microcomputer types.
How to Copy a Remote
- Hold your original remote and the XM-1810 duplicator as close together as possible (ideally side-by-side on a flat surface).
- Press and hold the corresponding copy button on the duplicator.
- When the LED flashes quickly after three initial flashes, the copy is complete.
- If the copy fails, clear the code first and try again — make sure your original remote is working and its frequency matches the duplicator's range.
How to Clear Stored Codes
Press buttons A and B simultaneously. After the LED flashes three times, release one button while holding the other, then press the released button three more times. The LED will enter fast-flash mode to confirm all memory has been cleared.
How to Recover Cleared Codes
Press and hold both A and B buttons simultaneously until the LED flashes rapidly — your previously cleared code will be restored.
Looking for more smart home and automotive accessories? Check out our Crystal Car Interior Decoration Pendant or browse our High-End Car Fragrance Pendant for stylish vehicle upgrades.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Which garage door and gate systems is this multi-frequency duplicator compatible with?
A: The XM-1810 multi-frequency duplicator works with most garage door openers and gate controllers operating between 286–868MHz, including popular 433MHz and 868.35MHz systems. It supports a wide range of rolling code and fixed code chips such as PT2264, HCS300, HCS200, 1527, and many more. Check that your original remote operates within this frequency range before purchasing.
Q: Do I need any special tools or technical knowledge to copy my remote?
A: No special tools or technical skills are needed. Simply place your original remote next to the duplicator, press the copy button, and wait for the LED confirmation flash. The entire process takes just seconds and requires no wiring or programming.
Q: What batteries does the XM-1810 remote duplicator use?
A: The duplicator is powered by two CR2016 button cell batteries (DC 6V). The ultra-low static current of less than 0.15µA ensures long battery life even with regular use.
Q: Can I store codes from multiple remotes on the duplicator?

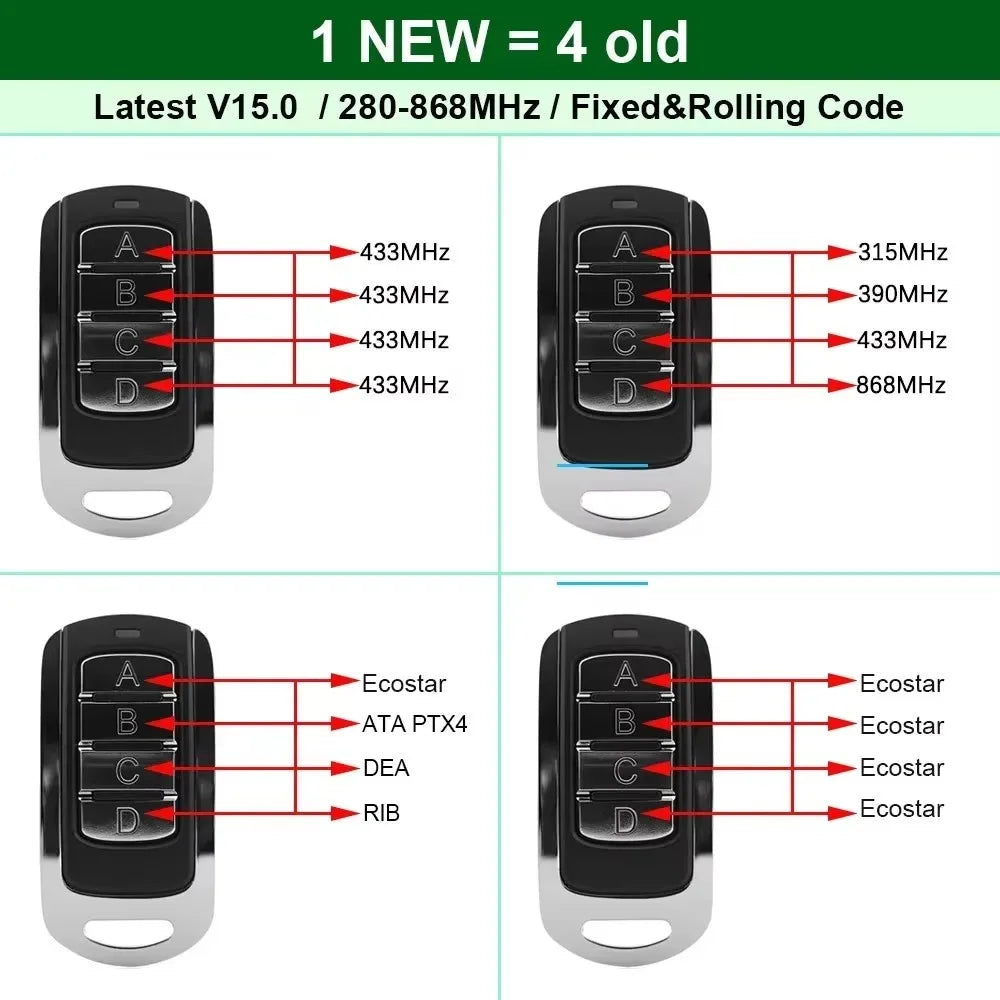

A: Yes, the XM-1810 features a 4-button design, allowing you to copy and store codes from up to four different remotes or channels. You can also clear all stored codes at once and restore them using the built-in code recovery function.
