433MHz RF Cloning Remote Control – Garage & Gate Key Duplicator

Easily duplicate your existing garage door, gate, or alarm remote control with this 433MHz RF Cloning Remote Transmitter. Featuring a straightforward copy process, this wireless key duplicator lets you create a fully functional backup remote in minutes — no programming equipment required. Compatible with a wide range of fixed-code and learn-code chips, it's an ideal home security accessory for any property owner.

Made in Mainland China.

Key Features

• 433MHz RF Frequency: Broad compatibility with most garage doors, electric gates, road barriers, and alarm systems operating on 433MHz.
• Wide Cloning Compatibility: Supports fixed-code and learn-code chips including PT2262, EV1527, HT12D, PIC16F629, and many more (see full chip list below).
• Long Wireless Range: Transmits up to 50–150 metres in open space for reliable, convenient control.
• 4-Button Design: Clone up to four separate functions from your original remote onto a single duplicator.
• LED Indicator: Clear visual feedback at every step — clearing, copying, and restoring codes is intuitive and straightforward.
• Restore Function: Accidentally cleared a code? The built-in restore feature brings it back instantly.
• Battery Included: Powered by a 12V 27A battery (included) — ready to use right out of the box.
• CE Certified: Meets CE safety and electromagnetic compatibility standards.
• Durable Plastic Housing: Lightweight yet sturdy for everyday carry.

Specifications

• Frequency: 433MHz
• Material: Plastic
• Transmission Distance: 50–150 m (open space)
• Battery: 12V 27A (included)
• Certification: CE
• Type: Wireless RF Remote Duplicator/Transmitter

Compatible Applications

This remote duplicator works with electric telescopic doors, road/parking gate barriers, alarm systems, and other 433MHz access-control devices.

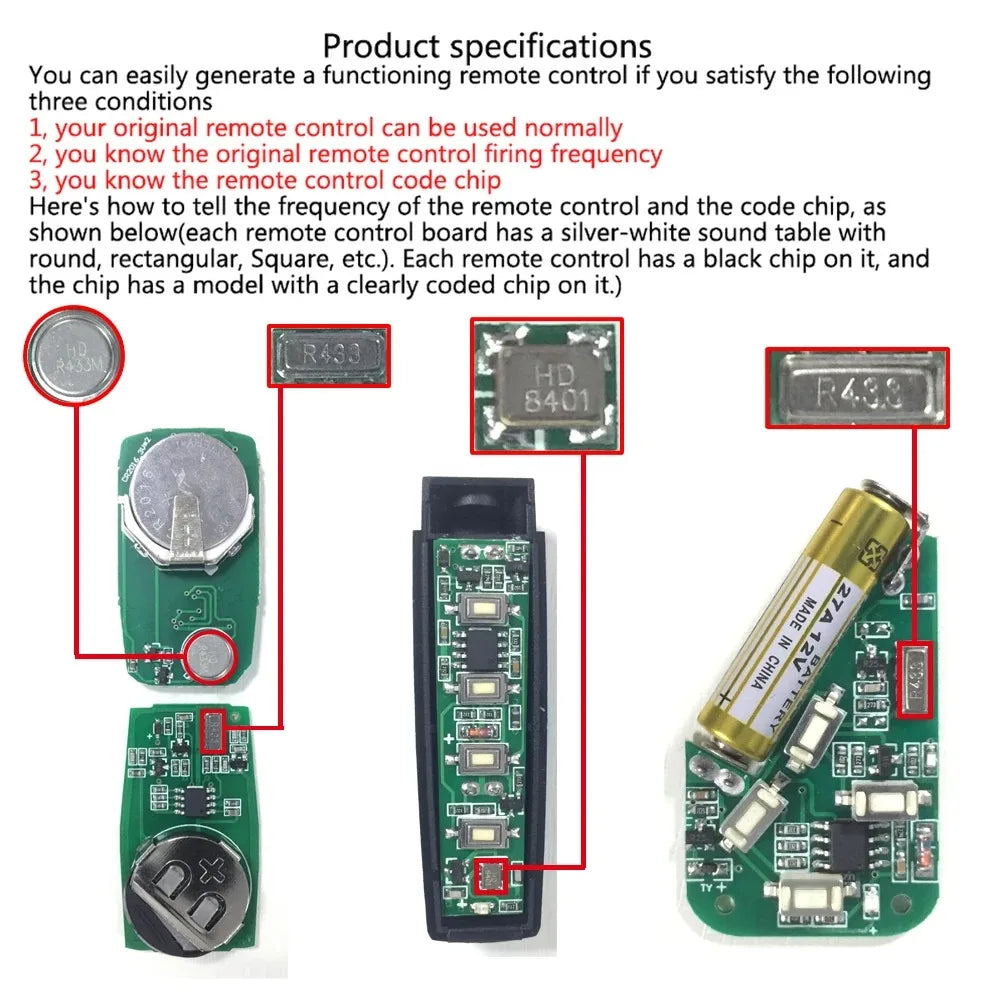

Supported Cloning Chip Types

PT2260, SC2260, LX2260, HX2260, PT2262, SC2262, LX2262, HS2262, HX2262, PT2264, PT2240 (LX2240), EV1527, HS1527, HX1527, FP527, CS5211, SMC918, SMC926, AX5026, AX53263, AX53264, HT600, HT680, HT6207, HT6010, HT6012, HT6013, HT6014, HT12D, HT46F49E, PIC16F629, PIC16F630, and compatible variants.

Note: Different manufacturers may use different prefix letters — chips are compatible as long as the numeric portion of the model matches.

⚠️ Important Notice – Rolling Code Remotes

This duplicator is designed for fixed-code and learn-code remotes only. Rolling code remotes (e.g. HCS200, HCS201, HCS300, HCS301), encrypted two-way remotes, and single-chip encryption remotes cannot be cloned. We do not recommend attempting to copy rolling-code chips due to the uncertainty of whether the original chip uses encryption.

How to Use

Step 1 – Clear Code:

1. Hold both the Unlock and Lock keys simultaneously until the LED flashes rapidly 3 times (~2 seconds).
2. Release one finger and quickly click that button 3 times until the LED flashes quickly; then release both fingers.
3. Press any key — if the LED goes off, the clear was successful. If the LED stays on, repeat the process.

Step 2 – Copy:

1. Hold both remotes as close together as possible; press the first key on both at the same time.
2. After ~2 seconds the LED flashes twice; after one more second the LED continues flashing — release both buttons.
3. Press the key on the duplicator — if the LED stays solid, the first key has been copied successfully.
4. Repeat for each remaining button using the same method.

Step 3 – Restore:

If a code is accidentally cleared, simultaneously press the two bottom keys of the duplicator until the LED flashes quickly. Release, then press any key. When the LED stays solid, the code has been restored.

Tip: Always clear existing codes from the duplicator before starting a new copy session. Ensure your original remote has sufficient battery charge and keep the two remotes as close together as possible during copying.

Related Products You May Like

• Wireless LED Motion Sensor Night Light – Type-C Rechargeable
• 360-Degree Rotating Storage Tray for Kitchen & Home

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What types of remote controls can this 433MHz duplicator copy?

A: This 433MHz RF key duplicator can clone fixed-code and learn-code remotes using compatible chips such as PT2262, EV1527, HT12D, PIC16F629, and many others. It cannot copy rolling-code, two-way, or encrypted single-chip remotes (e.g. HCS300, HCS301).

Q: Does the 433MHz cloning remote come with a battery?

A: Yes! The remote duplicator includes a 12V 27A battery, so it is ready to use straight out of the box with no additional purchases needed.

Q: How far does the 433MHz remote transmitter reach?

A: In open space, the wireless transmission distance is approximately 50 to 150 metres, providing excellent range for garage doors, gate barriers, and alarm systems.

Q: What should I do if only some keys are working after copying?

A: First perform a full clear-code operation, then re-copy only the button(s) that did not copy correctly. Next, clear again and then use the restore function — this merges the newly copied code with the previously successful ones. Repeat as needed until all keys function correctly.

Q: Is this remote duplicator compatible with my garage door or gate system?

A: Compatibility depends on your system's operating frequency (must be 433MHz) and the chip type used in your original remote. Check your existing remote's chip model against the supported list above. If your original remote uses a rolling code or encrypted chip, this duplicator will not be compatible.
