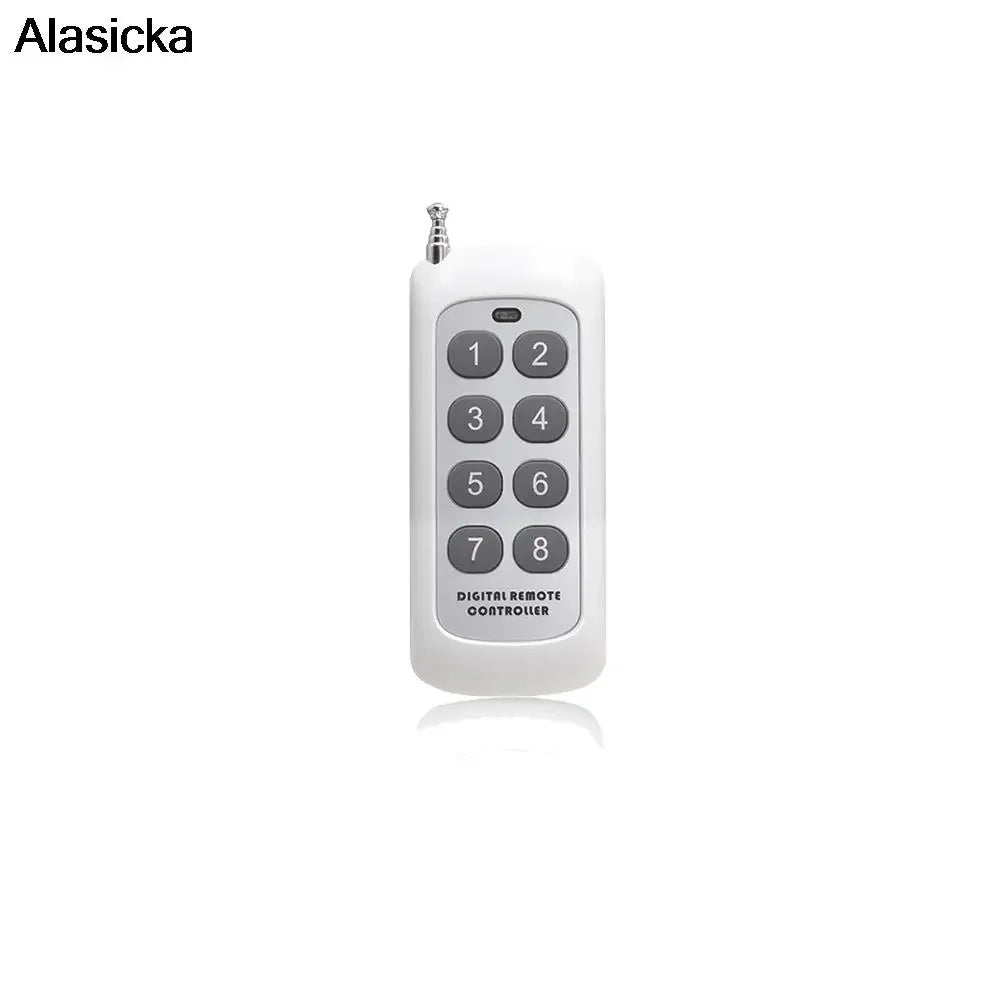

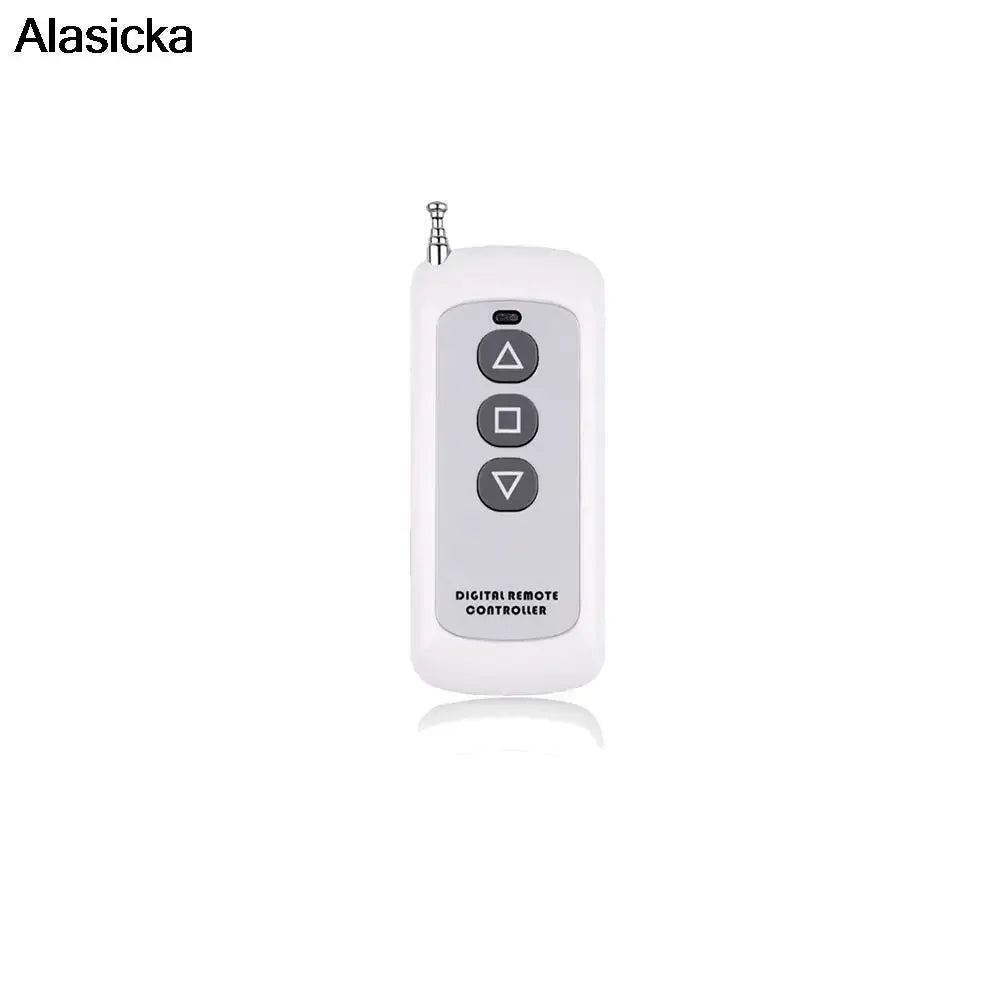

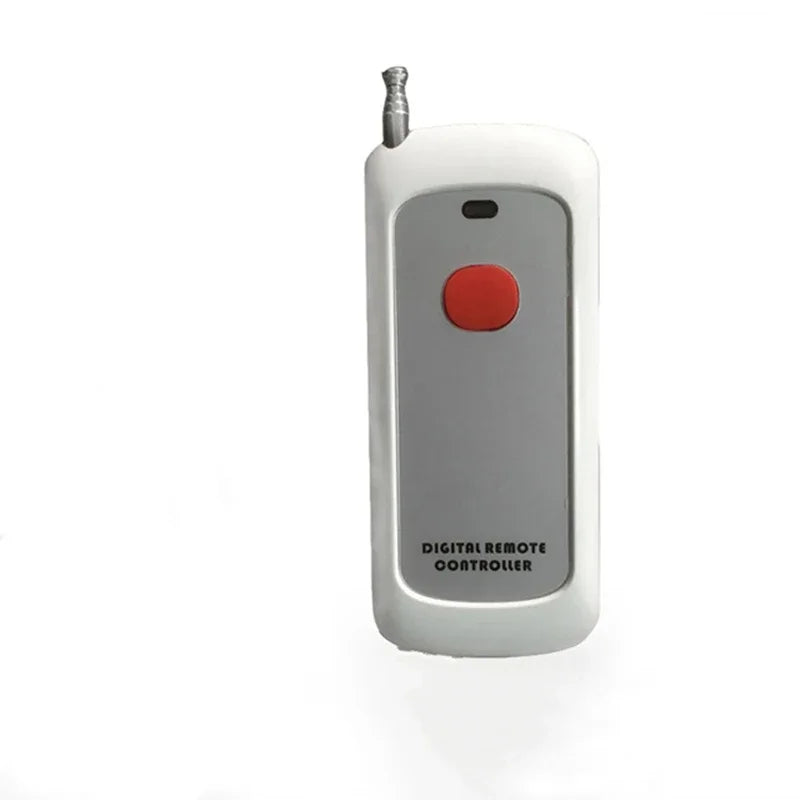

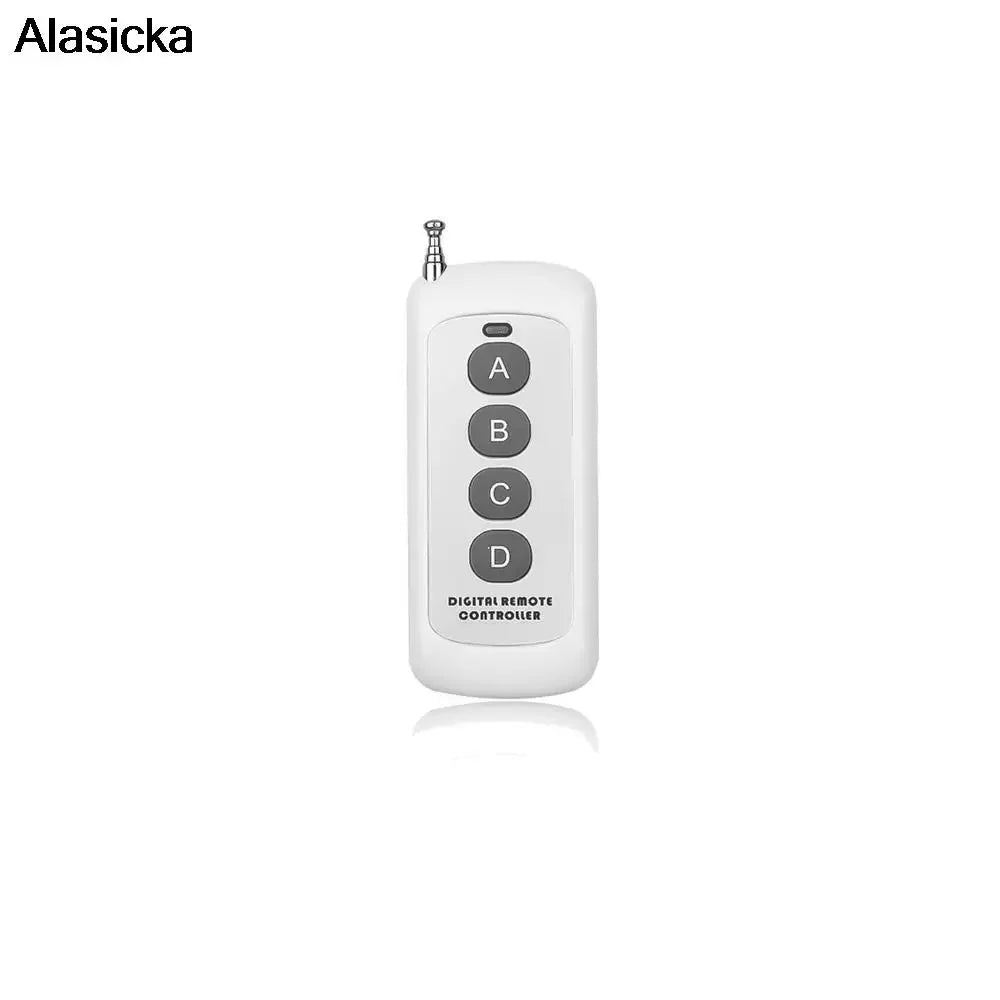

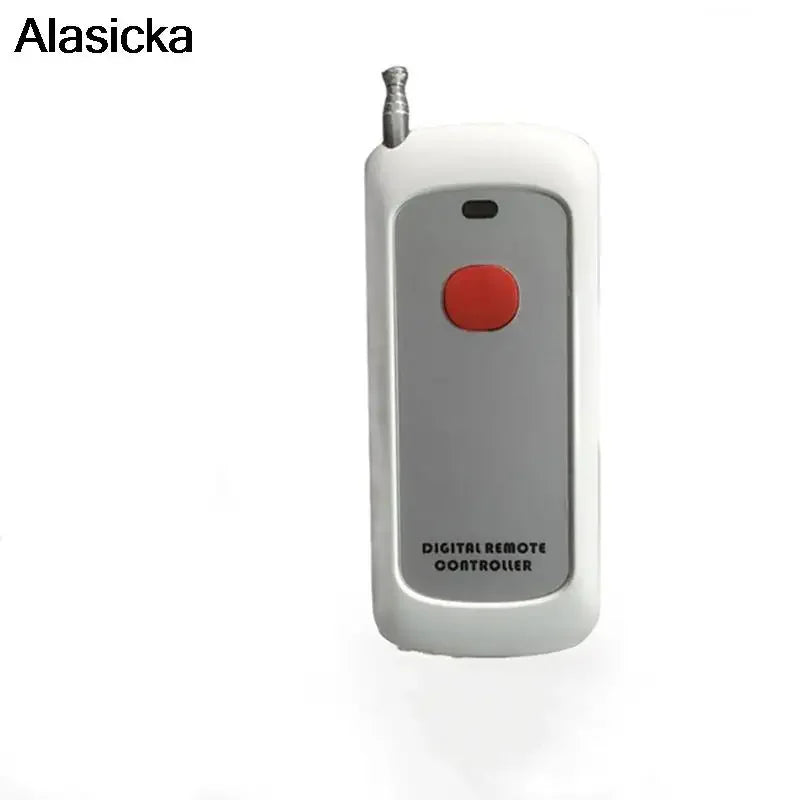

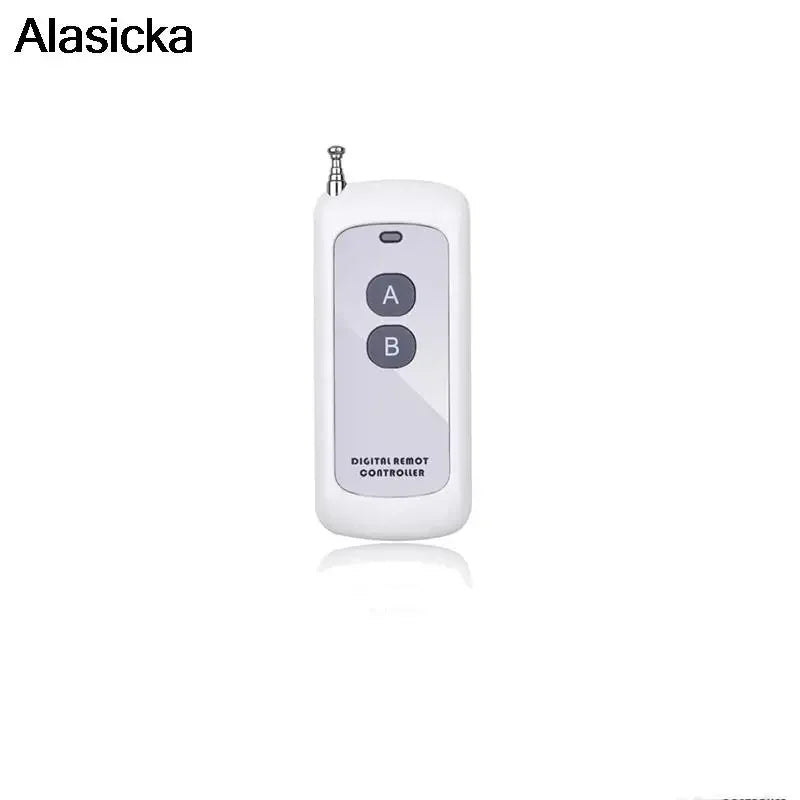

433MHz RF Remote Control 1527 Learning Code – 2/4/8 Button
433MHz RF Remote Control 1527 Learning Code – 2/4/8 Button
433MHz Universal RF Remote Control Transmitter – 1527 Learning Code
Take wireless control of your garage door, electric gate, lighting, or other 433MHz-compatible devices with this reliable 433MHz RF remote control transmitter. Featuring the widely supported EV1527 learning code chip, this compact handheld transmitter pairs easily with any compatible 433MHz receiver that has a learn button — no cloning required, just simple button pairing.

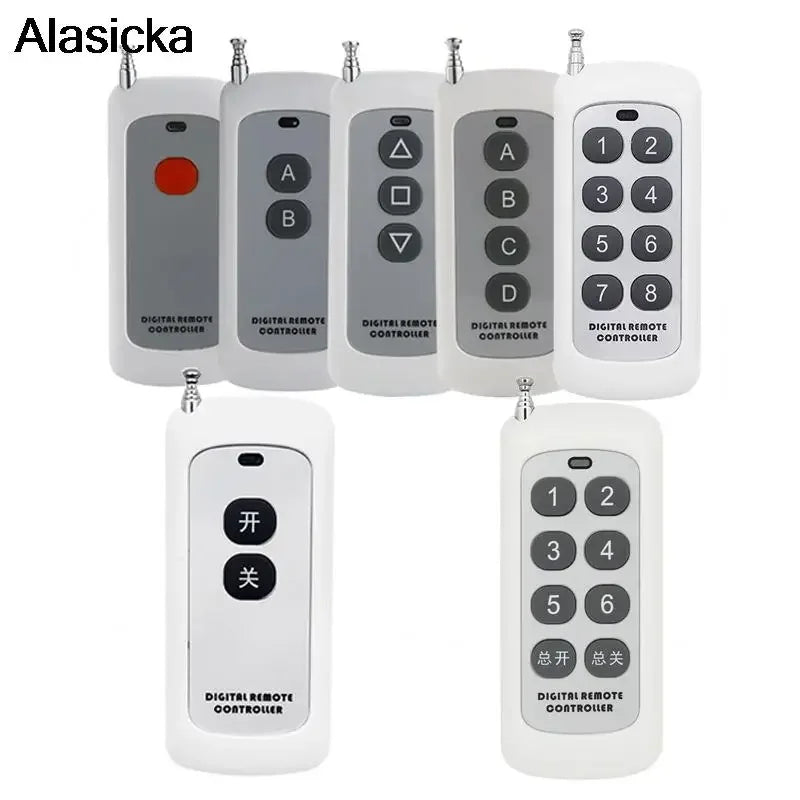

Available in 2, 4, 6, or 8-button configurations, it's the flexible solution for controlling multiple zones or devices from a single remote. With a theoretical open-field transmission range of up to 500 metres, this transmitter gives you confident, long-distance control.
Made in China.
Key Features
- Frequency: 433 MHz
- Encoder Type: EV1527 Learning Code (compatible with IC chip 1527/2262)
- Button Options: 2 / 4 / 6 / 8 buttons
- Working Voltage: DC 12V
- Battery: 23A 12V (not included)
- Working Current: ≤10mA
- Radiation Power: ≤10mW
- Modulation Method: ASK (Amplitude Shift Keying)
- Timing Resistance: 4.7MΩ
- Transmission Range: Up to 500m (open field, theoretical)
- Certification: CE
- App Support: No
What's Included
- 1× RF Remote Control Transmitter (receiver NOT included)
Compatible Uses
- Garage doors & electric gate openers
- Smart home lighting control
- Electric door systems
- Universal 433MHz RF receiver modules
⚠️ Important Note: This product is a transmitter only — no receiver is included. Your existing receiver must operate at 433MHz and must feature a learn/pair button compatible with IC chip 1527 or 2262.
Related Products You May Like
- 10CM Wireless LED Motion Sensor Night Light – Type-C Rechargeable Cabinet Lamp
- 360-Degree Refrigerator Storage Rotating Tray for Kitchen
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Does this 433MHz remote control come with a receiver?
A: No — this product is a transmitter only. It does not include a receiver. You will need a separate 433MHz receiver module that supports learning code pairing (compatible with IC chip 1527 or 2262) to complete your wireless control setup.
Q: How do I pair this 433MHz remote transmitter with my receiver?
A: Pairing is straightforward. Press the learn/pair button on your 433MHz receiver to put it into pairing mode, then press any button on this remote transmitter. The receiver will register the signal and store the code. Refer to your receiver's manual for exact pairing steps.
Q: What is the transmission range of this RF remote control?
A: This 433MHz RF transmitter has a theoretical open-field transmission range of up to 500 metres. Actual range may vary depending on obstacles, interference from other RF devices, walls, and environmental conditions.
Q: What battery does this remote control use?
A: This remote transmitter requires one 23A 12V battery (not included). This compact alkaline battery is widely available at electronics and hardware stores.
Q: Is this remote compatible with all 433MHz receivers?
A: It is compatible with most 433MHz frequency receivers that support learning code pairing and are compatible with IC chip 1527 or 2262. If your receiver uses a fixed/dip-switch code rather than a learn button, this remote will not be compatible.
