433MHz Wireless Remote Control – Garage & Roller Shutter Door Kit

Universal 433MHz Wireless Remote Controller for Garage & Roller Shutter Doors

Take full control of your garage, electric door, or rolling shutter door with this reliable 433MHz wireless remote control kit. Pre-paired at the factory for plug-and-play convenience, this controller uses advanced learning code encoding technology with millions of unique code combinations — keeping your access secure and the re-bit rate extremely low.

Made in Mainland China.

Key Features

• Pre-Paired Out of the Box: The controller and remote controls are factory-matched — no initial pairing required. Simply install and use right away.
• Learning Code Technology: Supports single-chip decoding with compatibility for both fixed code and learning code remote controls.
• Wide Application: Compatible with garage doors, electric rolling shutter doors, and chain-type external electric door motors.
• Long-Range Control: Wireless remote range of 50 metres or more for reliable, hands-free operation.
• Motor Forward/Reverse Setting: Easily reverse motor direction via the remote — no rewiring needed.
• Durable Operating Range: Functions in ambient temperatures from -20°C to 60°C, making it suitable for year-round use in all climates.
• 2A/AC220V Output: Designed for standard AC220V mains power with a 2A output current rating.
• Lightweight Plastic Housing: Compact and durable construction for long-lasting performance.

Technical Specifications

• Working Frequency: 433 MHz
• Working Voltage: AC220V
• Output Current: 2A / 220VAC
• Remote Control Distance: ≥50 m
• Encoding Method: Learning code (single chip decoding)
• Ambient Temperature: -20°C to 60°C
• Material: Plastic

How to Pair an Additional Remote Control

1. Press the stop button on the remote control to stop the motor.
2. Press and release the code button on the controller — the power indicator red light will turn off.
3. Press any button on the new remote control. The power indicator will flash red three times to confirm successful pairing.

How to Clear All Paired Remotes

1. Press and hold the code button on the controller.
2. The power indicator red light will go from on, to off, to flashing three times.
3. Release the button — all paired remotes are now cleared.

How to Reverse Motor Direction

1. Ensure the motor is stopped before proceeding.
2. Press and hold the lock button on the remote for approximately 5 seconds.
3. The power indicator flashes red three times — motor direction has been reversed successfully.

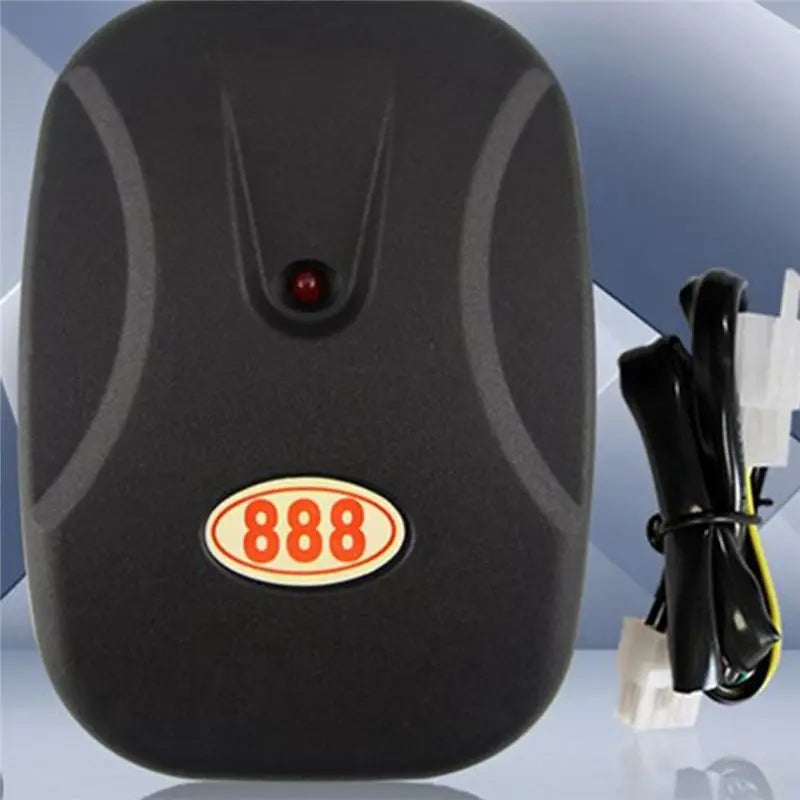

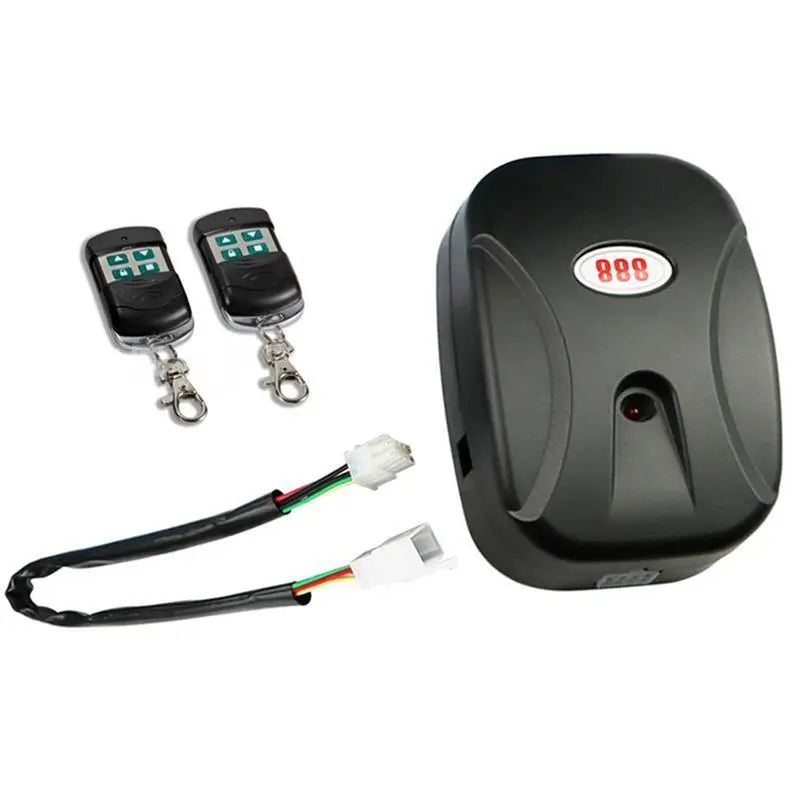

What's in the Box

• 1 × Controller unit
• 2 × Remote controls
• 1 × Cable

Note: Due to different production batches, the physical appearance may vary slightly from product images — this does not affect function. Colours may differ slightly from images due to screen display settings. Measurement tolerance: ±1–3 cm.

You Might Also Like

• 10CM Wireless LED Motion Sensor Night Light – Rechargeable Cabinet & Staircase Lamp
• Microfiber Towels – Car Wash, Detailing & Home Cleaning Cloths

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Do I need to pair the remote controls before using the garage door controller?

A: No — the controller and both remote controls are pre-paired at the factory before shipping. You can begin using them immediately after installation without any additional setup. If you need to add or remove remote controls later, step-by-step pairing and clearing instructions are included.

Q: What types of doors is this 433MHz wireless controller compatible with?

A: This universal remote controller is designed for garage doors, chain-type external electric roller shutter doors, and general electric rolling shutter doors operating on AC220V.

Q: Can I change the motor direction without rewiring the system?

A: Yes. To reverse the motor's direction of travel, simply press and hold the lock button on the remote control for approximately 5 seconds until the power indicator flashes red three times. Always ensure the motor is stopped before changing direction settings.

Q: What is the effective remote control range of this unit?

A: The wireless remote control range is 50 metres or greater under normal operating conditions, making it convenient for use in driveways, car parks, and commercial loading areas.
