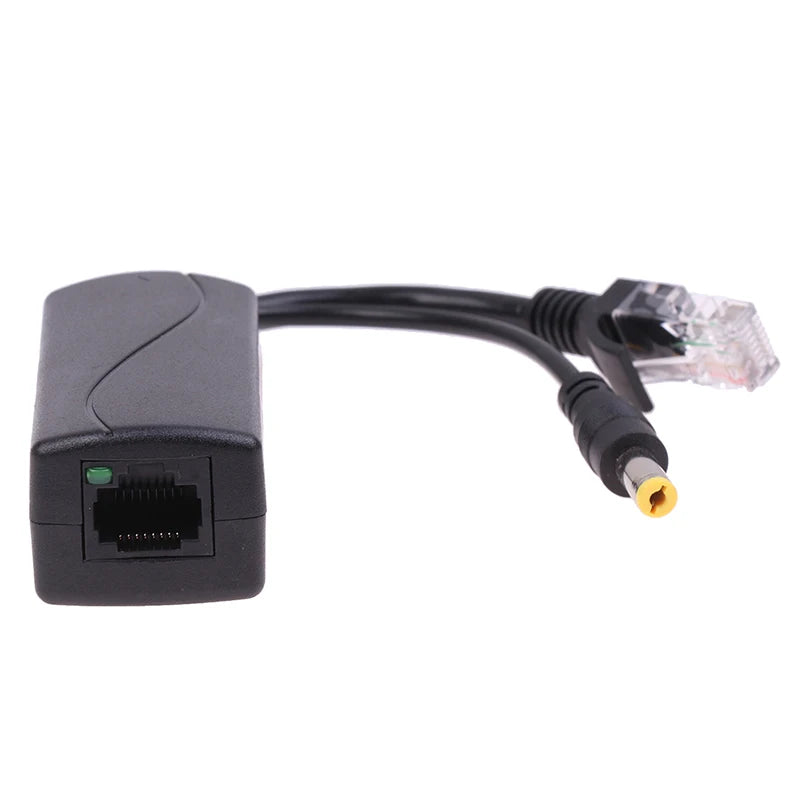

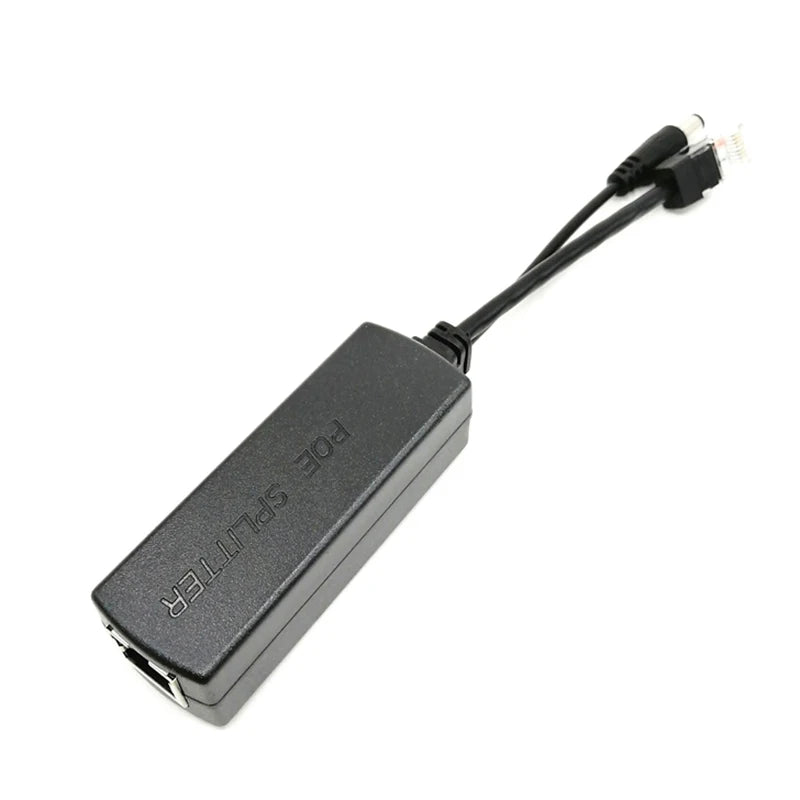

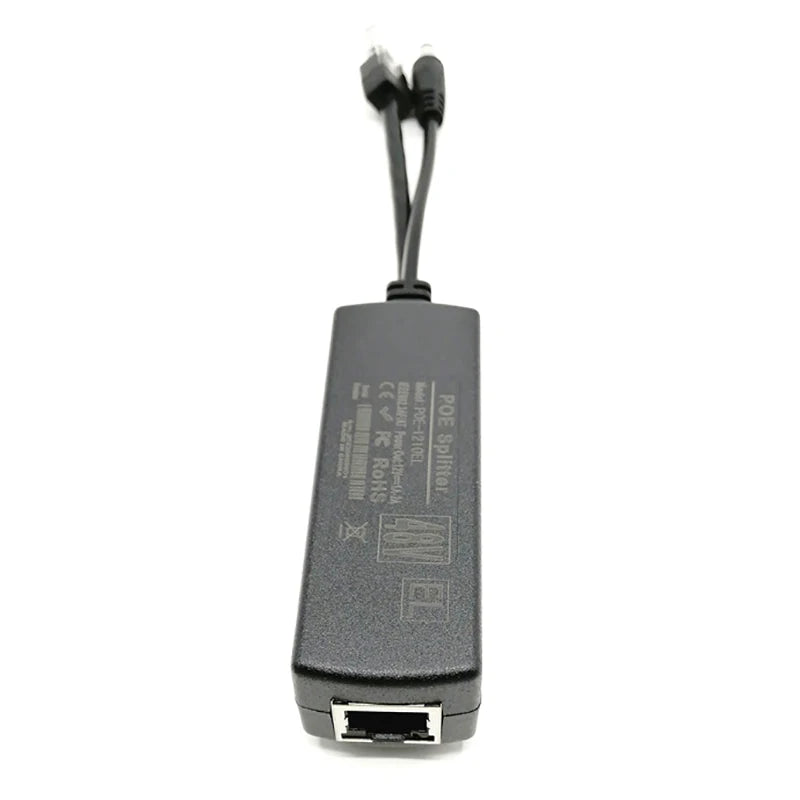

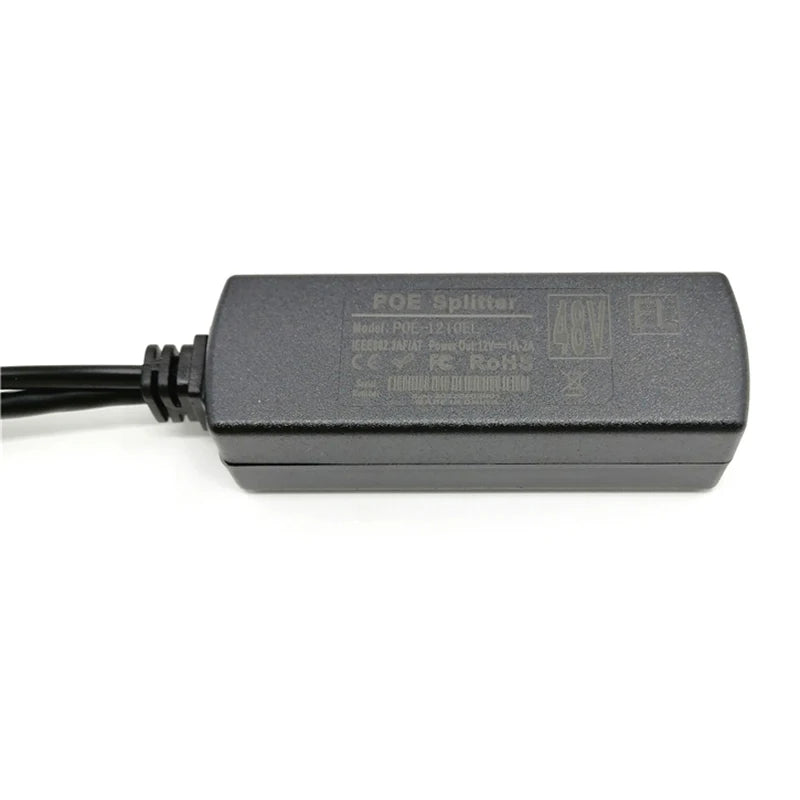

48V to 12V POE Splitter Adapter Cable for CCTV Security Cameras
48V to 12V POE Splitter Adapter Cable for CCTV Security Cameras
48V to 12V POE Splitter Adapter Cable – Power Your CCTV Security Cameras with Ease
This 48V to 12V POE (Power over Ethernet) Splitter Adapter Cable is the ideal solution for powering security cameras and CCTV surveillance systems that do not natively support POE power supply. Simply plug it in and let it do the work — no complicated configuration required.
Key Features
- Durable Construction: Made from high-quality ABS housing that is anti-aging, sturdy, and wear-resistant for long-lasting performance.
- Pure Copper Core: Delivers superior transmission performance with minimal signal loss, even over extended distances.
- Plug & Play: Effortless installation with no additional settings needed — just connect and go.
- Power & Data Splitting: Effectively separates power and data signals from a single network cable, making it compatible with devices that do not support POE power supply.
- Long Transmission Range: Supports data and power transmission up to 100 meters.
- Wide Compatibility: Works as a standard 48V to 12V POE adapter for leading surveillance brands including Huawei and Hikvision systems.

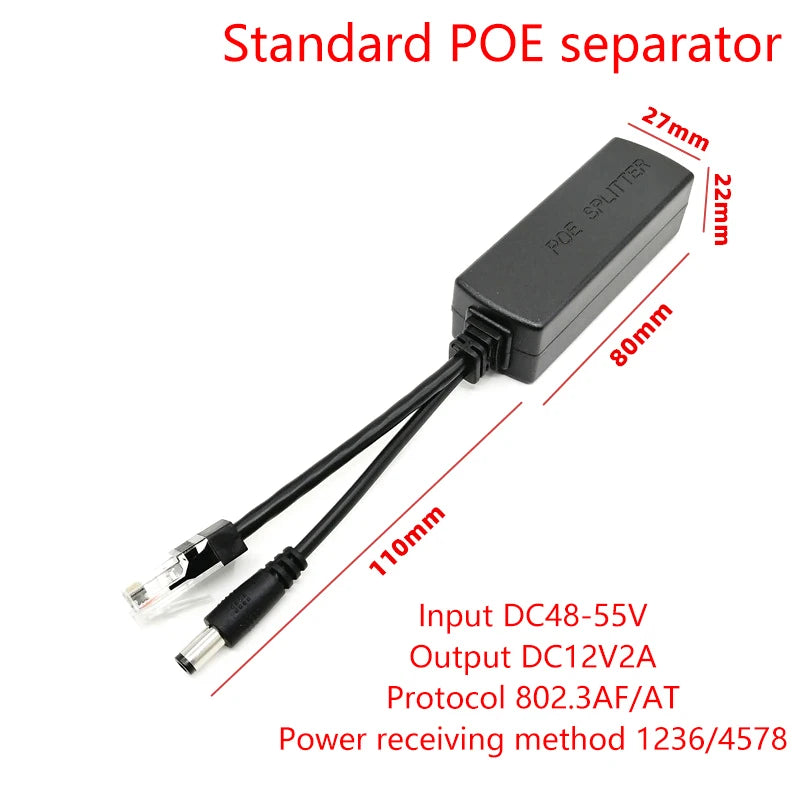

Technical Specifications
- Material: ABS
- Color: Black
- Bandwidth: 100 MHz
- POE Protocol: IEEE 802.3af/at Standard
- Input Voltage: DC 38–60V
- Output: 12V / 1–2A
- Max LAN Data Rate: 1000 Mbps
- Working Temperature: -10°C to 60°C
- Transmission Distance: Up to 100m
Package Contents
- 1 × POE Splitter Adapter Cable
Made in Mainland China.
You May Also Like
- 10CM Wireless LED Motion Sensor Night Light – Rechargeable Cabinet & Staircase Lamp
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel, Portable Mini
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What is a POE splitter adapter cable and what does it do?
A: A POE (Power over Ethernet) splitter adapter cable separates the power and data signals carried on a single network (Ethernet) cable. This 48V to 12V POE splitter converts the incoming 48V POE power down to 12V output, allowing you to connect and power security cameras or CCTV devices that do not have built-in POE support.
Q: Is this POE splitter compatible with my security camera system?
A: This adapter follows the IEEE 802.3af/at POE standard and is designed for broad compatibility, including popular surveillance brands such as Huawei and Hikvision. It accepts input voltages between DC 38–60V and outputs a stable 12V at 1–2A, making it suitable for most standard 12V security cameras and CCTV equipment.
Q: How far can I run cables with this POE splitter?
A: This POE splitter supports both data and power transmission up to 100 meters (approximately 328 feet) over a standard Ethernet cable, making it practical for most home and commercial surveillance installations.
Q: Is any configuration or setup required?
A: No. This adapter is fully plug-and-play. Simply connect your Ethernet cable from the POE switch or injector into the splitter's input port, then connect the splitter's data and power outputs to your camera. No software, drivers, or additional settings are required.
