5.8GHz 1.2W FPV Video Transmitter — 48 Channels, TBS Protocol, OSD Configuration
Upgrade your FPV drone build with this high-power 5.8GHz video transmitter (VTX). Featuring four adjustable output power levels — up to 1,200 mW — this compact analog VTX delivers strong, reliable video signal across 48 selectable channels. With TBS (Team BlackSheep) protocol compatibility and full OSD (On-Screen Display) configuration, it's built for pilots who demand performance and control in every flight. Made in Mainland China.
Key Features

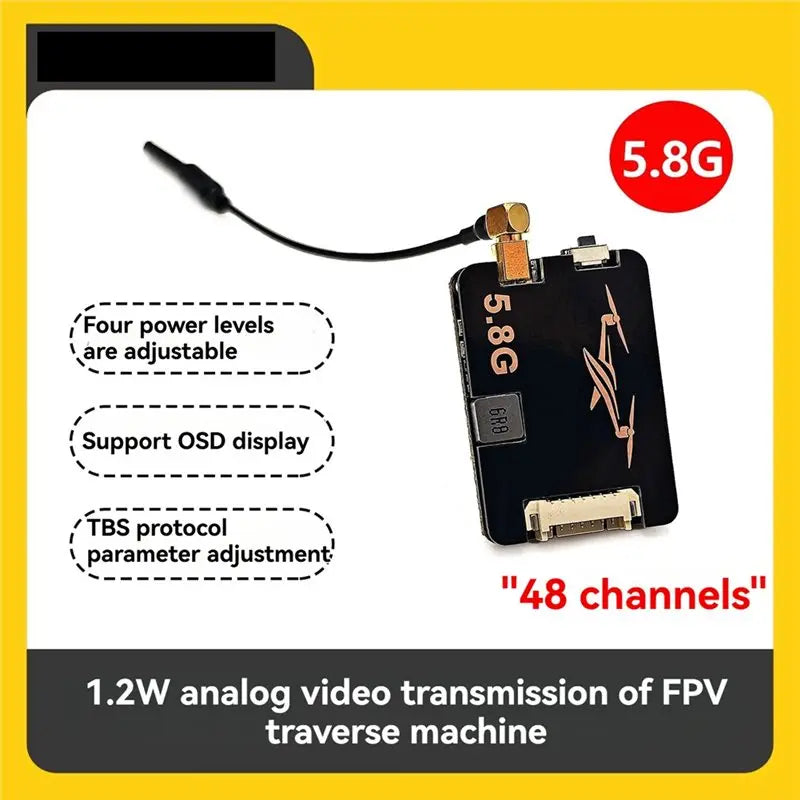

- 5.8 GHz Operating Frequency — widely compatible with standard FPV goggles and receivers
- 48 Channels — maximum flexibility in choosing a clean, interference-free channel
- 4 Adjustable Power Levels — 200 mW / 500 mW / 800 mW / 1,200 mW to suit range and legal requirements
- TBS Protocol Support — seamless integration with TBS-compatible flight controller setups
- OSD Configuration — tune settings directly through your On-Screen Display without additional tools
- Wide Voltage Input — supports 7–36V (2S–6S LiPo battery)

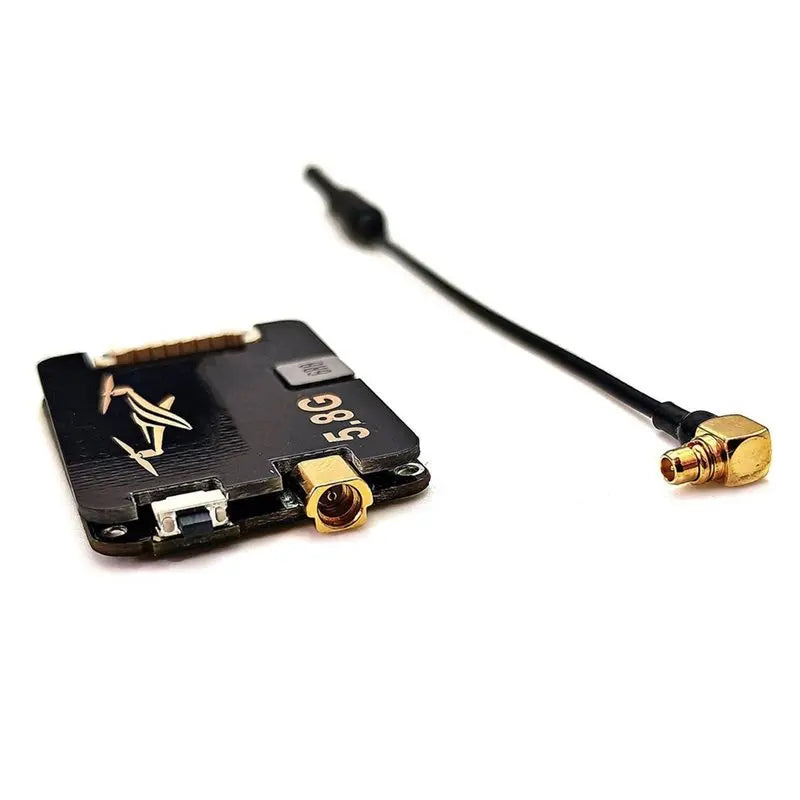

- MMCX-L Antenna Connector — low-profile, secure antenna connection
- Compact Mounting — 29 mm × 20.5 mm mounting hole spacing fits standard FPV frames
- Durable Black Housing — lightweight plastic body built for drone installation
Technical Specifications

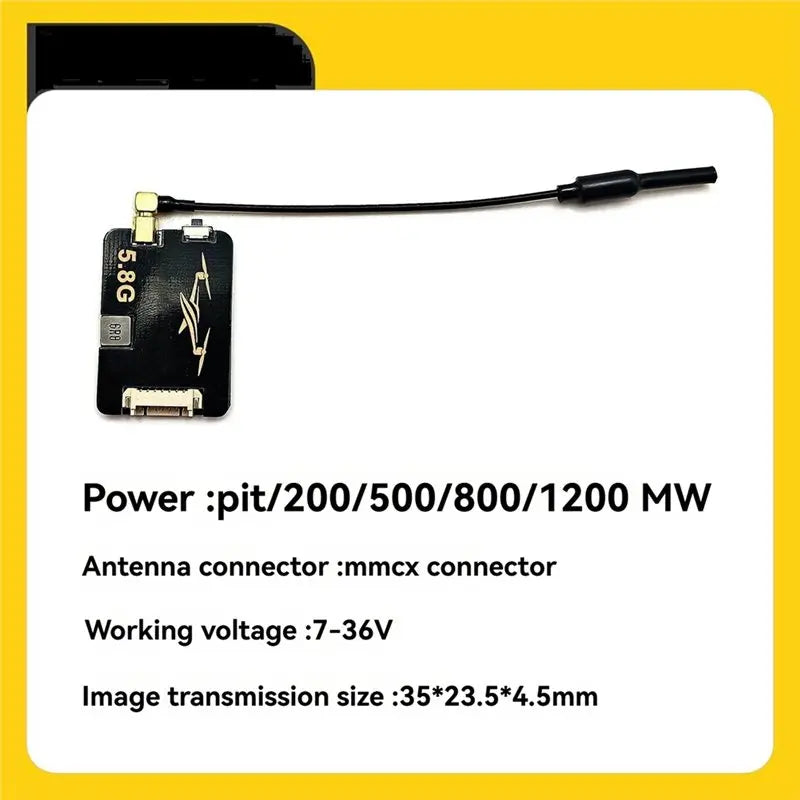

| Operating Frequency | 5.8 GHz |
| Channels | 48 CH |
| Transmission Power | 200 / 500 / 800 / 1200 mW (4 levels) |
| Input Voltage | 7–36V (2S–6S LiPo) |
| Operating Current @ 12V | 240 mA (200 mW) / 320 mA (500 mW) / 410 mA (800 mW) / 600 mA (1.2 W) |
| Antenna Connector | MMCX-L |
| Mounting Hole Spacing | 29 mm × 20.5 mm |
| Color | Black |
| Material | Plastic |
| Protocol | TBS (Team BlackSheep) |
| Configuration | OSD |

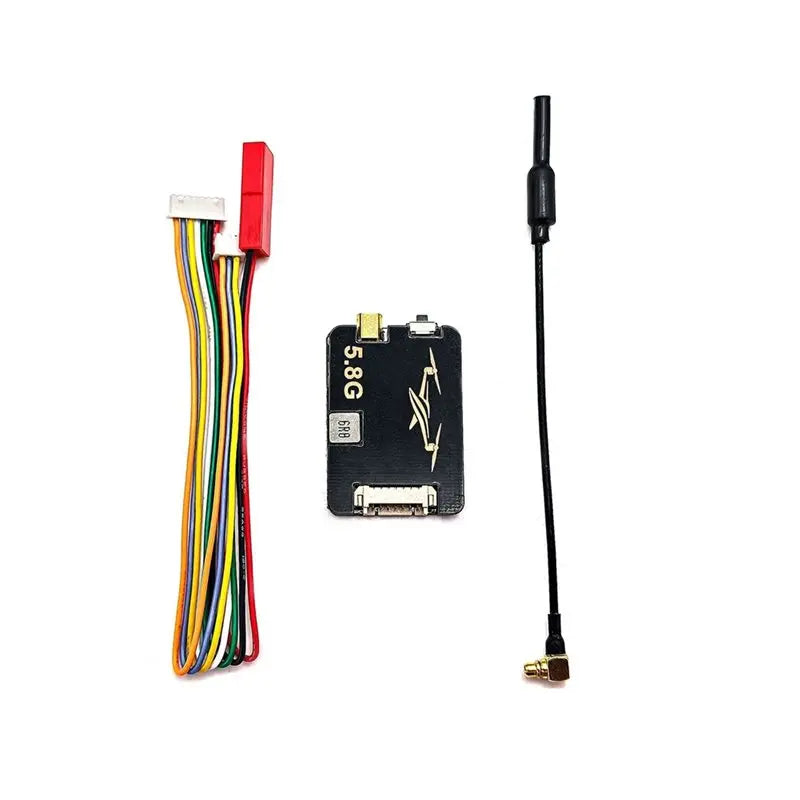

What's in the Box
- 1× VTX Kit
Note: Only the above package content is included. Other products shown in images are for reference only. Due to light reflection and display differences, the actual color may vary slightly from images. Measurement tolerance: ±1–3 cm. Printed text on the product may vary by batch but does not affect functionality.
You May Also Like
- 10Pcs Wooden Handle Nylon Bristle Tool Set
- 1pc Precision Japanese Double-Edged Hand Saw
- 10CM Wireless LED Motion Sensor Night Light
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What battery types are compatible with this 5.8GHz FPV video transmitter?
A: This VTX supports a wide input voltage range of 7–36V, making it compatible with 2S through 6S LiPo batteries. This broad compatibility means it fits the majority of racing drone and freestyle FPV drone builds.
Q: How do I configure the channel and power settings on this VTX?
A: This video transmitter supports OSD (On-Screen Display) configuration, allowing you to adjust channels and power levels directly through your flight controller's OSD menu. It also supports TBS (Team BlackSheep) protocol for streamlined setup in TBS-compatible systems.
Q: What antenna connector does this FPV transmitter use?
A: The transmitter uses an MMCX-L (right-angle MMCX) antenna connector, which provides a low-profile connection ideal for tight FPV drone frames. Ensure your antenna is MMCX-compatible before purchasing.
Q: Can I use this VTX for long-range FPV flights?
A: With a maximum output of 1,200 mW (1.2W) across 48 selectable channels, this transmitter is well-suited for extended range analog FPV flights. Always ensure your output power level complies with local radio frequency regulations for your region.
