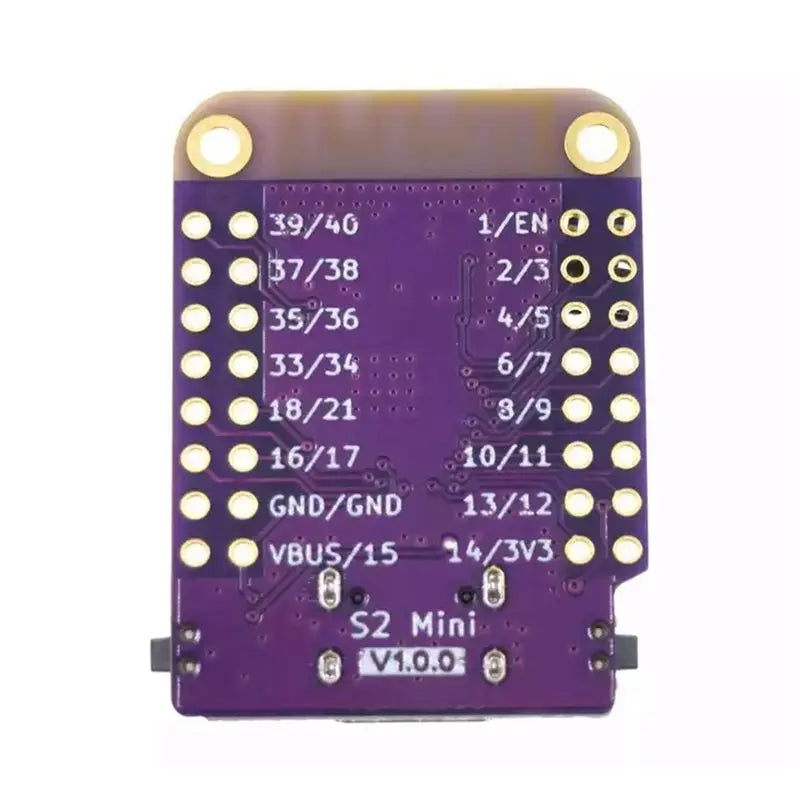

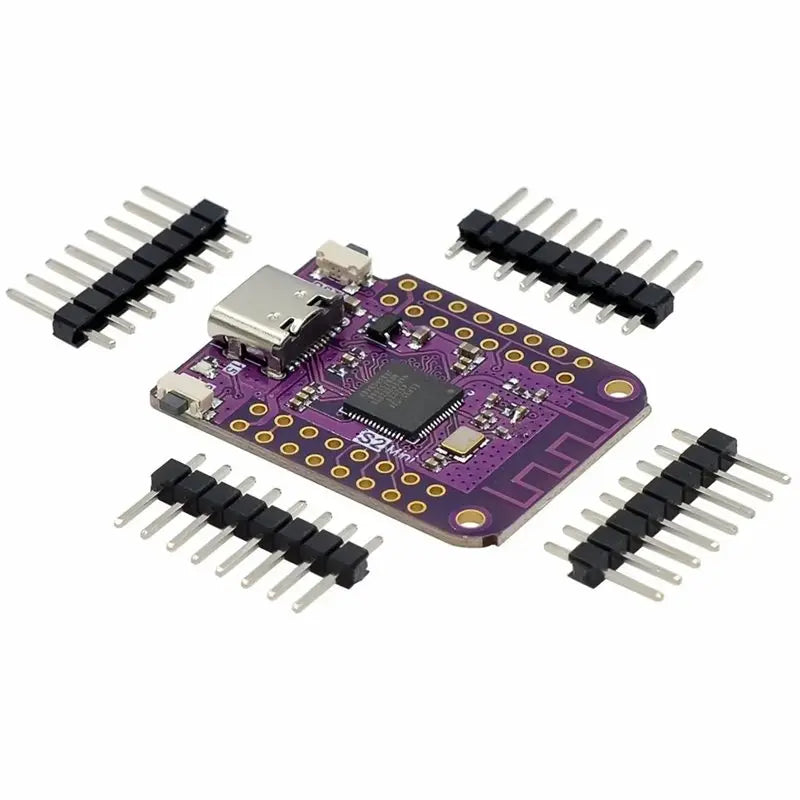

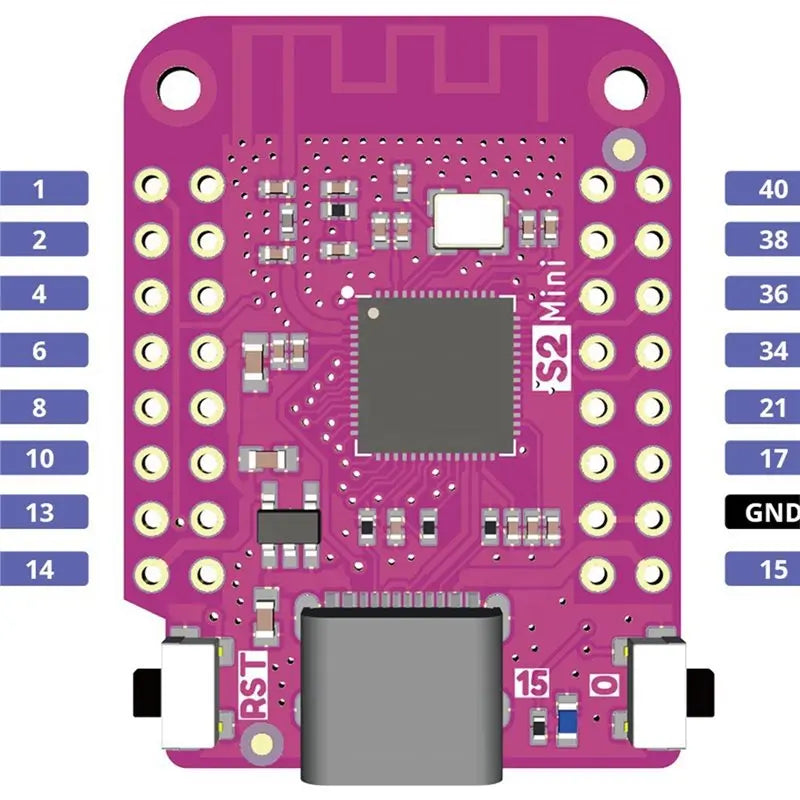

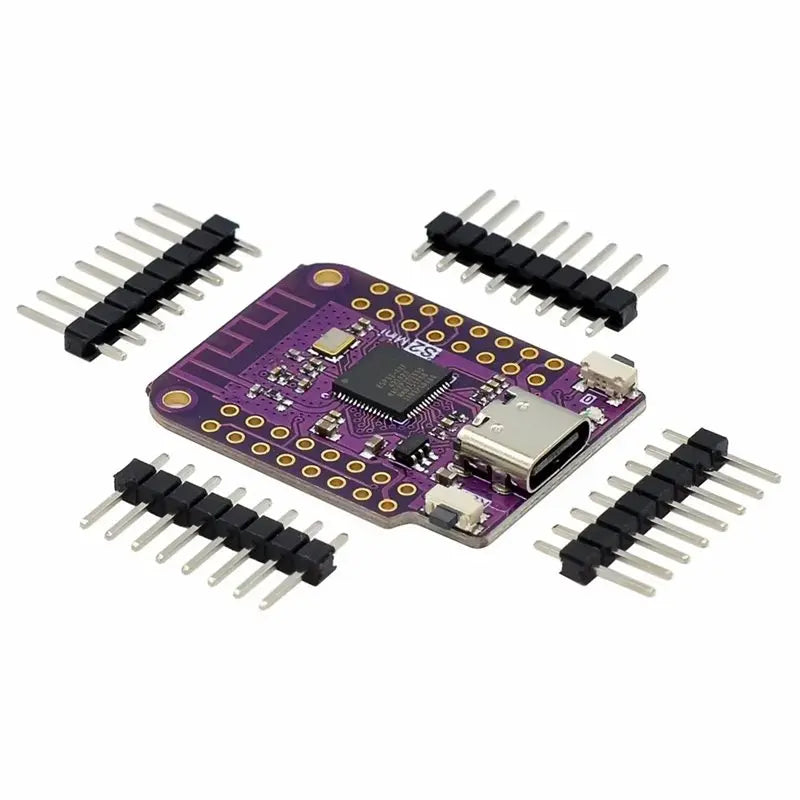

5-Pack ESP32-S2 Mini WiFi Dev Board | 4MB Flash 2MB PSRAM
5-Pack ESP32-S2 Mini WiFi Dev Board | 4MB Flash 2MB PSRAM
5-Pack ESP32-S2 Mini V1.0.0 WiFi IoT Development Board | 4MB Flash, 2MB PSRAM
Get your next IoT or embedded project off the ground with this 5-pack of S2 Mini V1.0.0 ESP32-S2 WiFi Development Boards. Built on the powerful ESP32-S2FN4R2 chip, these compact purple PCB boards deliver serious performance in a D1 Mini-compatible form factor — perfect for makers, engineers, and students working with MicroPython, Arduino, or ESP-IDF.
Made in Mainland China.
Key Features
- ESP32-S2FN4R2 WiFi IC — dedicated single-core 240 MHz Xtensa LX7 processor
- 4MB Flash + 2MB PSRAM — ample storage and memory for complex firmware
- Type-C USB — modern, reversible connector for easy flashing and power
- 27 Digital I/O Pins — every pin supports Interrupt, PWM, I2C, and Single Wire
- Rich Peripheral Support — ADC, DAC, I2C, SPI, UART, USB OTG onboard
- D1 Mini Shield Compatible — drop-in replacement for existing D1 Mini shield ecosystems
- Multi-Framework Support — works seamlessly with MicroPython, Arduino IDE, and ESP-IDF
Technical Specifications
| Parameter | Value |
|---|---|
| Chip | ESP32-S2FN4R2 |
| Working Voltage | 3.3V |
| Clock Speed | 240 MHz |
| Flash Memory | 4MB |
| PSRAM | 2MB |
| Digital I/O Pins | 27 |
| USB Connector | Type-C |
| Color | Purple |
| Material | PCB |
| Compatible Frameworks | MicroPython, Arduino, ESP-IDF |
What's in the Box

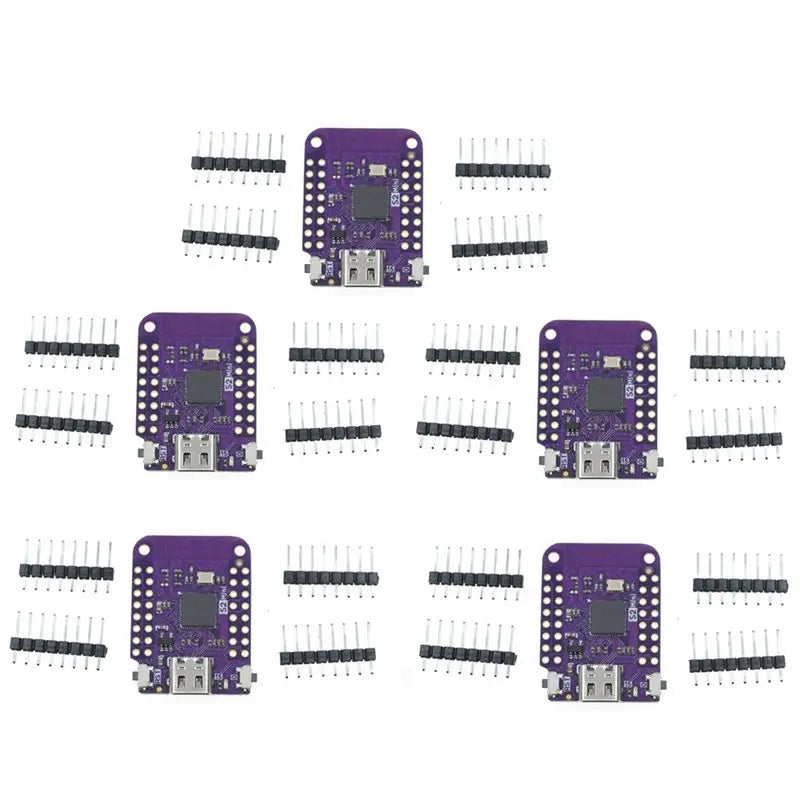

- 5 × ESP32-S2 Mini V1.0.0 WiFi Development Boards
Note: Only the items listed above are included. Other products shown are not included. Colors may vary slightly due to display settings and lighting. Measurement tolerance: ±1–3 cm.
Related Products You May Like
- 10CM Wireless LED Motion Sensor Night Light – Type-C Rechargeable
- 1pc Precision Japanese Double-Edged Hand Saw – Portable Mini Tool
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: Is the ESP32-S2 Mini V1.0.0 compatible with the Arduino IDE?
A: Yes! The ESP32-S2 Mini V1.0.0 WiFi development board is fully compatible with the Arduino IDE. Simply install the ESP32 board support package and you can start uploading sketches just as you would with any other Arduino-compatible board. It also supports MicroPython and Espressif's native ESP-IDF framework.
Q: What is the difference between Flash and PSRAM on this development board?
A: Flash memory (4MB on this board) is used for storing your program code and data persistently — it retains data even when the board is powered off. PSRAM (2MB) is additional RAM that expands the working memory available during program execution, allowing you to run more complex applications, handle larger data buffers, and use memory-intensive libraries without running out of heap space.
Q: Are these boards compatible with D1 Mini shields?
A: Yes, the S2 Mini V1.0.0 is designed to be physically and electrically compatible with D1 Mini shields, making it easy to use existing expansion shields for sensors, displays, relays, and more with no modification required.
Q: Do all 27 I/O pins support PWM, I2C, and interrupts?
A: Yes, all 27 digital input/output pins on the ESP32-S2 Mini V1.0.0 support interrupt, PWM, I2C, and single-wire protocols, giving you maximum flexibility when wiring up sensors, actuators, and communication modules in your IoT projects.
