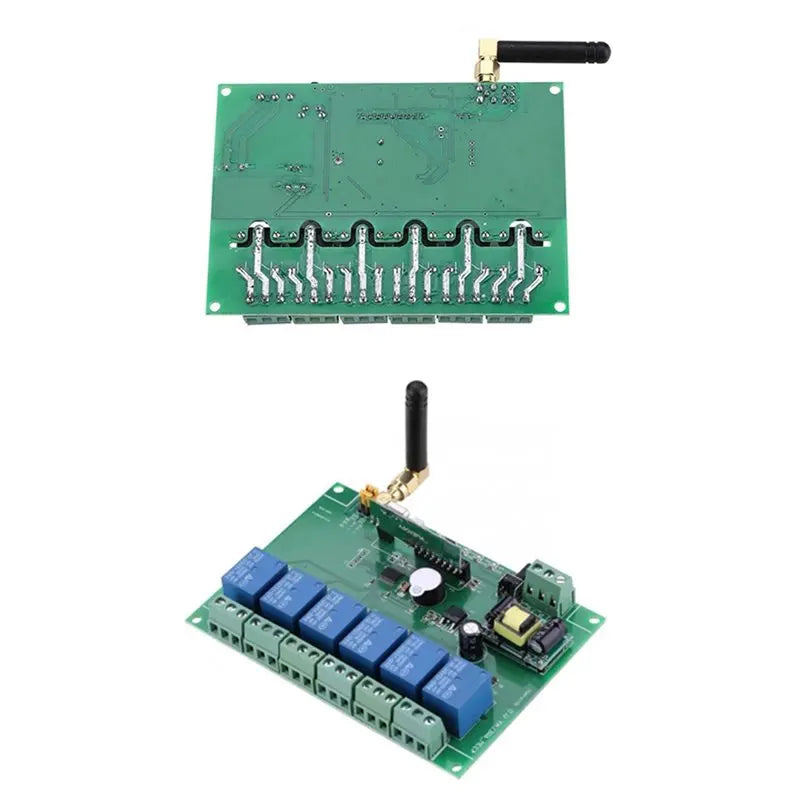

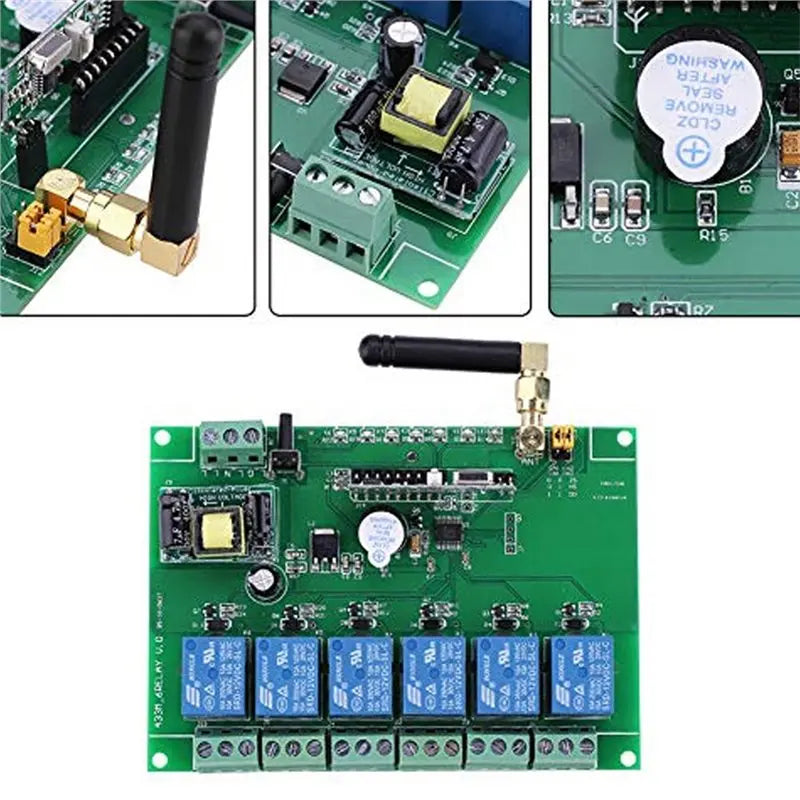

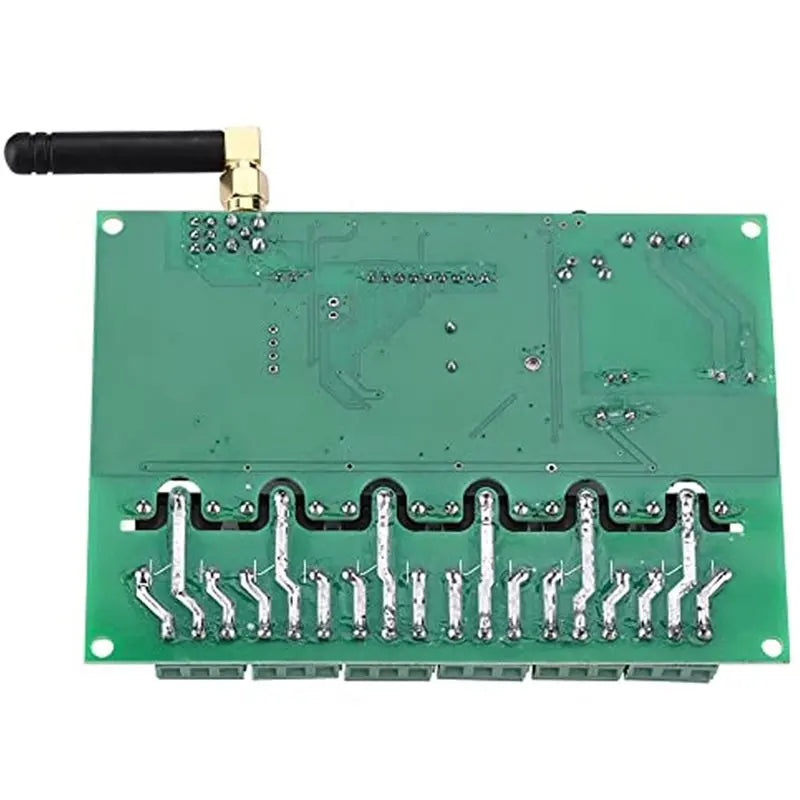

6 Channel RF Relay Module Board with Remote Control Switch
Take full command of up to six independent circuits with this versatile 6 Channel RF Relay Module Board. Designed for smart homes, industrial controls, electronic doors, windows, lifting equipment, elevators, and security systems, this module delivers outstanding flexibility with three selectable operating modes — momentary (jogging), self-locking, and interlocking — all switchable on the fly.
Made in Mainland China.
Key Features
- Three Operating Modes: Momentary (jogging), self-locking, and interlocking modes can be freely switched to suit any application.
- 6-Channel Control: Sends independent open/close signals to six relays simultaneously for multi-circuit management.
- Wide Voltage Compatibility: Works with 110–240V input, making it suitable for both US and international installations.

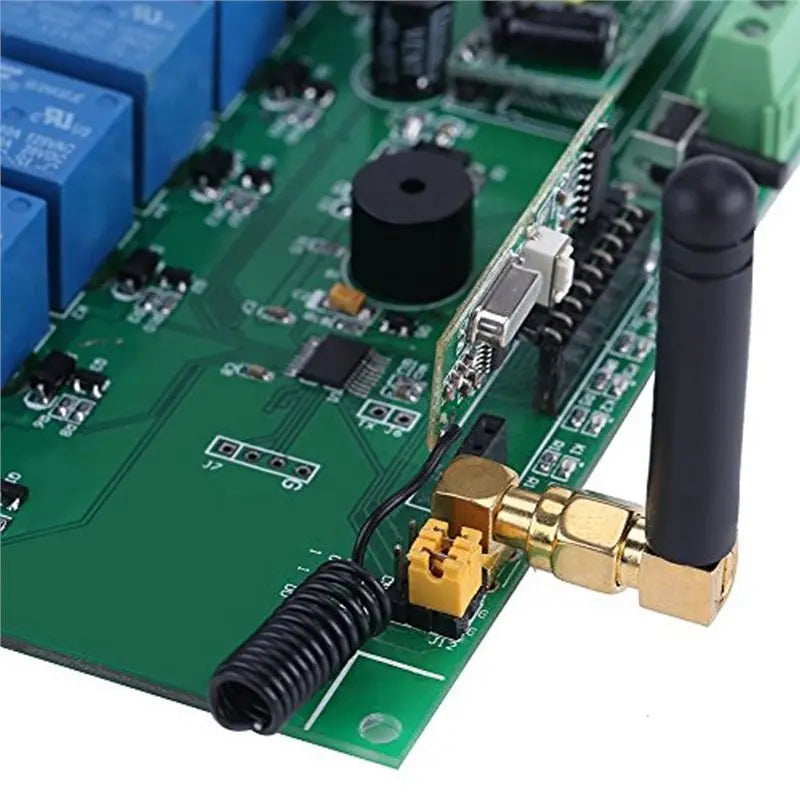

- Long-Range RF Reception: Reliable signal reception from approximately 50 to 1,000 meters, depending on environment.
- High Load Capacity: Each relay supports up to 10A and 2,500W, handling demanding electrical loads with ease.
- Dual Indicator Lights: Blue LED indicates the relay switch status independently per channel; Red LED confirms signal reception.
- Low Power Consumption: Approximately 30mA per relay in closed state; high stability with minimal standby draw.
- Easy Code Learning: Simple pairing process — just sync the remote control and receiver controller with the learning code feature.

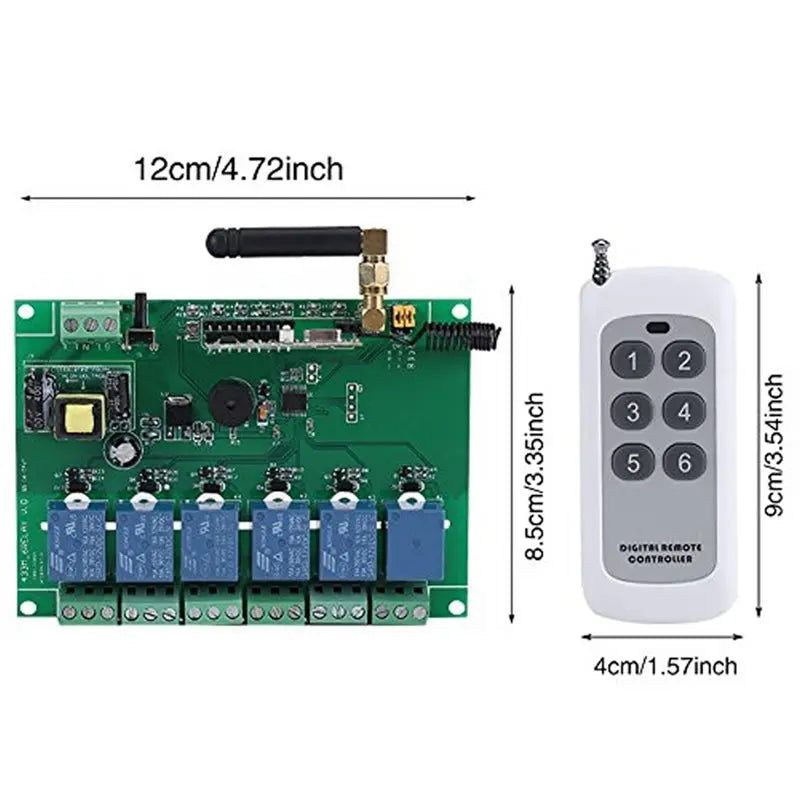

- Compact Design: Module board measures just 8.5 × 12 cm; remote control is approximately 4 × 9 cm for convenient handling.
Technical Specifications
| Working Voltage | 110–240V AC (L = Live, N = Neutral, GND = Ground) |
| Working Current | ~30mA × 6 (relay closed state) |
| Static Current | ~4mA × 6 (relay open/standby state) |
| Max Relay Output Current | 10A per channel |
| Max Power per Channel | 2,500W |
| Operating Modes | Momentary, Self-Locking, Interlocking |
| RF Receiving Distance | ~50–1,000 meters |
| Module Size | 8.5 × 12 cm |
| Remote Control Size | ~4 × 9 cm |
| Material | Plastic |
| Interface | USB |
What's in the Box?

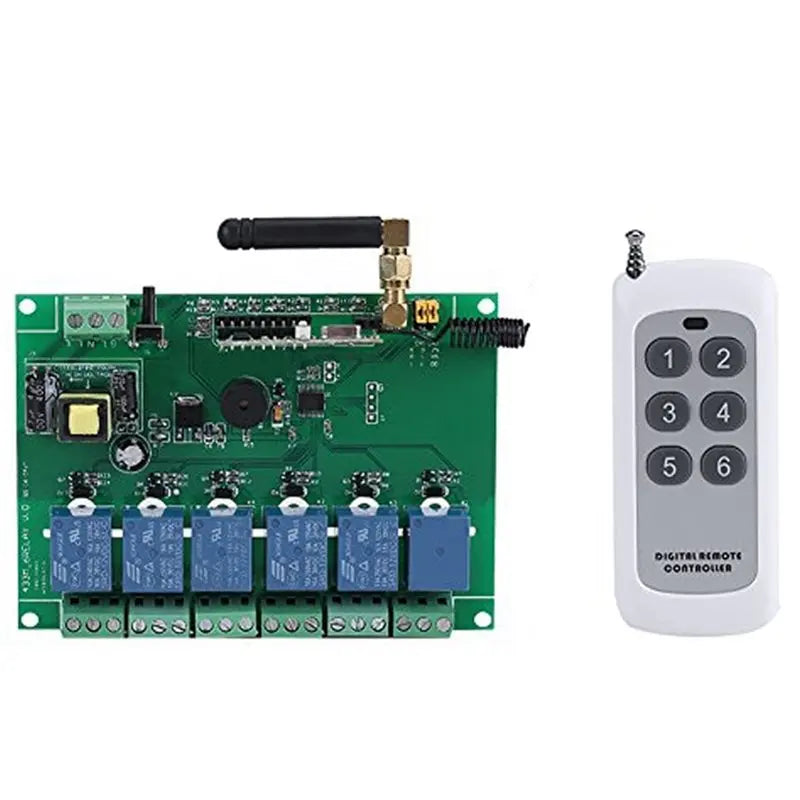

- 1 × 6 Channel RF Relay Module Board
- 1 × RF Remote Control (battery not included)
Note: Slight color variations may occur due to screen display differences. Measurement tolerance is ±1–3 cm.
You May Also Like
- 10CM Wireless LED Motion Sensor Night Light – Rechargeable Cabinet & Staircase Lamp
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel, Portable Mini
- 10Pcs Wooden Handle Nylon Bristle Paint Brush Set – Hand Tool Set
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What operating modes does this 6 channel RF relay module support?
A: The module supports three operating modes: momentary (jogging), self-locking, and interlocking. These can be freely switched at any time, giving you full flexibility depending on your specific application — whether you need a momentary trigger, a latching toggle, or exclusive channel control.
Q: What voltage range is compatible with this RF relay module board?
A: This relay module is compatible with a wide input voltage range of 110–240V AC, making it suitable for use in most countries and standard residential or commercial electrical installations.
Q: How far away can I use the remote control with this relay module?
A: The RF remote control has a receiving range of approximately 50 to 1,000 meters, depending on the surrounding environment and potential interference. This makes it practical for both close-range indoor setups and longer-range outdoor or industrial applications.
Q: Is the remote control battery included?
A: No, the remote control battery is not included. You will need to provide your own battery for the included RF remote control before use.
