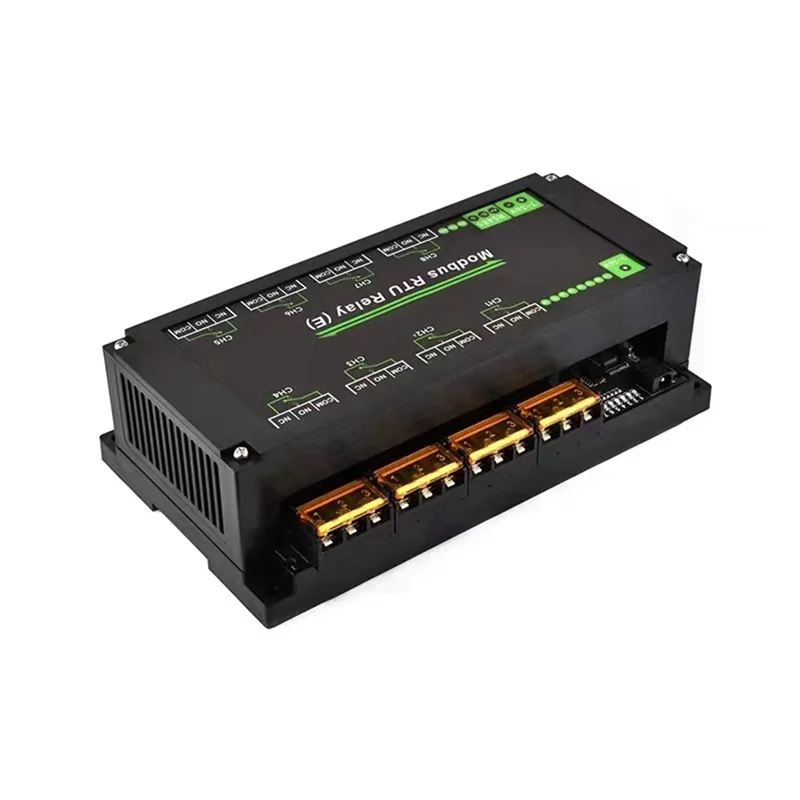

8-Channel RS485 Industrial Relay Module with Modbus RTU Protocol — 30A High Current
Take full command of your industrial automation setup with this robust 8-Channel RS485 Ethernet Relay Module. Engineered for demanding industrial environments, this module supports the widely adopted Modbus RTU protocol and delivers fast, stable, and reliable communication for a broad range of control applications.
Key Features
- 8-Way High-Current Control: Each channel supports up to 30A, making it ideal for switching heavy loads in industrial systems.
- Modbus RTU Protocol: Seamless integration with PLCs, SCADA systems, HMIs, and other industrial control equipment via standard RS485 communication.

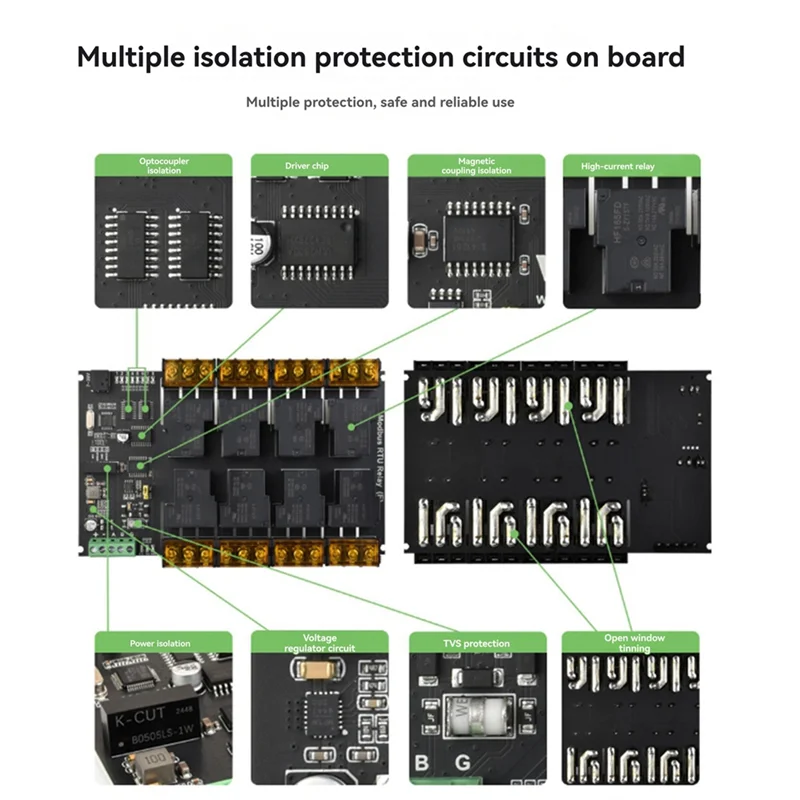

- Multi-Layer Isolation Protection: Features built-in power isolation, ADI magnetic coupling isolation, self-recovery fuse, and TVS protection circuits — keeping your equipment and connected devices safe.
- ABS DIN Rail Housing: Compact, durable ABS enclosure designed for standard DIN rail mounting for easy installation in control panels.
- Plug-and-Play Simplicity: Straightforward setup with no complex configuration required — get your system running quickly.
- Stable & Reliable Communication: Optimized for high-speed, interference-free data transfer in noisy industrial environments.

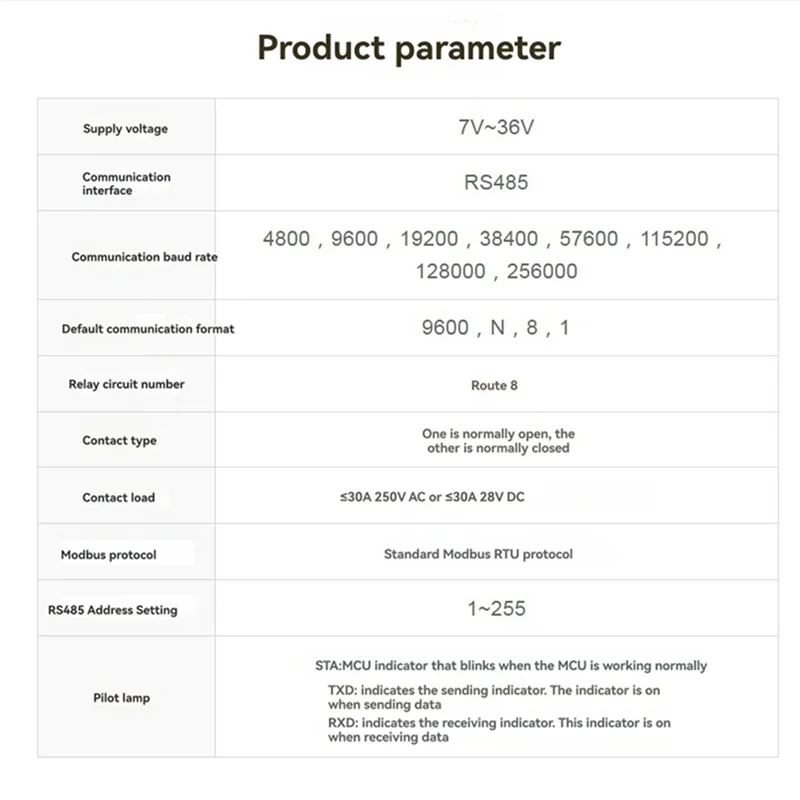

Specifications
| Channels | 8 |
| Communication Protocol | Modbus RTU via RS485 |
| Max Current per Channel | 30A |
| Isolation | Power Isolation + ADI Magnetic Coupling Isolation |
| Protection | Self-Recovery Fuse + TVS Protection Circuit |

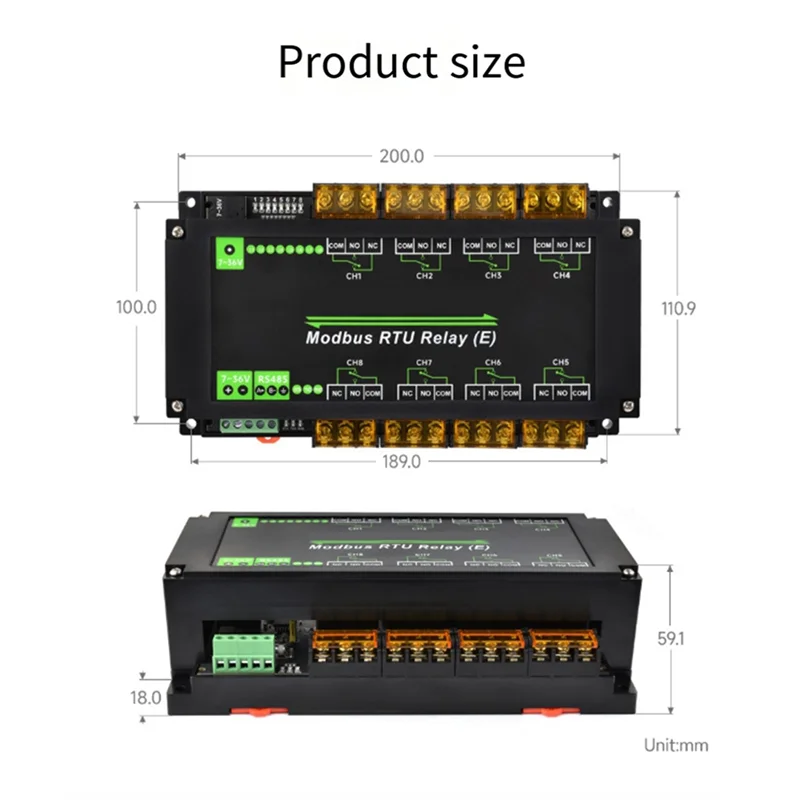

| Housing Material | ABS (DIN Rail Mount) |
| Color | Black |
| Country of Origin | Made in China |
What's in the Box?
- 1 × 8-Channel RS485 Relay Module
Ideal Applications
- Industrial automation and process control
- Building management systems
- Remote switching and monitoring
- PLC and SCADA integrations
- Smart factory and IoT control panels
Note: Due to different production batches, minor differences in product appearance or printed text may occur — this does not affect functionality. Slight color variation may appear due to monitor settings. Measurement tolerance: ±1–3 cm.
You May Also Like
- 10Pcs Wooden Handle Nylon Bristle Tool Set
- Precision Japanese Double-Edged Hand Saw — SK5 Steel
- 360-Degree Rotating Storage Tray
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What communication protocol does this 8-channel relay module use?
A: This relay module uses the Modbus RTU protocol over an RS485 industrial interface. Modbus RTU is a widely supported standard, making it compatible with PLCs, SCADA systems, HMIs, and most industrial automation controllers.
Q: What is the maximum current rating per relay channel?
A: Each of the 8 channels is rated for up to 30 amperes (30A), making this module well-suited for switching high-current loads commonly found in industrial control applications.
Q: What protection features are built into this relay module?
A: The module includes multiple layers of protection: built-in power isolation, ADI magnetic coupling isolation, a self-recovery fuse, and a TVS (Transient Voltage Suppressor) protection circuit. These features safeguard both the module and connected equipment from voltage spikes, surges, and electrical interference.
Q: Is this relay module easy to install?
A: Yes. The module features a standard ABS DIN rail housing for straightforward panel mounting. Its RS485 interface and Modbus RTU protocol ensure compatibility with most industrial systems without complex configuration steps.
