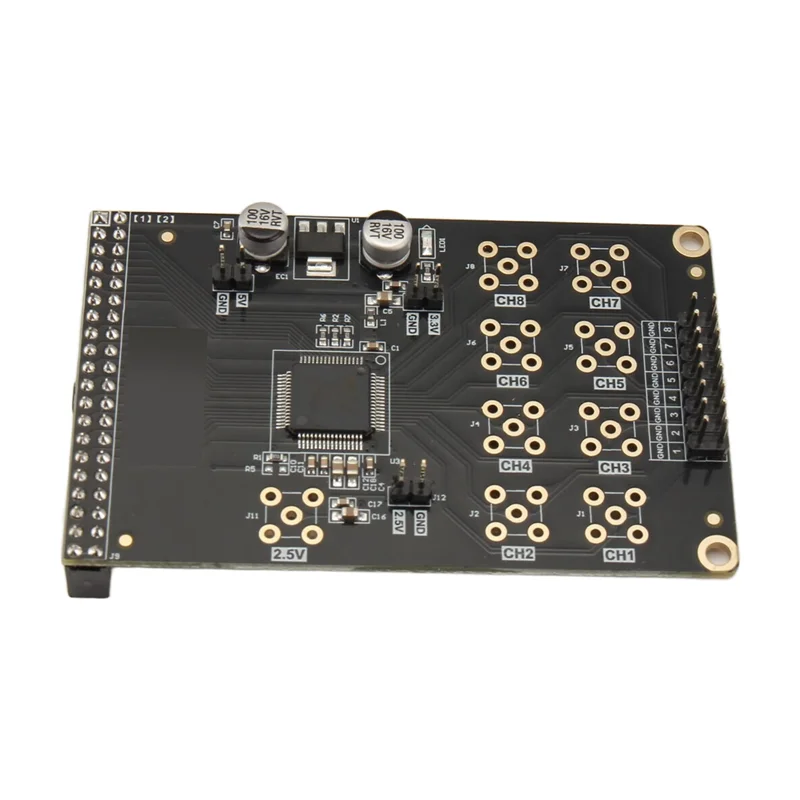

ALINX AN706 – 16-Bit AD Conversion Module for FPGA Boards
Take your FPGA development to the next level with the ALINX AN706 16-Bit AD Conversion Module. Powered by the high-precision AD7606 ADC chip, this module delivers simultaneous 8-channel analog-to-digital conversion at up to 200KSPS with an impressive 16-bit resolution. Whether you're building data acquisition systems, signal processing applications, or industrial measurement tools, the AN706 is engineered for accuracy, stability, and seamless FPGA integration.
Key Features
- ADC Chip: AD7606 – industry-trusted 16-bit, 8-channel simultaneous sampling ADC
- Resolution: 16-bit for ultra-fine analog signal digitization
- Sampling Rate: Up to 200KSPS per channel, all 8 channels simultaneously
- Input Voltage Range: ±5V (configurable to ±10V)
- Measurement Accuracy: Within ±0.5mV

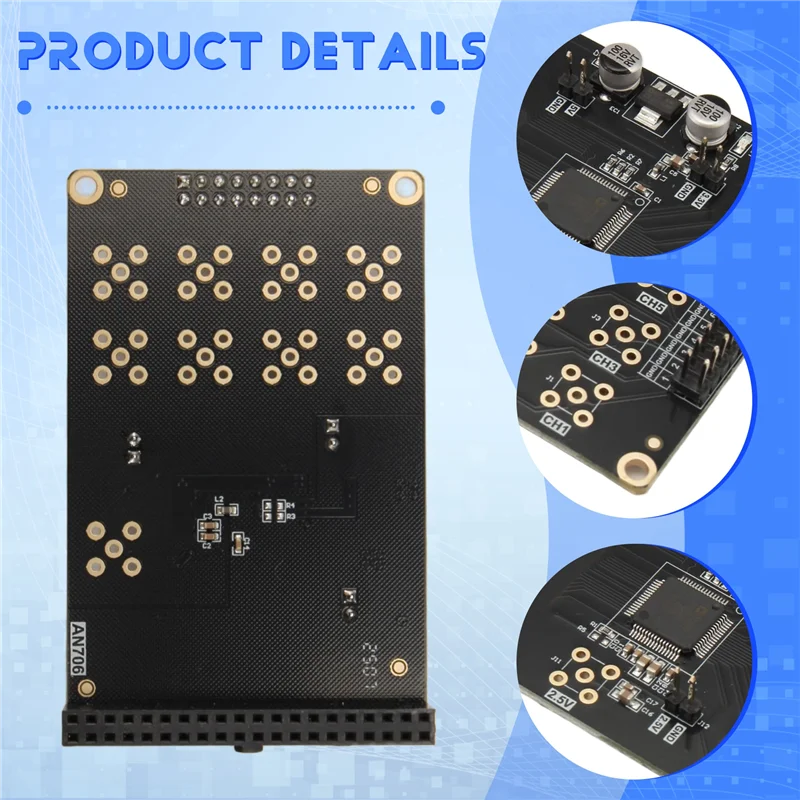

- PCB Design: 4-layer PCB with dedicated power and ground planes for superior signal integrity

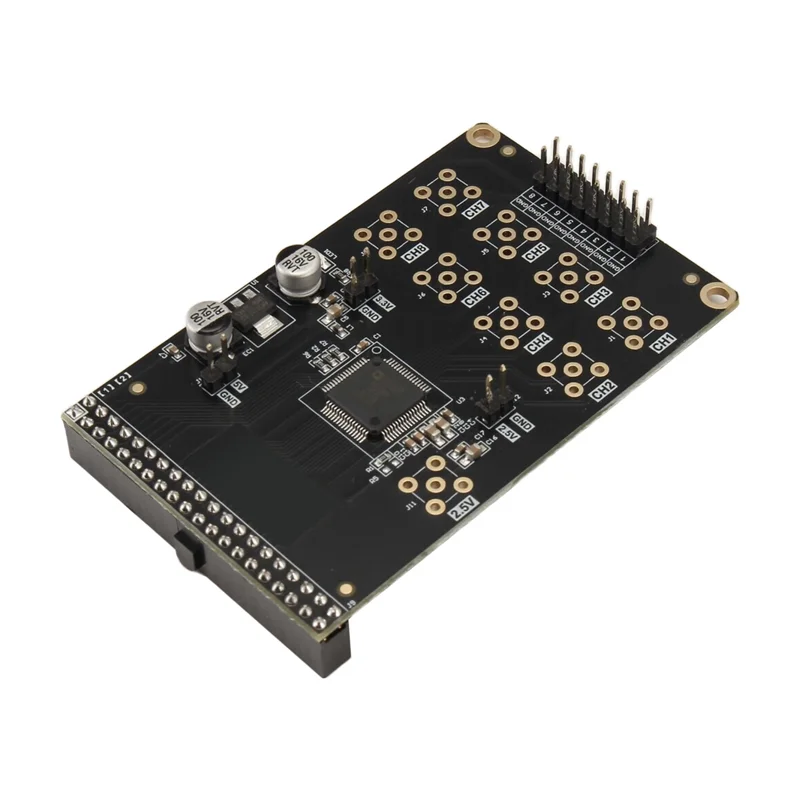

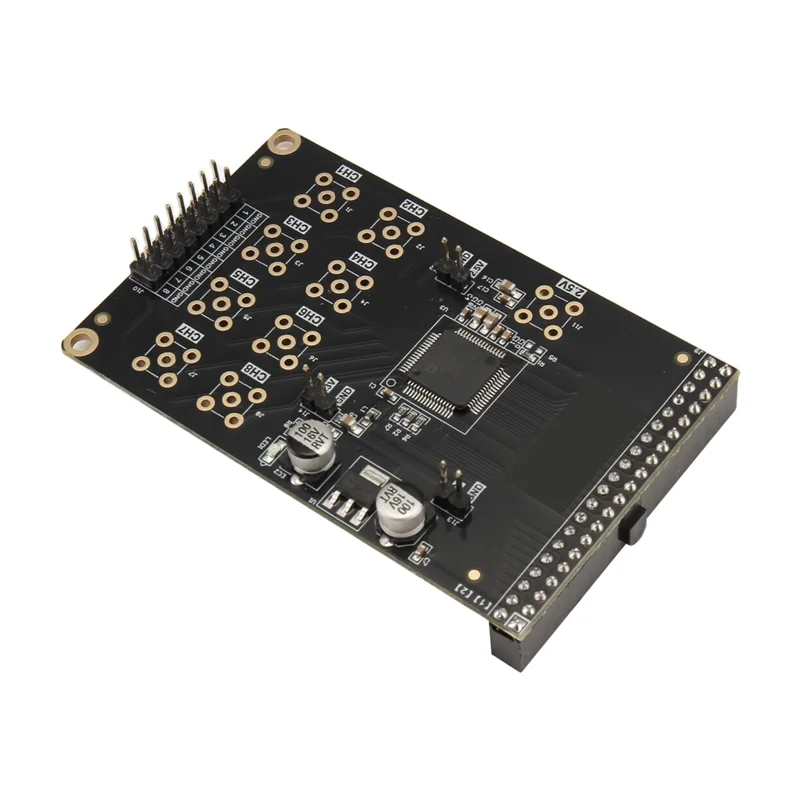

- Module Interface: 40-pin 0.1-inch spacing female header for easy FPGA board connection

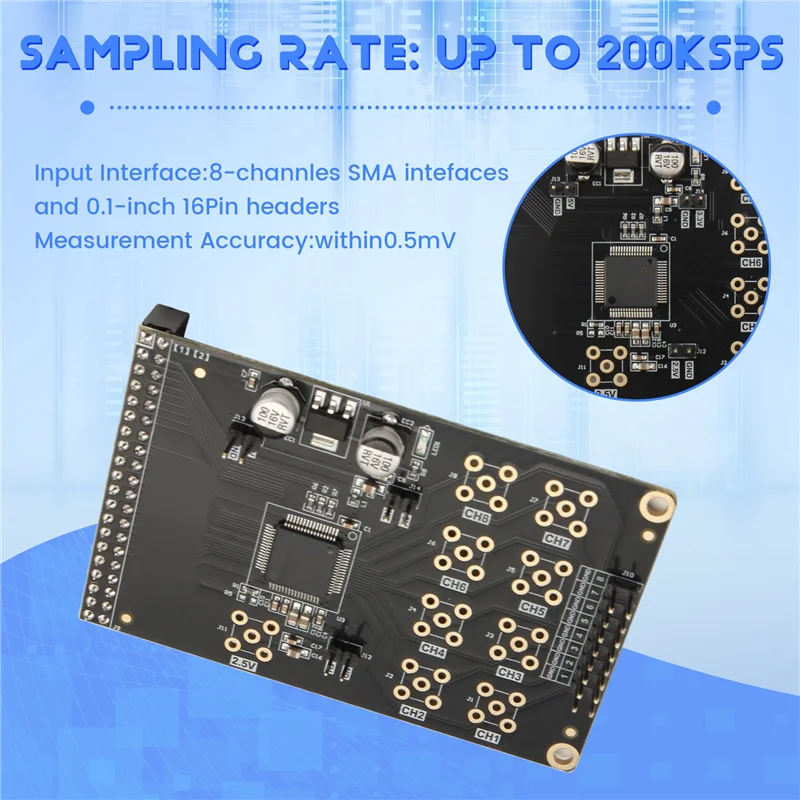

- Input Interface: 8-channel SMA connectors + 0.1-inch 16-pin header
- Operating Temperature: -40°C to +85°C – suitable for demanding environments
- Dimensions: 3.19 × 2.01 inches | Color: Black | Material: PC
- No battery required | No high-concern chemicals
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | AN706 |
| ADC Chip | AD7606 |
| Number of Bits | 16-bit |
| Channels | 8 Simultaneous |
| Sampling Rate | Up to 200KSPS |
| Input Range | ±5V / ±10V (configurable) |
| PCB Layers | 4 (Independent Power & GND) |
| Module Interface | 40-pin 0.1" female header |
| Input Interface | 8× SMA + 16-pin 0.1" header |
| Accuracy | Within ±0.5mV |
| Working Temperature | -40°C to +85°C |
| Size | 3.19 × 2.01 inches |
| Compatible With | FPGA Development Boards |
What's in the Box?

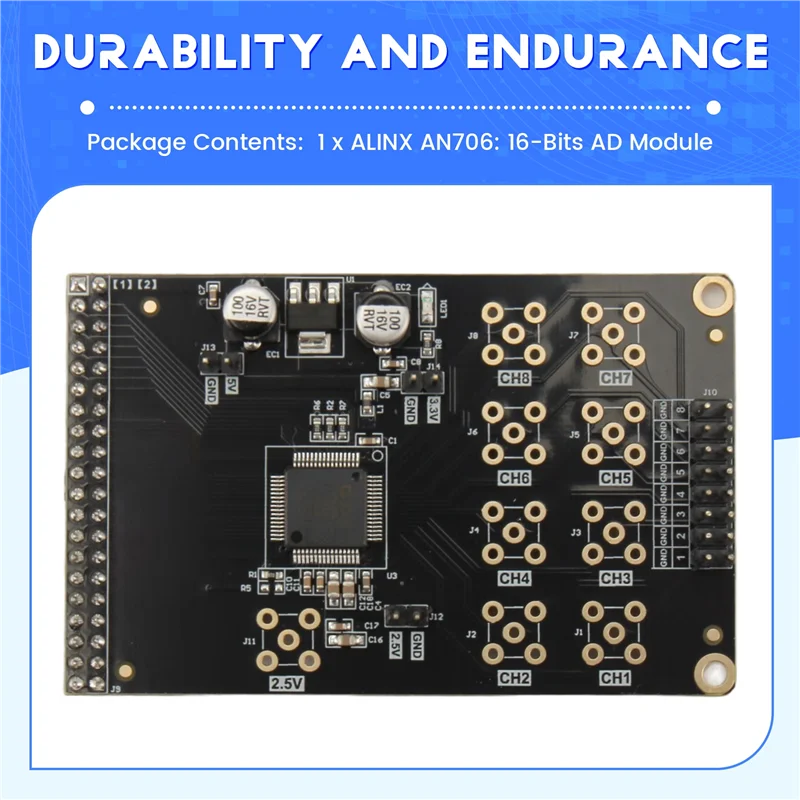

- 1 × ALINX AN706 16-Bit AD Conversion Module
Note: Only the above item is included. Other products shown are not part of the package. Slight color variations may occur due to display settings. Dimensional tolerance: ±1–3cm.
Made in Mainland China.
You May Also Like
- 10Pcs Wooden Handle Nylon Bristle Paint Brush – Hand Tool Set
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Is the ALINX AN706 compatible with all FPGA development boards?
A: The AN706 is designed specifically for FPGA development boards and connects via a standard 40-pin 0.1-inch spacing female header. Always verify your FPGA board's pinout and voltage compatibility before connecting. It supports the most common FPGA platforms used in data acquisition projects.
Q: Can I configure the input voltage range on the AN706 AD module?
A: Yes. The AN706 module supports two input voltage ranges: ±5V (default) and ±10V. The range can be configured to suit your specific signal measurement requirements, giving you flexibility for a wide variety of analog sources.
Q: Does the AN706 support simultaneous sampling on all 8 channels?
A: Absolutely. The AD7606 chip at the heart of this module is purpose-built for true simultaneous 8-channel sampling at up to 200KSPS per channel, ensuring no phase skew between channels — ideal for multi-signal data acquisition and real-time analysis applications.
Q: What is the measurement accuracy of the AN706 AD conversion module?
A: The AN706 achieves a measurement accuracy of within ±0.5mV, supported by a 4-layer PCB design with independent power and ground planes that minimizes noise and interference for high-fidelity signal conversion.
