Bring Your Classic TV Back to Life with an Analog RF Signal Transmitter

Give your old television a new purpose with this compact Analog TV Signal Transmitter. This wireless RF signal converter breathes new life into vintage color and black-and-white TVs by broadcasting a high-definition signal from modern sources — set-top boxes, network streaming boxes, computers, and even mobile phones — directly to your classic TV set.

Featuring a crisp OLED display, industrial-grade motherboard, and high-performance processing chips, this transmitter delivers powerful output with impressively low energy consumption. Its 360-degree coverage means no dead zones in your room, and the compact, portable aluminum plywood housing keeps things sleek and sturdy.

Key Features

• Universal Compatibility: Supports both color TVs and black-and-white televisions worldwide (N and P systems)
• Multiple Input Sources: Works with set-top boxes, network streaming boxes, computers, and mobile phones
• OLED Screen: Clear, easy-to-read display for quick frequency and settings monitoring
• HD Input Conversion: Converts HD input to RF (N and P systems) or AV signal output for LCD TVs and other AV-enabled displays
• FM Transmitter Function: Simple FM signal transmission via VHF band (set to 85.25 MHz base frequency)
• Accompanying Sound Support: Adjustable audio frequency range of 4.5 MHz – 6.5 MHz
• Wireless Transmission Range: 10–20 m (32.8–65.6 ft)
• 360-Degree Coverage: No dead zones for reliable signal distribution
• Low Energy Consumption: Efficient operation powered by a 9V supply (5V input via included power cord)
• Compact & Portable: Small form factor for easy placement anywhere at home

FM Transmitter Frequency Guide

To use as an FM transmitter, set the VHF base to 85.25 MHz and add the accompanying sound frequency:

• 85.25 MHz + 6.5 MHz = 91.75 MHz
• 85.25 MHz + 6.0 MHz = 91.25 MHz
• 85.25 MHz + 5.5 MHz = 90.75 MHz
• 85.25 MHz + 4.5 MHz = 89.75 MHz

Technical Specifications

• Color: White
• Material: Aluminum Plywood
• Transmission Distance: 10–20 m (32.8–65.6 ft)
• Audio Frequency Range: 4.5 MHz – 6.5 MHz
• Power Supply: 9V (5V input via included power cord)
• Country of Origin: Made in Mainland China

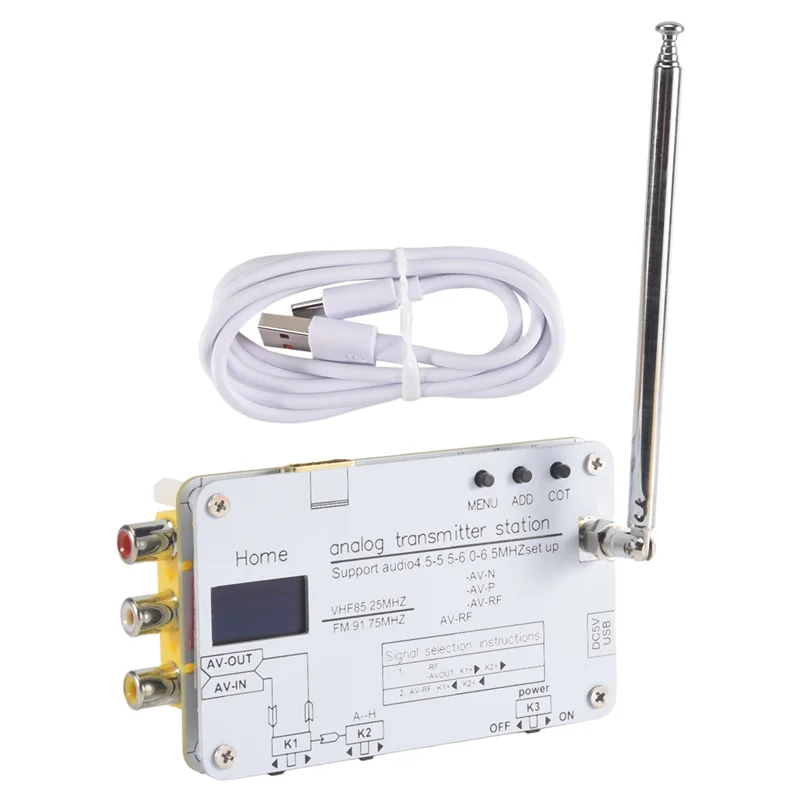

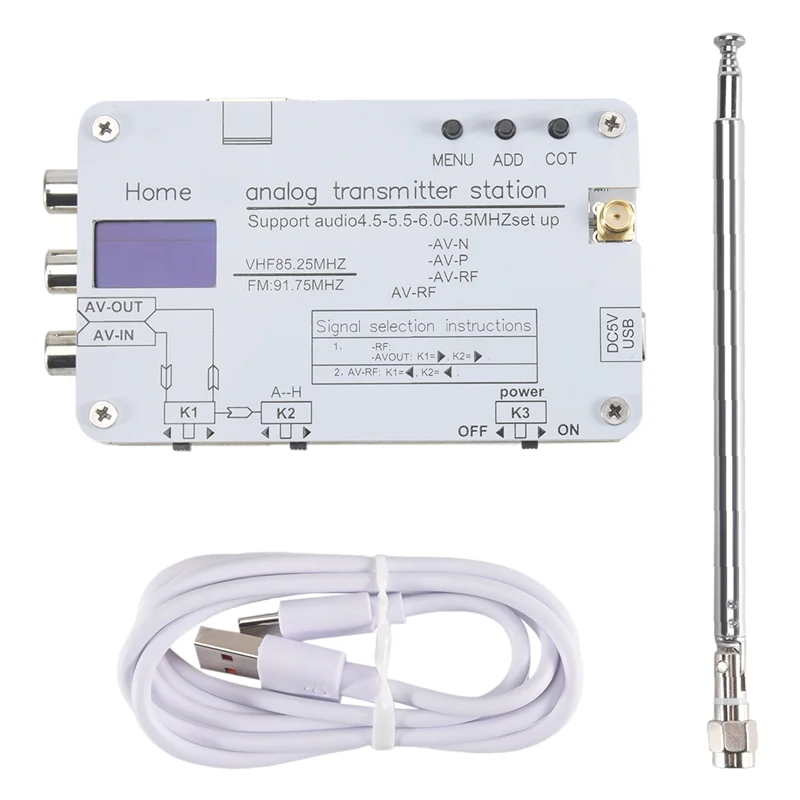

What's in the Box

• 1 × Analog TV Signal Transmitter
• 1 × Antenna
• 1 × Power Cord (5V Input Voltage)

Note: Due to light reflection and display differences, the item's color in photos may vary slightly from the actual product. Measurement tolerance is ±1–3 cm.

You May Also Like

• 10CM Wireless LED Motion Sensor Night Light – Rechargeable Cabinet & Kitchen Lamp
• 360-Degree Rotating Storage Tray for Kitchen Organization

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What devices can I connect to this analog TV signal transmitter?

A: This analog TV signal transmitter supports a wide range of input sources, including set-top boxes, network streaming boxes, computers, and mobile phones. It is designed to be a versatile wireless RF signal converter for modern and legacy devices alike.

Q: Does this transmitter work with both color and black-and-white TVs?

A: Yes! This home analog TV transmitter is universally compatible with both color televisions and black-and-white TVs. It supports global TV standards including N and P systems, making it suitable for use worldwide.

Q: Can I use this device as an FM transmitter?

A: Yes. By setting the base frequency to 85.25 MHz in the VHF band and adjusting the accompanying sound frequency (4.5 MHz – 6.5 MHz), you can use this device for simple FM signal transmission and receive audio on a standard FM radio.

Q: What is the wireless transmission range of this transmitter?

A: The analog TV signal transmitter has a wireless transmission range of 10–20 meters (approximately 32.8–65.6 feet), with 360-degree coverage and no dead zones under typical indoor conditions.
