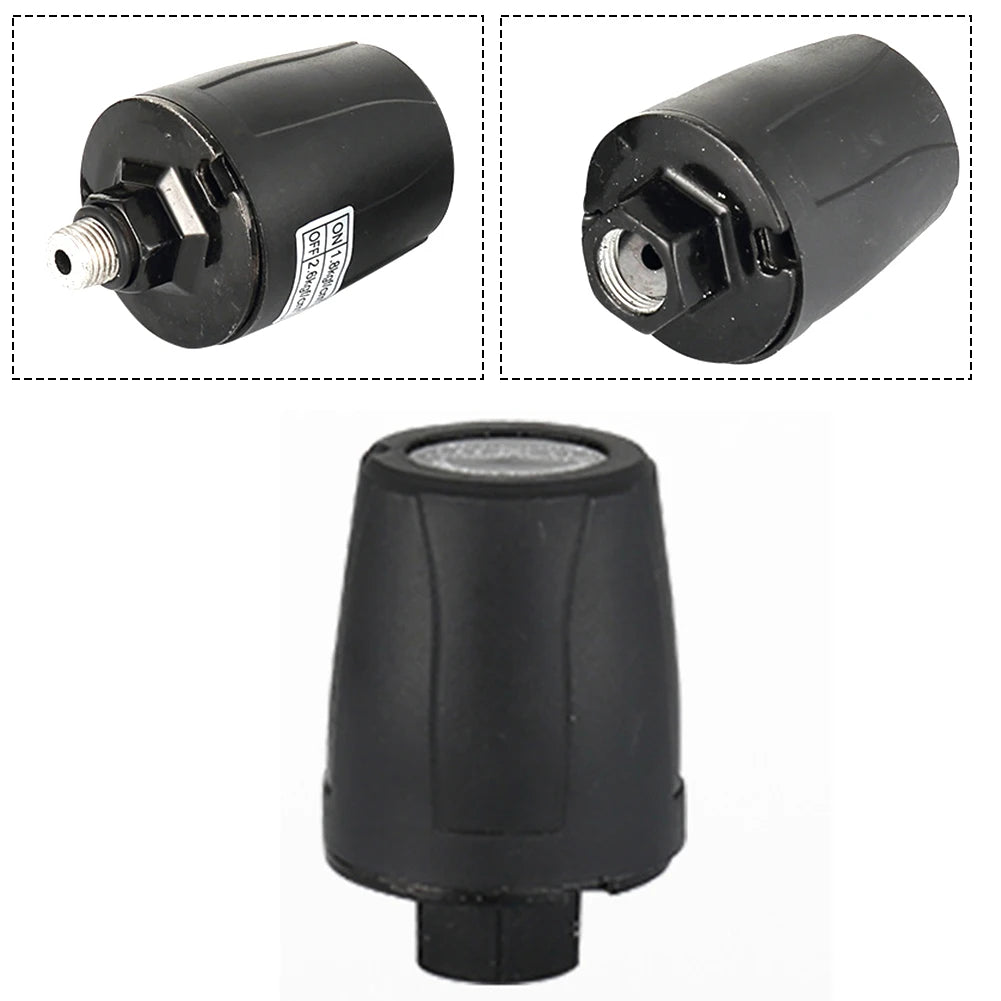

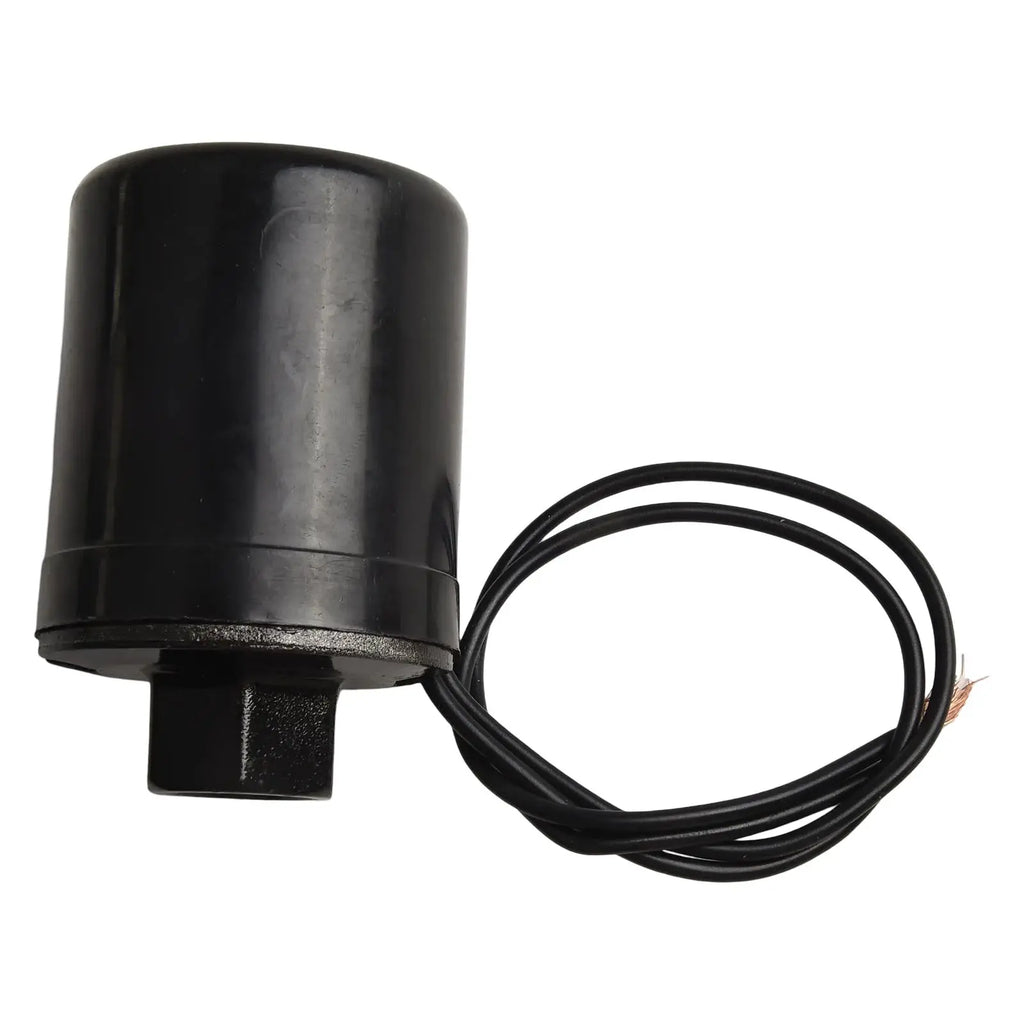

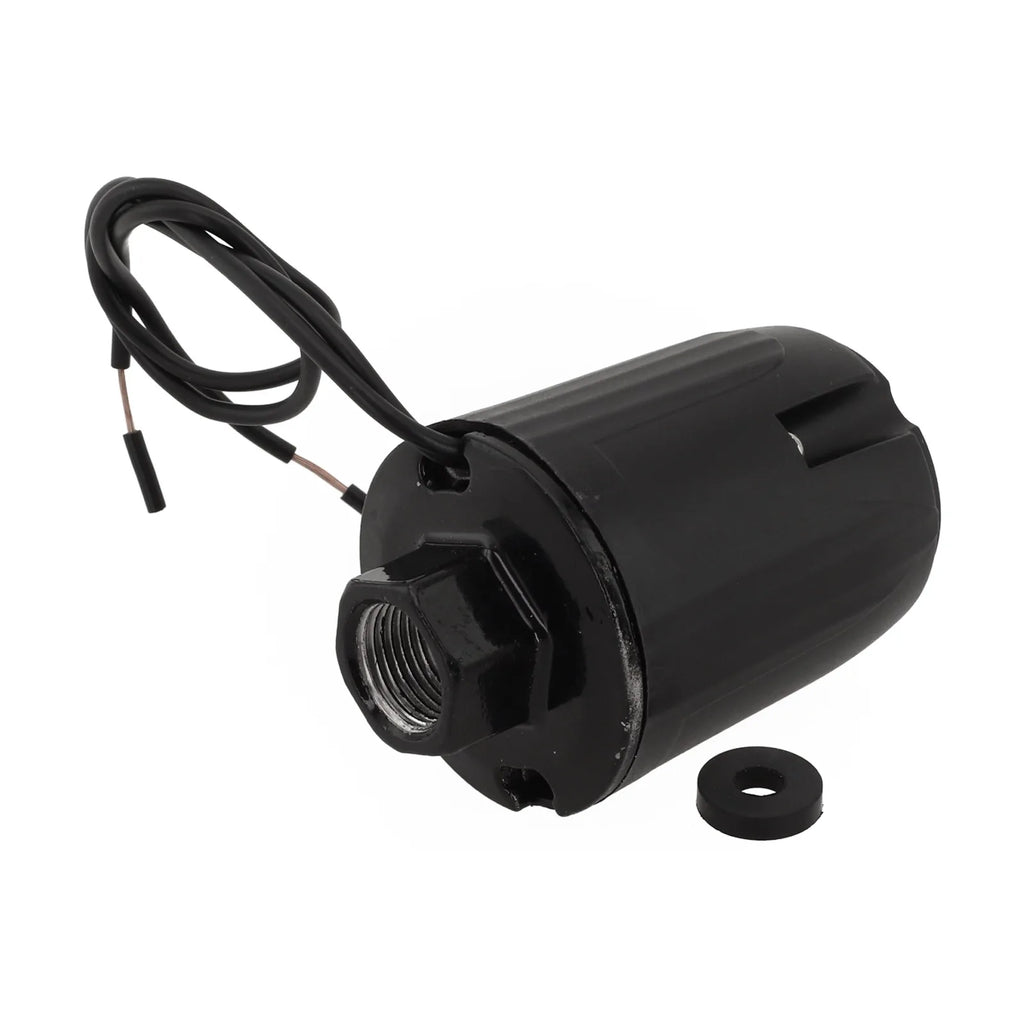

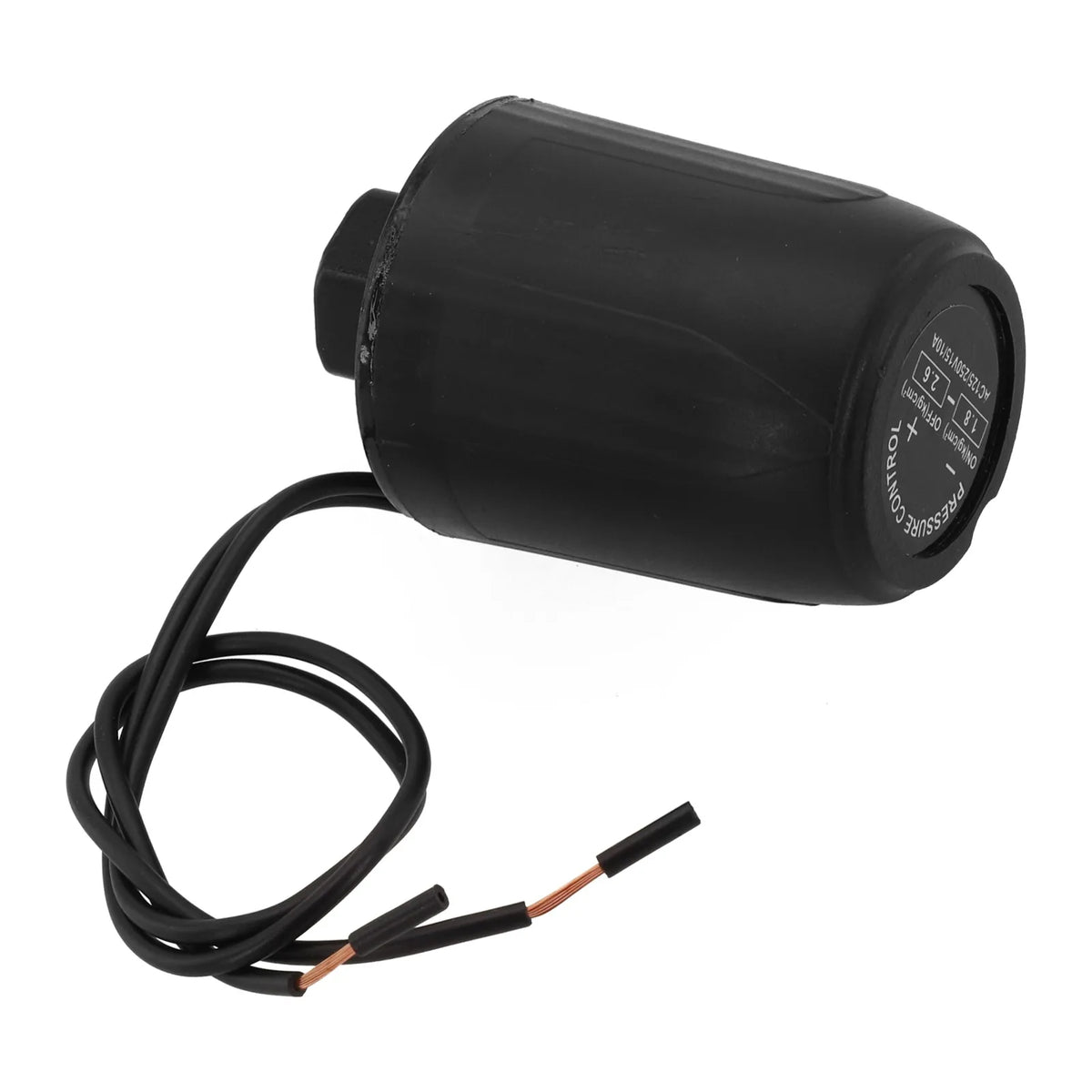

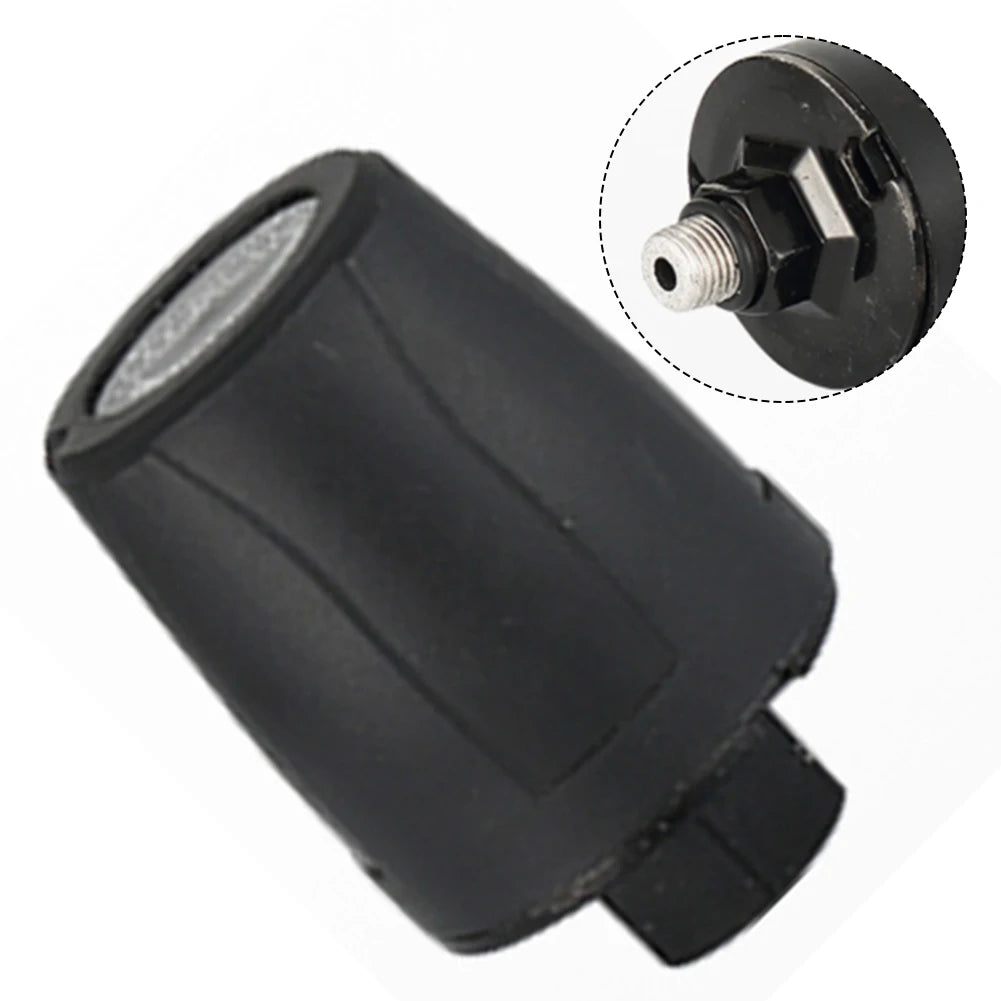

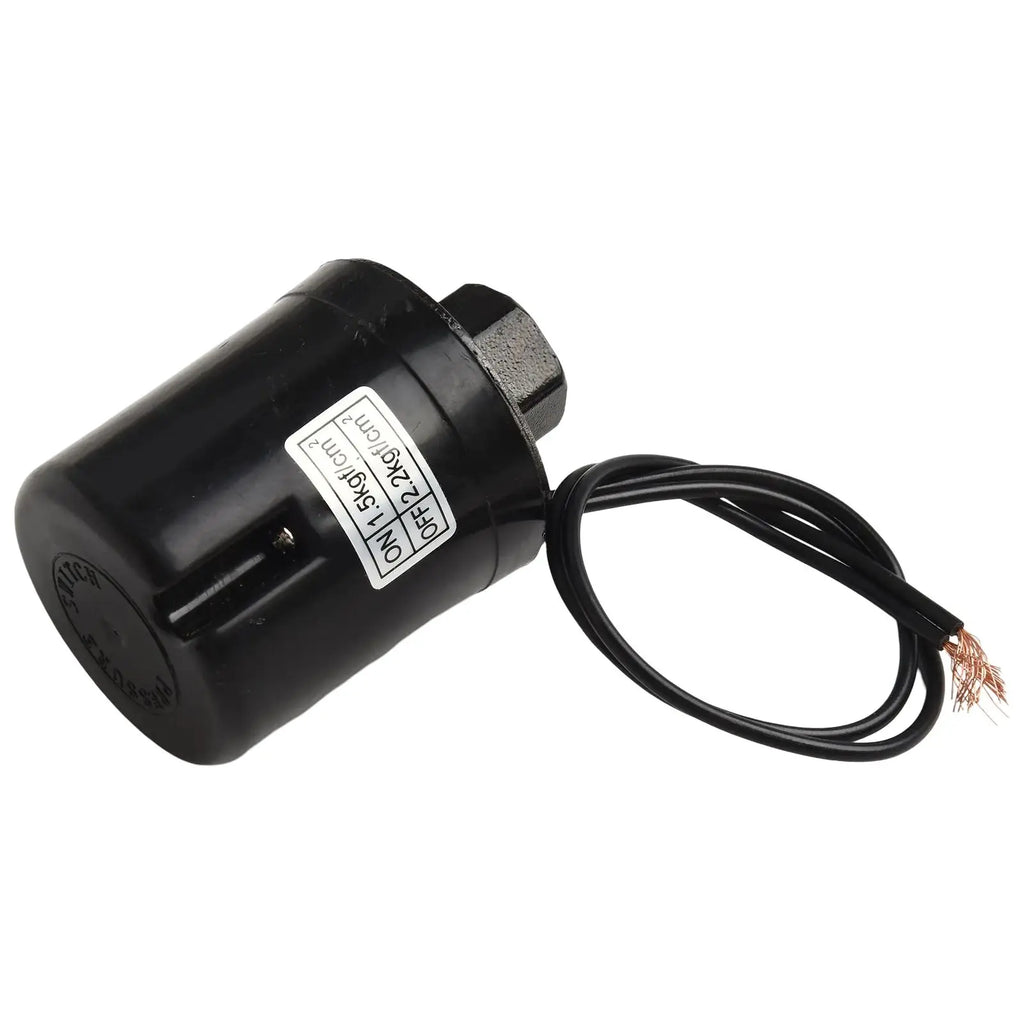

Automatic Water Pump Pressure Switch Controller — AC220V
Take full control of your water system with this Automatic Water Pump Pressure Switch Controller. Built from durable metal and ABS plastic, this compact and lightweight switch automatically manages your pump's start and stop cycles — keeping your water pressure consistent without any manual intervention. Made in Mainland China.
Key Features
- Fully Automatic Operation: Automatically starts the pump when pressure drops to the lower limit and cuts power when the upper pressure limit is reached — no manual monitoring needed.
- Durable Construction: Crafted from a combination of metal and ABS materials for a strong, long-lasting structure suited to continuous use.
- Dual Thread Options: Compatible with both 3/8-inch internal thread and 1/4-inch external thread connections for flexible installation across a variety of pump setups.

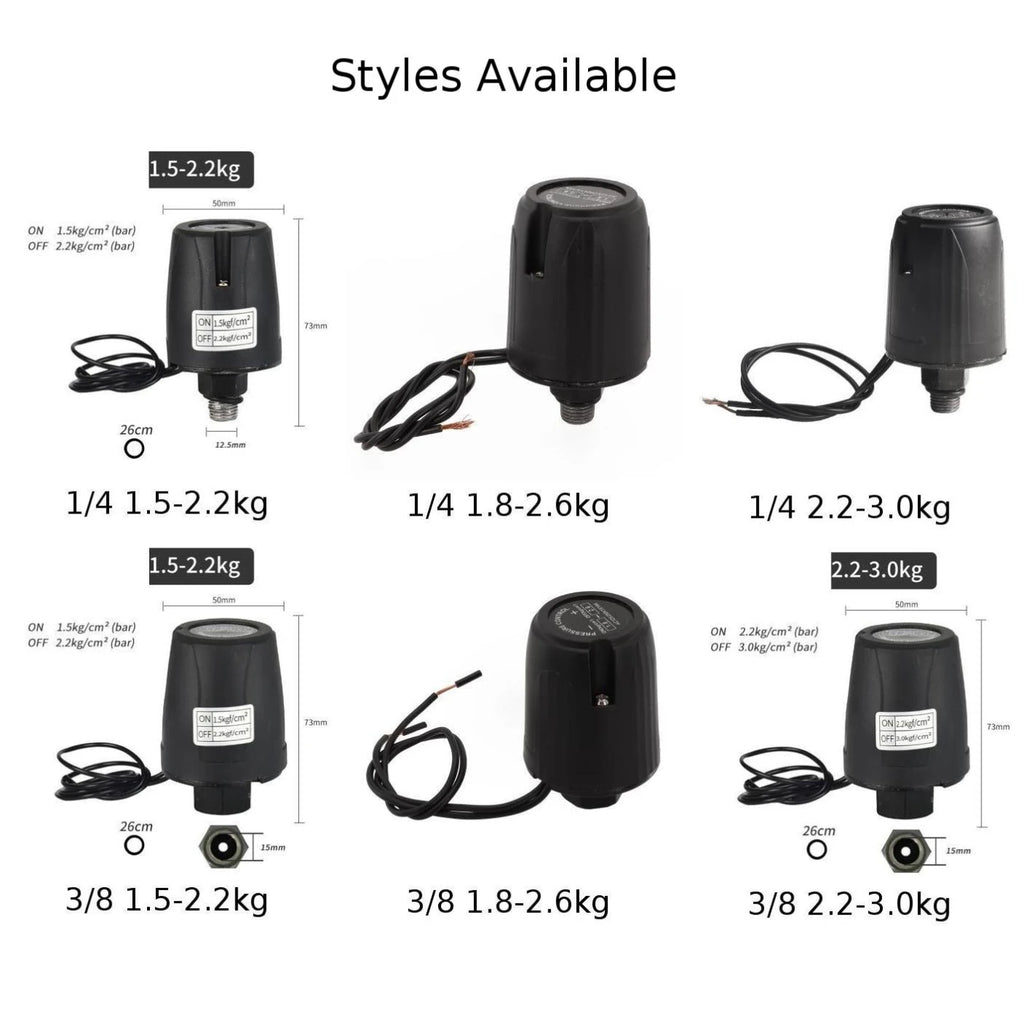

- Multiple Pressure Range Settings: Available in three pressure range options (1.5–2.2 kg, 1.8–2.6 kg, 2.2–3.0 kg) to suit different system requirements.
- Energy Efficient: Compact 750W-rated design minimizes energy consumption while reliably maintaining your system's pressure.
- Easy Installation: Small form factor (55×73 mm) and straightforward fitting make setup quick and hassle-free.
Specifications
| Material | Metal + ABS Plastic |
| Color | Black |
| Dimensions | 55 × 73 mm |
| Rated Voltage | AC 220V |
| Rated Current | 15A / 10A |
| Maximum Working Pressure | 100,000–500,000 Pa |
| Power | 750W |
| Thread Interface | 3/8 inch internal thread / 1/4 inch external thread |
| Pressure Ranges (Optional) | 3/8": 1.5–2.2 kg, 1.8–2.6 kg, 2.2–3.0 kg | 1/4": 1.5–2.2 kg, 1.8–2.6 kg, 2.2–3.0 kg |
| Country of Origin | Made in Mainland China |
Package Contents
- 1 × Automatic Water Pump Pressure Switch Controller
Note: Actual color may vary slightly from images due to monitor brightness and lighting conditions. Please allow for minor measurement tolerances.
You May Also Like
- 1pc Stainless Steel Gardening Shovel — Great for Outdoor Use
- 1pc Precision Japanese Double-Edged Hand Saw — SK5 Steel, Portable Mini
- 10Pcs Wooden Handle Paint Brush Set — Multi-Use Hand Tool Set
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What voltage does this water pump pressure switch controller require?
A: This automatic water pump pressure switch controller is rated for AC 220V with a rated current of 15A/10A and a power rating of 750W. It is designed for standard 220V pump systems.
Q: What thread sizes are compatible with this pressure switch?
A: This controller features a 3/8-inch internal thread and a 1/4-inch external thread, making it compatible with a wide range of water pump pipeline fittings.
Q: Can I choose the pressure range for my specific system?
A: Yes! The pressure switch is available in three selectable pressure ranges: 1.5–2.2 kg, 1.8–2.6 kg, and 2.2–3.0 kg — for both 3/8-inch and 1/4-inch thread variants — so you can match it precisely to your water system's requirements.
Q: How does the automatic pressure switch work?
A: The switch continuously monitors your pipeline pressure. When pressure falls to the preset lower limit, it automatically powers on the pump. When pressure reaches the upper limit, it cuts power to stop the pump — providing hands-free, consistent pressure management.
