DC 12V Single Channel RF Wireless Relay Switch Kit – Receiver + Remote Transmitter
Take full wireless control of your electronics projects with this compact DC 12V Single Channel RF Relay Module Kit. Designed for DIY enthusiasts, hobbyists, and automation builders, this set pairs a 315 MHz RF receiver module with a handheld remote transmitter — giving you reliable wireless switching capability up to 50 metres away. It's a versatile solution for home automation, garage doors, lighting control, alarm systems, machine tools, and more.
Made in Mainland China.
Key Features
- Versatile Replacement Switch: A drop-in wireless alternative for door-open buttons or device switches — compatible with elevator controllers, automobile electronics, household appliances, alarm systems, and general automation circuits.
- Three Flexible Control Modes: Choose the mode that best fits your application — Self-Lock, Inter-Lock, or Jog (momentary) — for maximum project flexibility.
- 315 MHz RF Signal: Delivers sensitive and strong signal transmission that can pass through walls, floors, and doors for dependable control anywhere within range.
- Up to 50m Range: Operate your switch from up to 50 metres away in open space with no obstacles.
- Self-Lock Safety Function: Built-in self-lock mode enables safe circuit conversion and protection for your connected devices.
- High-Quality Construction: Professional PCB board with high-quality plastic casing — spark-free, noise-free, anti-corrosion, moisture-proof, and anti-vibration.
- Compact & Portable: Lightweight, small-form-factor design makes it easy to integrate into tight spaces or carry the remote with you.
- CE Certified
Control Modes Explained
1. Self-Lock Mode: Press once → ON; Press again → OFF. (Uses 1 relay channel + 1 remote button.)
2. Inter-Lock Mode: Press one button → ON; Press a different button → OFF. (Uses 1 relay channel + 2 remote buttons.)
3. Jog (Momentary) Mode: Hold button → ON; Release → OFF. (Uses 1 relay channel + 1 remote button.)
Technical Specifications

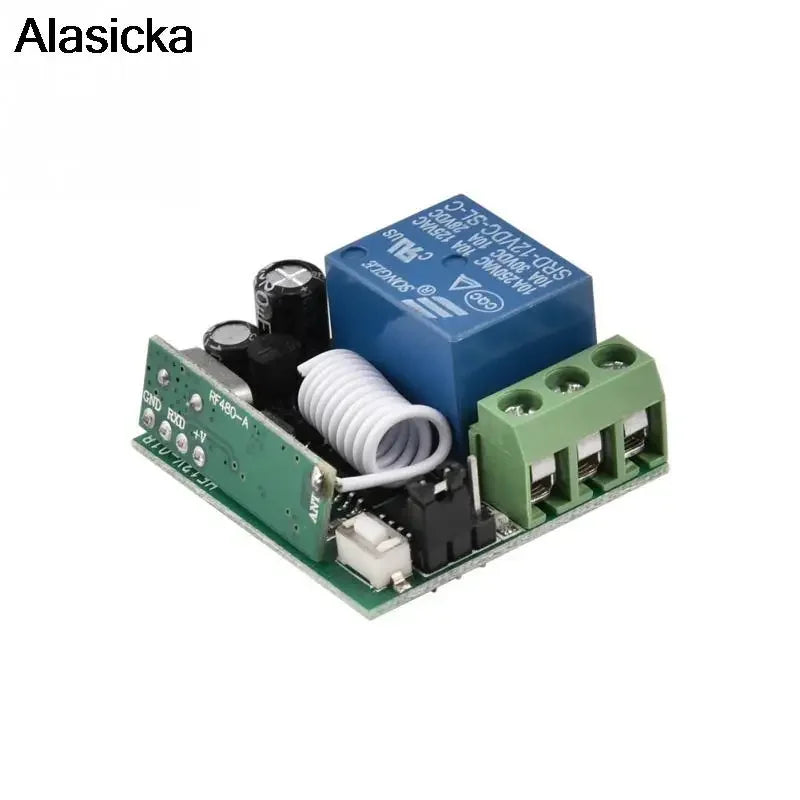

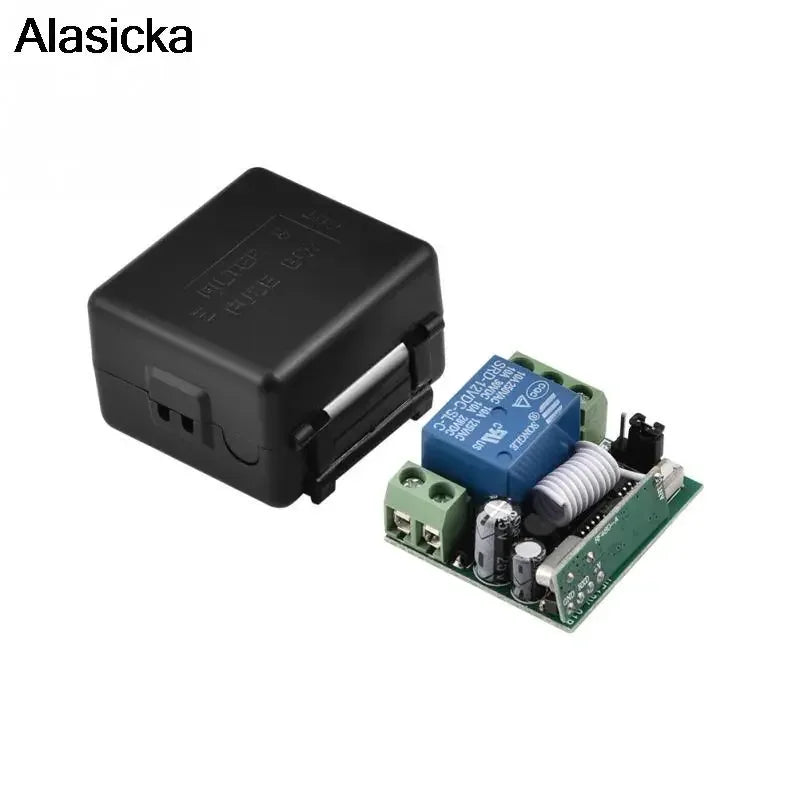

Receiver Module
- Working Voltage: DC 12V
- Load Current: 10A
- Frequency: 315 MHz
- Dimensions: Approx. 35 × 32 × 19 mm (1.4 × 1.3 × 0.7 in)

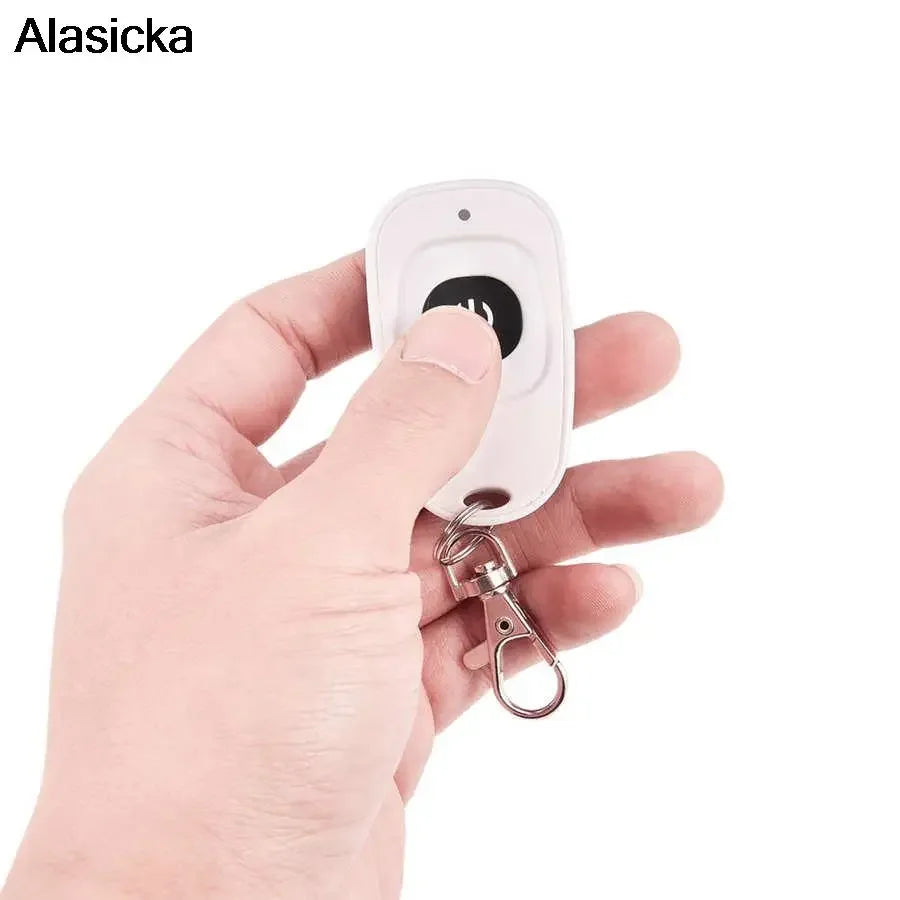

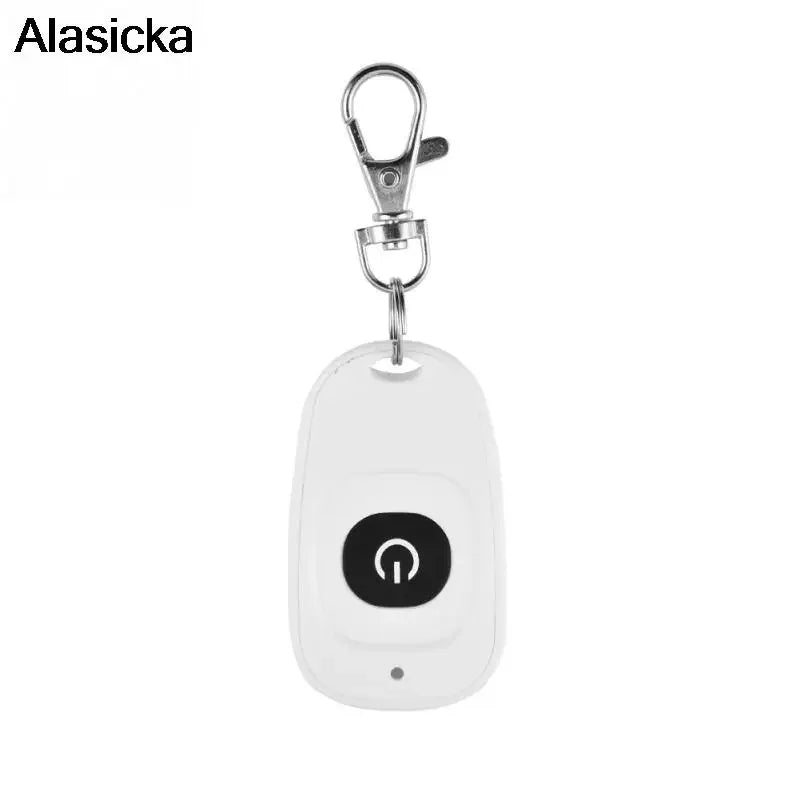

Remote Transmitter
- Color: White
- Frequency: 315 MHz
- Buttons: 1 Button
- Battery: CR2016 Button Battery (NOT Included)
- Dimensions: Approx. 35 × 60 × 9 mm (1.4 × 2.4 × 0.4 in)
Package
- Package Size: Approx. 90 × 80 × 30 mm (3.5 × 3.1 × 1.2 in)
- Package Weight: 42g

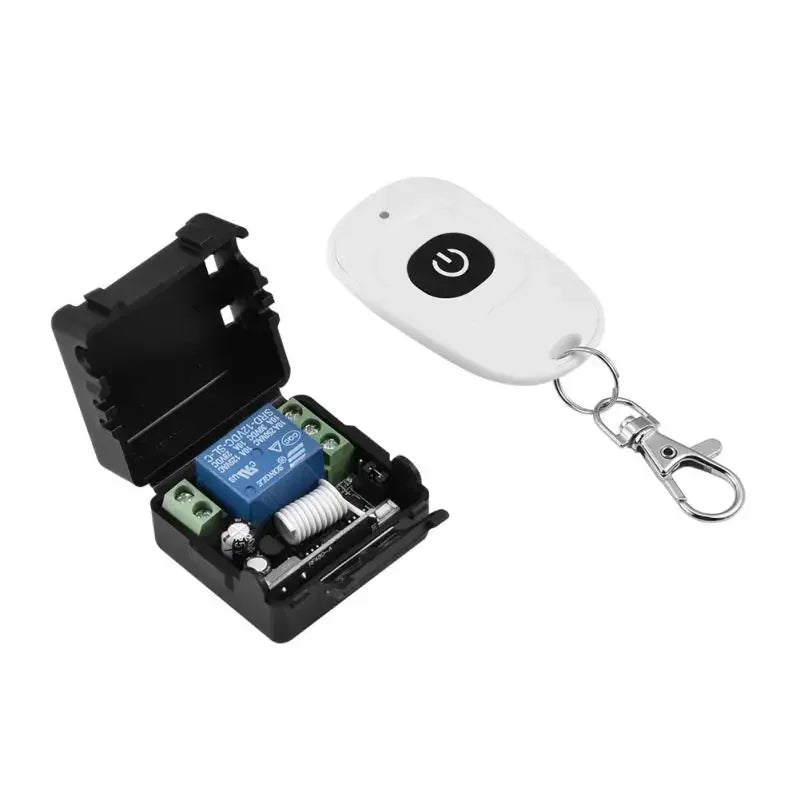

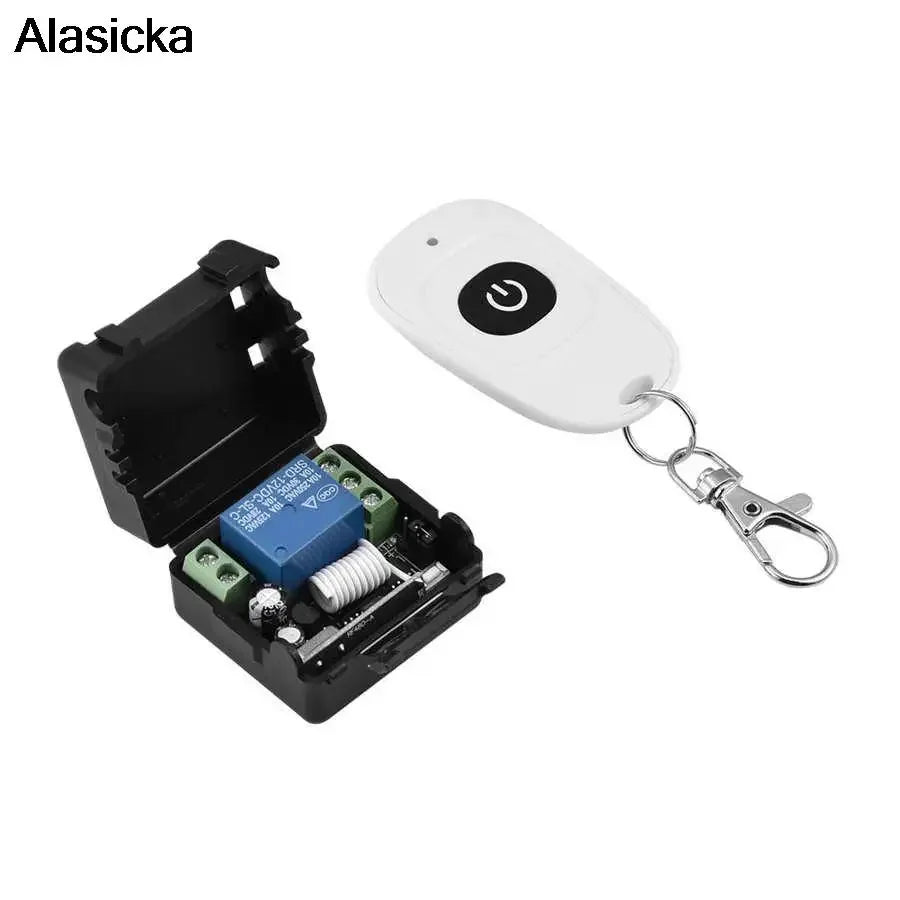

What's in the Box

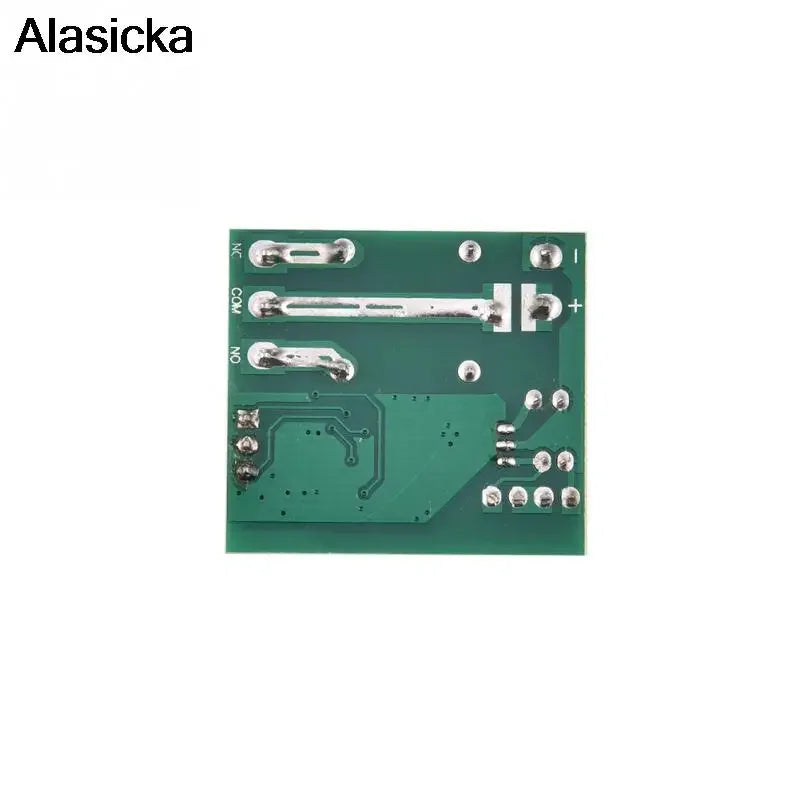

- 1 × Wireless RF Relay Receiver Module (Circuit Board)
- 1 × Remote Control Transmitter (Battery NOT Included)
You May Also Like
- 10Pcs Wooden Handle Nylon Bristle Paint Brush – Hand Tool Set
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel, Portable Mini
- 1pc Professional Heavy-Duty Pruning Shears with Anti-Slip Handle
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What control modes does this RF wireless relay switch support?
A: This relay switch kit supports three control modes: Self-Lock (toggle on/off with the same button), Inter-Lock (one button turns it on, another turns it off), and Jog/Momentary (the relay is active only while the button is held down). You can select the mode that best matches your DIY project needs.
Q: Does the remote control battery come included?
A: No — the CR2016 button battery for the remote transmitter is not included in the package. You will need to purchase one separately before using the remote control.
Q: What is the maximum wireless range of this relay module?
A: The 315 MHz RF signal can reach up to 50 metres (approximately 164 feet) in open space without obstacles. Range may be reduced in environments with thick walls or significant interference, though the signal is designed to penetrate common building materials such as standard interior walls, floors, and doors.
Q: What devices or applications can this wireless relay switch be used with?
A: This kit is well-suited for a wide range of DIY and automation applications, including garage door openers, lighting circuits, alarm systems, machine tool controls, home automation projects, elevator controllers, and general household appliance switching — any device operating on or controllable through a DC 12V relay circuit.
