DC 6–60V 400W Three-Phase Brushless Motor Controller – PWM Hall Driver Board (3-Pack)
Take precise control of your brushless DC motor projects with this robust BLDC Three-Phase Motor Controller Driver Board (Model ZS-X11H V2). Supporting a wide voltage range of 6V to 60V and up to 400W peak power, this controller is ideal for hobbyists, engineers, and makers working with electric bicycles, power tools, CNC machines, robotics, and more. The package includes 3 controller boards, making it excellent value for multi-motor builds or having spares on hand.
Made in Mainland China.
Key Specifications

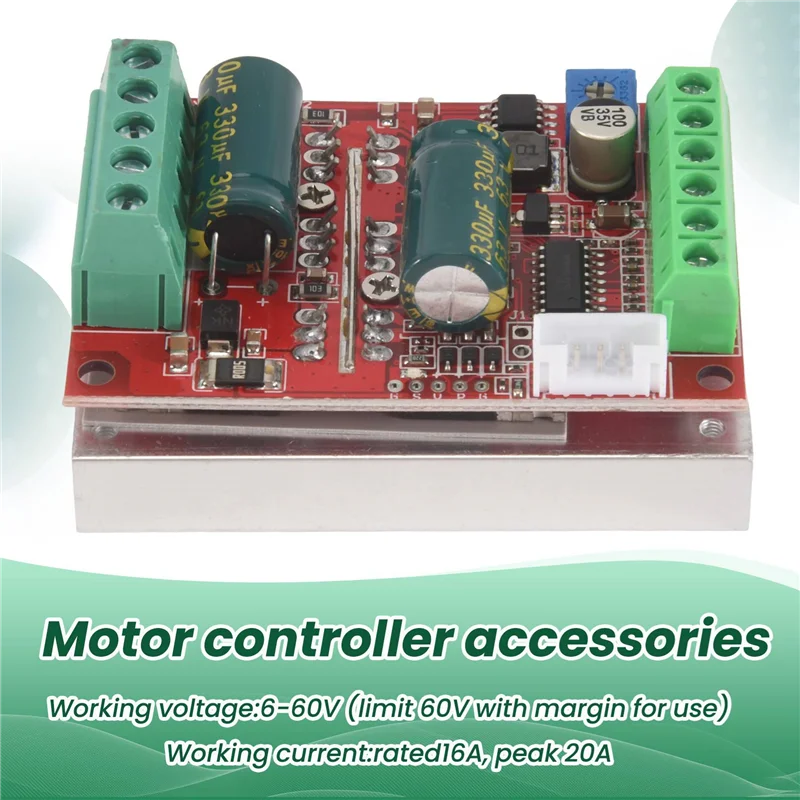

- Working Voltage: DC 6–60V (60V maximum; use with margin)
- Working Current: Rated 16A | Peak 20A

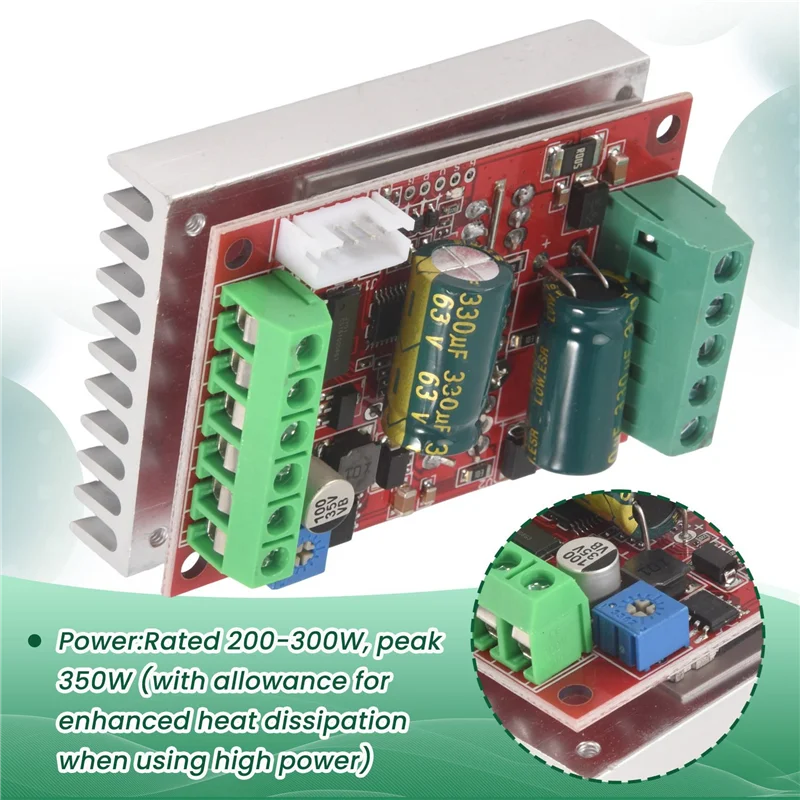

- Power: Rated 200–300W | Peak 350W (enhanced heat dissipation recommended at high power)
- Driver Model: ZS-X11H V2
- Overcurrent Protection: Yes
- Compatible Voltages: 12V, 24V, 36V, 48V and more within the 6–60V range
- Material: Metal + Plastic

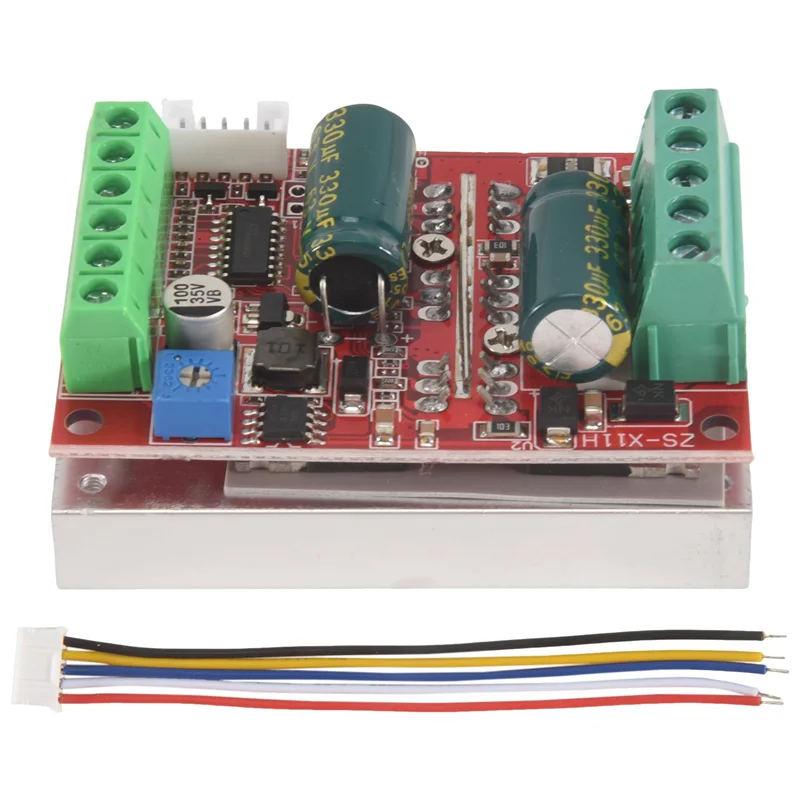

- Package Contents: 3 × Motor Controller Boards
Interface Description
- MA / MB / MC – Three-phase line output, connected directly to the motor phases
- 5V / GND (Onboard) – Built-in 5V power supply; external draw must not exceed 50mA
- VCC / GND – Main DC power supply input
- SC – Speed pulse signal output (interface reserved; no technical support provided)
- DIR – Direction control for forward/reverse switching (active low; connect external switch to ground)
- STOP – Stop control interface (active low; ground via external switch)
- Brake – Brake control interface (active high; 5V external switch)
- Speed Regulation – Onboard potentiometer or external 0–5V analog / PWM dual-signal input
- Ha / Hb / Hc + 5V / GND – Hall sensor signal power supply input (standard 5-wire Hall motor compatible)
Why Choose This BLDC Controller?
- ✅ Wide voltage compatibility — works seamlessly at 12V, 24V, and 48V systems
- ✅ Onboard potentiometer for instant speed adjustment without extra hardware
- ✅ Forward/reverse direction control via the DIR interface
- ✅ Built-in overcurrent protection safeguards your motor and circuitry
- ✅ Supports external PWM or 0–5V analog signal for advanced speed control integration
- ✅ Compact, durable Metal + Plastic construction for reliable performance
- ✅ 3-pack value — ideal for prototyping, replacement, or multi-axis builds
Ideal Applications
- Electric bicycles and scooters
- Robotics and automation
- CNC spindle control
- Power tools and DIY motor projects
- Industrial conveyor and fan systems
Related Products You May Like
- 10Pcs Wooden Handle Nylon Bristle Paint Brush – Hand Tool Set
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel
- 1pc Professional Heavy-Duty Pruning Shears with Anti-Slip Handle
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What types of brushless DC motors are compatible with this BLDC motor controller?
A: This controller is designed for three-phase brushless DC (BLDC) motors equipped with Hall sensors (5-wire Hall interface: Ha, Hb, Hc, 5V, GND). It supports motors operating within 6–60V DC and up to 350W peak, making it suitable for electric bikes, robotics, power tools, and CNC machines running at 12V, 24V, 36V, or 48V.
Q: Can I control the motor speed externally, or is the potentiometer the only option?
A: The board offers flexible speed control options. You can use the onboard potentiometer for simple manual adjustment, or connect an external 0–5V analog signal or a PWM signal for automated or programmable speed control — making it easy to integrate into microcontroller-based systems like Arduino or PLC setups.
Q: How do I reverse the motor direction using this controller?
A: Motor direction is controlled via the DIR interface. It is active at a low level — simply connect an external switch to ground on the DIR terminal to toggle between forward and reverse rotation.
Q: Does this controller include overcurrent protection?
A: Yes. The ZS-X11H V2 board features built-in overcurrent protection that helps safeguard both the controller and the motor during unexpected load spikes or short circuits. For sustained high-power operation near peak rating, additional heat dissipation (such as a heatsink or cooling fan) is recommended.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
