Door Hinge Jig Template – Precision ABS Install Tool for Cabinets

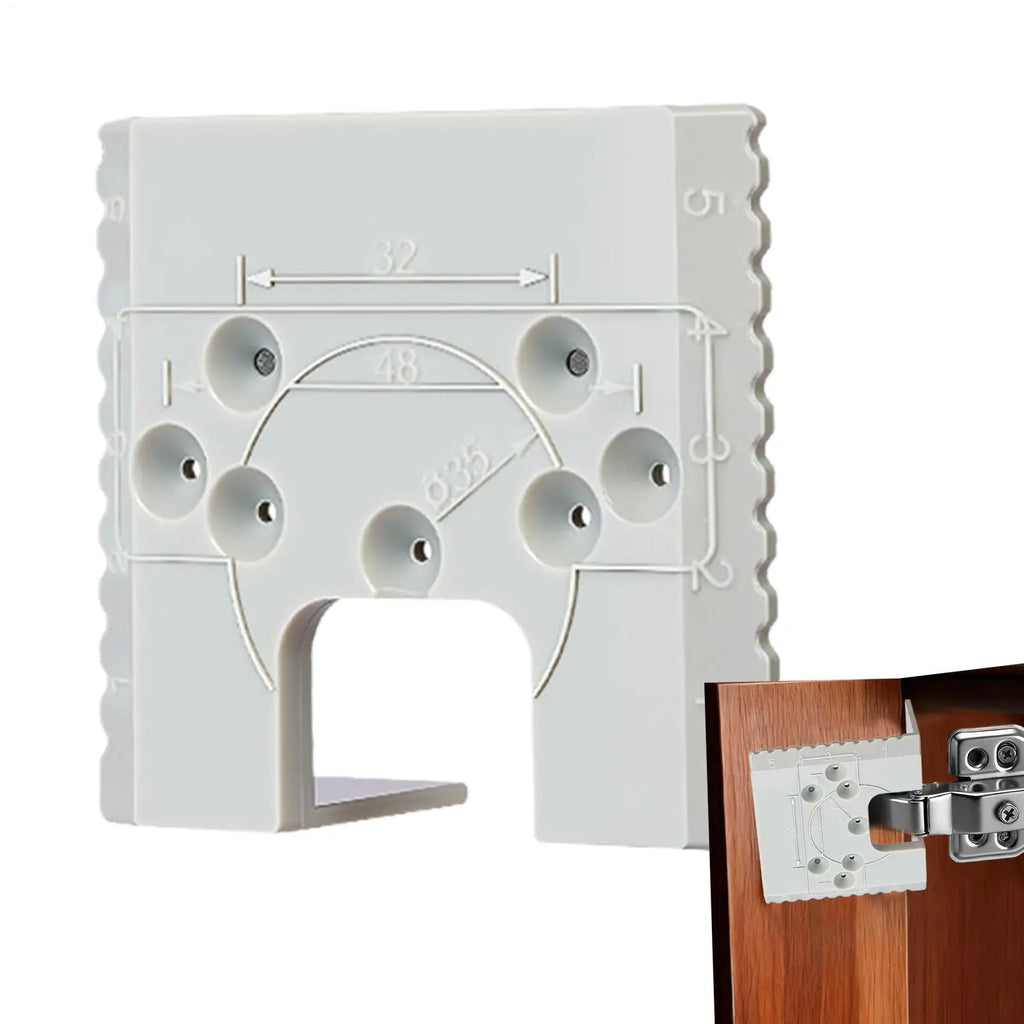

Door Hinge Jig Installation Template — Precision Made Simple

Whether you're a seasoned carpenter or a weekend DIYer, getting hinge placement exactly right every single time can be a challenge. The Door Jamb Hinge Jig Installation Template eliminates guesswork and delivers consistent, professional results for doors, cabinet drawers, and bathroom fixtures — no repeat calibration required.

Made in Mainland China.

Why You'll Love This Hinge Jig

• Magnetic Stability: A large-area magnetic structure holds the jig firmly in place and prevents drill bit shifting, keeping every hole precisely where it needs to be — saving you time and frustration.
• 2mm Precision Groove Design: The engineered precision groove ensures mechanical alignment standardization, delivering uniform, aesthetically clean installation results across every project.
• Optimized Drill Guidance: The jig guides your drill bit with pinpoint accuracy, making hinge hole milling straightforward even for beginners tackling their first door installation.
• Durable ABS Construction: Built from robust ABS plastic, this jig maintains its structural integrity under heavy use, giving you a long-lasting tool that won't flex or warp over time.
• Versatile Multi-Scenario Use: Designed for doors, kitchen cabinets, bathroom cabinetry, and drawer installations — one compact tool that handles it all.

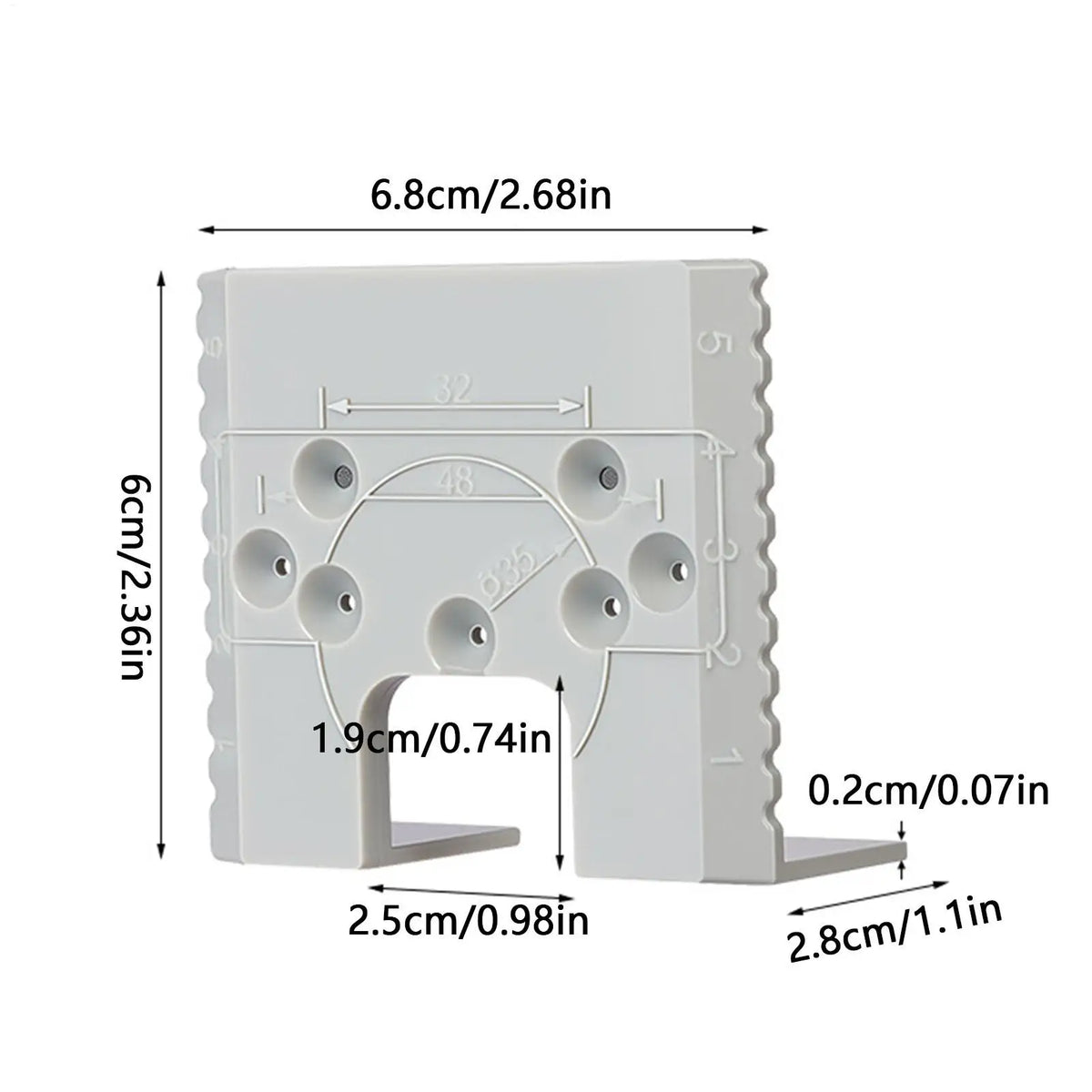

Specifications

Package Contents

• 1 × Door Hinge Jig Installation Template

Note: Due to lighting and display settings, slight color variations may appear. Minor size tolerances may exist due to manual measurement.

Complete Your DIY Toolkit

Pair this hinge jig with other handy home tools from our store:

• 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel, Fine-Toothed for Carpentry
• 10Pcs Wooden Handle Nylon Bristle Paint Brush for Oil Painting, Dusting and Cleaning
• 1pc Professional Heavy-Duty Pruning Shears with Anti-Slip Handle Design

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What types of doors and surfaces is this hinge jig compatible with?

A: The door hinge jig installation template is designed for a wide range of applications including interior and exterior doors, kitchen cabinet doors, bathroom cabinet drawers, and other wooden fixtures. Its versatile design accommodates various hinge sizes and installation scenarios, making it ideal for both home DIY projects and professional carpentry work.

Q: How does the magnetic feature improve accuracy during installation?

A: The large-area magnetic structure keeps the jig firmly anchored to the door or frame surface, preventing any unwanted movement or drift of your drill bit. This ensures that every hinge hole is drilled in the exact correct position the first time, reducing material waste and saving valuable installation time.

Q: Is this hinge jig suitable for beginners with limited carpentry experience?

A: Absolutely. The 2mm precision groove design and magnetic hold make it straightforward to use even if you're new to woodworking or DIY home improvements. The jig guides your drill automatically to the correct position, so you don't need professional-level carpentry skills to achieve clean, professional-looking results.

Q: What is the jig made of, and how durable is it?

A: The hinge jig is constructed from high-quality ABS plastic, which is known for its strength, rigidity, and resistance to wear. Even under repeated heavy use, the jig maintains its shape and alignment accuracy, providing extended service life for both occasional DIYers and regular-use carpenters.
