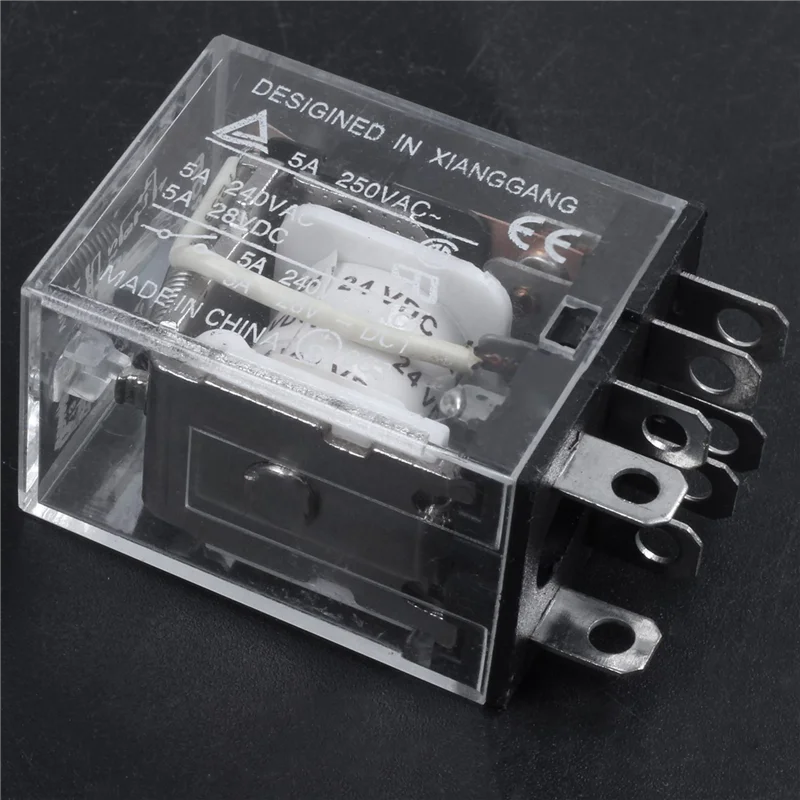

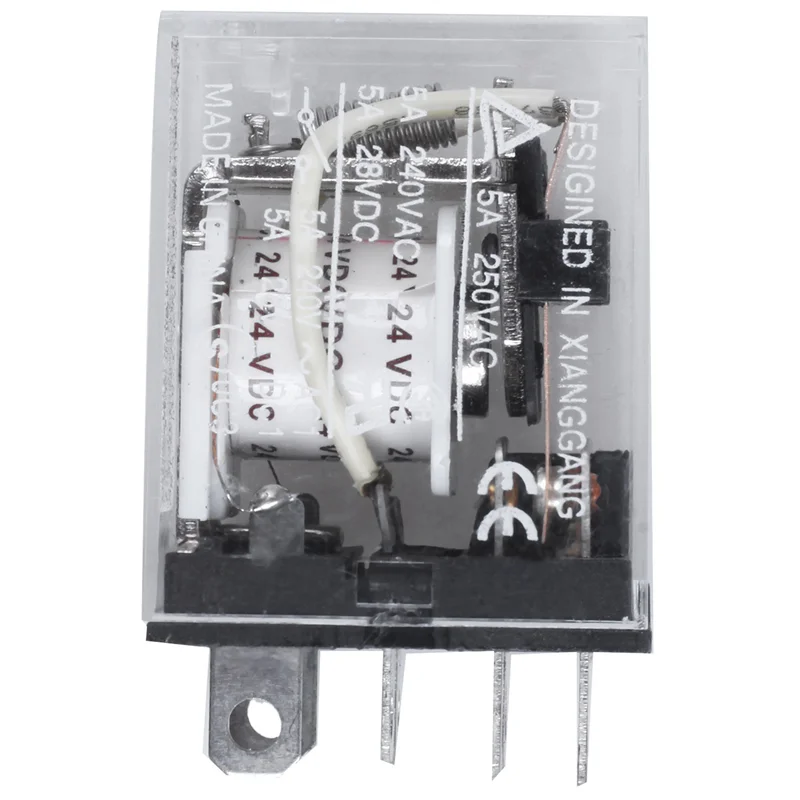

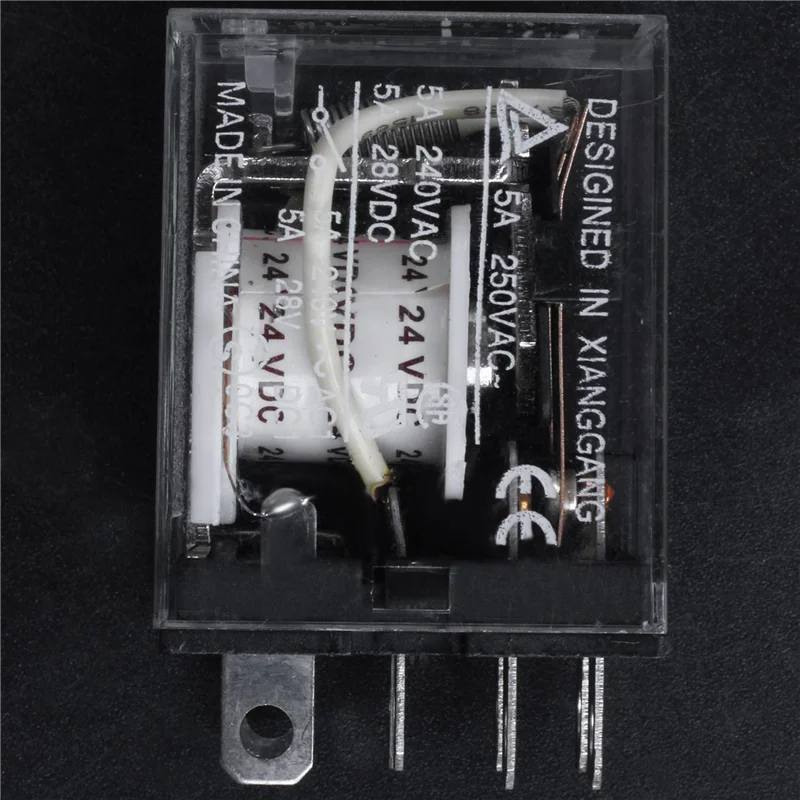

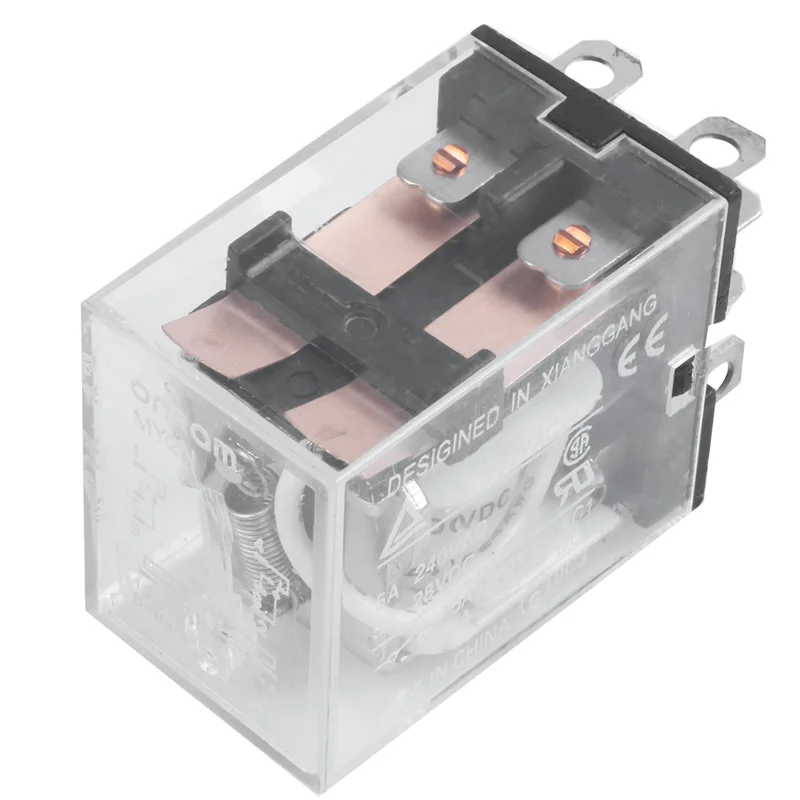

4-Pack DPDT Electromagnetic Relay – JQX-13F2Z | DC 12V Coil | 10A 240VAC / 28VDC
Upgrade your automation and control projects with this reliable set of four JQX-13F2Z Electromagnetic Relays. Featuring a compact 8-pin DPDT (Double Pole Double Throw) design and a DC 12V coil, these relays handle both AC and DC loads with ease — making them a versatile addition to any electronics workbench, automation panel, or DIY control system.
Key Specifications
- Model: JQX-13F2Z
- Coil Voltage: DC 12V
- Contact Rating: 10A at 240VAC / 28VDC
- Type: DPDT (Double Pole Double Throw)

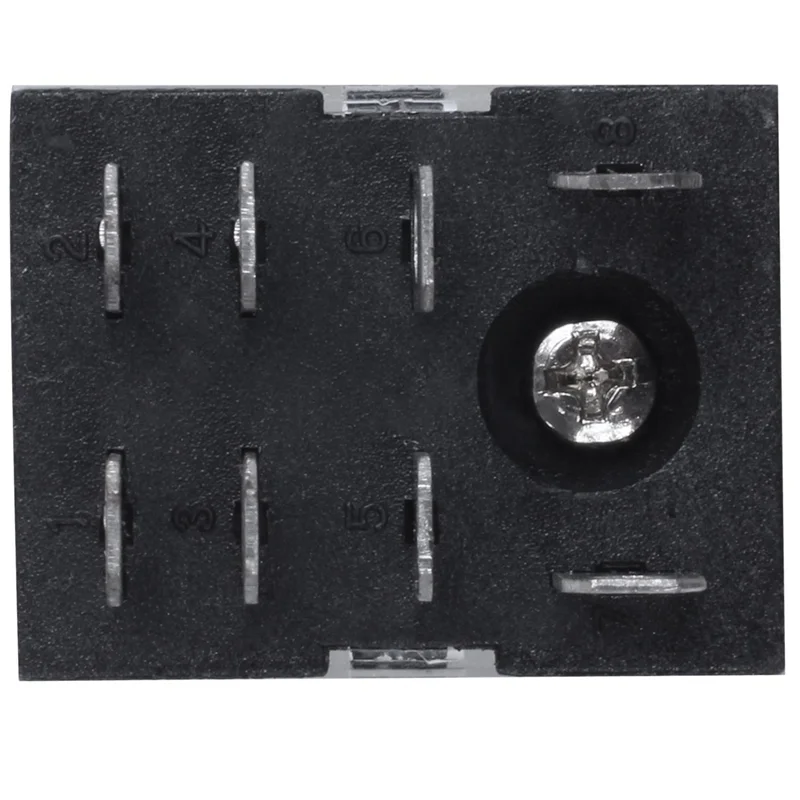

- Pin Count: 8 Pins
- Dimensions (approx.): 40 × 27 × 22 mm (1.6" × 1.07" × 0.87")
- Material: Electronic component housing

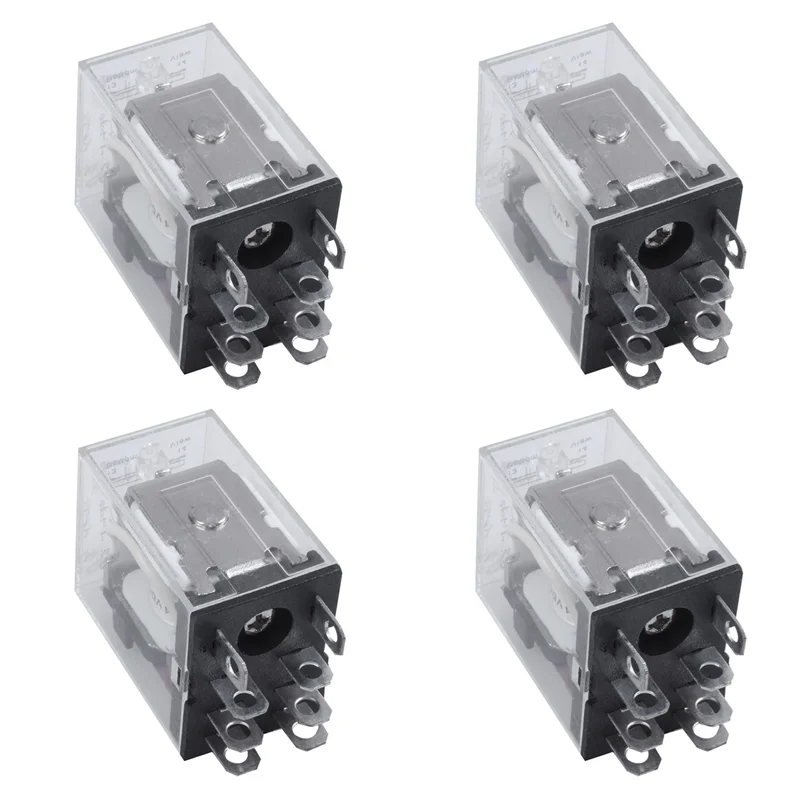

- Package Contents: 4 × Electromagnetic Relay
Why Choose the JQX-13F2Z Relay?
- Wide Application: Ideal for remote control systems, communication equipment, automatic control panels, industrial electronic devices, and home automation setups.
- Dual Load Support: Handles both AC (up to 240V / 10A) and DC (up to 28V / 10A) loads, giving you maximum flexibility.
- DPDT Configuration: Two independent switching circuits in one unit — perfect for reversing motors, switching between signal sources, or controlling two separate circuits simultaneously.
- 8-Pin Design: Standard 8-pin footprint compatible with most relay sockets and PCB layouts for easy integration.
- Compact & Robust: Small form factor fits tight enclosures while delivering dependable switching performance.
- Value Pack: Comes as a set of 4 relays, ensuring you have spares on hand or can complete multi-relay projects in a single purchase.
Typical Use Cases
- Home and industrial automation systems
- Remote control circuits
- Communication and signal switching equipment
- Motor direction control
- DIY electronics and prototyping
Made in Mainland China.
Note: Due to lighting conditions and screen display differences, product color may vary slightly from images. Measurement tolerance is ±1–3 mm.
Related Products You May Like
- 10Pcs Wooden Handle Nylon Bristle Paint Brush – Hand Tool Set
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel
- 10CM Wireless LED Motion Sensor Night Light – Type-C Rechargeable
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What does DPDT mean on the JQX-13F2Z electromagnetic relay?
A: DPDT stands for Double Pole Double Throw. This means the relay has two independent switching contacts, each capable of switching between two positions. This allows you to control two separate circuits simultaneously or create more complex switching logic, such as reversing motor direction or toggling between two signal sources.
Q: Can this DC 12V relay switch 240V AC loads safely?
A: Yes. The JQX-13F2Z relay is rated to switch up to 10A at 240VAC, making it suitable for controlling standard mains-voltage AC loads. Always ensure your wiring and enclosure meet local electrical safety standards when working with high-voltage circuits.
Q: Is the 8-pin layout compatible with standard relay sockets?
A: The JQX-13F2Z uses a standard 8-pin footprint that is widely compatible with commonly available relay sockets and PCB relay holders. Always verify the pin spacing and layout against your socket specifications before installation to ensure a secure fit.
Q: What comes in the package?
A: Each order includes 4 × JQX-13F2Z Electromagnetic Relays. No additional accessories, sockets, or tools are included.
