Dual PWM DC Motor Driver H-Bridge Module – 60A Speed Controller

Dual PWM DC Motor Driver Module – High-Power H-Bridge Speed Controller

Take precise control of your DC motors with this compact, high-performance Dual PWM H-Bridge Motor Driver Module. Engineered for makers, robotics enthusiasts, and electronics engineers, this board delivers up to 60A rated current, ultra-low on-resistance, and a blazing-fast 60 kHz switching frequency — all in a neatly integrated SMD design that fits into tight project spaces.

Made in Mainland China.

Key Features

• High Degree of Integration: SMD components keep the footprint small while supporting two-way (dual-channel) high-power DC motor drive on a single compact board.
• Effective Heat Dissipation: A wide integrated heat sink efficiently manages thermal load during high-current operation, ensuring long-term stability and reliable performance.
• High Current Capacity: Maximum rated current of 60A with an on-resistance of just 0.003 Ω — minimal power loss and excellent efficiency.
• High Switching Frequency: Up to 60 kHz PWM switching frequency for smooth, quiet motor speed regulation without audible buzzing.
• Broad Microcontroller Compatibility: Works with both 3.3V and 5V logic-level microcontrollers (Arduino, STM32, Raspberry Pi, etc.) — only a single motor power supply needed.

Technical Specifications

• Input Voltage: 9V – 30V (motor supply); control via 3.3V or 5V MCU
• Max Rated Current: 60A
• On-Resistance: 0.003 Ω
• Max PWM Frequency: 60 kHz
• Mounting Hole Diameter: 3mm
• Hole Pitch: 52 × 42mm
• Material: Plastic + Metal

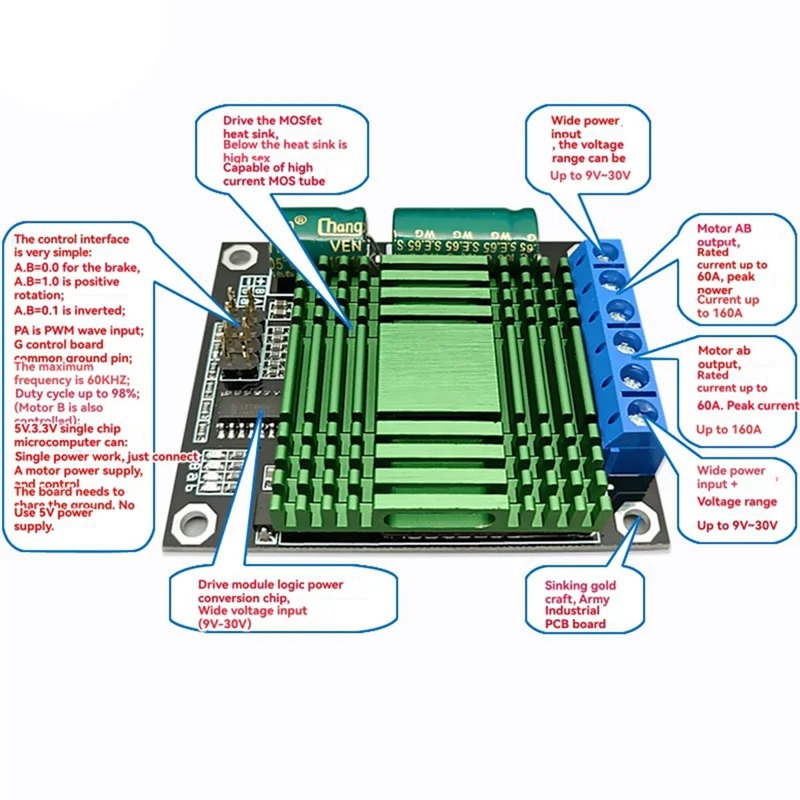

Control Interface Logic

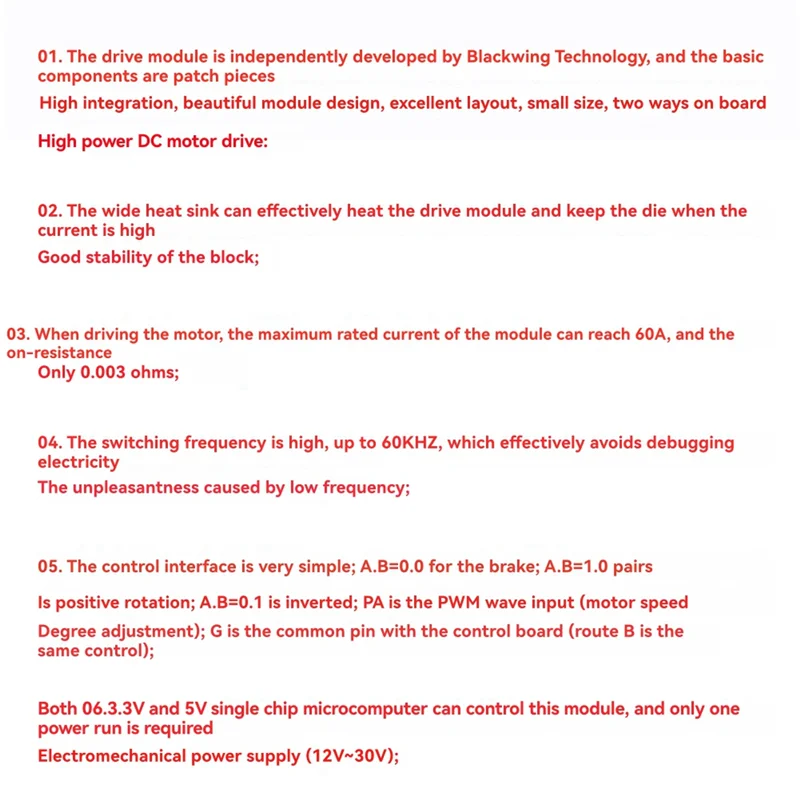

• A=0, B=0 → Motor Brake
• A=1, B=0 → Forward Rotation
• A=0, B=1 → Reverse Rotation
• PA → PWM wave input for motor speed regulation
• G → Common ground pin with the control board

Package Contents

• 1 × Dual PWM DC Motor Driver H-Bridge Module

Note: Due to lighting and display variations, actual product color may differ slightly from images. Measurement tolerance is ±1–3 cm.
