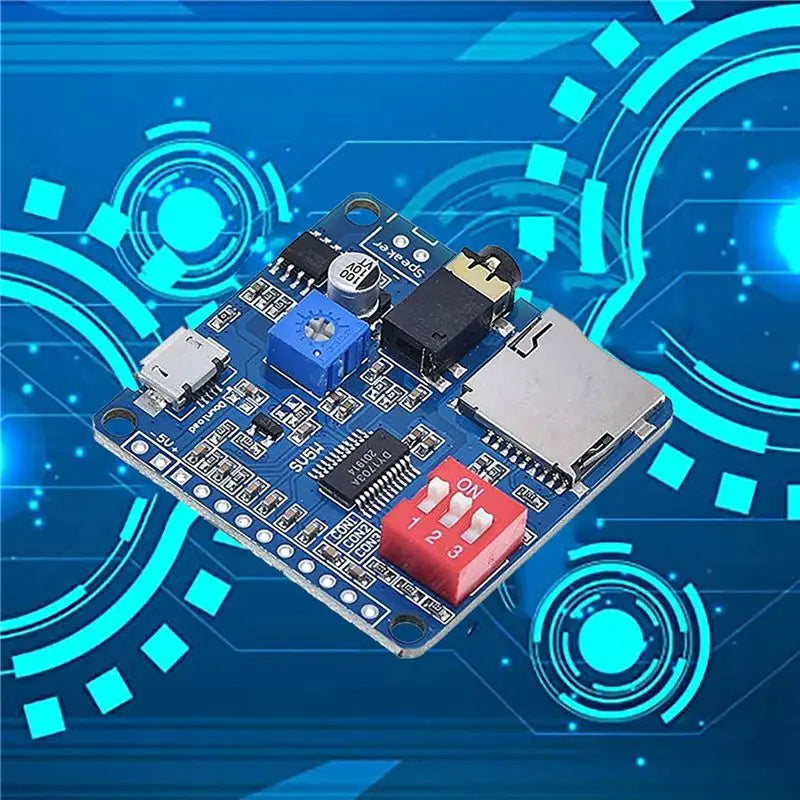

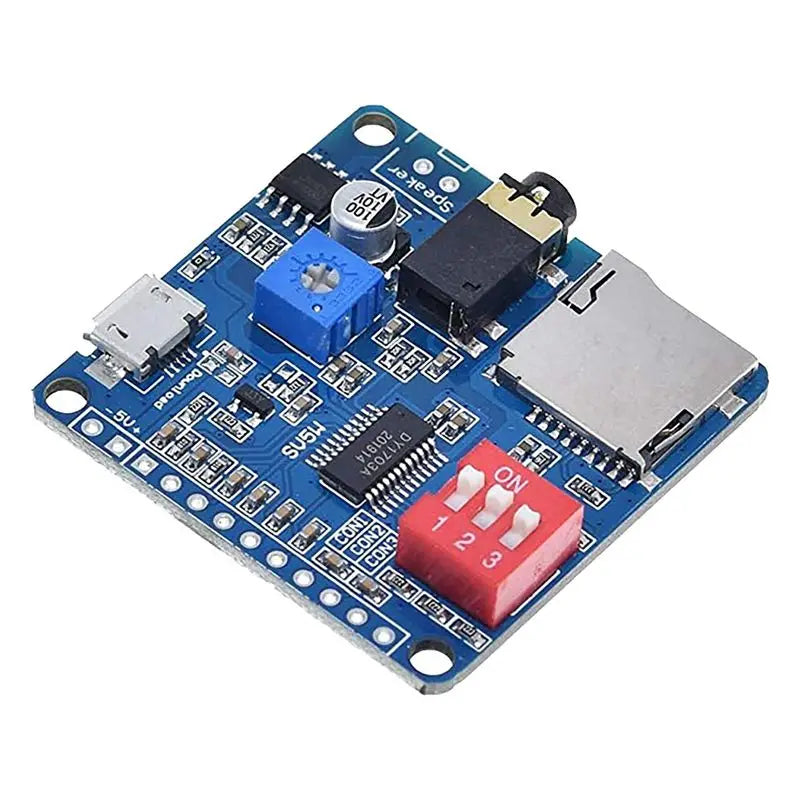

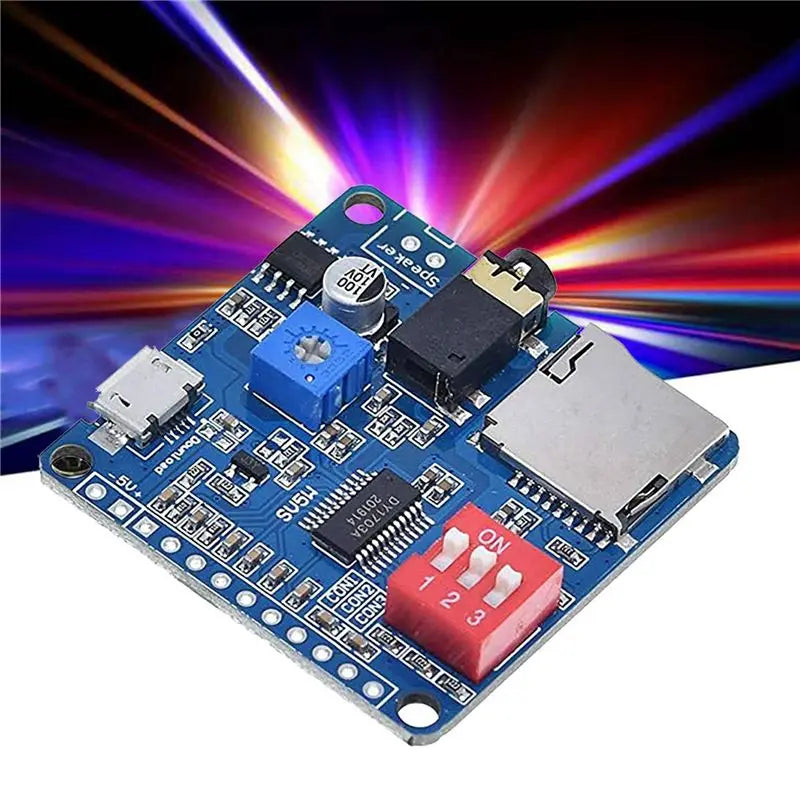

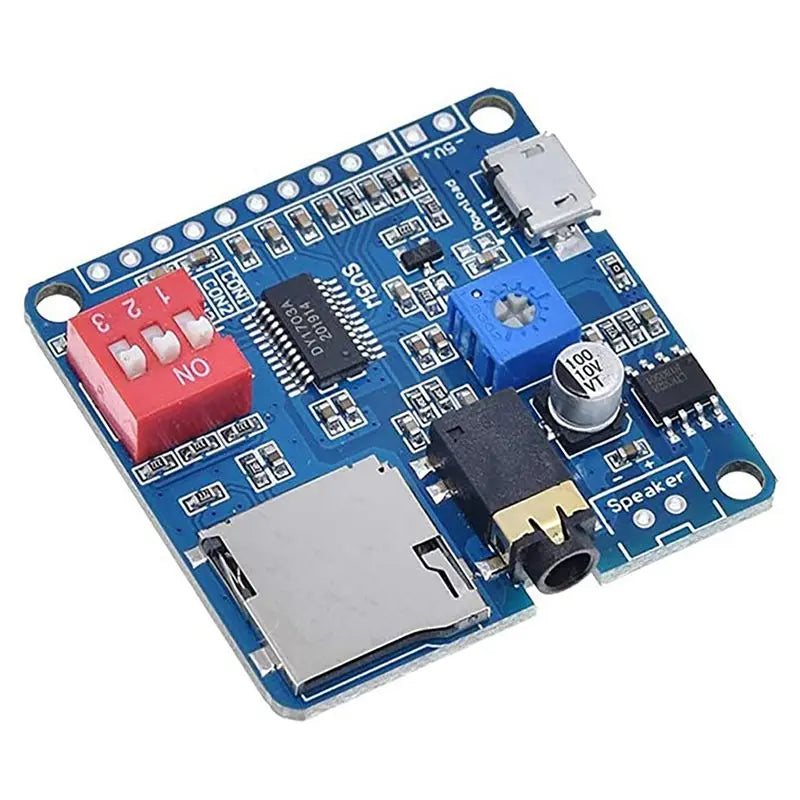

DY-SV5W Voice Playback Module – 5W Amplifier with SD/TF Card, UART & I/O Trigger (2-Pack)
The DY-SV5W Voice Playback Module is a compact, all-in-one audio solution for makers, engineers, and hobbyists. Combining a high-fidelity MP3/WAV decoder with a built-in 5W Class D power amplifier, this module lets you add clear, controllable audio playback to any project — straight from an SD/TF card, no external amp required. This listing includes 2 modules.
Made in Mainland China.
Key Features
- MP3 & WAV Decoding — supports a wide range of sampling rates: 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48 kHz
- 24-Bit DAC Output — dynamic range up to 90 dB, signal-to-noise ratio up to 85 dB for clean, rich audio
- Built-in 5W Class D Amplifier — directly drives 4-ohm, 3–5W speakers with no additional hardware
- FAT16 / FAT32 File System Support — compatible with TF/SD cards up to 32 GB
- UART Serial Control — control playback, pause, track selection, and volume via UART at 9600 bps; supports up to 65,535 tracks
- IO Trigger Playback — 8 IO ports can individually trigger 8 tracks, or in combination trigger up to 255 tracks
- One-Line Single-Bus Control — simplified single-wire serial interface for play, pause, track selection, and volume
- 7 Working Modes — 3 configuration IO pins allow up to 7 selectable modes via easy DIP switch settings
Technical Specifications
| Model | DY-SV5W |
| Supply Voltage | DC 5V |
| Amplifier Output | 5W Class D |
| DAC Resolution | 24-bit |
| Operating Temperature | -20°C to 85°C |
| Operating Humidity | 0% – 95% RH |
| Color | Blue PCB |
| Material | PCB + Metal |

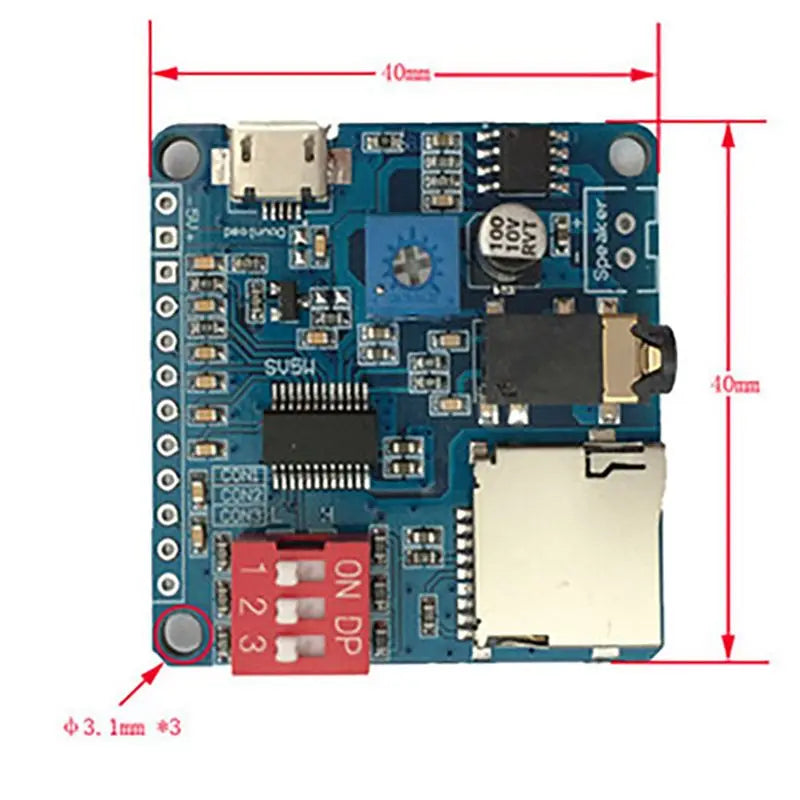

| Dimensions | 40 × 40 × 9 mm |

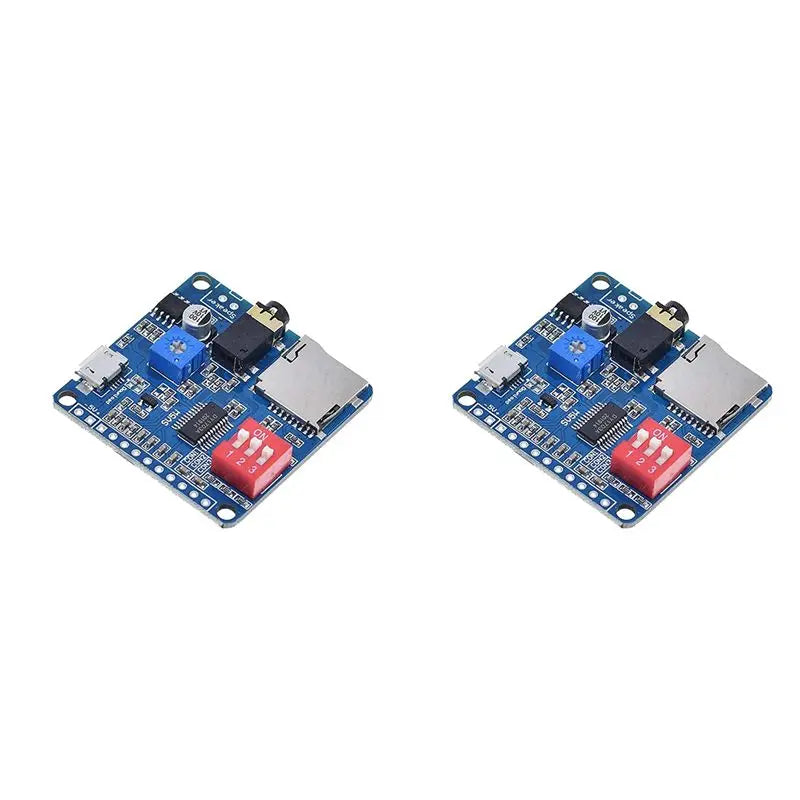

| Package Contents | 2 × DY-SV5W Voice Playback Module |
What's in the Box?
- 2 × DY-SV5W Voice Playback Amplifier Module
Note: SD/TF card and speakers are NOT included. Color may vary slightly due to lighting and screen differences. Dimensional tolerance: ±1–3 mm.
Great Projects to Pair With
Looking for more handy tools for your DIY workbench? Check out our 10-Piece Wooden Handle Brush Set for keeping your workspace clean, or stay organized with the 360° Rotating Storage Tray to keep your components and tools tidy.
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What audio formats does the DY-SV5W Voice Playback Module support?
A: The DY-SV5W supports both MP3 and WAV audio formats with sampling rates ranging from 8 kHz up to 48 kHz, making it compatible with most standard audio files you would store on an SD/TF card.
Q: How do I control the DY-SV5W module in my project?
A: The module offers three flexible control methods: UART serial communication (9600 bps, up to 65,535 tracks), IO trigger inputs (8 ports for individual or combined triggering of up to 255 tracks), and a One-Line single-bus serial interface. You can also select from up to 7 working modes using the onboard DIP switch and 3 configuration IO pins.
Q: Do I need an external speaker amplifier with this module?
A: No! The DY-SV5W has a built-in 5W Class D power amplifier that can directly drive a 4-ohm, 3–5W speaker without any additional amplifier hardware, simplifying your circuit design considerably.
Q: What size SD/TF card is compatible with this voice module?
A: The module fully supports FAT16 and FAT32 file systems and is compatible with SD/TF cards up to 32 GB in capacity.
