StamPLC – ESP32-S3 IoT Programmable Logic Controller with Cloud Monitoring

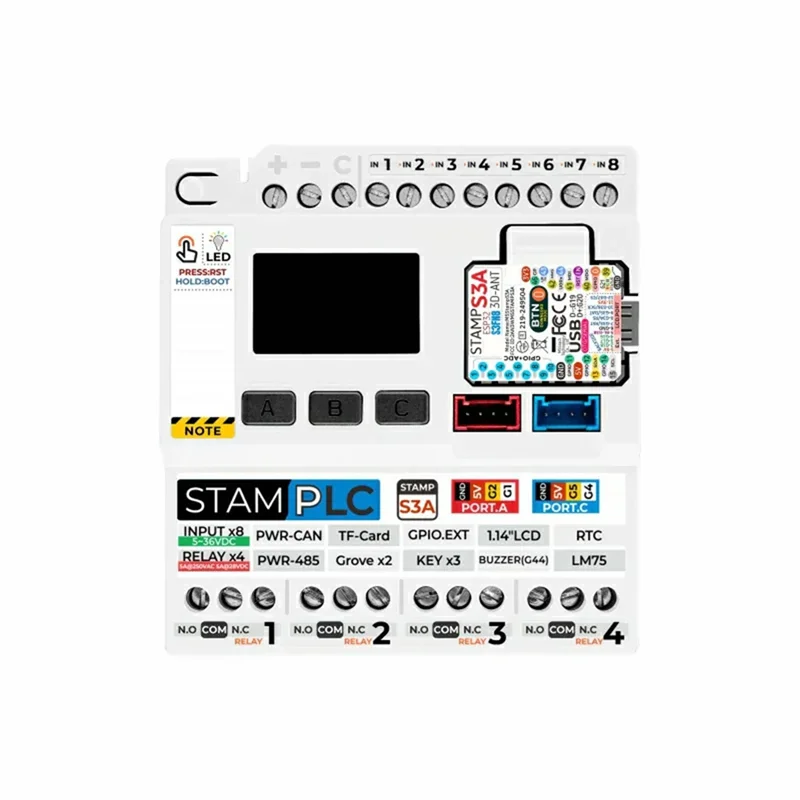

Meet the StamPLC — a powerful, compact IoT Programmable Logic Controller (PLC) built on the ESP32-S3FN8 (StampS3A) control module. Engineered for industrial automation, remote monitoring, and smart field deployments, this development board combines robust connectivity, flexible I/O, and cloud data integration in a DIN-rail-ready form factor.

Whether you're building a smart factory system, automating a remote facility, or prototyping an industrial IoT solution, the StamPLC delivers the processing power, connectivity, and durability to get the job done.

Key Features

• Powerful Core: Based on the StampS3A control module (ESP32-S3FN8) for high-performance processing and efficient Wi-Fi/Bluetooth wireless connectivity
• EZData Cloud Monitoring: Seamlessly push and monitor real-time data to the cloud for remote visibility and centralized control

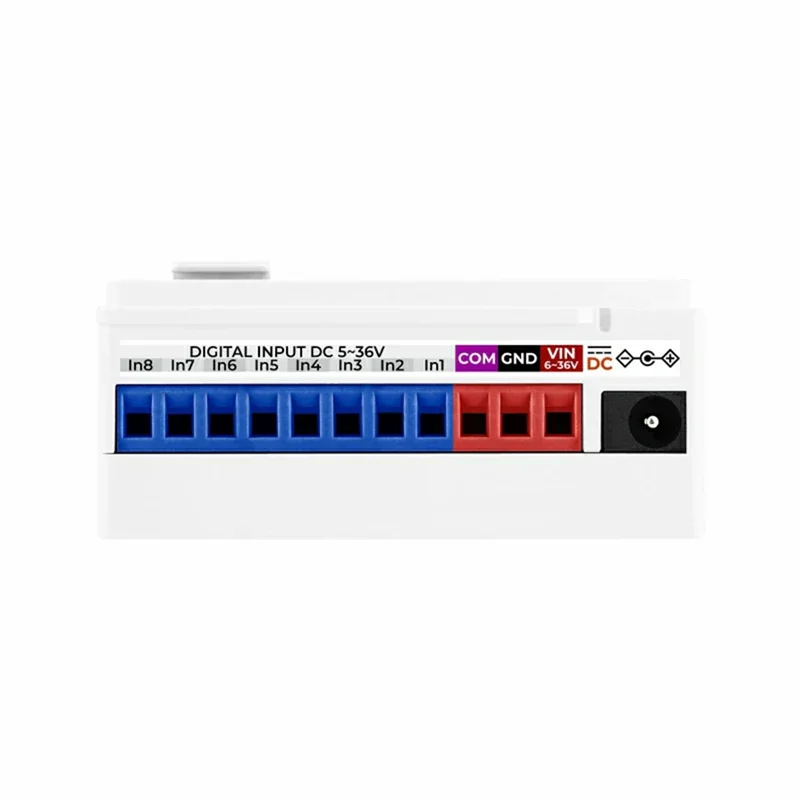

• 8 Opto-Isolated Digital Inputs: Electrically isolated inputs for safe, noise-free signal acquisition from sensors and field devices

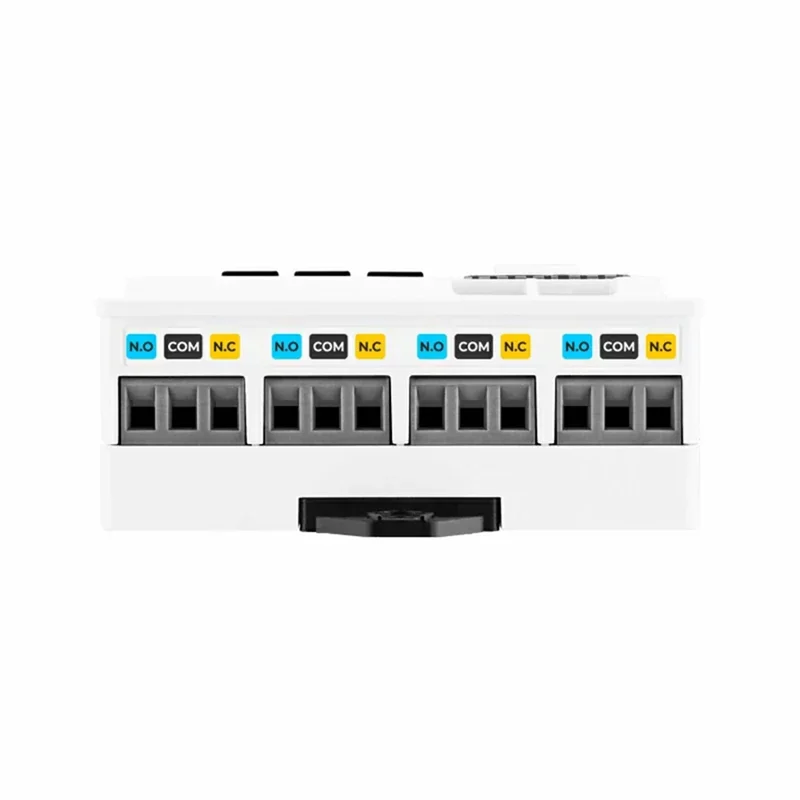

• 4 Relay Outputs (AC/DC): Versatile relay outputs capable of switching both AC and DC loads for direct actuator and device control
• Industrial Fieldbus Interfaces: Onboard PWR-CAN and PWR-485 ports for seamless integration into standard industrial communication networks
• Expandable I/O: GPIO.EXT port and 2 Grove interfaces allow easy connection of additional sensors, modules, and actuators
• 1.14-inch Color Display: Real-time parameter display and status monitoring at a glance
• User Controls & Alerts: RESET/BOOT button, 3 programmable user buttons, and a buzzer for anomaly alerts and configuration
• Wide Voltage Input: Supports DC 6–36V for compatibility with diverse industrial power supplies

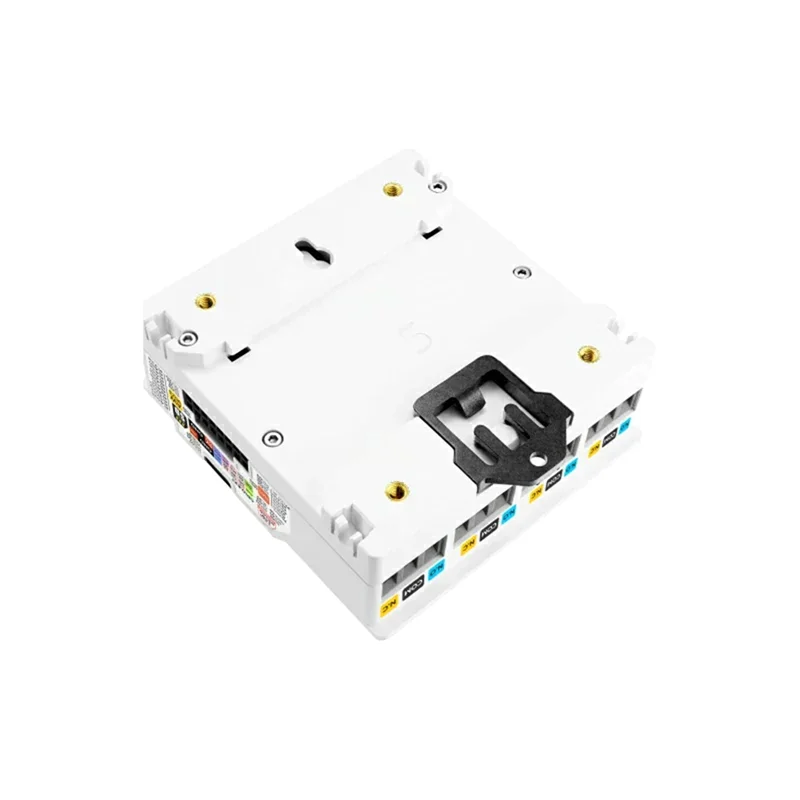

• DIN Rail Mounting: Standard DIN rail design for secure, professional panel installation
• Micro-SD Card Slot: Built-in slot for convenient data logging, storage, and firmware updates
• Material: PCB

Power Supply Notice

The power supply output pins for the PWR-CAN and PWR-485 interfaces are directly connected to the main input power. Always ensure the input voltage matches the power requirements of any connected external devices before operation.

Package Contents

• 1 × StamPLC IoT ESP32-S3 PLC Development Board

Note: Product appearance and printed text may vary by production batch; this does not affect performance or functionality. Color may vary slightly due to display settings and lighting. Measurement tolerance: ±1–3 cm.

Made in Mainland China.

You May Also Like

• 10CM Wireless LED Motion Sensor Night Light – Type-C Rechargeable Cabinet Lamp
• 360-Degree Rotating Storage Tray for Kitchen & Home Organization

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What microcontroller powers the StamPLC IoT development board?

A: The StamPLC is built on the StampS3A control module featuring the ESP32-S3FN8 chip, which provides powerful dual-core processing along with integrated Wi-Fi and Bluetooth wireless connectivity — ideal for IoT and industrial automation applications.

Q: Can the StamPLC relay outputs control both AC and DC devices?

A: Yes. The 4 relay outputs on the StamPLC support both AC and DC loads, making them highly versatile for controlling a wide range of industrial actuators, motors, solenoids, and other equipment.

Q: What voltage range does the StamPLC support?

A: The StamPLC accepts a wide input voltage range of DC 6–36V, making it compatible with standard industrial power supplies and various field deployment scenarios.

Q: Does the StamPLC support DIN rail installation?

A: Yes. The StamPLC is specifically designed for standard DIN rail mounting, ensuring a secure, professional installation inside industrial control panels and enclosures.

Q: Can I use the StamPLC for cloud-based remote monitoring?

A: Absolutely. The StamPLC integrates with EZData Cloud Monitoring, allowing you to transmit sensor data, monitor device status, and manage your automation system remotely from anywhere with an internet connection.
