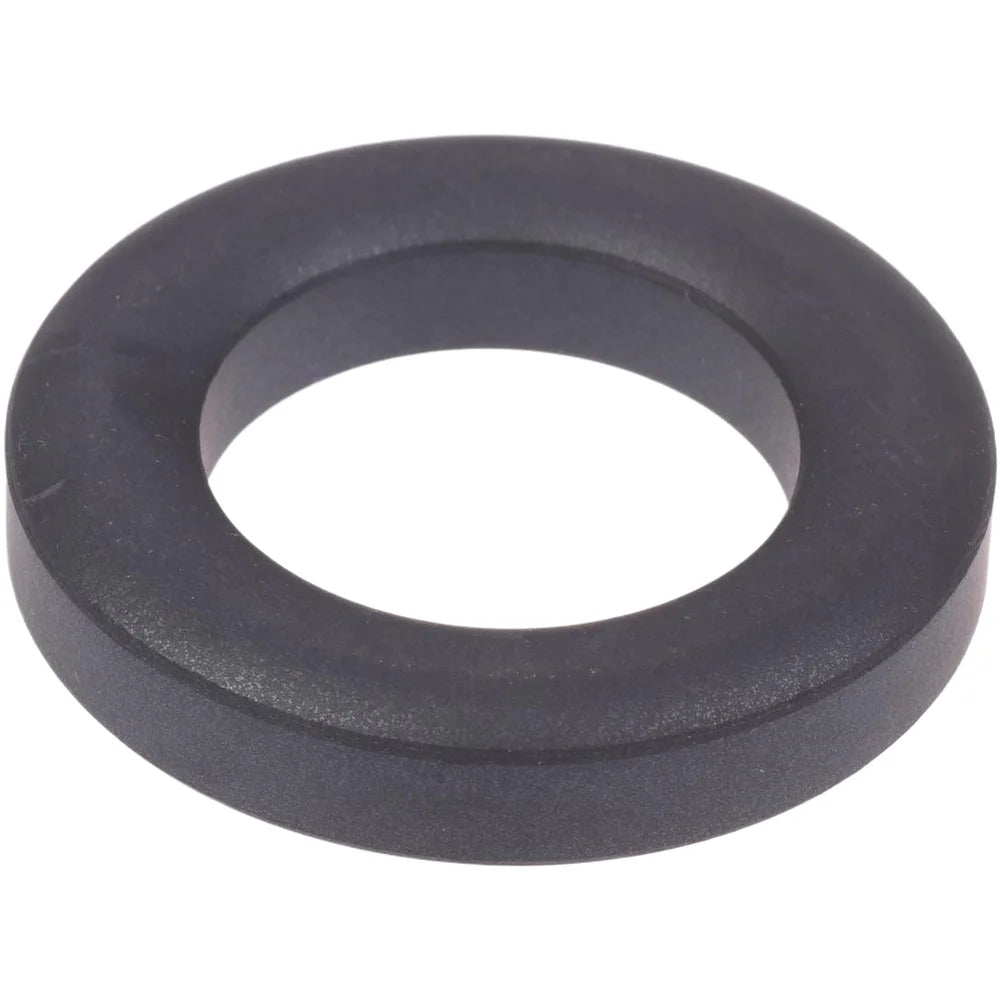

FT240-43 Toroid Ferrite Core – High-Frequency RF Magnetic Ring
The FT240-43 Toroid Ferrite Core is a premium-grade nickel-zinc ferrite ring engineered for demanding RF and high-frequency applications. Whether you're building a choke balun, winding an antenna transformer, or assembling DIY RF circuits, this precision toroid delivers stable, consistent magnetic performance you can count on. Made in Mainland China.
Key Features
- High-Quality Ferrite Construction: Engineered for excellent magnetic properties, ensuring reliable and consistent performance across a wide range of RF applications.
- Nickel-Zinc (Ni-Zn) Composition: Delivers superior high-frequency characteristics, making it ideal for efficient signal transmission and minimal loss at elevated frequencies.

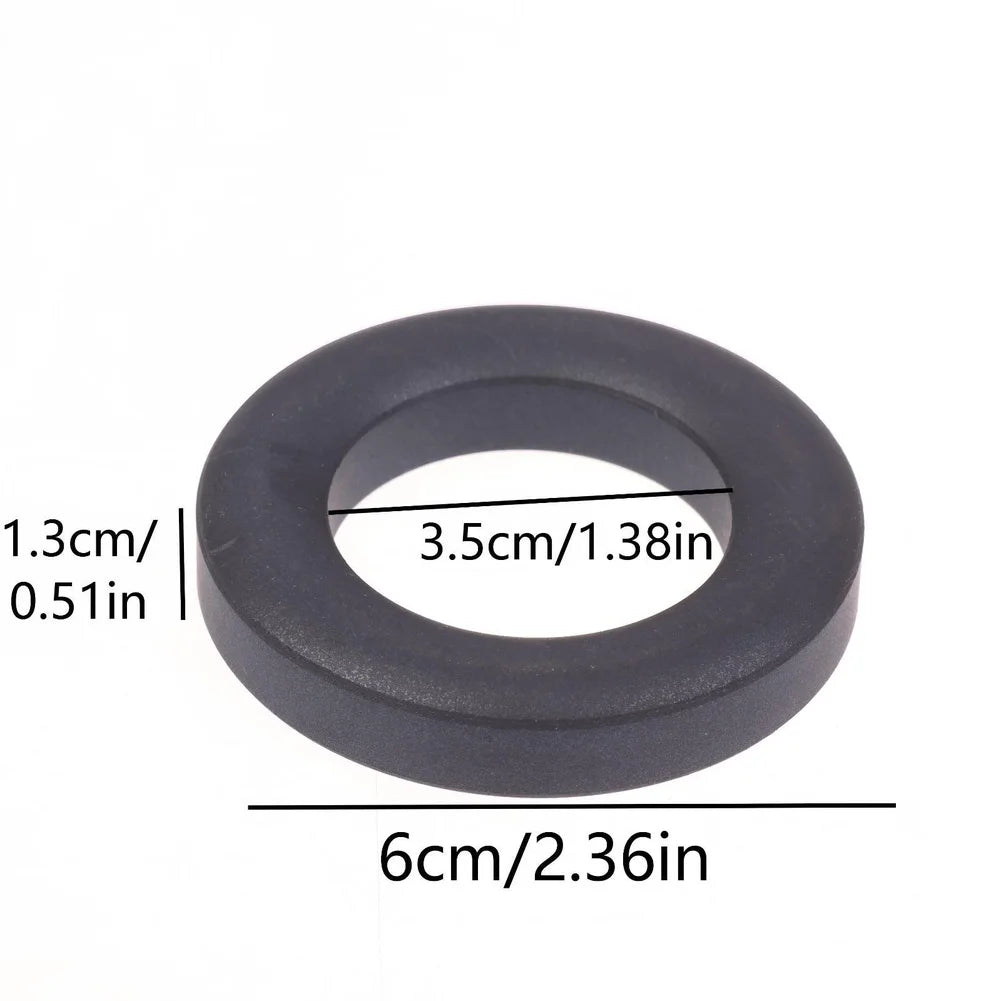

- Precise Dimensions: Measures 6.0 × 3.5 × 1.3 cm (outer diameter × height × wall thickness), providing an optimal fit for standard winding configurations.
- Lightweight at Just 95g: Easy to handle and mount, simplifying installation in both bench and field setups.

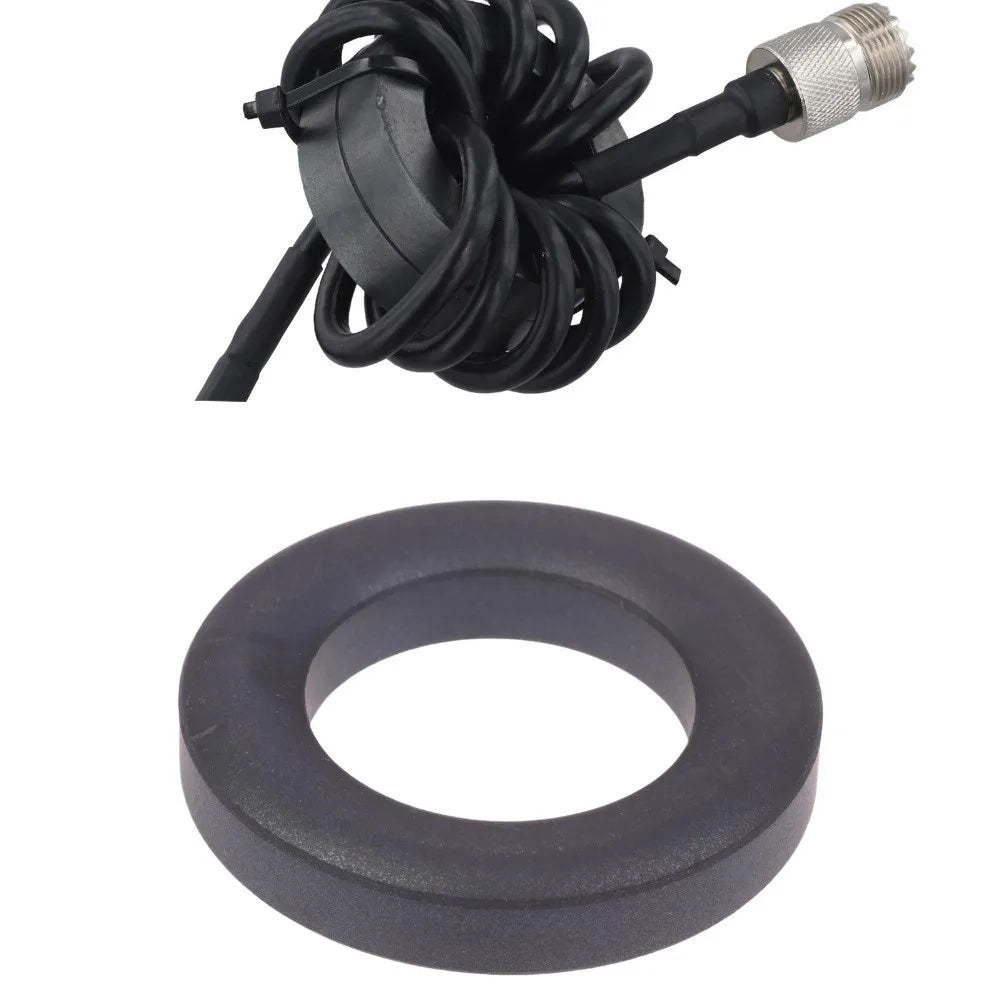

- Versatile RF Use: Perfect for choke baluns, antenna feedlines, common-mode chokes, RF transformers, and other circuits requiring stable magnetic cores.
- Classic Black Ferrite Finish: Clean, professional appearance suited for amateur radio, electronics prototyping, and workshop projects.
Specifications
| Model | FT240-43 |
| Material | Nickel-Zinc Ferrite |
| Color | Black |
| Dimensions | 6.0 × 3.5 × 1.3 cm |
| Weight | 95 g |
| Origin | Made in Mainland China |
Package Contents
- 1 × FT240-43 Toroid Ferrite Core Magnetic Ring
Notes
- Actual color may vary slightly from product images due to monitor brightness and lighting conditions.
- Please allow a slight measurement deviation (±1–2 mm) for physical dimensions.
You May Also Like
- 10Pcs Wooden Handle Nylon Bristle Paint Brush – DIY Hand Tool Set
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel Portable Mini
- 1pc Manual Household Yarn Winding Machine – DIY Sewing & Weaving Tool
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the Mix 43 ferrite material best suited for in the FT240-43 toroid core?
A: The Mix 43 (nickel-zinc ferrite) composition used in the FT240-43 toroid core is optimized for high-frequency RF applications, typically ranging from 1 MHz up to 300 MHz. It is especially well-suited for winding common-mode choke baluns, antenna feedline chokes, and RF impedance transformers, providing excellent attenuation of unwanted common-mode currents while maintaining low insertion loss for the desired signal.
Q: How many turns of wire can I wind on the FT240-43 toroid?
A: The FT240-43 has a large 6 cm outer diameter, making it one of the most spacious toroid cores available for amateur radio and DIY RF projects. Depending on the wire gauge used, builders commonly wind 8–12 turns for a classic 1:1 choke balun, or configure multi-turn bifilar windings for various impedance ratios. The generous circumference allows comfortable winding without overcrowding, even with heavier coaxial or enameled copper wire.
Q: Is this toroid ferrite core suitable for amateur (ham) radio antenna baluns?
A: Yes, the FT240-43 is one of the most popular toroid cores among amateur radio operators worldwide. Its nickel-zinc ferrite properties make it highly effective for HF-band choke baluns and current baluns used on wire antennas, dipoles, and vertical antennas. Its size and inductance characteristics provide high choking impedance across much of the HF spectrum, making it a reliable DIY balun building block.
Q: What is included in the package?
A: Each order includes one (1) FT240-43 toroid ferrite core magnetic ring. Wire, connectors, and housing are not included — this is the raw core intended for DIY winding and custom RF circuit assembly.
