G1/2" Liquid Level Electrode Probe for Water Boilers & Direct Drinking Machines
Keep your steam boiler, water boiler, or direct drinking machine running safely and efficiently with this precision-engineered G1/2" Liquid Level Electrode Probe. Crafted from imported SUS304 stainless steel, this durable probe accurately detects water levels, helping prevent dry-running and overflows in pressureless water supply systems. Made in Mainland China.
Key Features
- SUS304 Stainless Steel Electrode Rod — Corrosion-resistant, will not deteriorate or contaminate water supply; safe for long-term use
- High-Temperature Rated — Operates at up to 200°C with a sealing pressure of 1.6 MPa (16 kg), ideal for demanding boiler environments
- PTFE Insulation — Polytetrafluoroethylene insulation material ensures electrical safety and long-lasting performance
- Brass Connection — Robust brass fitting for a secure, leak-resistant G1/2" threaded installation
- Adjustable Length — If a shorter probe is needed over time, simply cut to the required length — it will continue to function normally
- Wide Compatibility — Suitable for water boilers, steam boilers, direct drinking machines, and other pressureless water supply equipment
Specifications
| Electrode Rod Material | Imported SUS304 Stainless Steel |
| Insulation Material | Polytetrafluoroethylene (PTFE) |
| Connection Material | Brass |
| Thread Size | G1/2 inch |

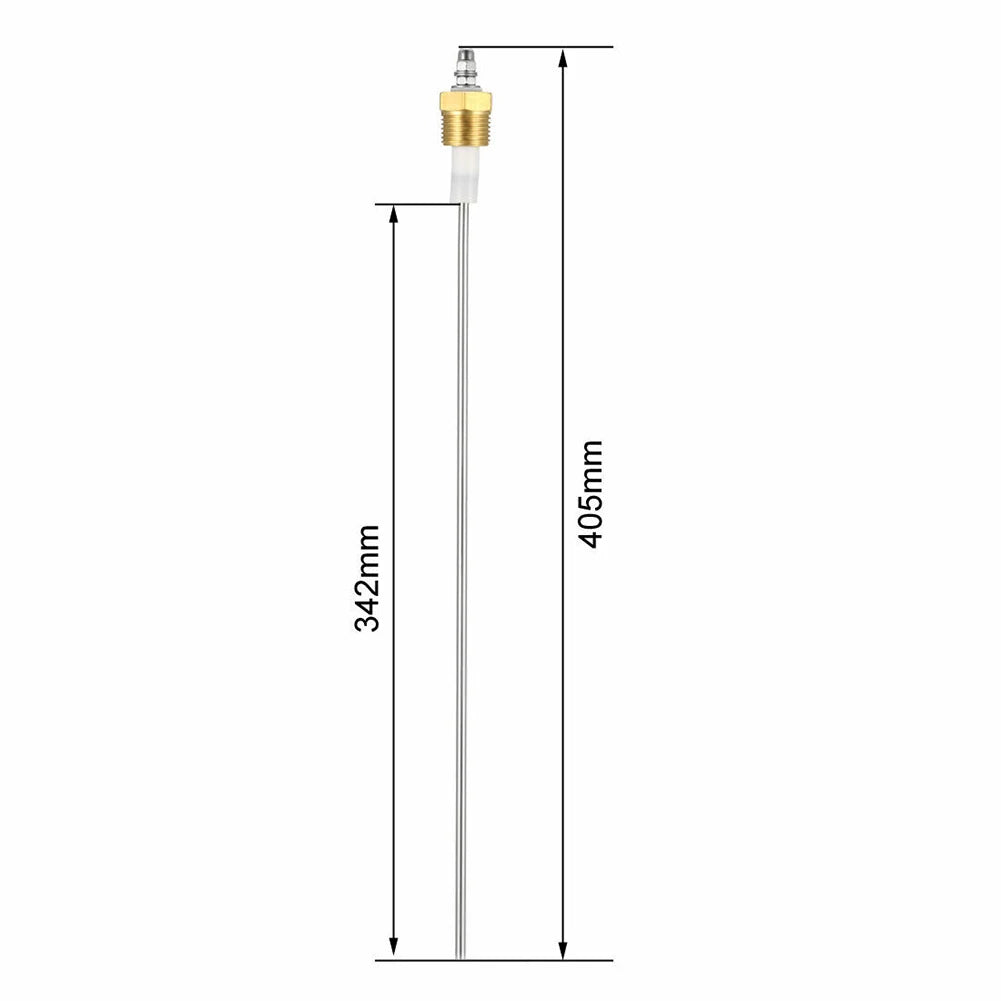

| Probe Dimensions | 4.4 × 342 mm / 0.17 × 13.46 inch (diameter × length) |
| Overall Length | 405 mm / 15.94 inches |
| Max Operating Temperature | < 200°C |
| Sealing Pressure | 1.6 MPa (16 kg) |
| Weight | ~118 g |
| Country of Origin | Made in Mainland China |
Package Includes
- 1 × Liquid Level Electrode Probe (G1/2", 4.4 × 342 mm)
Related Products You May Like
- 360-Degree Rotating Storage Tray for Kitchen & Sundry Organisation
- 10-Piece Wooden Handle Nylon Bristle Brush Set – Cleaning & Dusting
- Precision Japanese Double-Edged Hand Saw – SK5 Steel, Portable Mini
Note: Actual color may vary slightly from images due to monitor brightness and lighting conditions. Please allow slight manual measurement deviation for listed dimensions.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What thread size does this liquid level electrode probe use?
A: This electrode probe features a standard G1/2 inch thread size, making it compatible with a wide range of water boilers, steam boilers, and direct drinking machines that use G1/2" fittings.
Q: Can the probe be shortened if a different length is needed?
A: Yes. The SUS304 stainless steel probe can be cut to a shorter length to suit your specific installation requirements, and it will continue to function reliably after cutting.
Q: What is the maximum operating temperature for this electrode probe?
A: This liquid level electrode probe is rated for operating temperatures below 200°C and a sealing pressure of up to 1.6 MPa (16 kg), making it well-suited for steam and hot water boiler applications.
Q: Will the probe contaminate the water supply?
A: No. The electrode rod is made from imported SUS304 stainless steel, which is corrosion-resistant and will not deteriorate or pollute the water source, ensuring safe, long-term use in drinking water and boiler systems.
