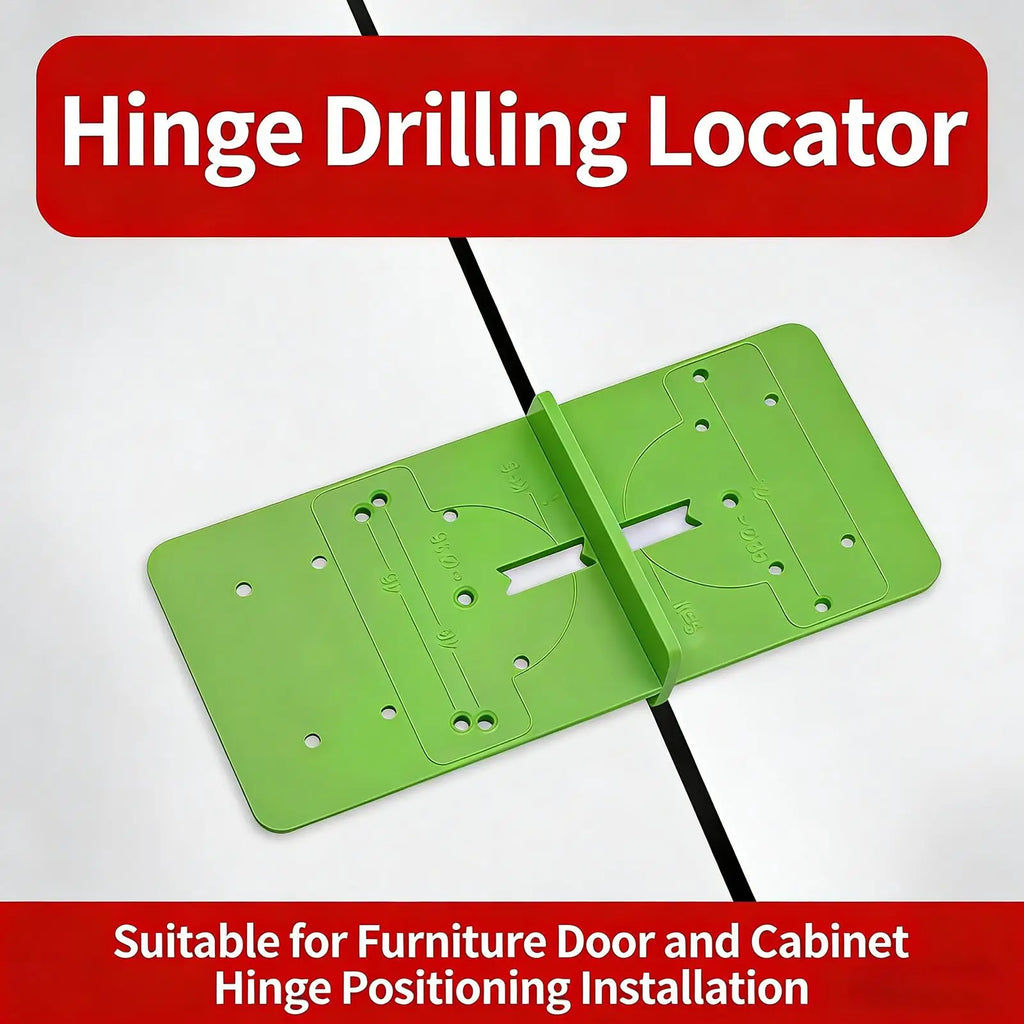

Take the guesswork out of hinge installation with this precision Hinge Hole Drilling Jig. Whether you're a weekend DIY enthusiast or a seasoned woodworker, this compact drill template locator makes perfectly aligned hinge holes fast, repeatable, and foolproof — on cabinets, doors, and furniture alike.
Made in Mainland China.
Key Features

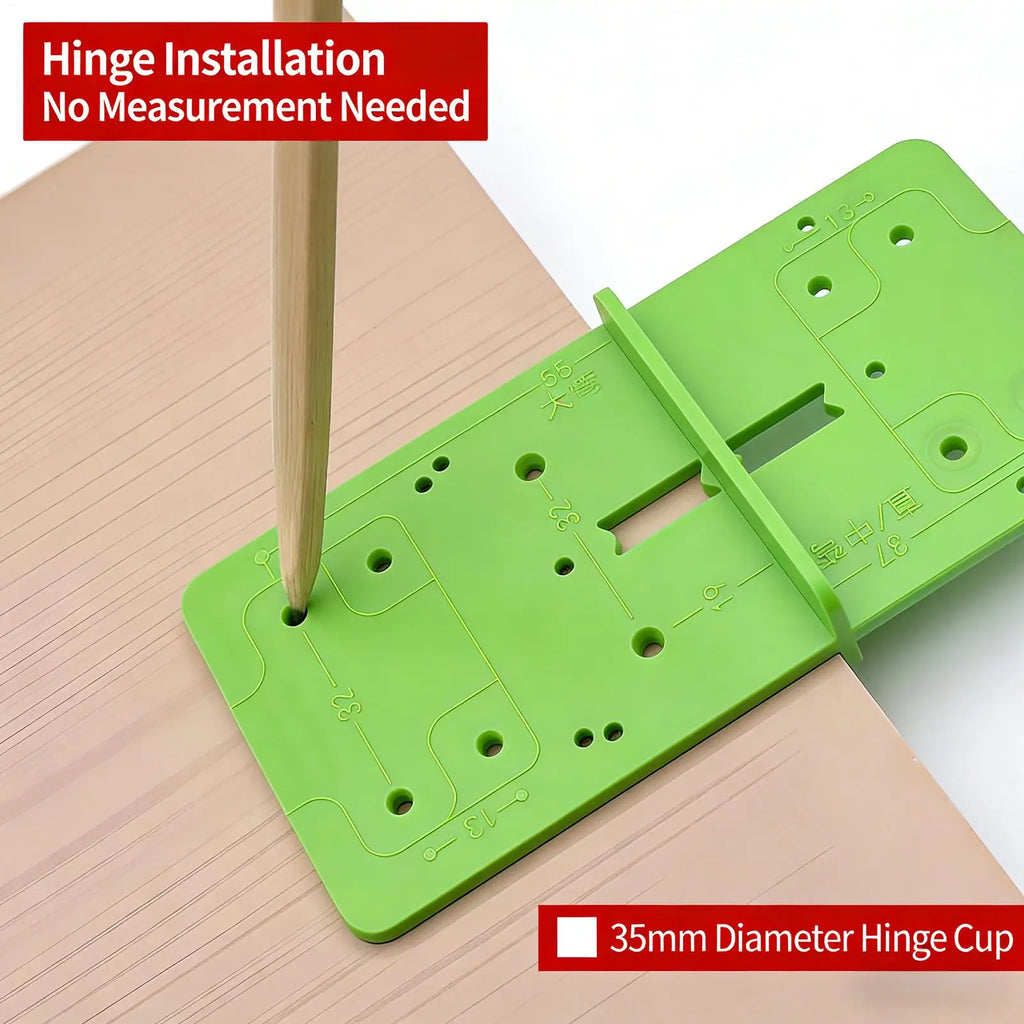

- Versatile Positioning: Adapts to various hinge sizes and accessory placements, making it ideal for both DIY projects and professional cabinet or furniture builds.
- Compact & Lightweight: At just 26g and 12 × 6 × 2 cm, this jig slips easily into any toolkit. Deploy it in seconds for furniture assembly or door installations.
- Accurate Pilot Holes Every Time: Ensures vertical hinge alignment with consistent drilling depth, minimizing rework and speeding up every installation.
- Single-Handed Operation: Ergonomic clamping design lets you secure the jig and drill with one hand — reducing fatigue during extended woodworking sessions.
- Durable Construction: Built from deformation-resistant PP material, this jig maintains its shape and accuracy even through repeated high-intensity routing operations.
Specifications
| Material | PP (Polypropylene) |
| Color | Green |

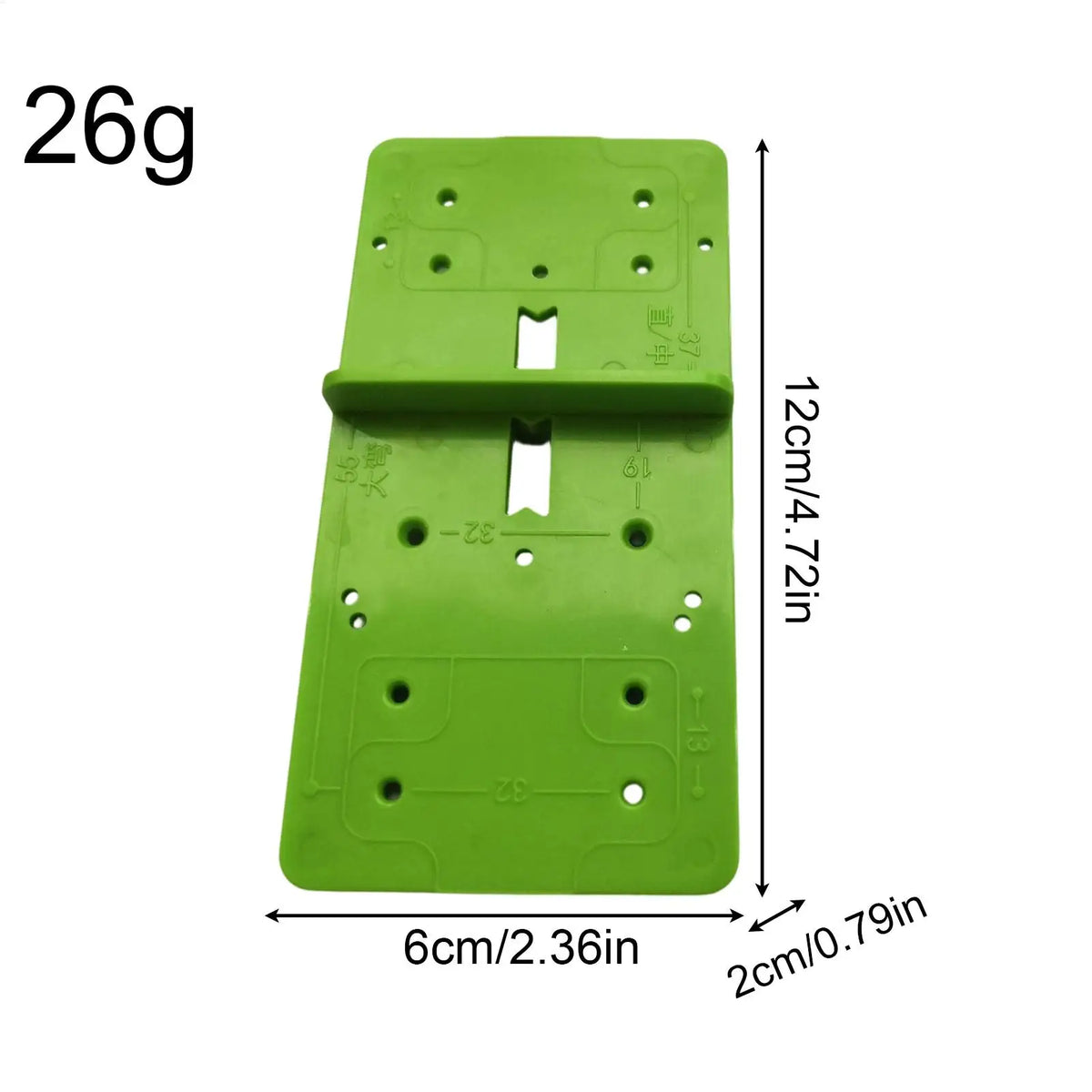

| Product Size | 12 × 6 × 2 cm (4.72 × 2.36 × 0.79 in) |
| Product Weight | 26g |
| Side Panel Thickness | Suitable for 16mm panels |
| Package Includes | 1 × Door Hinge Jig |
Perfect For

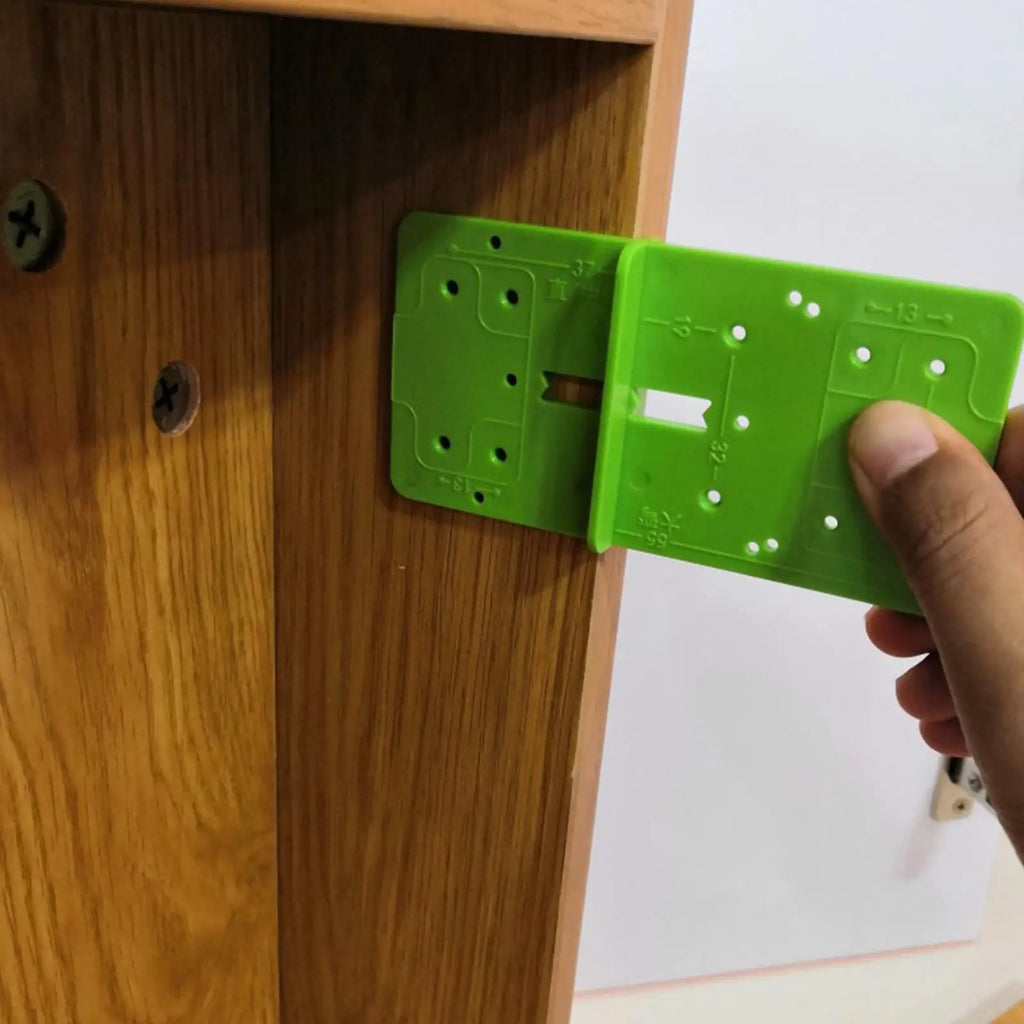

- Cabinet door hinge installation
- Furniture assembly and repair
- Door frame hinge routing
- DIY woodworking projects
- Professional carpentry work
Looking to expand your workshop toolkit? Check out our 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel for Carpentry and our Professional Heavy-Duty Pruning Shears with Anti-Slip Handle for more precision hand tools.
Note: Due to lighting and display settings, colors may appear slightly different from actual product. Minor size variations may occur due to manual measurement.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What panel thickness is this hinge drilling jig compatible with?
A: This hinge boring jig is designed to work with standard 16mm side panels, making it ideal for most cabinet and furniture doors commonly found in home and professional woodworking projects.
Q: Is this jig suitable for beginners doing DIY woodworking?
A: Absolutely! The hinge hole drilling jig is designed with single-handed ease of use and ergonomic clamping in mind. Its straightforward template-and-drill approach makes it perfect for DIY enthusiasts of all skill levels, not just professional carpenters.
Q: What material is the jig made from, and is it durable?
A: The jig is constructed from deformation-resistant PP (polypropylene), which is both lightweight and durable. It maintains its shape and drilling accuracy even after repeated use, making it a reliable long-term addition to your woodworking toolkit.
Q: Does this jig come with any drill bits?
A: The package includes 1 × Door Hinge Jig only. Drill bits are not included and should be sourced separately based on your preferred hinge size and drilling requirements.
