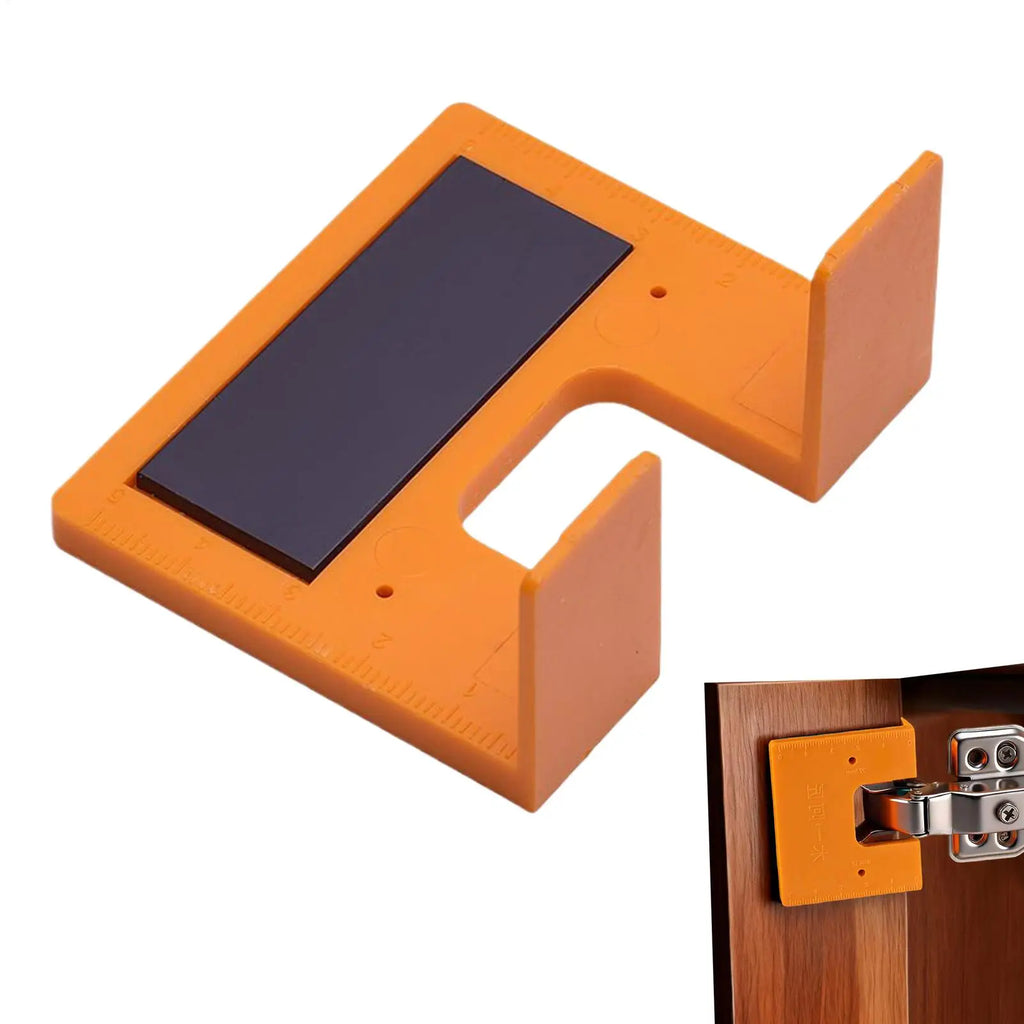

Magnetic Hinge Installation Jig – Cabinet Door Positioning Tool

Magnetic Hinge Installation Positioning Jig for Cabinet & Door Panels

Tired of misaligned hinges and crooked cabinet doors? This compact magnetic hinge installation jig takes the guesswork out of woodworking hinge placement. Whether you're a seasoned builder or a weekend DIY enthusiast, this clever little tool locks into position magnetically, guides your drill or router with precision, and delivers perfectly aligned hinges every single time.

Made in Mainland China.

Key Features

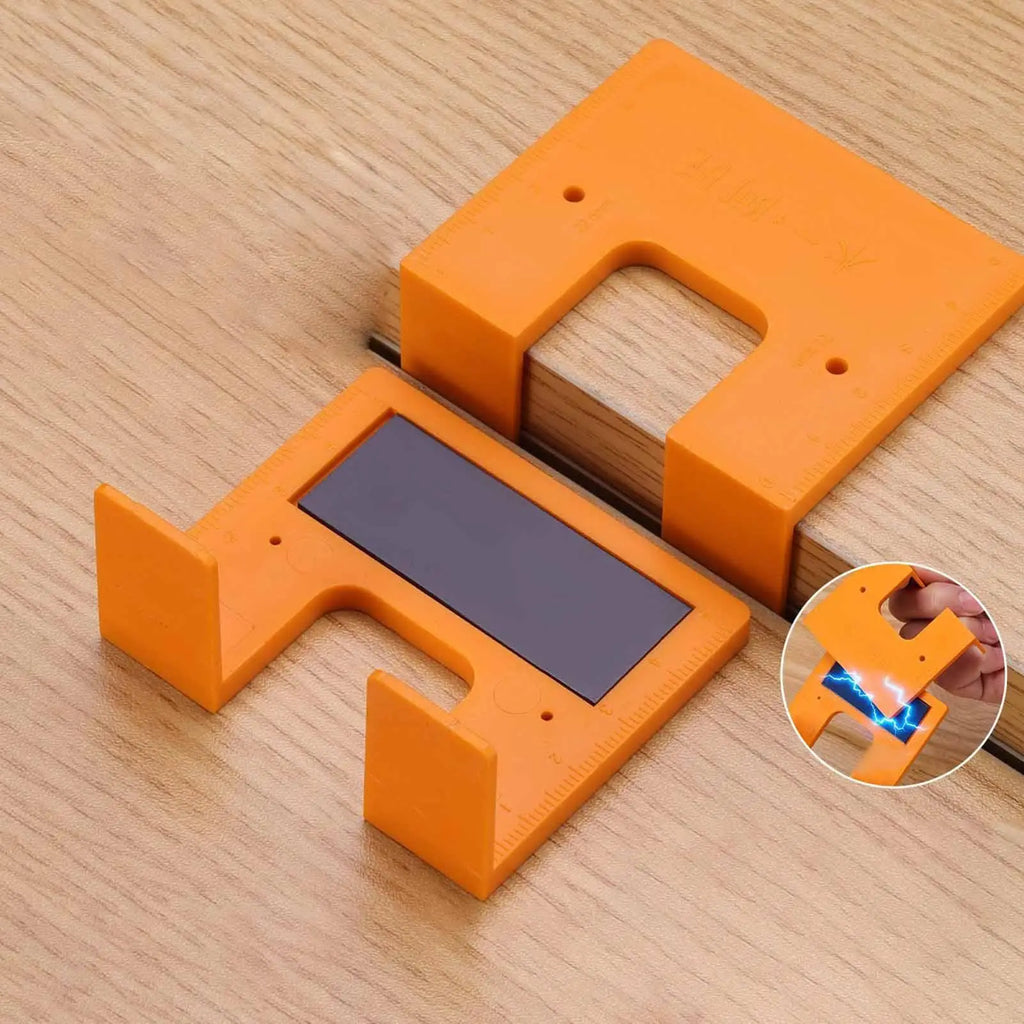

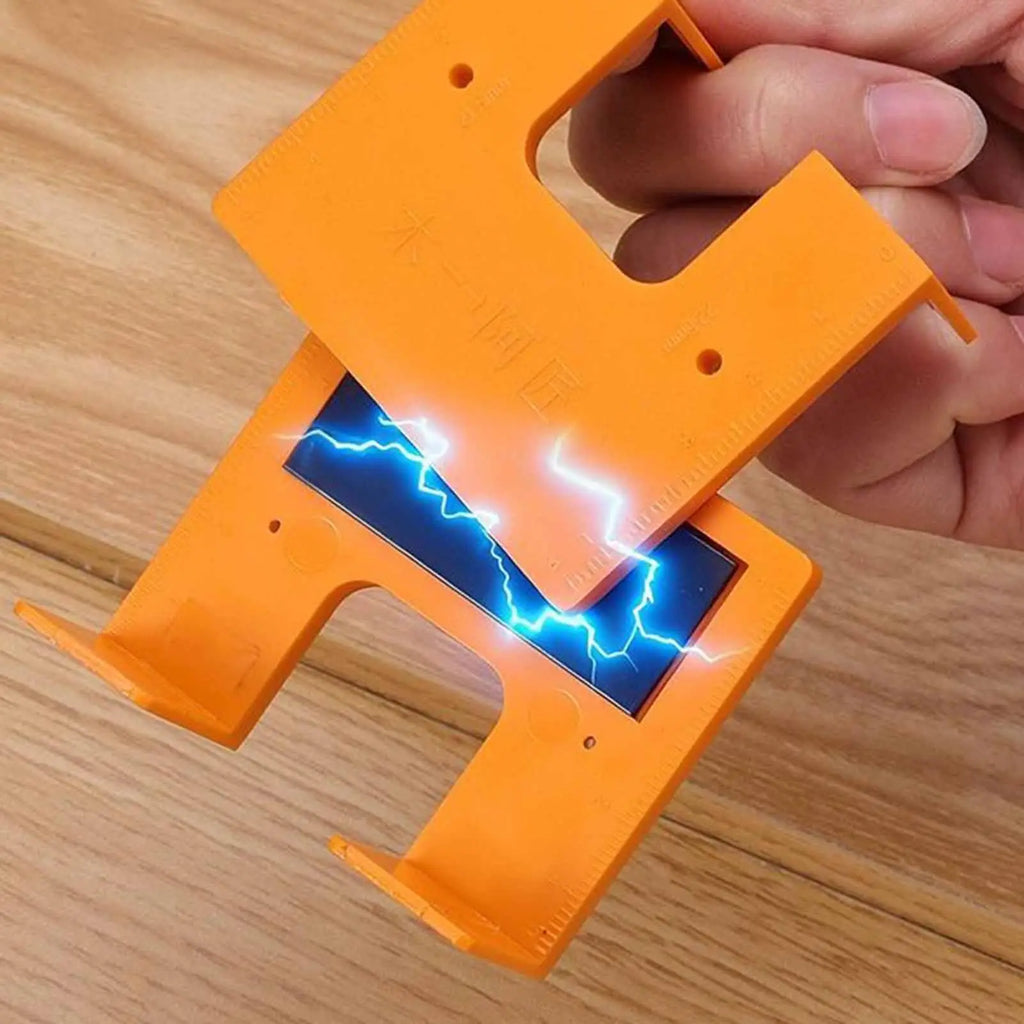

• Magnetic Locking Technology: The built-in magnet holds the jig firmly in place during use, keeping your work stable and hands-free so you can focus on drilling with confidence — no clamps needed.
• Precision Groove Guidance: Integrated precision grooves steer your drill or router bit along the exact path needed for standardized hinge cutouts, protecting the door's finish and maintaining a clean, professional look.

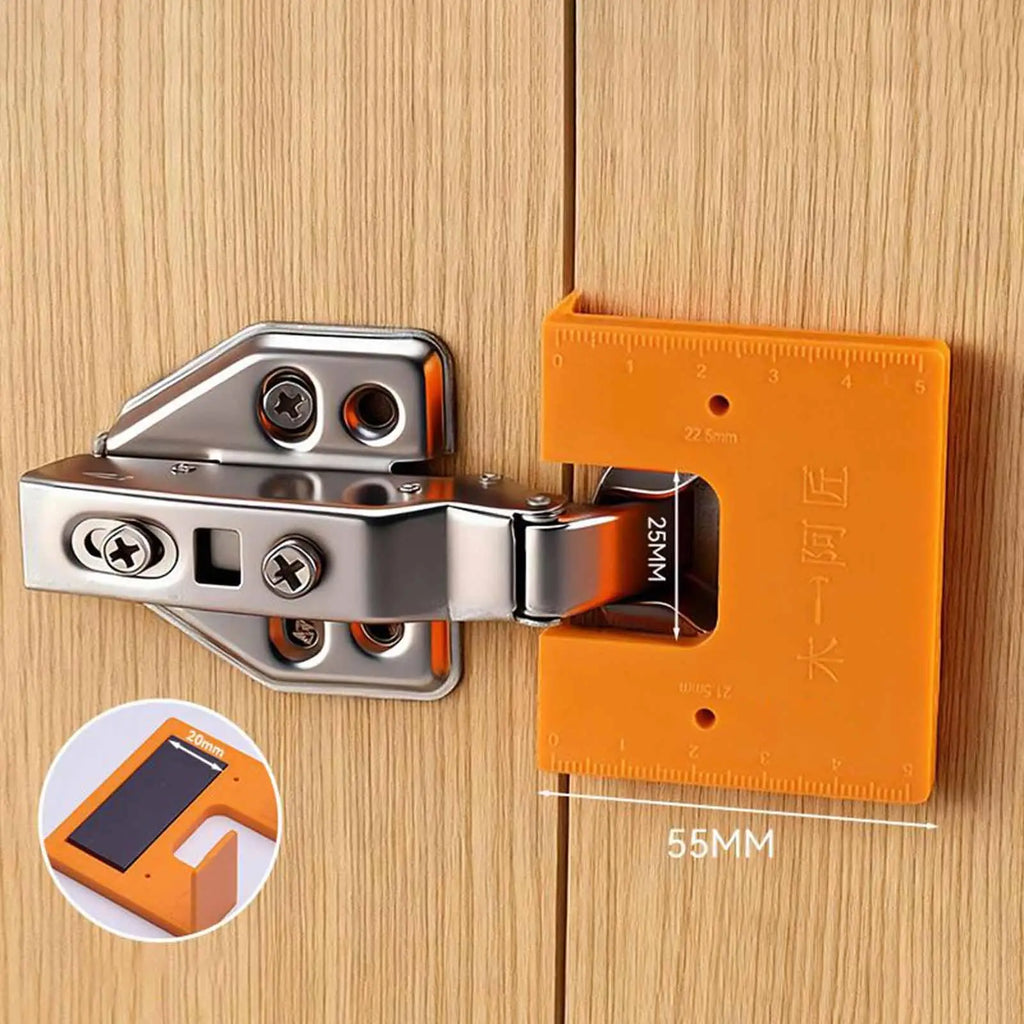

• Accurate Hole Alignment: The routing jig function ensures optimal drill guidance for consistent spatial positioning — simplifying even complex hinge installations for cabinets, furniture, and door panels.
• Durable ABS Construction: Crafted from impact-resistant ABS plastic, this jig is built to handle repeated use across long-term projects like cabinetry builds and furniture assembly without losing its shape or accuracy.

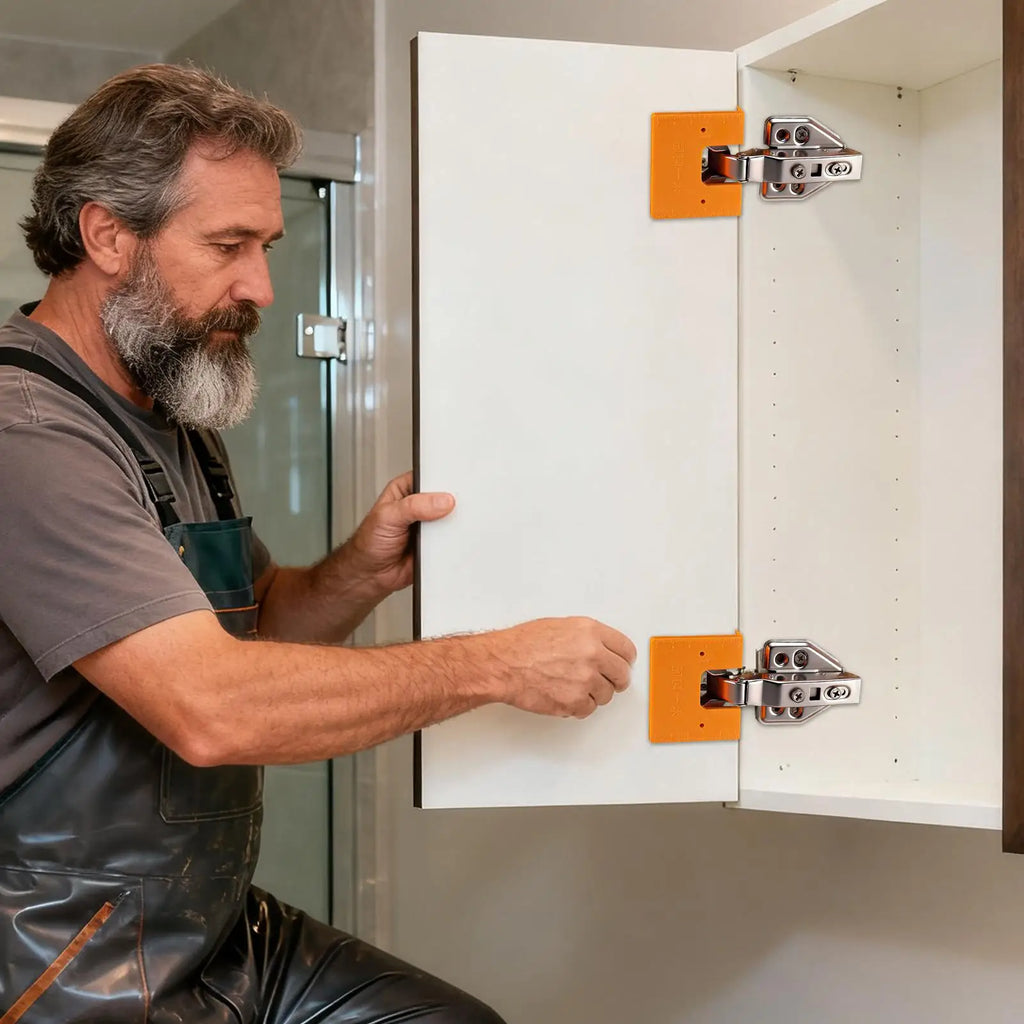

• Versatile Compatibility: Works with a wide variety of hinge types, making it a dependable go-to template for both residential and light commercial cabinet door installations.

Specifications

• Material: ABS Plastic

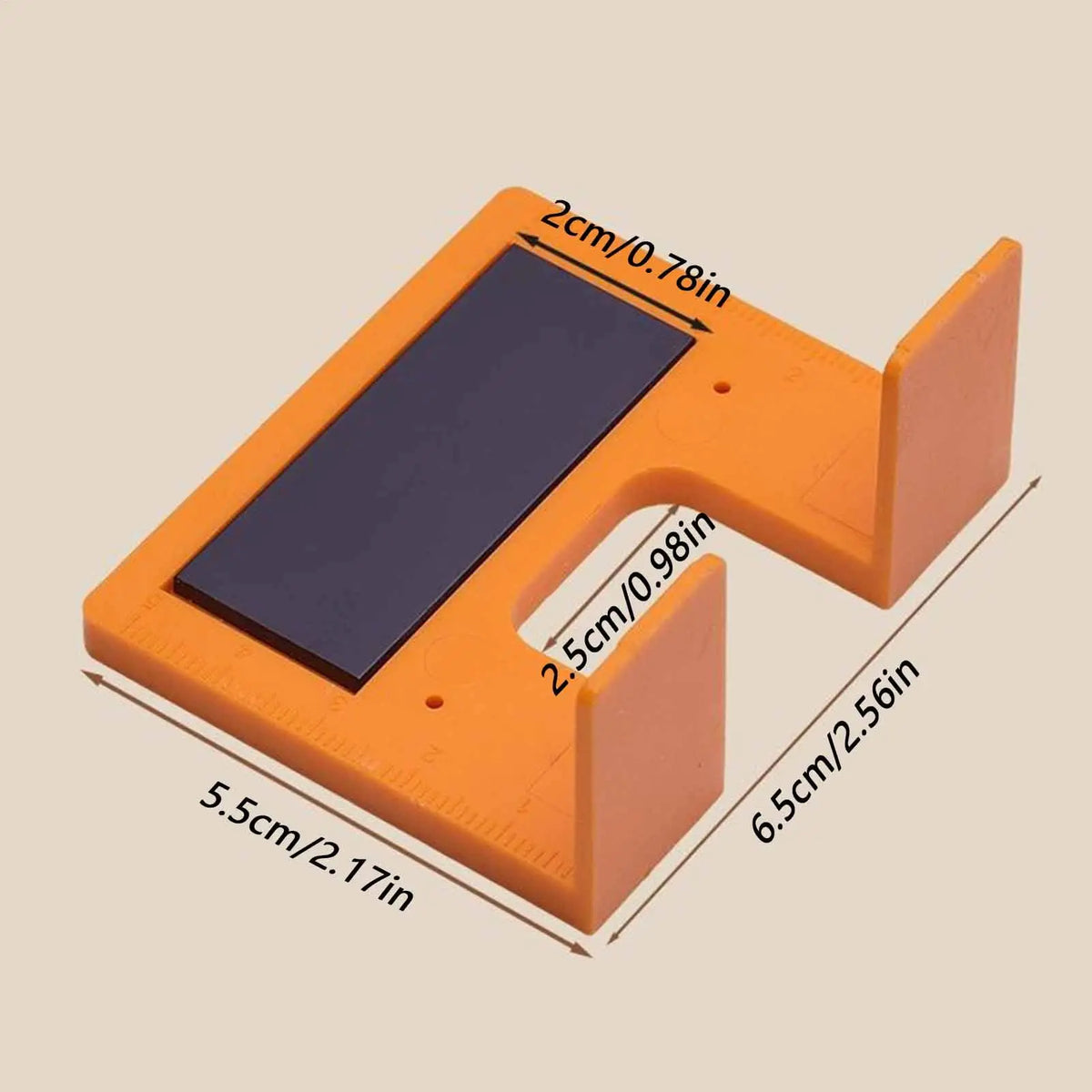

• Dimensions: Approx. 6.5 × 5.5 cm (2.56 × 2.17 inches)
• Weight: Approx. 22 grams
• Use: Home DIY, cabinetry, furniture assembly

What's in the Box

• 1 × Magnetic Hinge Installation Positioning Jig

Related Products You May Like

• 10Pcs Wooden Handle Nylon Bristle Paint Brush Set – Great for Finishing & Detailing
• 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel for Carpentry
• 1pc Professional Heavy-Duty Pruning Shears with Anti-Slip Handle

Note: Due to lighting and display settings, slight color variation may occur. Due to manual measurement, minor size differences are possible — please allow a small tolerance.

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What types of hinges is this magnetic hinge jig compatible with?

A: This hinge installation positioning jig is designed to work with a wide variety of standard cabinet and door panel hinges. Its flexible template design supports multiple hinge types, making it suitable for most home DIY cabinetry, furniture assembly, and door renovation projects.

Q: Does this jig require any additional hardware or clamps to hold it in place?

A: No additional clamps are needed. The built-in magnetic locking mechanism keeps the jig securely fixed to your workpiece during drilling or routing, providing a stable, hands-free positioning experience for quick and accurate hinge installations.

Q: Is this hinge jig suitable for beginners?

A: Absolutely! The magnetic hinge installation jig is specifically designed to simplify hinge placement for both professional builders and hobbyists. Its precision grooves guide your drill with ease, so even first-time DIYers can achieve clean, accurate hinge cutouts without prior woodworking experience.

Q: What is the jig made of, and how durable is it?

A: The jig is made from impact-resistant ABS plastic, which is lightweight yet sturdy enough to withstand repeated use. It maintains its shape and accuracy over long-term projects, making it a reliable tool for ongoing cabinetry and woodworking tasks.
