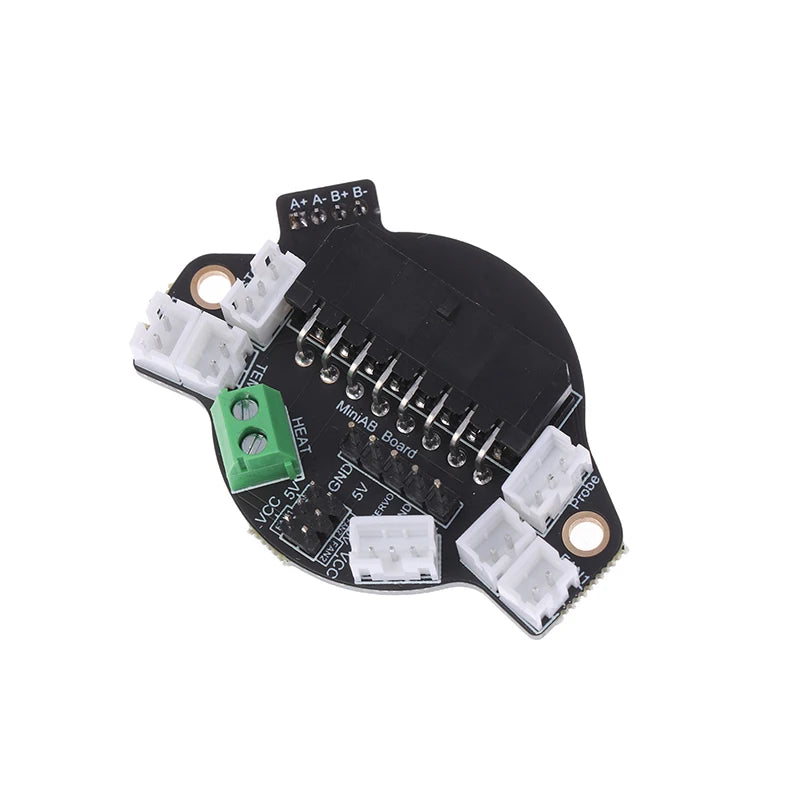

MiniAB Board – Hot End Quick-Swap Terminal Board for 3D Printers
Tired of unplugging and re-routing a tangle of wires every time you need to service your 3D printer's hot end? The MiniAB Tool Head Terminal Board is the clean, efficient solution. It consolidates all hot end wiring into a single unified connector to your motherboard, so swapping out a heating element, thermistor, or fan is a quick, localized job — no more tracing wires all the way back to the main board.
Made in Mainland China.
Key Features
- Unified Wiring Hub: Connect all hot end components — heater, thermistor, fans, and more — to one board, then run a single cable to the motherboard.
- Quick Hot End Replacement: Service or swap hot end parts at the tool head without touching the main board wiring — saving time and reducing errors.
- Broad Motor Compatibility: Designed to work with both 36mm (NEMA 14) and 42mm (NEMA 17) motors.
- Extruder Compatible: Works seamlessly with popular extruder systems including Sherpa, Libra, and MineSunrise designs.

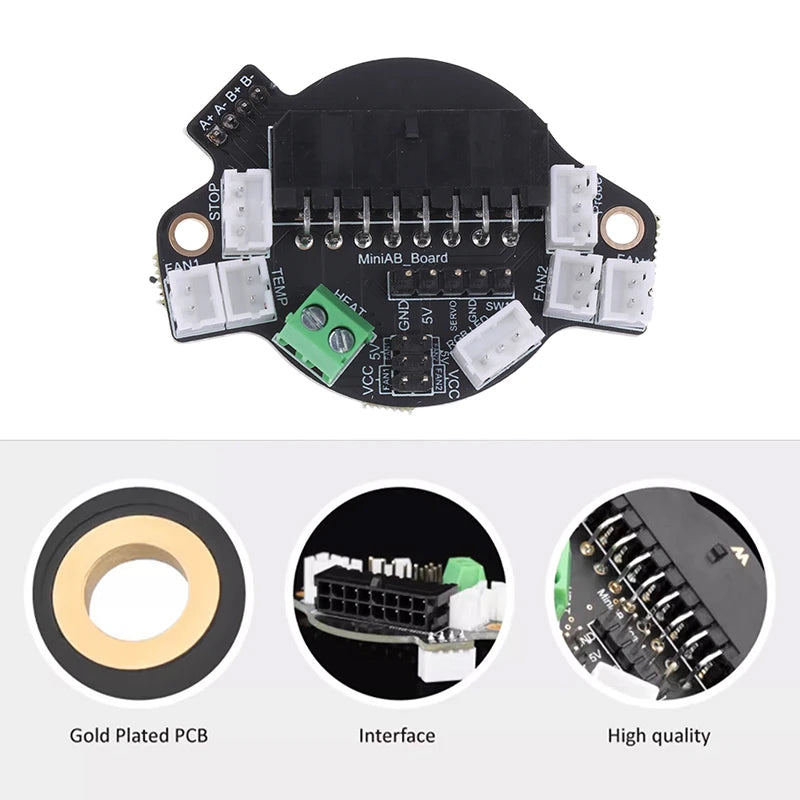

- Compact & Clean Build: Neat, low-profile PCB design keeps your tool head tidy and organized.
- Kit Included: Comes as a complete 1-kit package with all necessary components to get started.
Specifications
- Brand: HUXUAN
- Item Type: Tool Head Terminal Board (Motherboard Interface)
- Motor Compatibility: 36mm / 42mm motors
- Compatible Extruders: Sherpa, Libra, MineSunrise
- Material: Electronic components / PCB

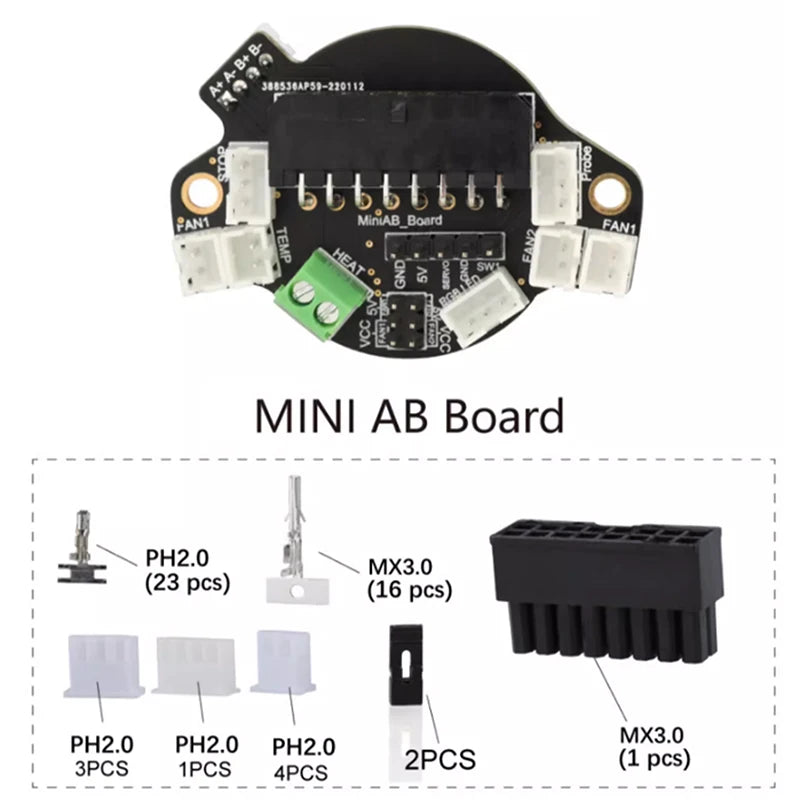

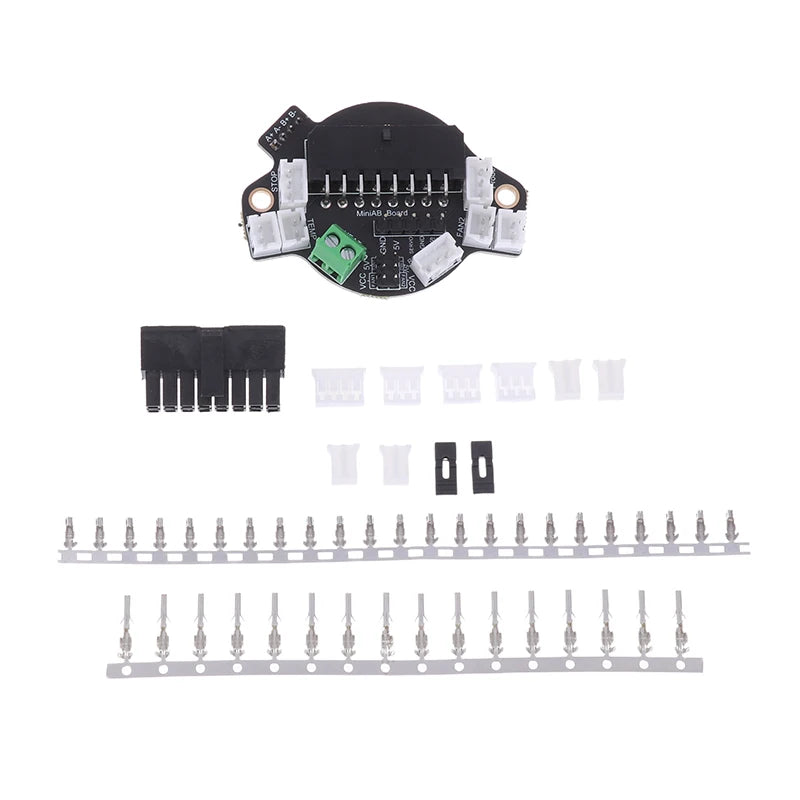

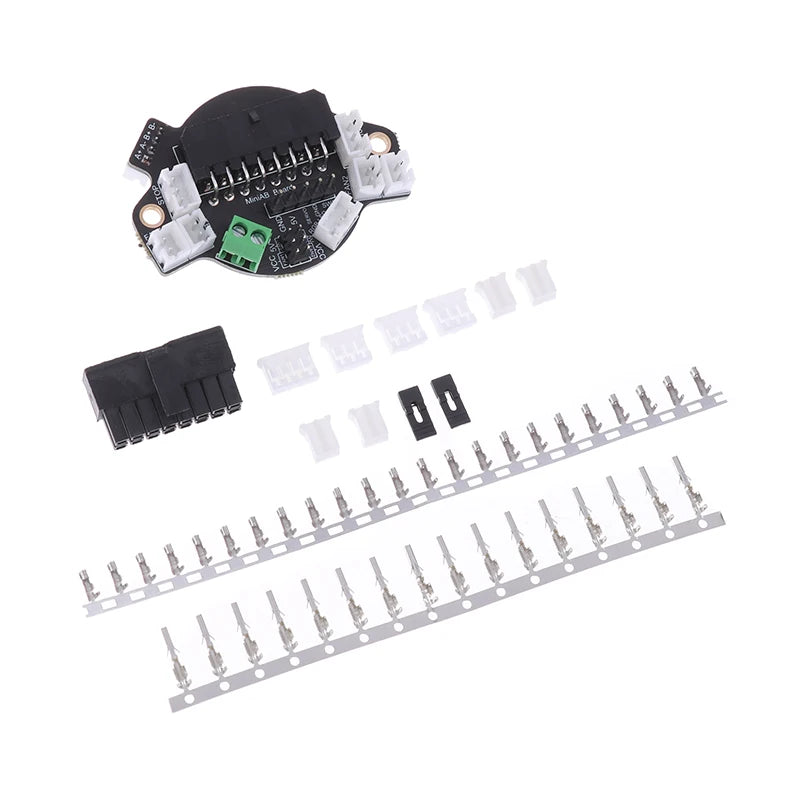

- Package Contents: 1 x MiniAB Board Kit
- Origin: Made in Mainland China
Note: Due to manual measurement, please allow a tolerance of 1–3mm. Colors may appear slightly different on screen versus the actual product.
Related Products You May Like
- 10Pcs Wooden Handle Nylon Bristle Paint Brush Set – Hand Tool Set
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel, Fine-Toothed
- 360-Degree Rotating Storage Tray – Kitchen Spice & Sundry Organizer
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the MiniAB Terminal Board and what does it do in a 3D printer?
A: The MiniAB Board is a tool head terminal board that consolidates all hot end wiring (heater, thermistor, cooling fan, etc.) onto a single PCB. This board then connects to the main motherboard via a single unified cable, making it significantly easier to service, replace, or upgrade hot end components without disturbing your main board wiring.
Q: Which extruder systems and motor sizes is this board compatible with?
A: The MiniAB Board is compatible with popular lightweight extruder systems including the Sherpa, Libra, and MineSunrise extruders. It supports both 36mm (NEMA 14) and 42mm (NEMA 17) stepper motors, making it a versatile choice for a wide range of 3D printer tool head configurations.
Q: What is included in the package?

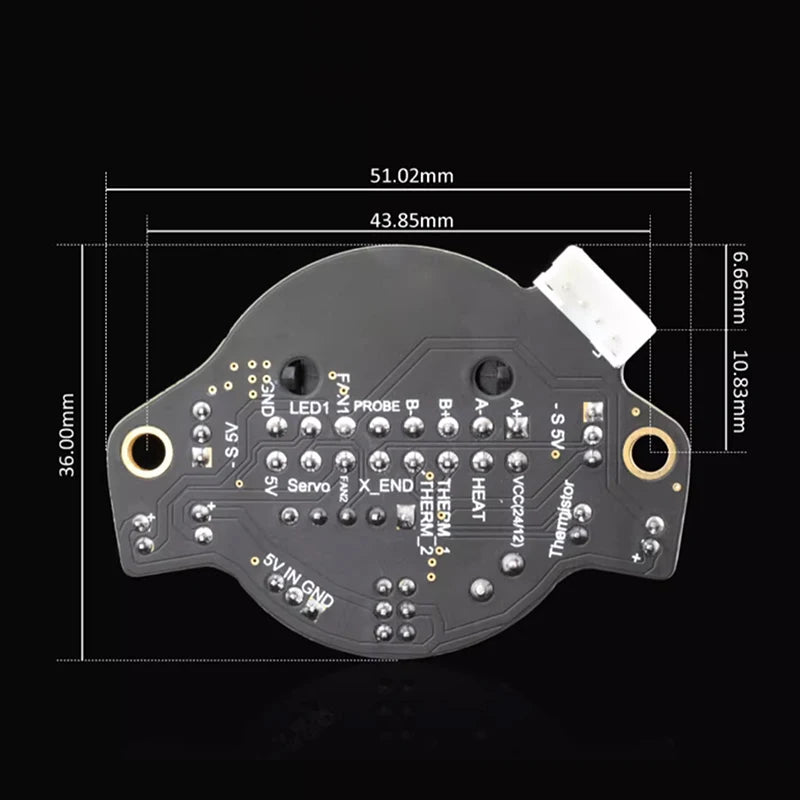

A: The package includes 1 complete MiniAB Board Kit with all the components needed for installation. Please refer to product images for specific kit contents and board dimensions.
Q: Do I need to re-wire my main board when replacing hot end parts using this board?
A: No — that is the main advantage of this terminal board. When you need to replace a hot end component such as a heating element, you only need to work at the tool head position. The connection to the main board stays intact, saving time and reducing the risk of wiring mistakes.
