Passive PoE Adapter Kit – RJ45 Splitter & Injector Set
Passive PoE Adapter Kit – RJ45 Splitter & Injector Set
Power Your Network Devices Over a Single Ethernet Cable

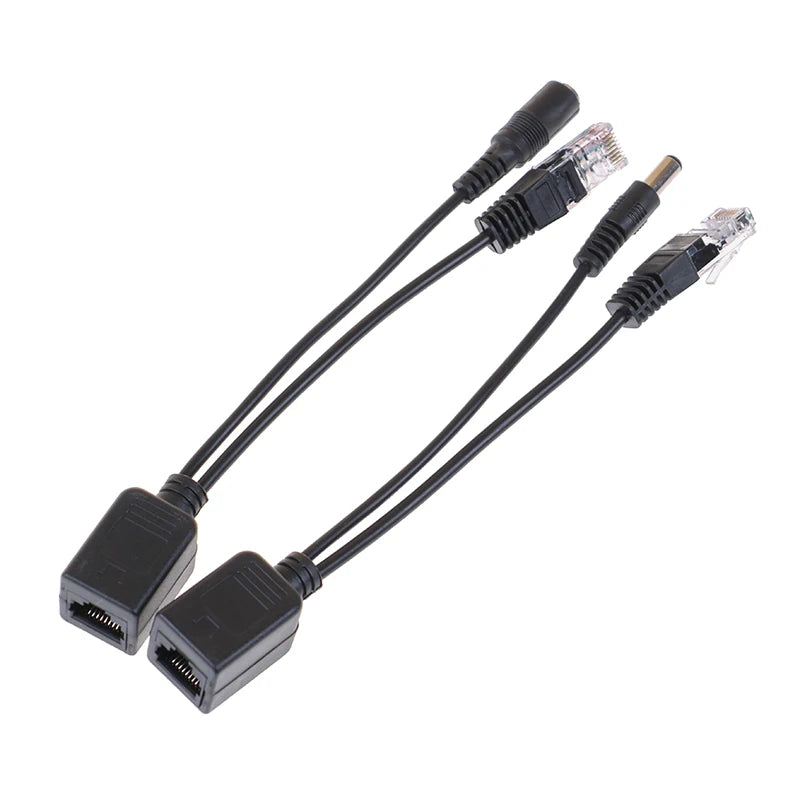

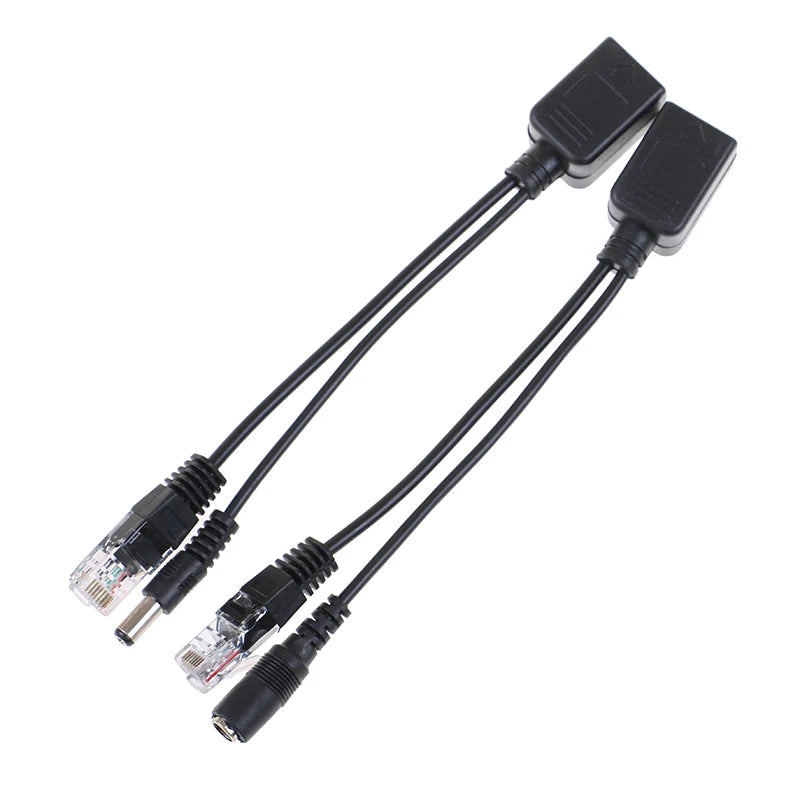

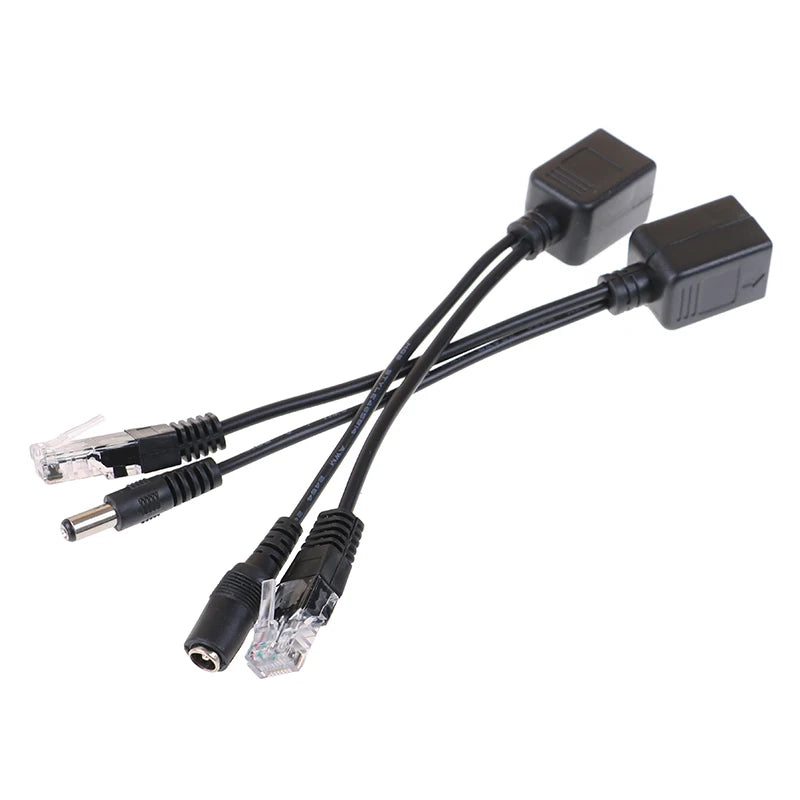

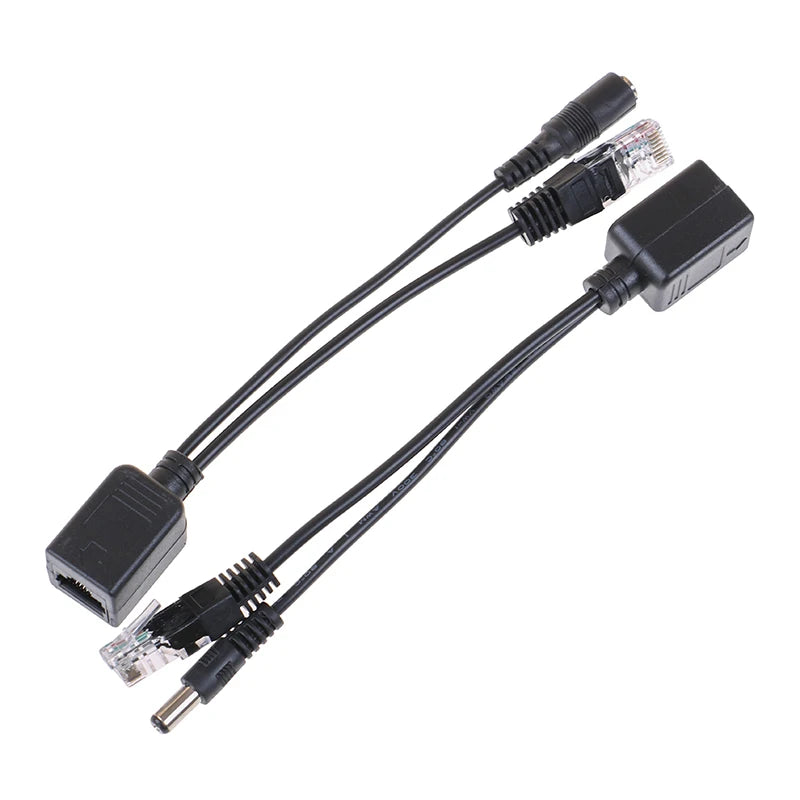

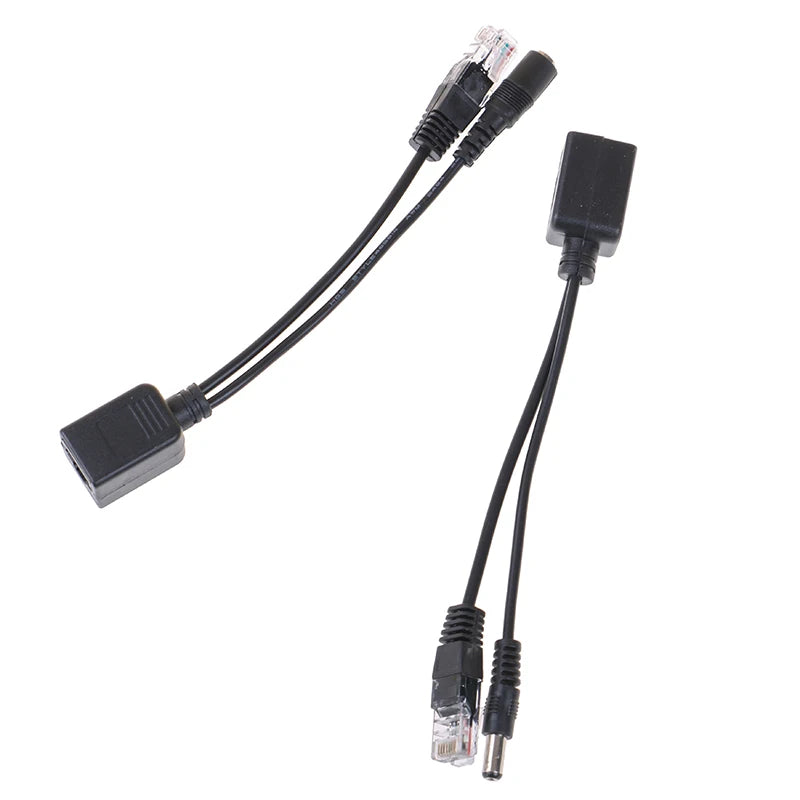

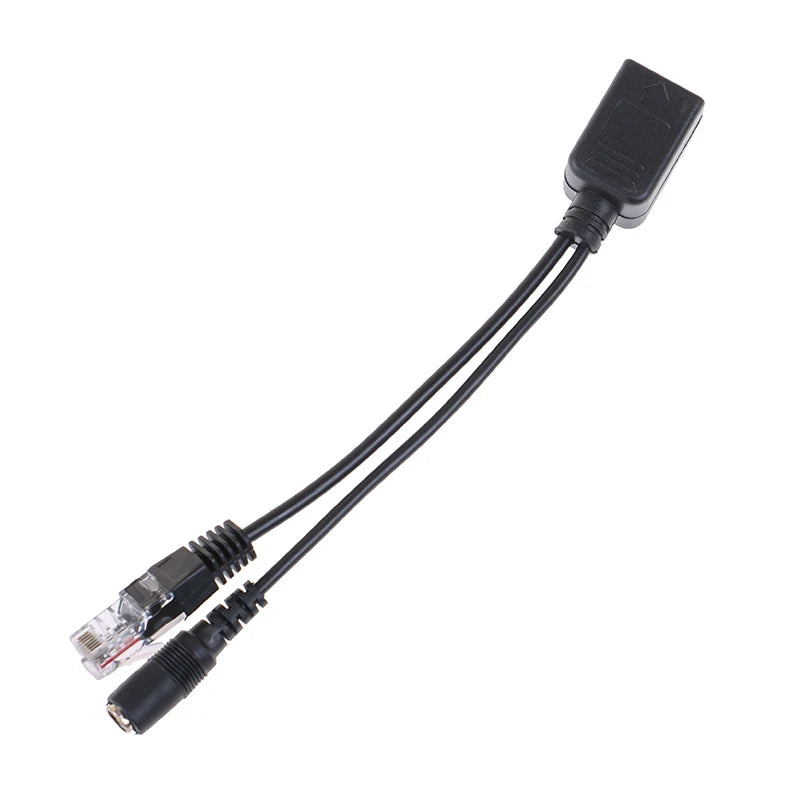

The Passive Power over Ethernet (PoE) Adapter Kit is an all-in-one solution that lets you deliver both data and DC power through a single standard Ethernet cable — no expensive managed switches or complex setups required. The set includes one PoE Injector and one PoE Splitter, giving you everything you need to run compatible network devices without running a separate power line. Made in Mainland China.
What's in the Box?
- 1× Passive PoE Injector
- 1× Passive PoE Splitter
Ideal For a Wide Range of Network Equipment
This passive PoE set is compatible with a broad selection of networking gear including:
- Wireless Access Points
- IP Cameras
- Routers & Modems
- Network Switches
- Embedded Computers & RouterBOARDs
- WRAP Boards and other passive PoE devices
Works with popular brands such as D-Link, Linksys, Airlive, Senao, Wline, Micronet, Edimax, Ovislink, and many more.
How It Works – 3 Simple Steps
- Connect the Injector's RJ45 input to your PC, hub, or switch, and plug your power adapter into its DC socket.
- Run a standard Cat.5 Ethernet cable from the Injector's RJ45 output to the far end of your installation.
- At the far end, plug the Splitter into the cable — it separates the power and data outputs and connects them directly to your powered device. That's it!
Key Specifications
- DC Input / Output Voltage: Up to 60 VDC
- Max Output Current: 1.5A – 2A
- Connector Size: 5.5 × 2.1 mm (2.1 mm pin)
- Power Pins: 4, 5 (+) and 7, 8 (−)
- Ethernet Data Rate: 10/100 Mbps
- Cable Standard: TIA/EIA 568 Cat.5
- Working Range: Up to 30 metres (approx. 100 ft)
- Operating Temperature: −40°C to 60°C (−40°F to 140°F)
- Humidity Tolerance: Up to 90%
- Cable Material: PVC
- DC Plug Dimensions: 2.1 mm × 5.5 mm × 12 mm

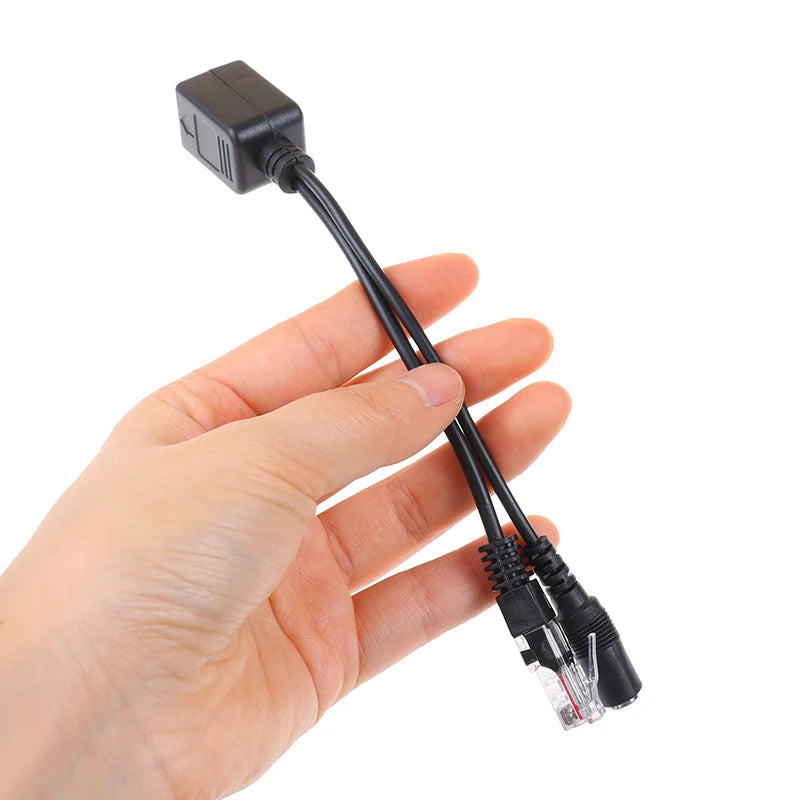

- Length: 190 mm
Note: Power adapter is NOT included. You may use the existing power adapter of the device being powered (e.g. access point, IP camera).
Related Products You May Like
- 10CM Wireless LED Motion Sensor Night Light – Type-C Rechargeable Cabinet & Wardrobe Lamp
- 360-Degree Rotating Storage Tray for Kitchen & Refrigerator
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Does this passive PoE kit work with standard 802.3af/at (active) PoE devices?
A: This is a passive PoE adapter set, meaning it does not negotiate power with the device automatically like active 802.3af/at PoE does. It is designed for devices that explicitly support passive PoE injection — such as many wireless access points, IP cameras, and RouterBOARDs. Always verify your device accepts passive PoE before use.
Q: Is a power adapter included in the set?
A: No, the power adapter is not included. You can use the existing power adapter of the device you are powering (for example, the adapter that came with your access point or IP camera), as long as its voltage is within the supported range of up to 60 VDC.
Q: What Ethernet cable type do I need to use with this PoE kit?
A: This passive PoE set is designed for use with TIA/EIA 568 Cat.5 Ethernet cable, supporting data rates of 10/100 Mbps. For best results, keep cable runs within 30 metres (approx. 100 ft).
Q: What connector size does the DC plug use?
A: The DC connector size is 5.5 mm × 2.1 mm (12 mm pin length), which is one of the most common barrel connector sizes used in networking and electronics equipment.
