HUXUAN POE Adapter 24V 48V Power Injector for Router Repeater

HUXUAN POE Power Adapter – Reliable Ethernet Power Delivery for Routers & Repeaters

Power your network devices efficiently with the HUXUAN POE Adapter, available in 24V 1A and 48V 0.5A configurations. Designed for seamless compatibility with POE splitters, power injectors, and Ethernet adapters, this compact unit delivers stable, protected power over Ethernet — keeping your router, repeater, or access point running reliably around the clock. Made in Mainland China.

Key Features

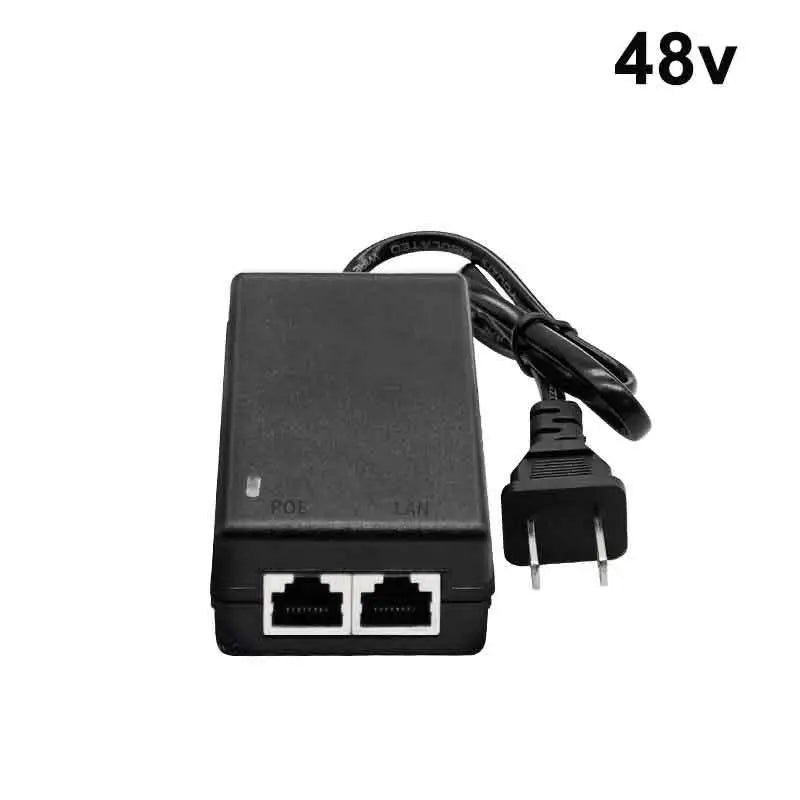

• Dual Voltage Options: Choose 24V 1A or 48V 0.5A to match your specific device requirements.
• IEEE 802.3af/at POE Protocol Compatible: Works with a wide range of POE-enabled networking devices.
• Standard PD Port Power Supply Priority: Ensures consistent power delivery to connected powered devices.
• High Data Forwarding Rate: 10/100BASE-TX at 148,800 pps per port for smooth network performance.
• Multi-Layer Protection: Built-in short circuit, over-current, and over-voltage protection safeguard your equipment.
• Anti-Thunder Design: Withstands positive and passive 5KB, 8/20µS electric shock waves up to 5 times per minute.
• Failure Alert & FUSE: Indicator light signals working status; fuse provides an additional safety layer.
• Long System Reliability: MTBF > 100,000 hours for dependable, long-term use.
• US Plug: Ready to use right out of the box in North American outlets.

Technical Specifications

POE Protection Parameters

• Output Overvoltage Protection: -52V ~ -50V DC
• Overcurrent Protection (single circuit): 500mA – 1000mA
• Input Overvoltage Protection: >290V–310V AC
• Input Undervoltage Protection: <140V–155V AC
• Temperature Protection: >100°C

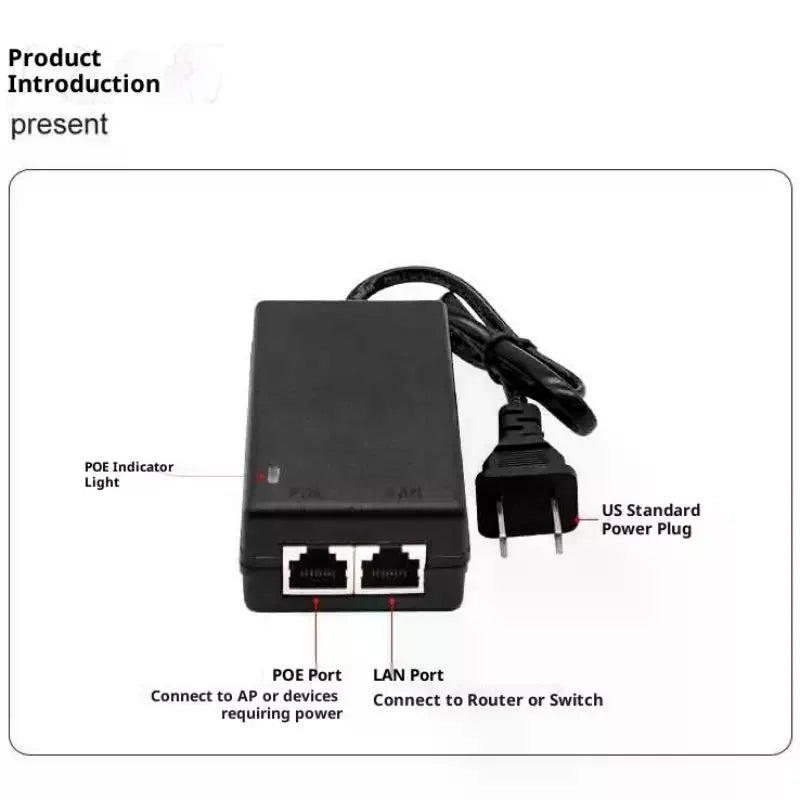

Indicator Light Guide

• Light ON: Unit is working normally.
• Light OFF: May indicate short circuit, overload, excessive consumer power draw, consumer breakdown, or cable short circuit.

What's in the Box

• 1× POE Power Adapter (includes power cord)

You May Also Like

• 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel, Fine-Toothed
• 10CM Wireless LED Motion Sensor Night Light – Type-C Rechargeable Cabinet Lamp
• Silicone Bathroom Basin Drain Ring Gasket Replacement

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Is this POE adapter compatible with all routers and repeaters?

A: This POE adapter is compatible with devices that support the IEEE 802.3af/at POE protocol. It works with most POE-enabled routers, repeaters, access points, and IP cameras. Always verify your device's required input voltage (24V or 48V) before purchasing.

Q: What voltage option should I choose — 24V 1A or 48V 0.5A?

A: The voltage you need depends on your specific networking device. Most access points and wireless repeaters use 24V, while many enterprise-grade POE devices and IP cameras require 48V. Check your device's label or manual for the correct power input specification.

Q: Does this POE adapter work with outlets outside the US?

A: The adapter features a US plug but accepts a universal input range of 100V–240V AC at 47–63Hz, making it compatible with power sources worldwide. You may need a plug adapter for outlets outside North America.

Q: What protections does this POE power supply include?

A: The unit includes short circuit protection, over-current protection, over-voltage protection, under-voltage protection, temperature protection, and an anti-thunder design to keep your connected devices safe from electrical disturbances.
