PowerCon 3-Pin Panel Mount Connector Set — AC 250V / 20A
Upgrade your stage lighting rigs, junction boxes, and equipment panels with this professional-grade PowerCon 3-Pin Male & Female Panel Mount Connector Set. Engineered for high-current AC applications, this 8-piece kit delivers rock-solid connections for DMX stage lights, moving head fixtures, LED par lights, and more — all in a compact, space-saving form factor.
Made in Mainland China.
Key Features
- High-Current Capacity: Rated at 20A / 250V AC, suitable for demanding power delivery in professional AV and stage environments.

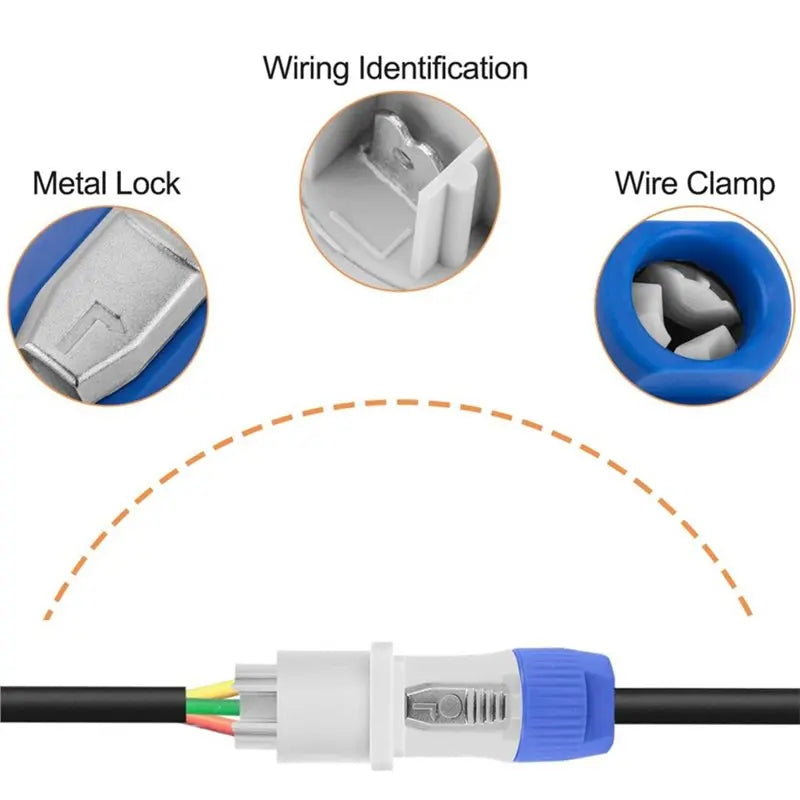

- Secure Locking Mechanism: Simple, precision locking design ensures a firm connection that stays in place — no accidental disconnects during live performances.
- Color-Coded Ports: Blue input port and gray output port clearly differentiate power flow directions, reducing the risk of mismatched connections and enhancing safety.

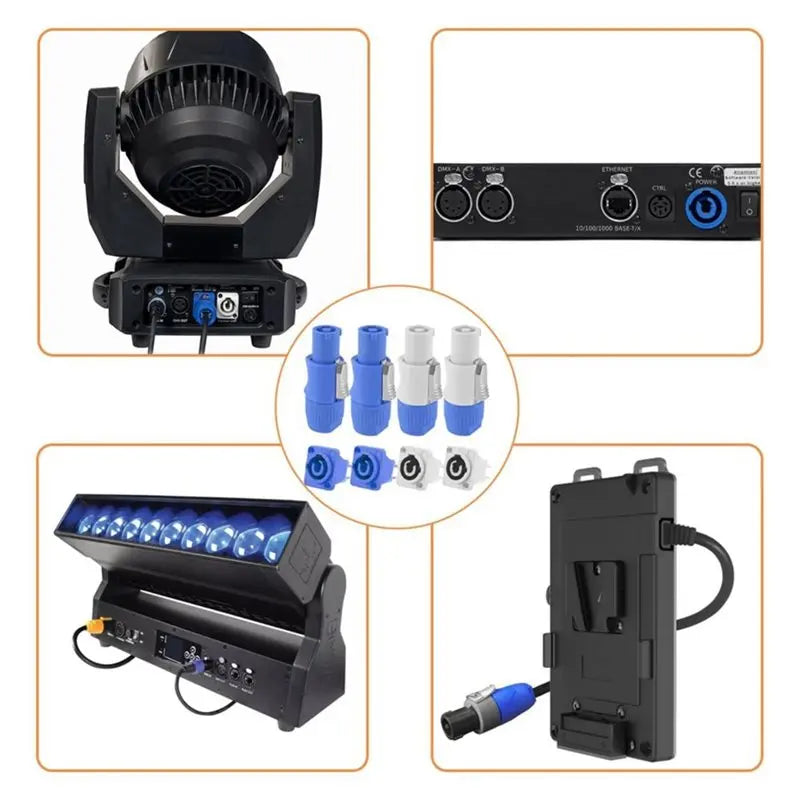

- Wide Application: Compatible with DMX signal stage lights, moving head lights, LED par lights, AC power cords, printer cables, DMX signal cables, wired microphone cables, and more.
- Compact Panel Socket: Smaller footprint than standard square panel sockets — fits neatly into equipment panels and junction boxes without wasting space.
- Durable Construction: Built from robust plastic housing for long-lasting performance in professional settings.
- Compatible Wire Gauge: Accepts cable diameters of 6mm–15mm (3 × 14 AWG), offering flexible wiring options.

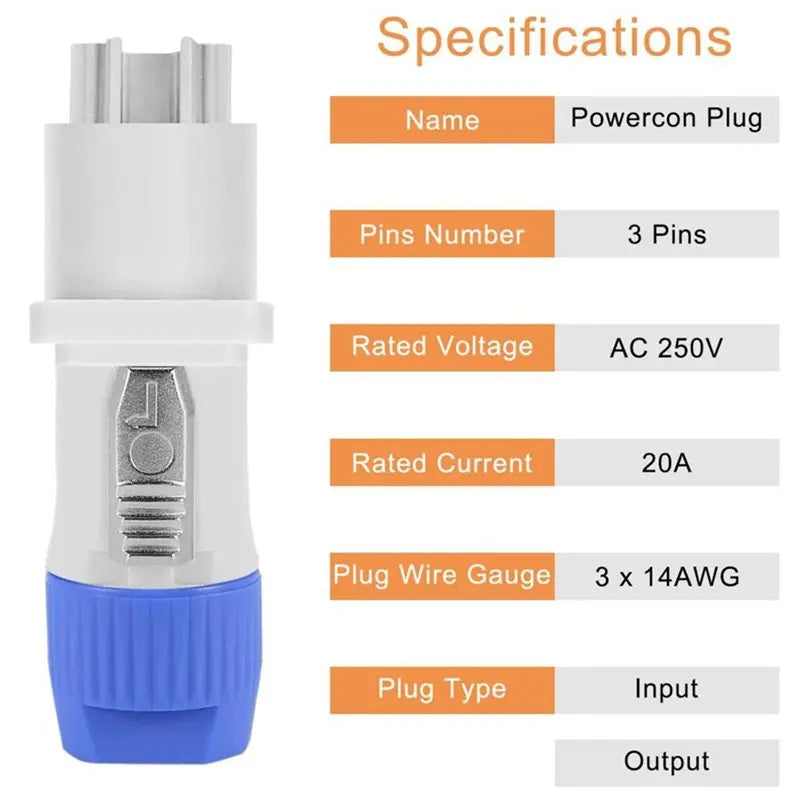

Specifications
| Rated Voltage | AC 250V |
| Rated Current | 20A |
| Cable Diameter | 6mm – 15mm |
| Wire Gauge | 3 × 14 AWG |
| Connector Type | 3-Pin PowerCon (NAC3FCA / NAC3FCB / NAC3MPA1) |
| Color | Blue & White / Gray |
| Material | Plastic |
| Country of Origin | Mainland China |
Package Contents

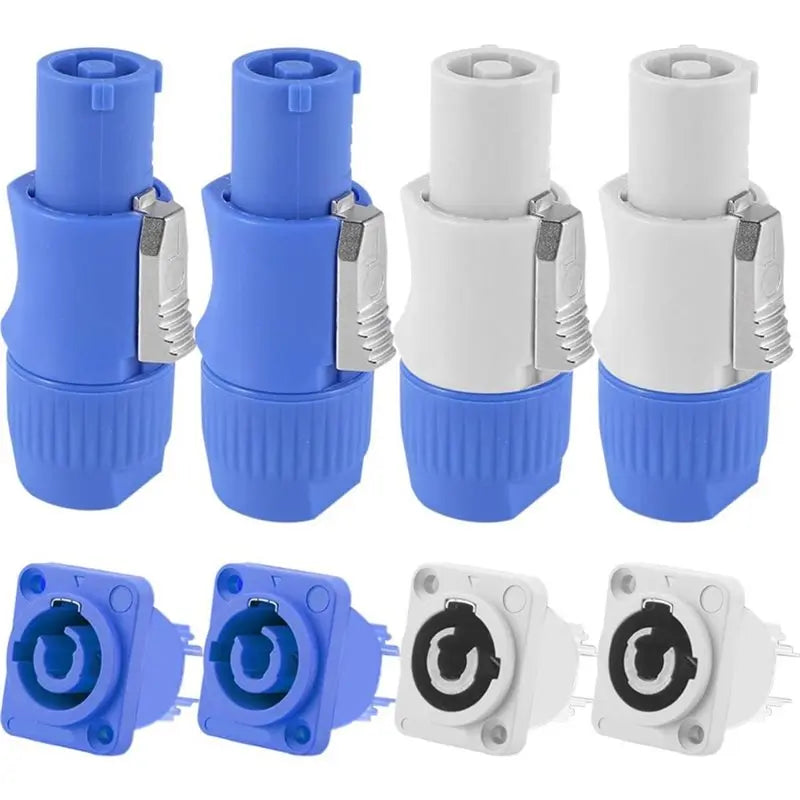

- 4 × PowerCon 3-Pin Male Connector (Cable Plug)
- 4 × PowerCon Female Panel Mount Receptacle
Note: Only the items listed above are included. Other products shown in images are not included. Slight color variations may occur due to lighting and display differences. Measurement tolerance: ±1–3 cm.
You May Also Like
- 10Pcs Wooden Handle Nylon Bristle Brush — Hand Tool Set
- Precision Japanese Double-Edged Hand Saw — SK5 Steel Blade
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What types of equipment are PowerCon 3-pin connectors compatible with?
A: These PowerCon 3-pin connectors are compatible with a wide range of professional AV and stage equipment, including DMX signal stage lights, moving head lights, LED par lights, AC power cords, DMX signal cables, wired microphone cables, and printer cables. Make sure your equipment uses the same PowerCon connector type (NAC3FCA, NAC3FCB, or NAC3MPA1) before purchasing.
Q: How do the color-coded ports work?
A: The blue port designates the power input, while the gray port designates the power output. This color-coding system helps prevent accidental mismatching of connections, ensuring safe and correct power routing in your setup.
Q: What cable sizes are supported by these connectors?
A: These connectors support cable diameters ranging from 6mm to 15mm, with an applicable wire gauge of 3 × 14 AWG — making them versatile for a variety of professional cabling applications.
Q: How many connectors are included in one package?
A: Each package includes 4 × PowerCon 3-pin male cable connectors and 4 × PowerCon female panel mount receptacles, giving you 8 pieces in total for building or repairing multiple connections.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
