Push-In Lever Wire Connectors 2/3/4/5 Pin Quick Terminal
Push-In Lever Wire Connectors 2/3/4/5 Pin Quick Terminal
Fast, Reliable Wire Connections — No Tools Required
Upgrade your electrical projects with these compact Push-In Lever Wire Connectors. Designed for quick and secure wire termination, these mini terminal blocks make splicing and connecting wires faster and easier than ever — simply strip, insert, and lock. Perfect for residential wiring, lighting installations, control panels, and DIY electrical work.
Key Specifications

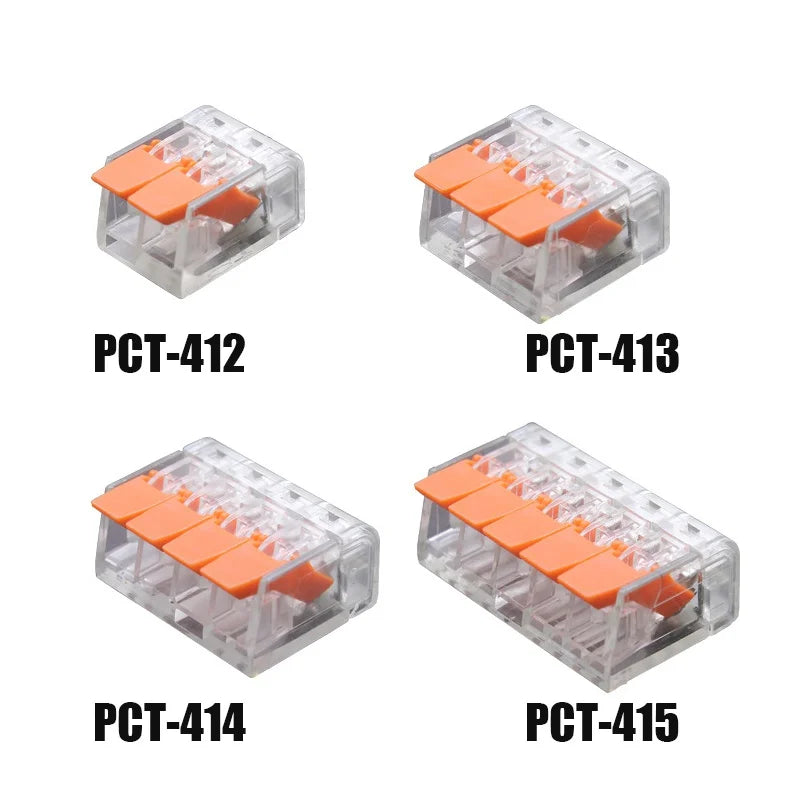

- Available Configurations: 2-Pin, 3-Pin, 4-Pin, and 5-Pin
- Nominal Current: 20A
- Voltage Rating: Low voltage — below 50V AC or 75V DC
- Contact Material: Phosphor copper for excellent conductivity and durability
- Solid Wire Size (BV, BVR): 0.14–4 mm² / 24–12 AWG
- Fine-Stranded Wire (RV >30): 0.2–4.0 mm²

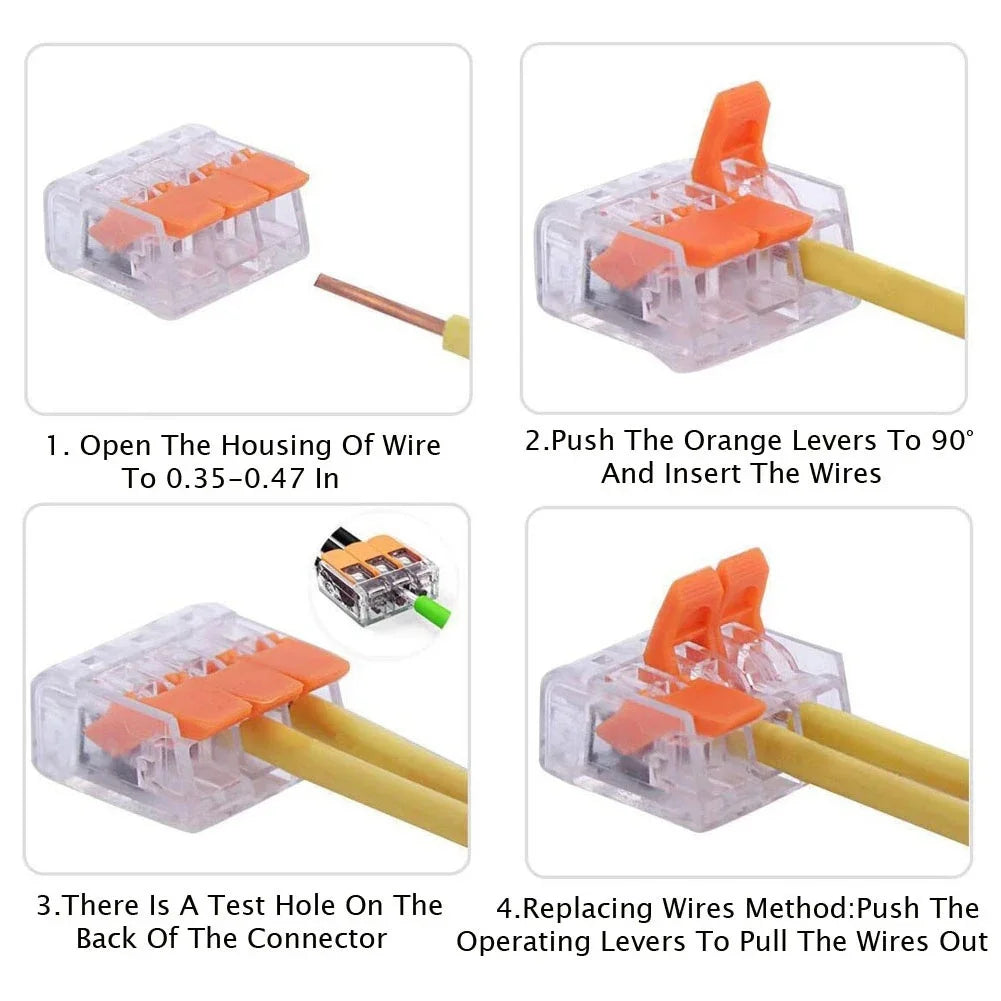

- Recommended Strip Length: 9–10 mm (approx. 0.47 in)
- Connection Type: Push-in lever (tool-free)
- Battery Required: No
- Wireless: No
- Made in Mainland China
Why Choose These Wire Connectors?
- ✅ Tool-Free Installation: Lever mechanism lets you connect and disconnect wires in seconds — no screwdrivers or crimping tools needed
- ✅ Versatile Multi-Pin Options: Available in 2, 3, 4, and 5-pin variants to suit a wide range of wiring configurations
- ✅ Secure Clamping: Phosphor copper contacts provide a firm, low-resistance connection that stays put
- ✅ Compact & Space-Saving: Mini form factor fits neatly into junction boxes, panels, and tight spaces
- ✅ Wide Wire Compatibility: Accepts both solid and fine-stranded wires from 0.14 to 4 mm²
- ✅ Reusable: The lever design allows for easy wire removal and reconnection without damaging the connector
Ideal Applications
- Indoor lighting and ceiling fixture wiring
- Electrical junction boxes and distribution boards
- Automation and control panel assembly
- Home improvement and DIY electrical projects
- Low-voltage signal and power connections
Related Products You May Like
- 10Pcs Wooden Handle Nylon Bristle Paint Brush – Hand Tool Set
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel
- 1pc Professional Heavy-Duty Pruning Shears with Anti-Slip Handle
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What wire sizes are compatible with these push-in lever wire connectors?
A: These connectors accommodate solid wires (BV, BVR) from 0.14 to 4 mm² (24–12 AWG) and fine-stranded wires (RV >30) from 0.2 to 4.0 mm². Strip approximately 9–10 mm (about 0.47 in) of insulation before inserting the wire for a secure connection.
Q: Can I reuse these lever wire connectors if I need to rewire?
A: Yes! The lever mechanism is designed for repeated use. Simply lift the lever to release the wire, remove it, and reconnect a new wire without damaging the connector or the wire.
Q: Are these connectors suitable for both solid and stranded wires?
A: Absolutely. These push-in lever terminals are engineered to handle both solid and fine-stranded wires, making them highly versatile for a wide range of electrical wiring tasks in residential and light commercial settings.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
