10-Pack PWM DC Motor Speed Controller — 6–60V, 30A, LED Digital Display
Take precise command of your DC motors with this professional-grade PWM Motor Speed Controller. Sold as a convenient 10-pack, each unit delivers smooth, stepless speed regulation across a broad voltage range, making it the go-to solution for hobbyists, engineers, and commercial operators alike. Made in Mainland China.
Key Features
- Wide Voltage Compatibility: Accepts DC input from 6V to 60V, making each controller perfectly compatible with 12V, 24V, 36V, and 48V motor systems without any modifications.
- High Current Capacity: Handles output currents of up to 30A, giving you the muscle needed for demanding motors and heavy-duty applications.
- Intuitive LED Digital Display: A bright, easy-to-read LED screen shows the current speed percentage and the maximum attainable speed in real time — no guesswork, no confusion.

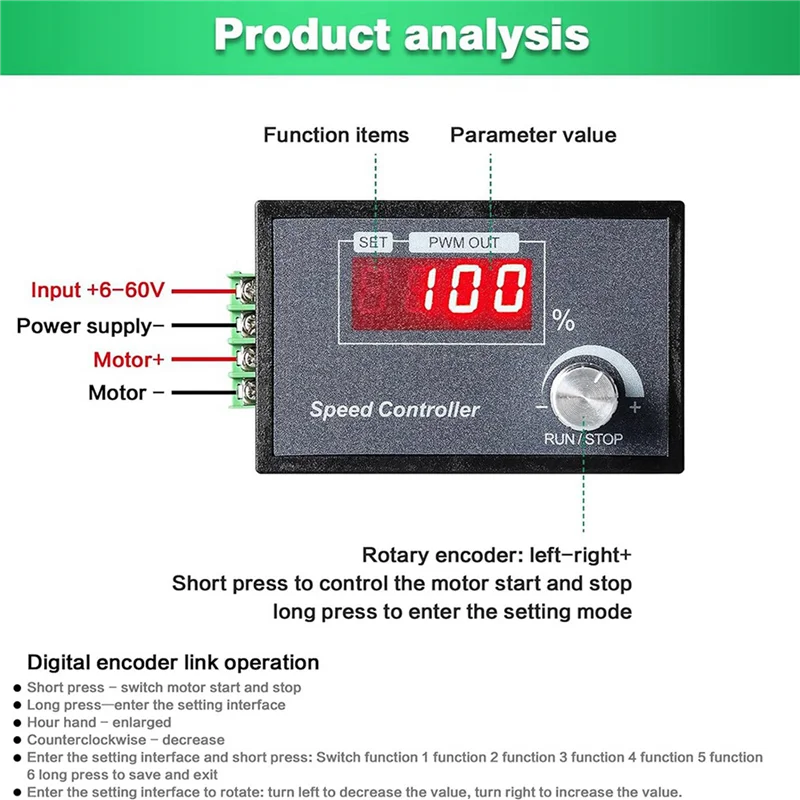

- Effortless Wiring & Setup: Secure screw terminals make connections quick and reliable. A dedicated start/stop button and a variable speed potentiometer put full control right at your fingertips.
- Premium PCB Construction: Built on robust, high-quality PCB material for exceptional durability, wear resistance, and long service life even in demanding operating environments.
- Versatile Applications: Ideal for lawn mowers, tape cutters, blowers, cotton candy machines, conveyor systems, fans, pumps, and countless other DC motor-driven devices — both domestic and commercial.

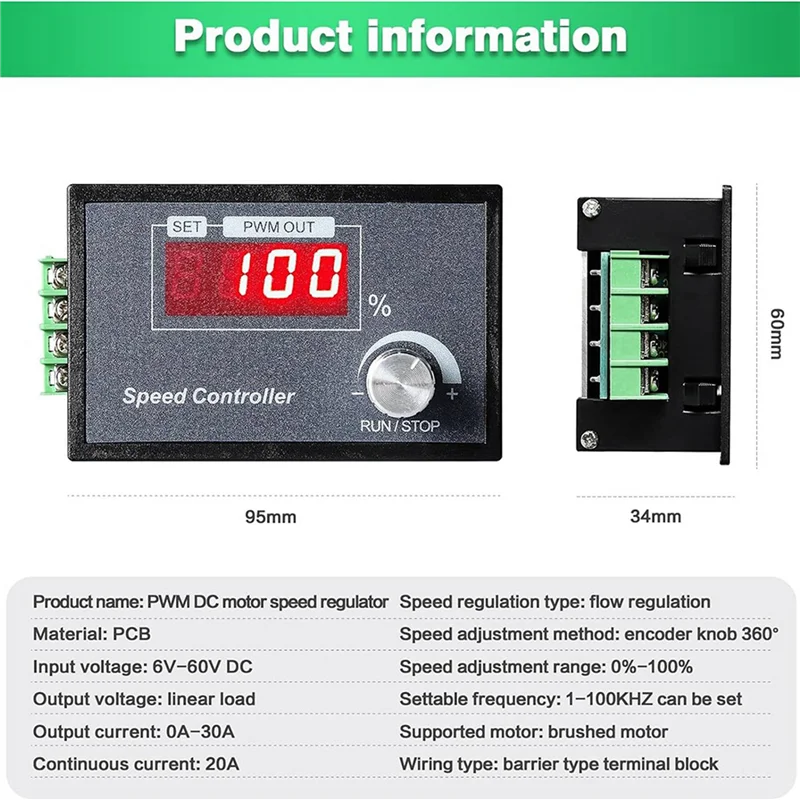

Specifications
| Input Voltage | 6V – 60V DC |
| Max Output Current | 30A |
| Compatible Motor Voltages | 12V, 24V, 36V, 48V |
| Display | LED Digital Display (speed % & peak speed) |
| Control Method | PWM (Pulse Width Modulation) |
| Connections | Screw Terminals |
| Controls | Start/Stop Button + Speed Potentiometer |
| Material | Premium PCB + Plastic Housing |
| Country of Origin | Made in Mainland China |
Package Contents

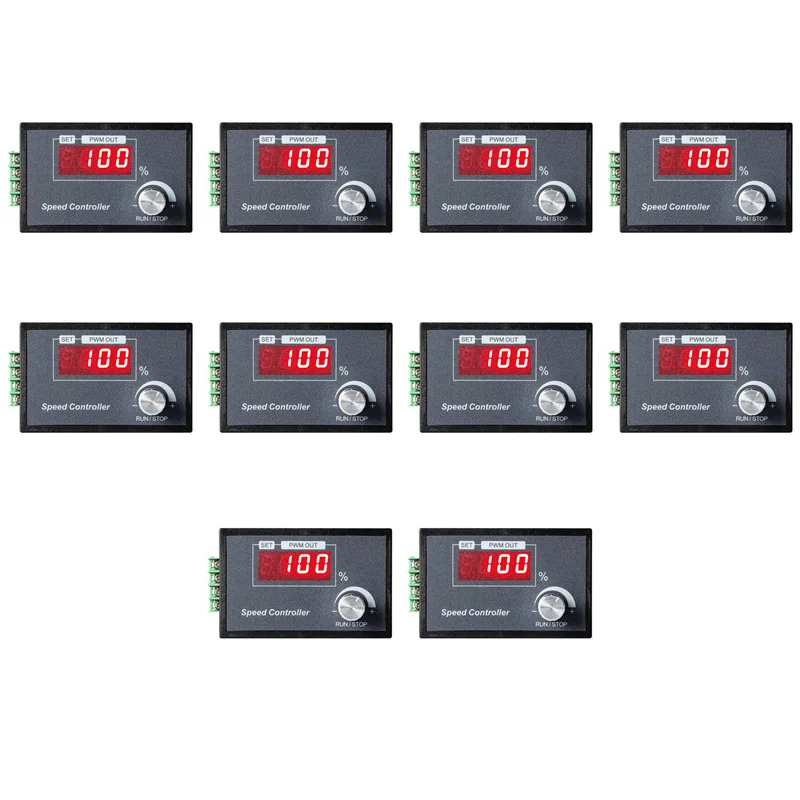

- 10× PWM DC Motor Speed Controller Units
Note: Only the items listed above are included. Colors may vary slightly due to lighting and display differences. Measurement tolerance: ±1–3 cm.
You May Also Like
- 10Pcs Wooden Handle Nylon Bristle Paint Brush – Versatile Hand Tool Set
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel, Fine-Toothed
- 1pc Professional Heavy-Duty Pruning Shears with Anti-Slip Handle
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage range does this PWM DC motor speed controller support?
A: Each controller in this 10-pack supports a DC input voltage range of 6V to 60V, making it compatible with common motor voltages including 12V, 24V, 36V, and 48V systems.
Q: How much current can the motor speed controller handle?
A: The controller is rated for a maximum output current of 30A, suitable for a wide range of DC motors used in lawn mowers, blowers, fans, pumps, and other motor-driven equipment.
Q: Is this controller easy to install and use?
A: Yes. The unit features clearly labeled screw terminals for secure, straightforward wiring. Speed is adjusted via an on-board potentiometer, and a dedicated start/stop button provides instant operational control. The LED display shows speed percentage at a glance.
Q: How many units are included in this listing?
A: This listing includes a pack of 10 PWM DC Motor Speed Controllers, offering excellent value for bulk projects, repairs, or resale.
