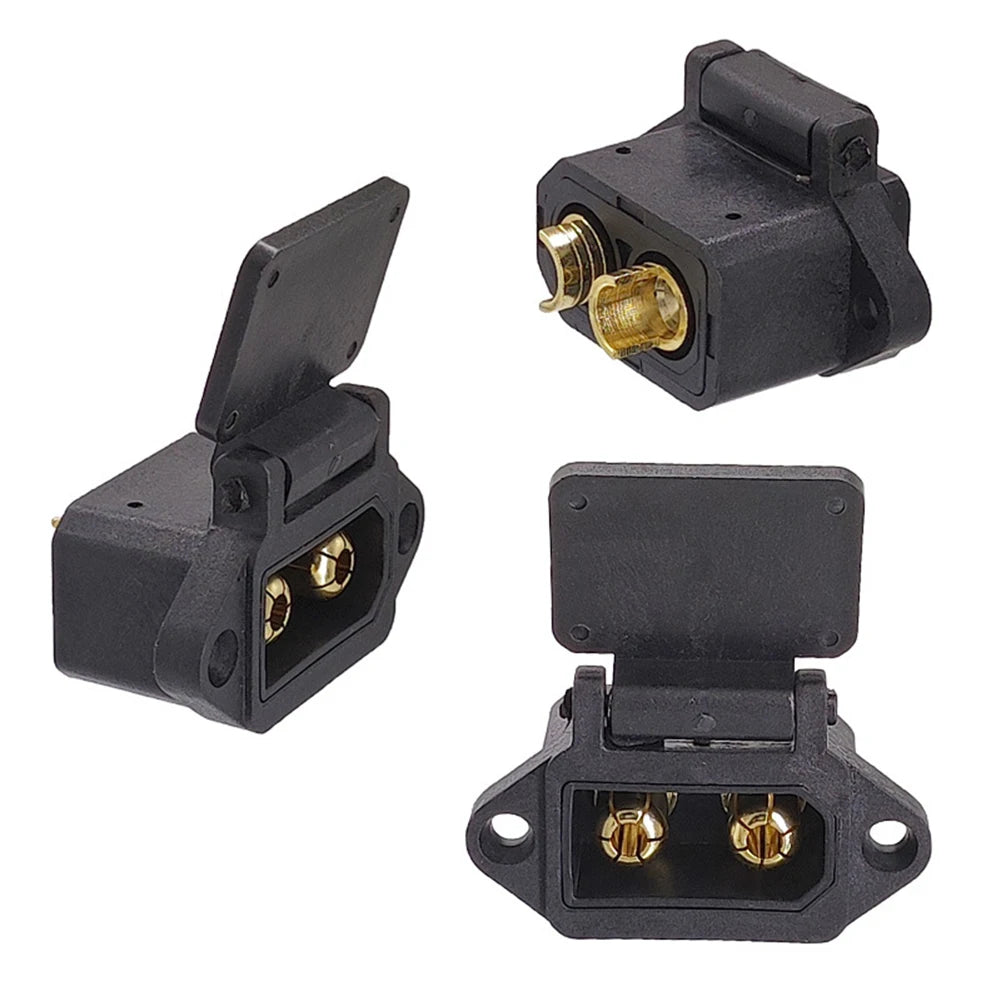

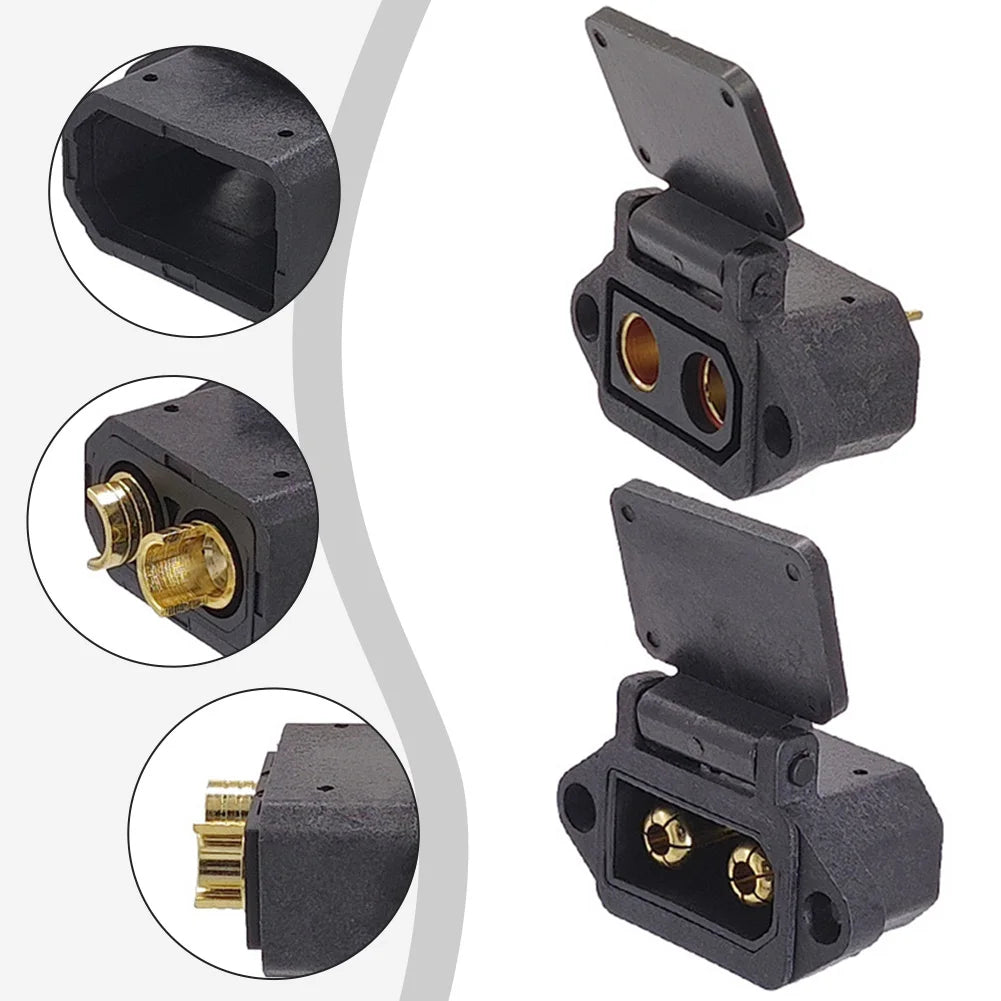

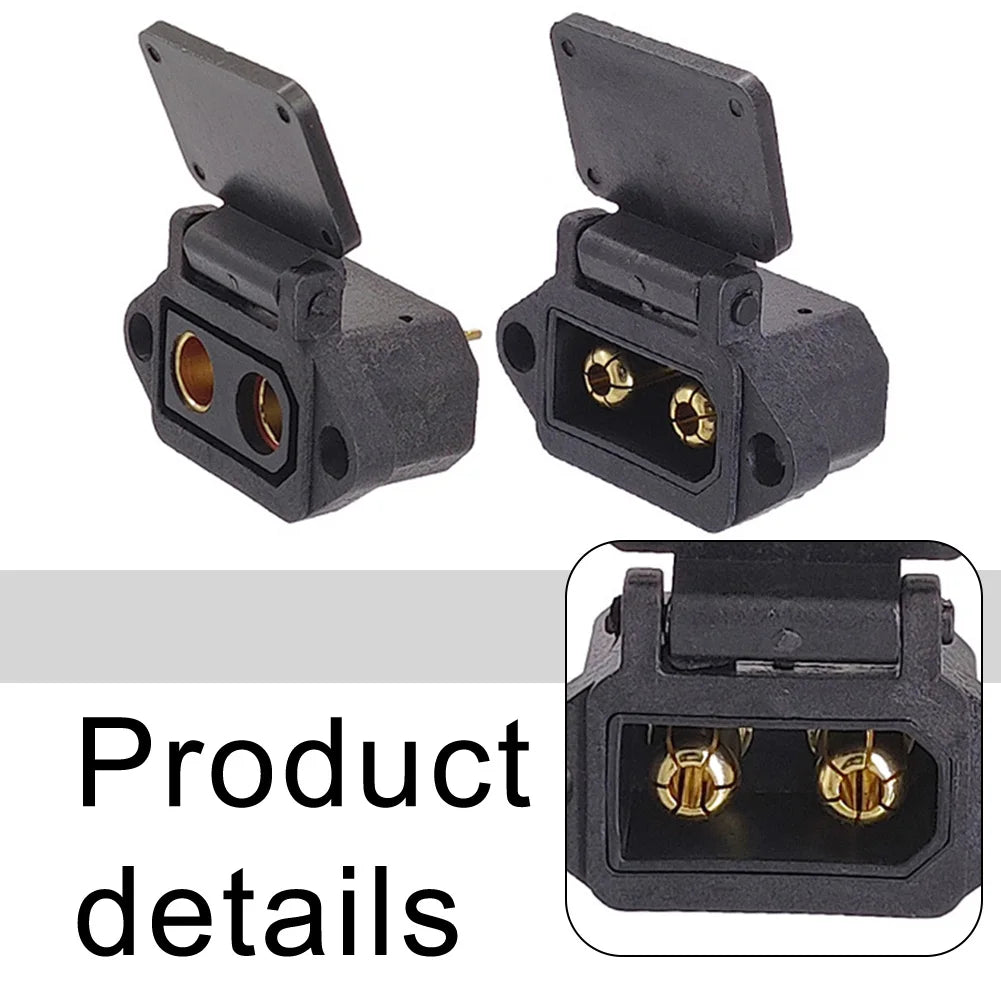

QS8-S Anti-Spark High-Current Battery Connector Male Female Set
QS8-S Anti-Spark High-Current Battery Connector Male Female Set
QS8-S High-Current Anti-Spark Power Connector – Male & Female Set with Shells
The QS8-S Power Charging Connector is a heavy-duty, spark-proof plug designed for demanding high-current applications. Whether you're wiring up RC vehicles, electric bikes, battery packs, or industrial power systems, this gold-plated copper connector delivers safe, secure, and reliable energy transfer every time. Made in Mainland China.
Why Choose the QS8-S Connector?
- Anti-Spark Design: Built-in spark prevention technology safeguards your components during initial connection, reducing wear and the risk of damage.
- Reverse Polarity Protection: Reverse depolarization design prevents incorrect connection, protecting your batteries and electronics.
- Gold-Plated 8mm Copper Contacts: Ensures low resistance, maximum conductivity, and long-lasting durability even under heavy load.
- High-Temperature Nylon Shell: The nylon housing withstands operating temperatures from 30°C up to 200°C, making it suitable for demanding environments.
- Rated for High Current: Handles up to 130A–200A continuous current at a rated voltage of 600V — ideal for high-power battery and charging setups.
- Compatible Wire Gauges: Accepts 8–10 AWG wire for secure, low-resistance crimping or soldering.

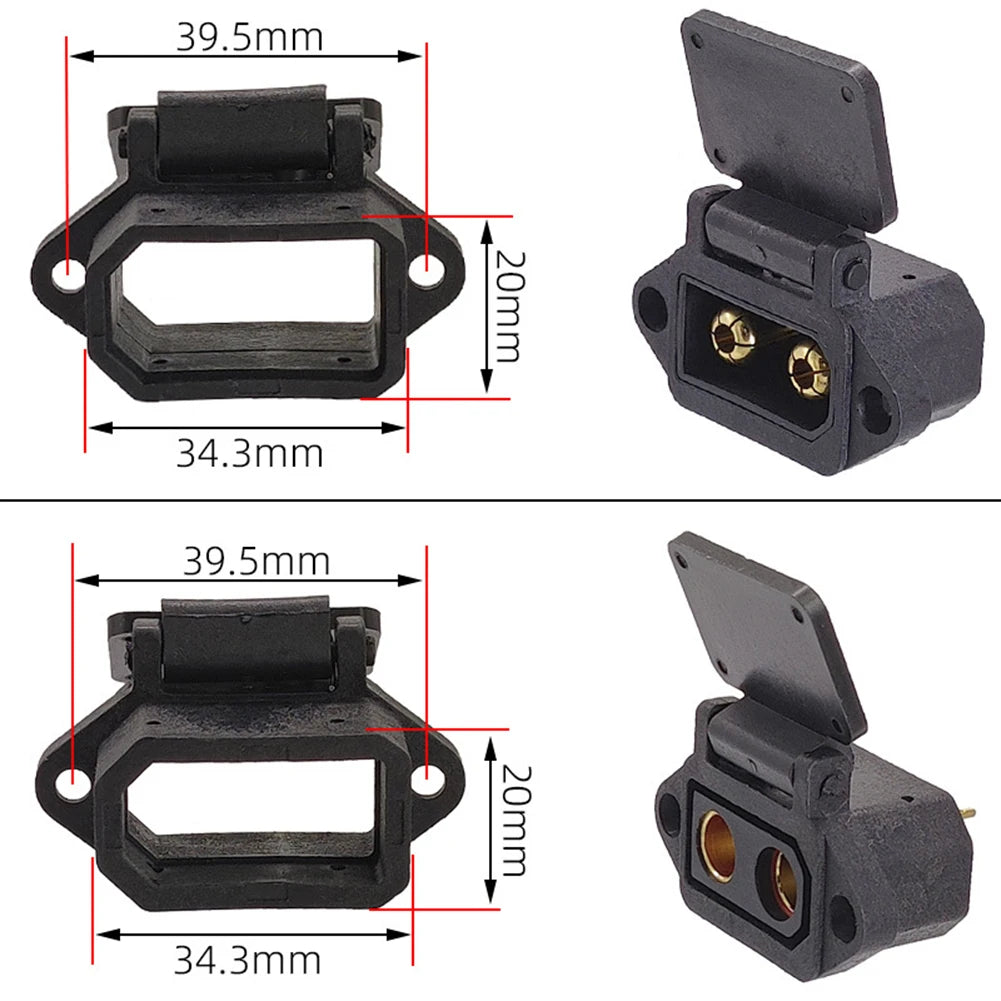

- Compact & Robust: At just 26×31mm, this connector is space-efficient without sacrificing performance.
Specifications
| Model | QS8-S (QS8S) |
| Material (Shell) | Nylon Plastic |
| Connector Material | 8mm Gold-Plated Copper |
| Color | Black |
| Size | 26 × 31 mm |
| Wire Gauge | 8–10 AWG |
| Rated Voltage | 600V |
| Compatible Input Voltages | 5V / 12V / 20V / 30V |
| Current Rating | 130A – 200A |
| Max Temperature | 200°C |
| Heat Range | 30°C to 200°C |
| Country of Origin | Made in Mainland China |
Package Contents
- Option A: 1× QS8-S Male Connector
- Option B: 1× QS8-S Female Connector

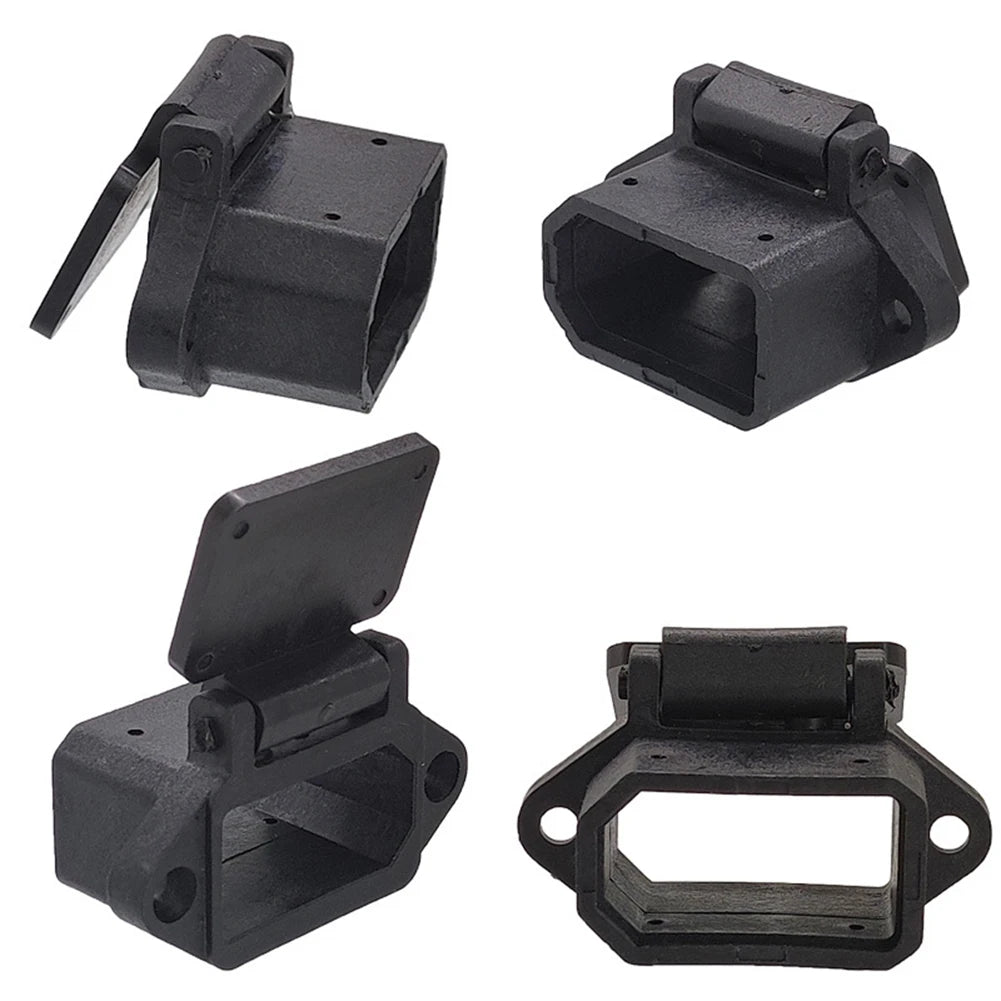

- Option C: 1× QS8-S Male Shell
- Option D: 1× QS8-S Female Shell
- Option A+B (Full Set): 1× QS8-S Male + Female Connector Pair + 1× Male + Female Shell Set
Note: The connector surface may show slight variation due to minor oxidization during storage. This is a normal characteristic and does not affect functionality or quality.
Related Products You May Like
- 10Pcs Wooden Handle Nylon Bristle Tool Set
- Precision Japanese Double-Edged Hand Saw – SK5 Steel
- 10CM Wireless LED Motion Sensor Night Light – Type-C Rechargeable
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What is the QS8-S connector used for?
A: The QS8-S power connector is designed for high-current applications such as RC vehicles, electric bicycles, battery packs, drones, and other power systems requiring a reliable 130A–200A rated connection at voltages up to 600V.
Q: Does the QS8-S prevent sparking when connecting the battery?
A: Yes. The QS8-S features a built-in anti-spark mechanism that minimizes electrical sparks during initial connection, protecting your battery and electronic components from sudden current surges.
Q: What wire size is compatible with the QS8-S connector?
A: The QS8-S is compatible with 8 AWG to 10 AWG wire, which is standard for high-current battery wiring in RC and electric vehicle applications.
Q: Can I buy just the male or female connector separately?
A: Yes. You can choose from individual male connector (Option A), individual female connector (Option B), male shell only (Option C), female shell only (Option D), or the complete male + female set with shells (Option A+B).
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
