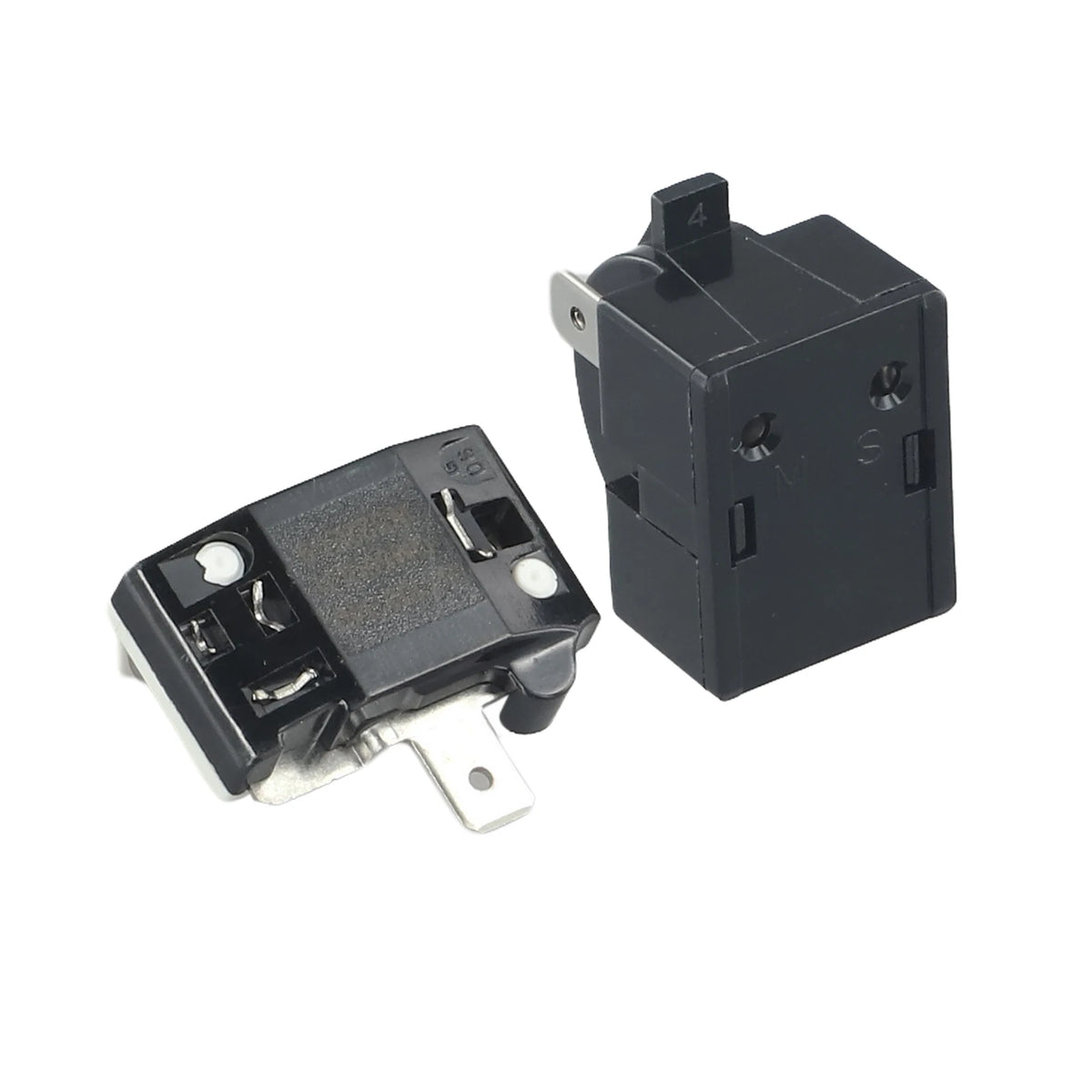

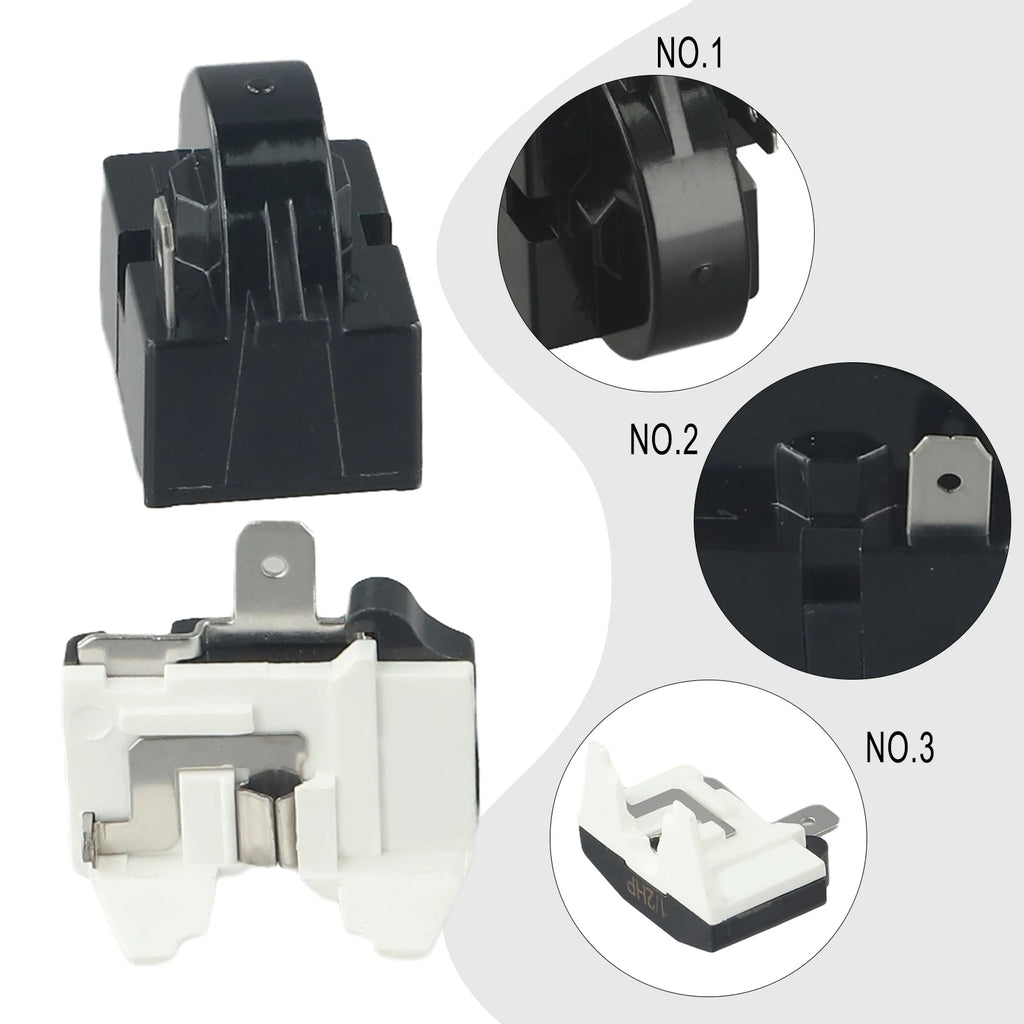

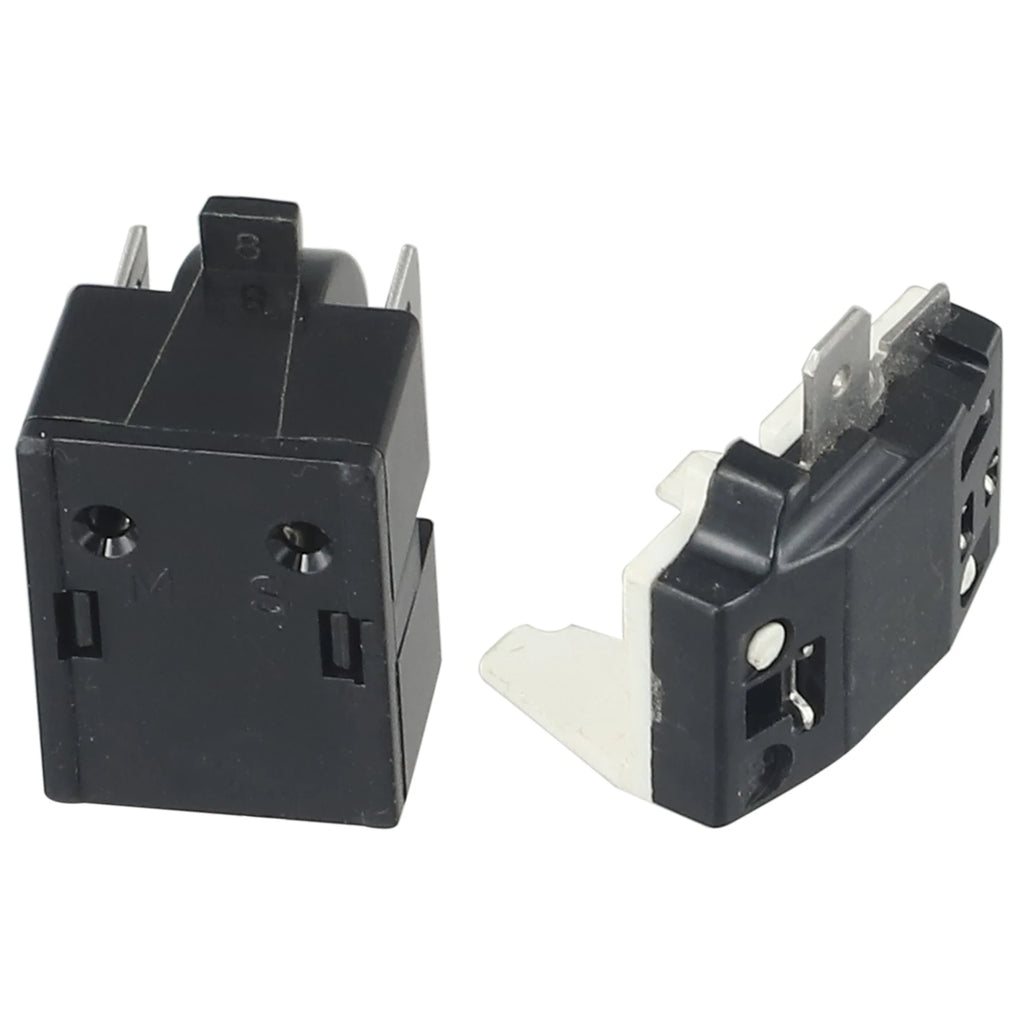

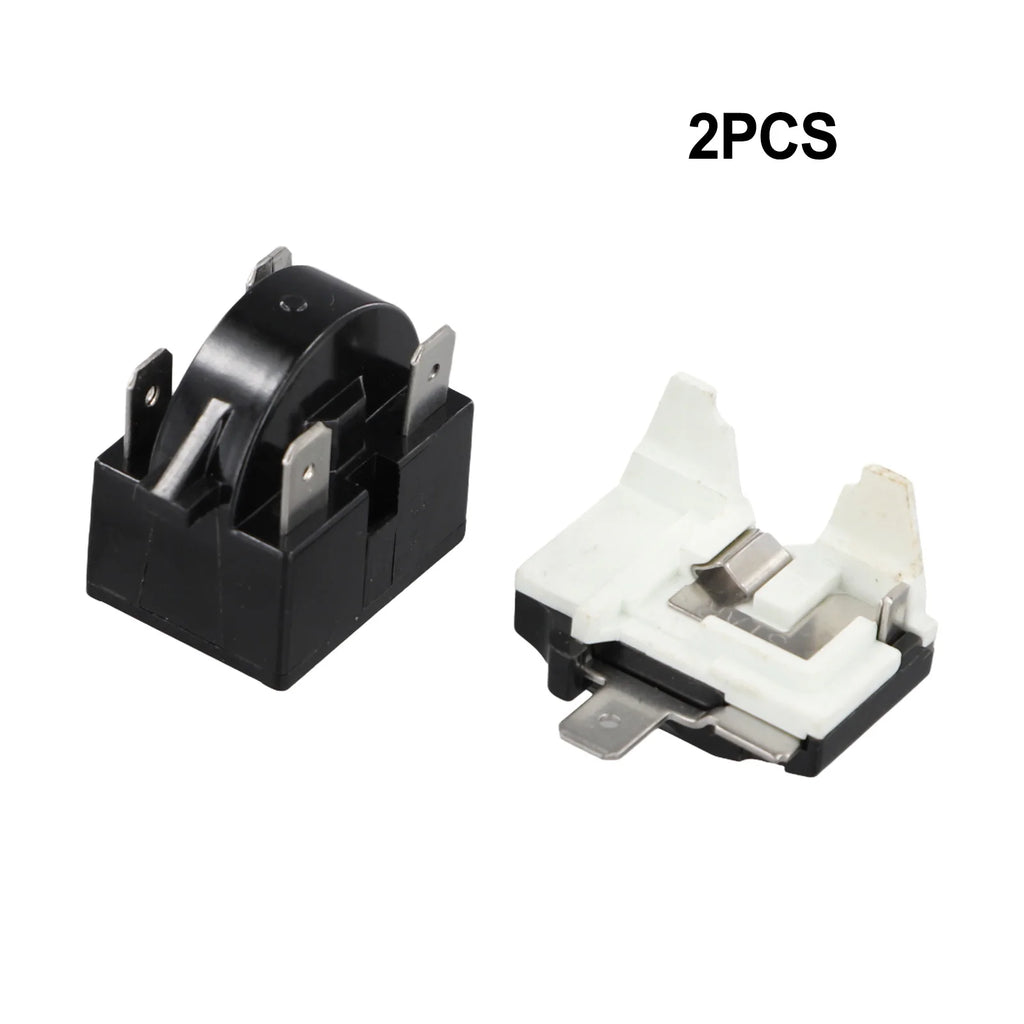

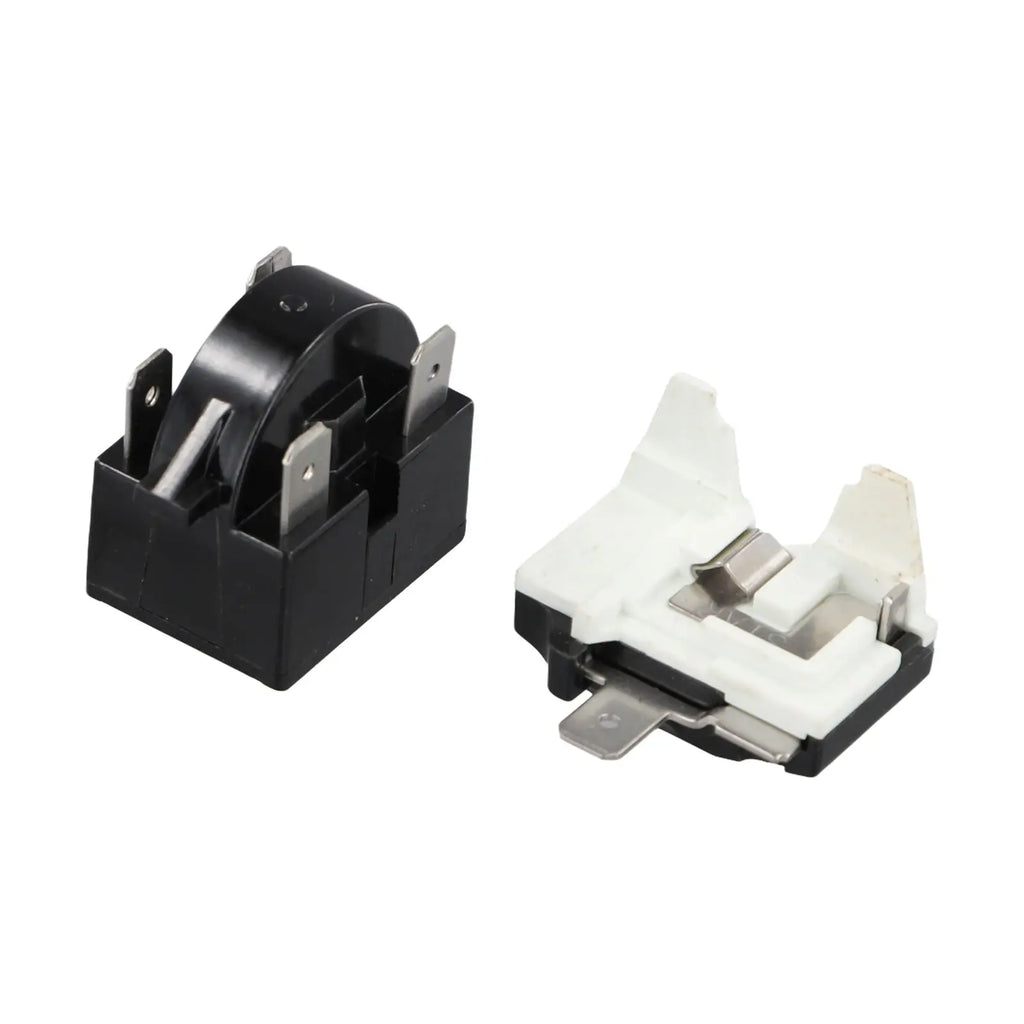

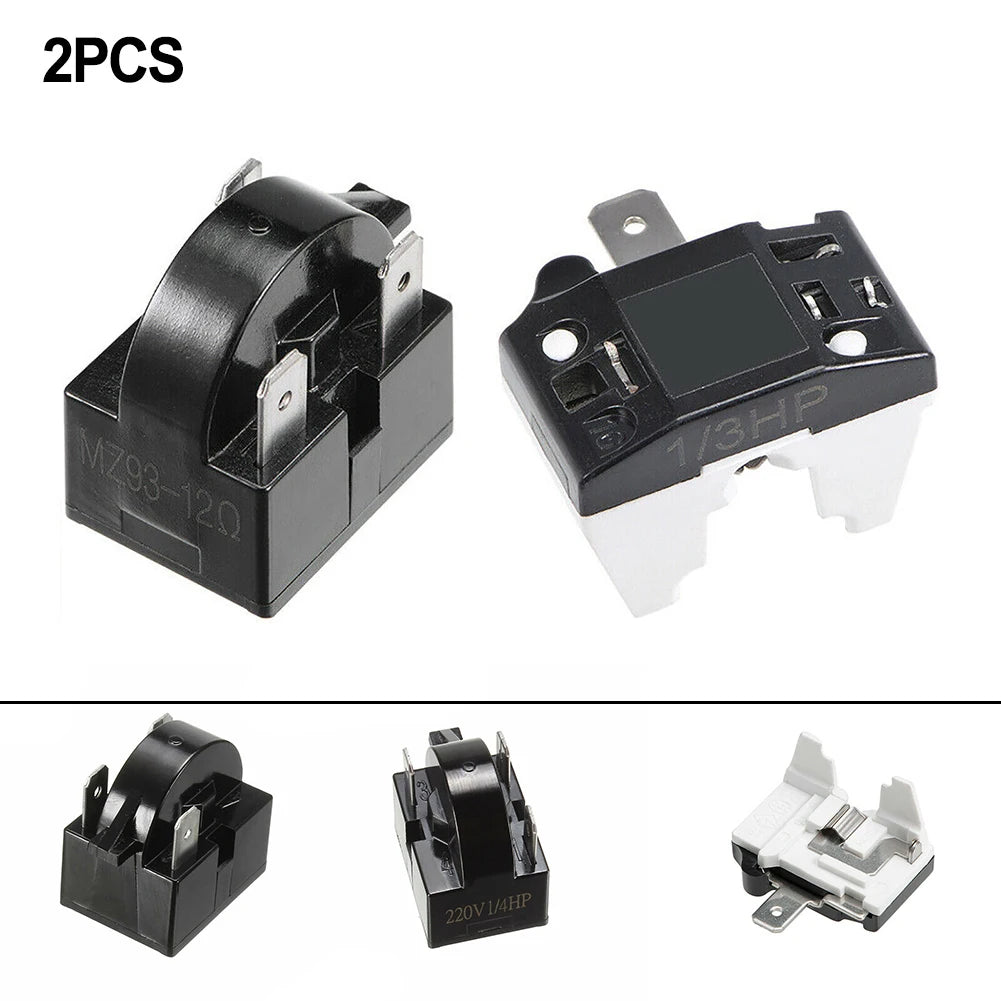

PTC Starter Relay & Overload Protector for Refrigerator 12Ω 1-4 Pin

Refrigerator PTC Starter Relay & Compressor Overload Protector

Keep your fridge and mini cooler running smoothly with this reliable PTC Starter Relay and Thermal Overload Protector combo. Designed as a direct replacement part for a wide range of refrigerators, mini fridges, and coolers, this kit makes compressor maintenance straightforward — no specialist tools required.

Made in Mainland China.

Why You'll Love This Starter Relay Kit

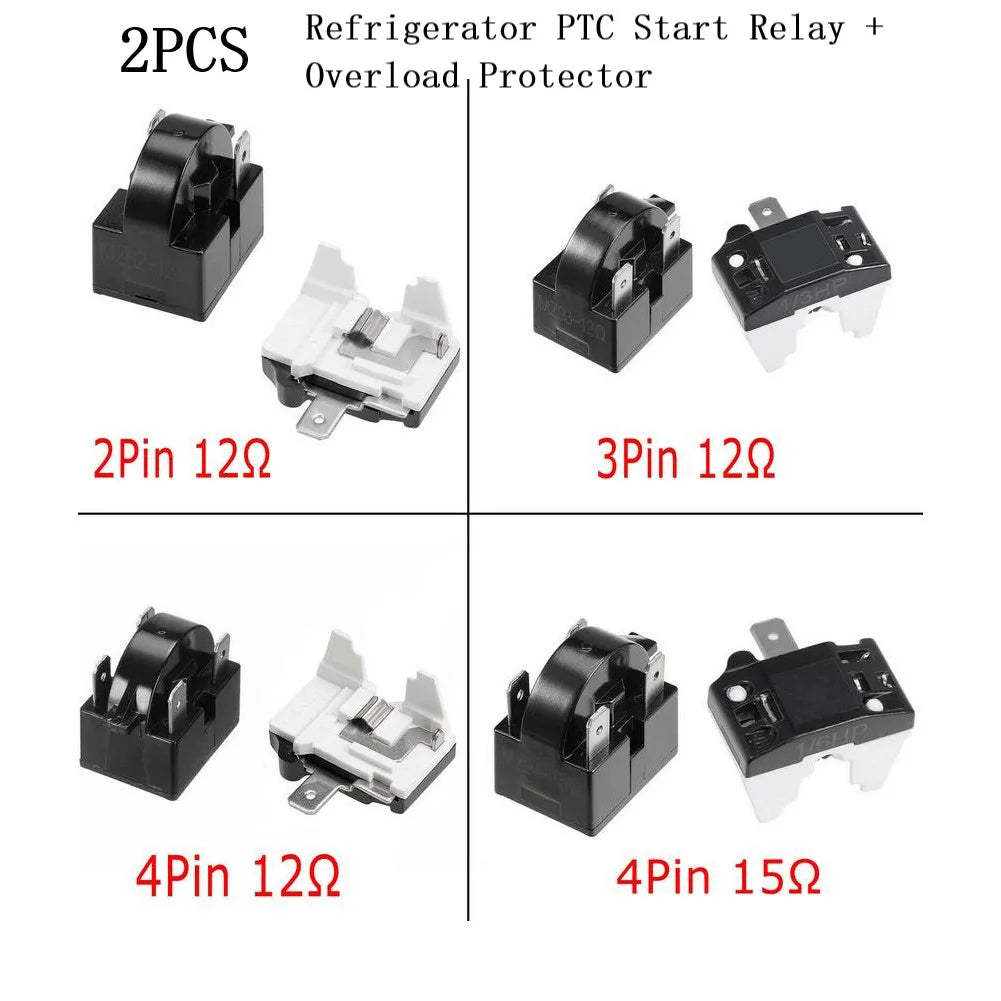

• Universal Compatibility: Fits various refrigerator and mini fridge brands. Available in 1-pin, 2-pin, 3-pin, and 4-pin configurations to match your compressor.
• Dual Protection: The thermal overload protector automatically shuts down the compressor if the motor draws excessive current, protecting your appliance from damage.
• Easy Installation: Compact, lightweight design snaps onto the compressor — no advanced electrical skills needed.
• Multiple HP Options: Choose from 1/6HP (R600A/125W), 1/4HP (180W), 1/3HP (250W), or 1/2HP (375W) overload protector models to suit your specific unit.
• Dependable Performance: 12-ohm PTC resistance for consistent, efficient motor starting every time.
• Versatile Use: Also suitable for air conditioner compressors and other electrical motor protection applications.

Product Specifications

Package Includes

• 1 × PTC Start Relay (pin count of your choice)
• 1 × Thermal Overload Protector (HP rating of your choice)

Notes

• Actual product color may vary slightly from images due to display and lighting differences.
• Please allow a minor tolerance between listed dimensions and manual measurements.
• Please verify your compressor's pin configuration and wattage before ordering to ensure the correct variant is selected.

You May Also Like

• 360-Degree Refrigerator Storage Rotating Tray for Kitchen Organization
• 10Pcs Wooden Handle Nylon Bristle Brush – Hand Tool Set
• Precision Japanese Double-Edged Hand Saw – SK5 Steel, Fine-Toothed

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: How do I know which pin configuration (1-pin, 2-pin, 3-pin, or 4-pin) PTC starter relay I need for my refrigerator?

A: Check the existing starter relay on your refrigerator compressor or consult your appliance's user manual. The number of pins on your current relay must match the replacement. If you're unsure, noting your refrigerator's model number and looking it up in the service documentation is the most reliable approach.

Q: What does the thermal overload protector do and why is it important?

A: The thermal overload protector is a safety device attached to the compressor. It monitors the current drawn by the compressor motor and automatically cuts power if the motor draws too much current, preventing overheating and potential appliance damage. It is a critical component for long-term appliance reliability.

Q: Is this PTC starter relay compatible with R600A refrigerant compressors?

A: Yes. The 1/6HP (125W) overload protector variant is specifically noted as compatible with R600A refrigerant compressors, which are common in many modern mini fridges and coolers. Please confirm the wattage and pin count match your unit before purchasing.

Q: Can this relay be used for air conditioners as well?

A: Yes. This starter relay is suitable for air conditioner compressors and other electrical motor applications requiring compressor protection, provided the specifications (resistance, pin count, and HP rating) match your equipment's requirements.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
