RF 433MHz DC 12V Wireless Relay Receiver & Remote Control Switch
Take full wireless control of your garage door, gate, LED lighting, or other DC-powered devices with this versatile RF 433MHz relay receiver switch kit. Operating on a 12V DC input with a 10A working current, this compact receiver supports four flexible working modes and comes paired with two remote controls — making setup fast and everyday use even faster.
Made in Mainland China.
Four Flexible Operating Modes
- Momentary: Relay connects while the button is held; disconnects on release.
- Toggle: Press once to connect; press again to disconnect.
- Latching: Press Button A to connect, press Button B to disconnect.
- Time Delay: Relay connects on button press; auto-disconnects after 5s, 10s, or 15s once the button is released.
Receiver Specifications
- Input Voltage: DC 12V
- Working Current: 10A
- Maximum Load Power: 110W
- Frequency: 433 MHz
- Encoding Format: EV1527

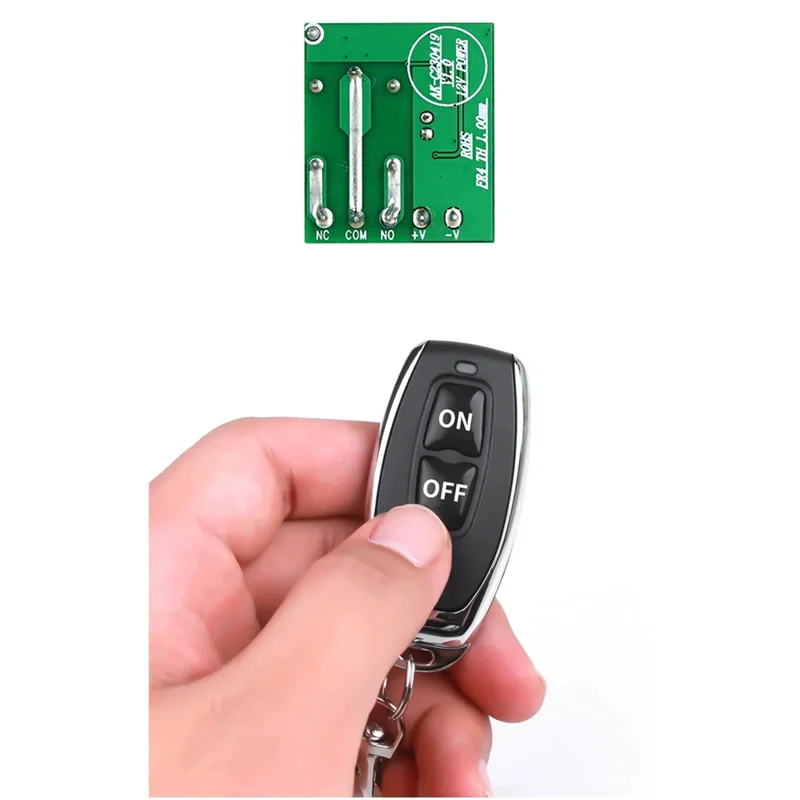

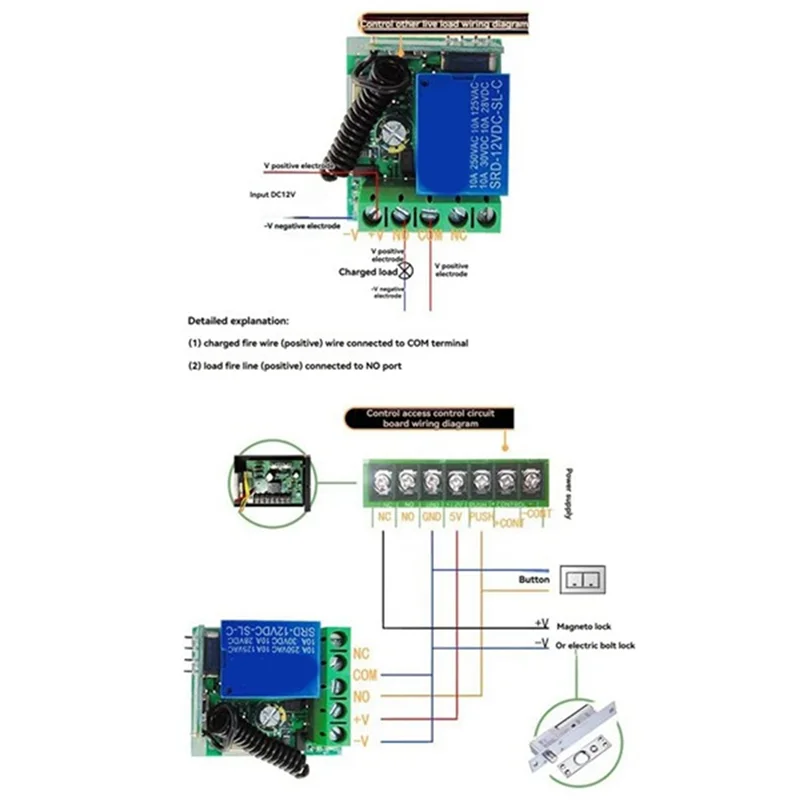

- Wiring Method: NC / COM / NO
- Code Storage: Up to 25 remote controls
- Working Modes: Momentary, Toggle, Latching, Time Delay (5s / 10s / 15s)
Remote Control Specifications
- RF Frequency: 433 MHz
- Coded System: EV1527 (Learning Code)
- Working Voltage: DC 3V
- Working Current: <25 mA
- Transmitting Power: 10 mW
- Wireless Operating Distance: Up to 50m (open space)
- Transmission Rate: 50–60 KHz
- Frequency Deviation: ±0.2 MHz
Code Management
To clear all stored codes, press the Learning Button on the receiver 8 times. Once cleared, all previously paired remotes will be deactivated. Note: the receiver can store up to 25 remotes — if this limit is exceeded, the earliest-paired remote will be dropped.
Package Contents

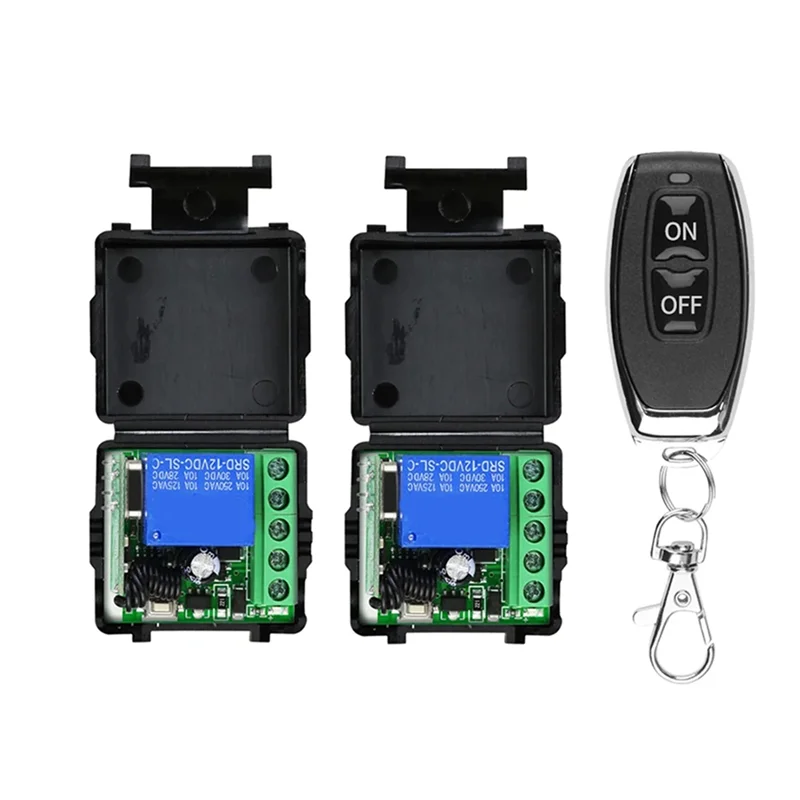

- 2 × Relay receiver switches
- 1 × Remote control
Note: Installation guide not included. Please verify all specifications match your requirements before purchasing. Due to different production batches, minor cosmetic differences may occur but will not affect performance. Material: Plastic.
You May Also Like
- 10CM Wireless LED Motion Sensor Night Light – Rechargeable Cabinet & Staircase Lamp
- Microfiber Towels – Car Wash & Home Cleaning Cloths
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What devices can I control with this RF 433MHz relay receiver switch?
A: This wireless relay receiver switch is compatible with a wide range of 12V DC-powered devices, including garage doors, electric gates, LED lighting systems, and other access control applications. As long as the device operates within the 10A / 110W load rating, it can be controlled wirelessly.
Q: How many remote controls can be paired with this receiver?
A: The receiver supports up to 25 paired remote controls simultaneously. If you attempt to add a 26th remote, the first-paired remote will be automatically removed from memory. To clear all stored codes, press the Learning Button 8 times.
Q: What is the difference between the four working modes?
A: Momentary keeps the relay active only while the button is held. Toggle switches the relay on and off with alternating button presses. Latching uses two separate buttons (A and B) to connect and disconnect. Time Delay automatically disconnects the relay 5, 10, or 15 seconds after the button is released — ideal for timed access control or lighting automation.
Q: What is the wireless range of the remote control?
A: The remote control has an operating distance of up to 50 meters in open space. Walls, metal structures, and other obstructions may reduce this range in real-world environments.
