RF 433MHz Wireless Wall Switch – Smart Remote Control for Lights & Appliances
Take full control of your home, office, or workshop lighting without running new wiring. This RF 433MHz Wireless Light Switch pairs a sleek wall-mounted transmitter with a compact relay receiver to let you toggle lamps, LED lights, fans, pumps, and more — all wirelessly from up to 100 metres away in open space.
Important: The relay controller is an RF Receiver and the wall plate is an RF transmitter only. The wall switch cannot control lights on its own — it must be used together with the included RF relay receiver module.
Key Features
- 433MHz RF Technology – Stable, long-range wireless signal with ASK superheterodyne reception
- Up to 100m Range – Open-space wireless range for large homes, farms, factories, and supermarkets
- High Power Capacity – Handles up to 10A / 2200W; suitable for most household lighting and appliances

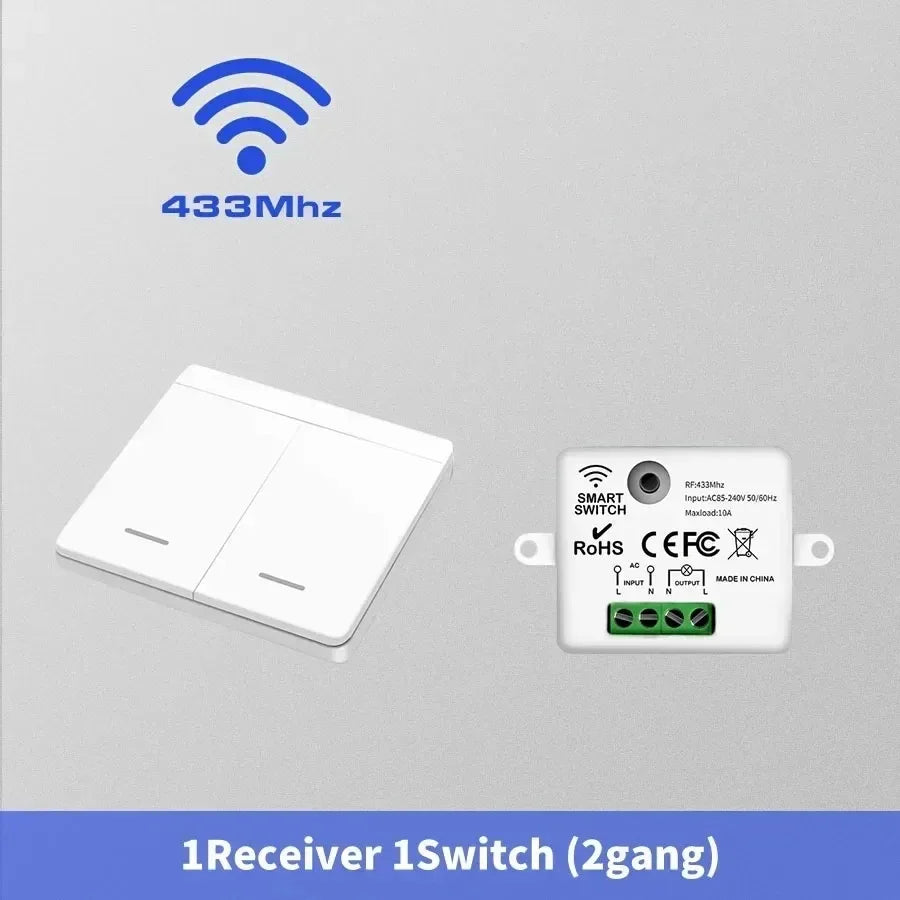

- 1 or 2 Gang Options – Control one or two separate circuits from a single wall plate
- IP65 Outdoor Waterproof – Receiver is weather-resistant for indoor and outdoor installations
- Two Control Modes – Toggle Mode (press once ON, press again OFF) or Momentary Mode (hold ON, release OFF)
- Stores Up to 20 Remotes – Pair multiple transmitters or wall switches to one receiver
- Customisable Power-On Default – Set the relay's default state (ON or OFF) after each power cycle
- No App Required – Pure RF operation; no Wi-Fi, hub, or smartphone needed

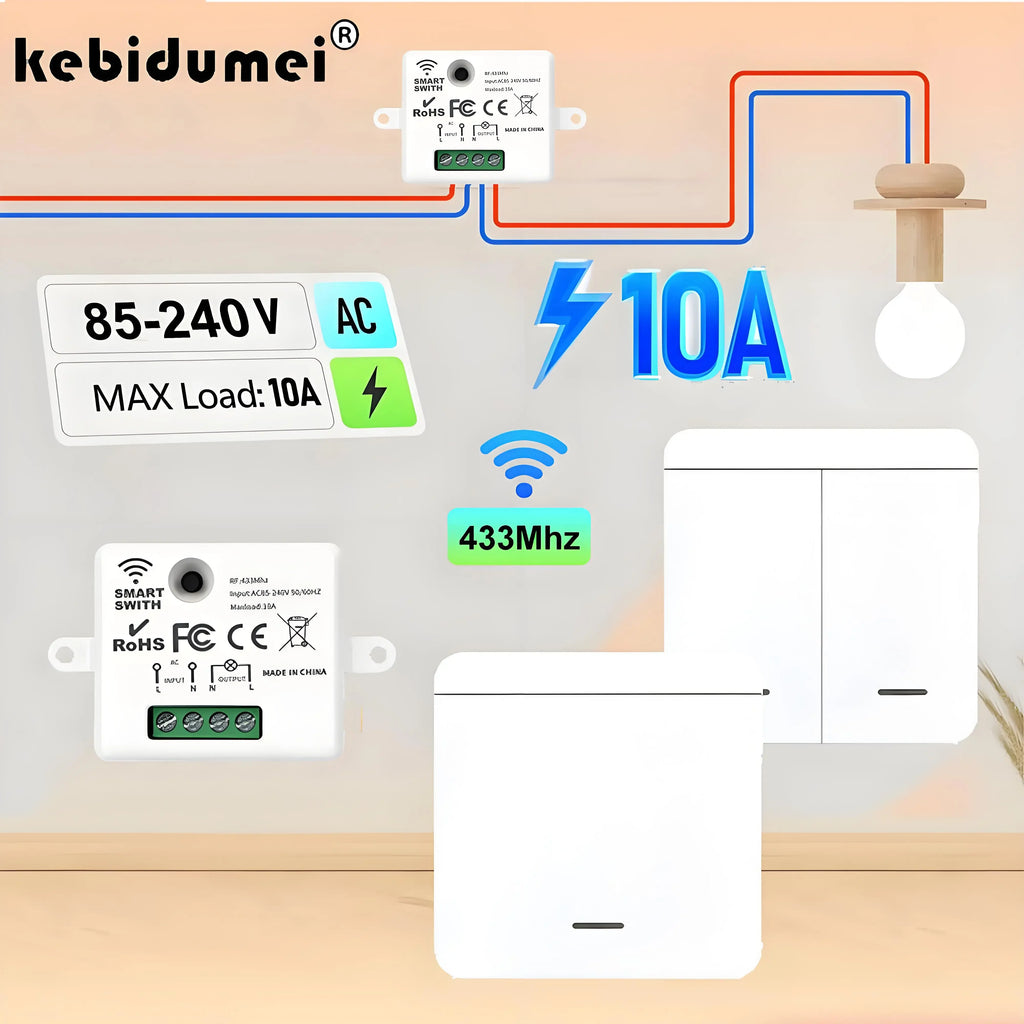

- Wide Voltage Compatibility – Works on AC 85V–240V (110V / 220V / 230V)
Relay Receiver Specifications
| Working Voltage | AC 85V – 240V |
| Quiescent Current | <5mA |
| Max Current | 10A |
| Max Load | 2200W |
| RF Frequency | 433MHz |
| Receiving Range | >100m (open space) |
| Encoding | EV1527 Learning Code |
| Stored Remotes | Up to 20 units |
| Working Temperature | -10°C to +70°C |
| Receiver Dimensions | 47 × 42 × 27mm |
| Weight | 35g |
Compatible Applications
Lights, LED strips, fans, fish tank pumps, electric doors, automated curtains, motorcycles, factory equipment, and more — virtually any AC-powered device up to 2200W.
Ideal For
- Home, apartment, or dormitory lighting
- Farms, factories, and warehouses
- Offices and supermarkets
- Outdoor sheds, garages, and garden lighting
How to Set Up
Toggle Mode: Press the learning button on the receiver twice, wait 3 seconds, then press your remote button once and wait 3 seconds. Done!
Momentary Mode: Press the learning button on the receiver 4 times, wait 3 seconds, then press your remote button once and wait 3 seconds. Done!
Clear All Data: Press the learning button 8 times to wipe all paired remotes and start fresh.
Made in Mainland China.
You might also like these smart home and lighting accessories from our store:
- 10CM Wireless LED Motion Sensor Night Light – Rechargeable Cabinet & Staircase Lamp
- Crystal Peony Float Ornament – Creative Hand Woven Car Interior Pendant
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Can I use the RF 433MHz wireless wall switch without the relay receiver?
A: No. The wall switch is an RF transmitter only and cannot directly switch lights or appliances on its own. It must be paired with the RF relay receiver module, which is wired into your lighting or device circuit, to control power.
Q: How many wall switches or remotes can I pair with one receiver?
A: The RF relay receiver supports up to 20 paired remote controls or wall transmitters simultaneously, making it easy to control one circuit from multiple locations.
Q: Is this wireless light switch suitable for outdoor use?
A: Yes. The receiver features an IP65 waterproof rating, making it suitable for outdoor installations such as garden lighting, garage doors, and exterior building lighting, as long as it is mounted appropriately.
Q: What is the difference between Toggle Mode and Momentary Mode?
A: In Toggle Mode, one press turns the device ON and a second press turns it OFF — ideal for standard light switching. In Momentary Mode, the device stays ON only while the button is held down and turns OFF as soon as you release it — useful for gates, buzzers, or timed activations.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
