SDR Receiver 10kHz–2GHz Panadapter TCXO 0.5ppm 12-Bit ADC
SDR Receiver 10kHz–2GHz Panadapter TCXO 0.5ppm 12-Bit ADC

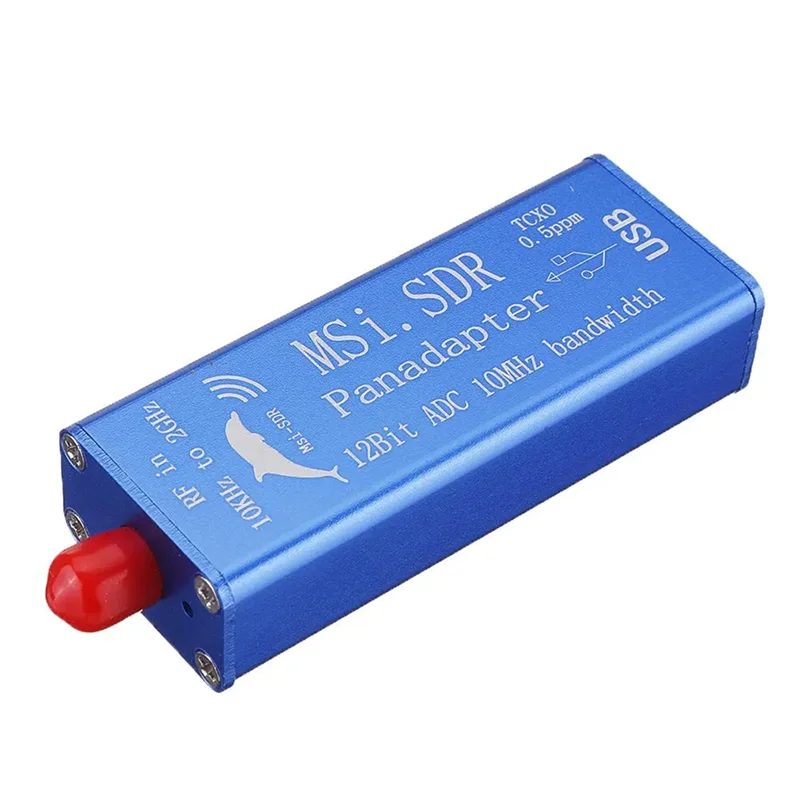

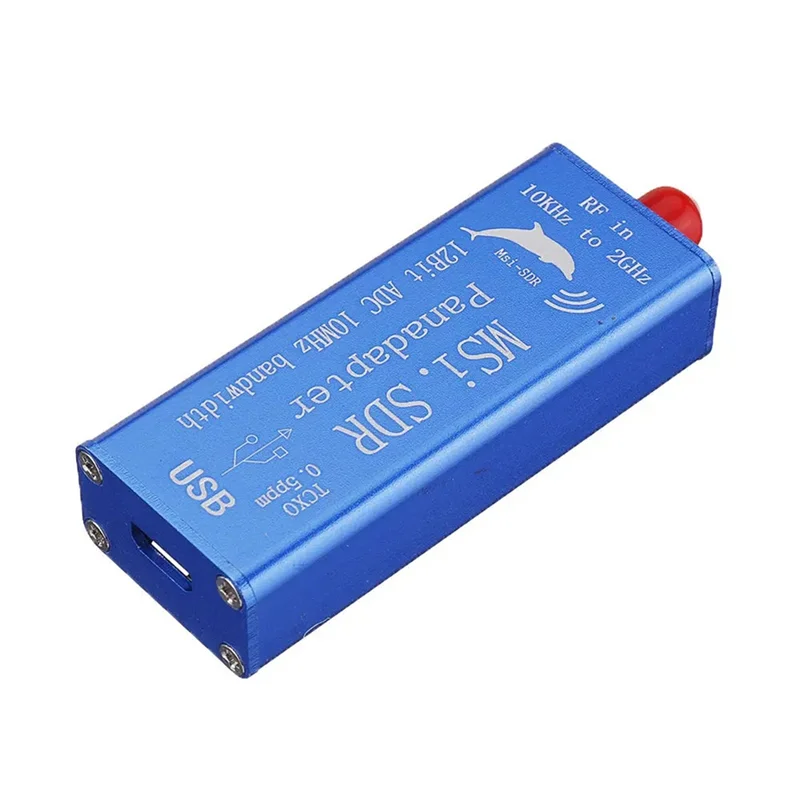

Wide-Coverage Software Defined Radio Receiver — 10 kHz to 2 GHz
Take your radio monitoring to the next level with this full-coverage SDR (Software Defined Radio) Receiver. Spanning an impressive 10 kHz all the way up to 2 GHz, this compact panadapter gives you access to LF longwave, shortwave, VHF, UHF, and microwave frequencies — covering every amateur radio band in between. Simply connect it to your PC and antenna, install your preferred SDR software, and you're ready to explore the airwaves.
Made in Mainland China.
Key Features
- Continuous Frequency Coverage: 10 kHz to 2 GHz — LF, HF, VHF, UHF, and microwave all in one device
- High-Precision 12-Bit ADC Chip (not an RTL chip) for superior signal fidelity and resolution
- Built-in TCXO (Temperature Compensated Crystal Oscillator) at 0.5 ppm for outstanding frequency stability
- Built-in Front-End Filter for cleaner reception and reduced interference
- Up to 10 MHz Spectrum Bandwidth — monitor a wide slice of the spectrum simultaneously
- High Sensitivity & Excellent Selectivity with low background noise floor
- Compatible with All SDRPlay RSP1 Software and popular SDR platforms
- USB Powered via micro-USB jack — no separate power supply required

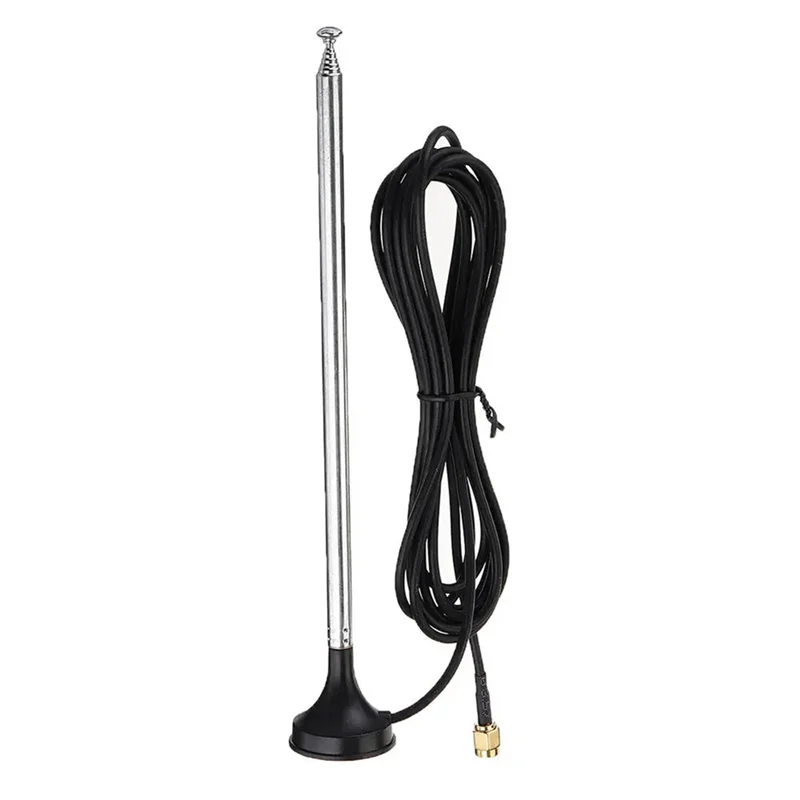

- SMA Antenna Connector for easy antenna attachment
- Rugged Aluminum Housing in Blue & Black — lightweight and portable
Technical Specifications
| Frequency Range | 10 kHz – 2 GHz |
| ADC Resolution | 12-Bit |
| Oscillator | TCXO, 0.5 ppm |
| Maximum Bandwidth | 10 MHz |
| Antenna Connector | SMA |
| Interface | Micro-USB |
| Power Supply | USB (no external power needed) |
| Housing Material | Aluminium |
| Color | Blue & Black |

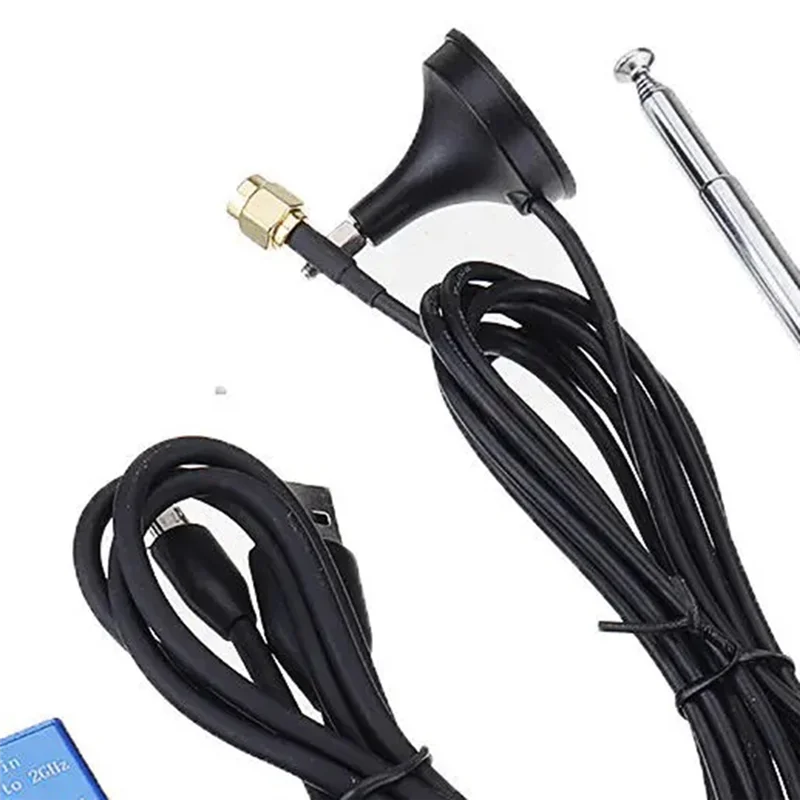

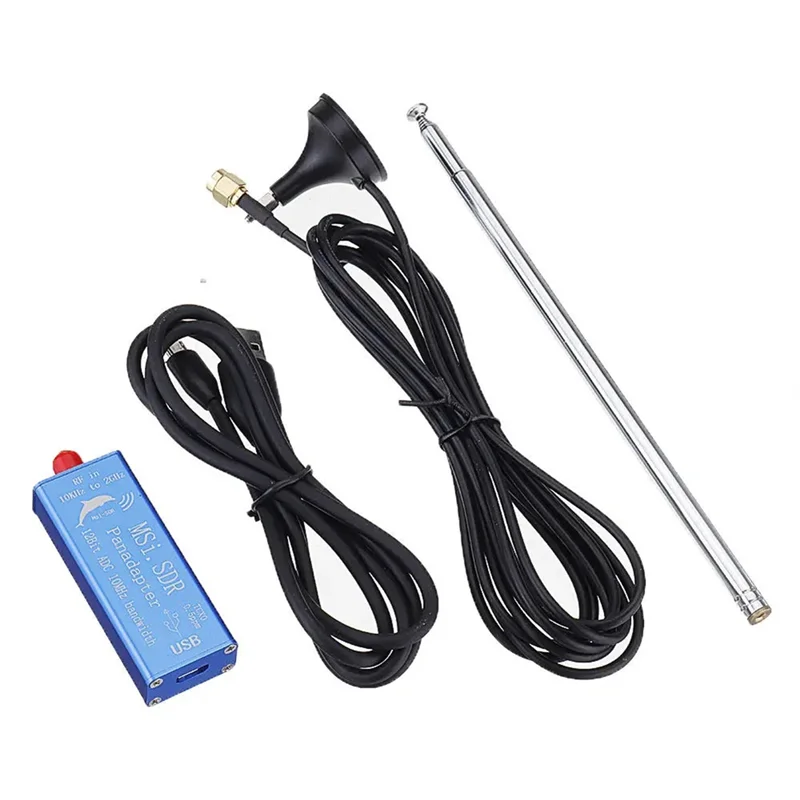

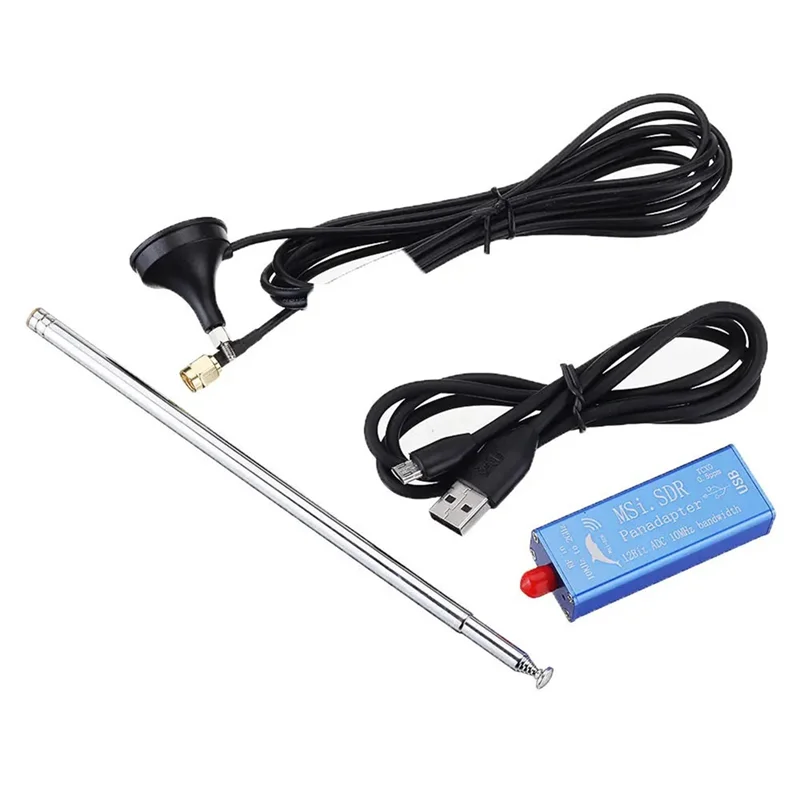

What's in the Box
- 1 × SDR Receiver Set
Note: Due to lighting conditions and display settings, actual colors may vary slightly from product images. Measurement tolerance is ±1–3 cm.
You May Also Like
- 10Pcs Wooden Handle Nylon Bristle Brush Set – Versatile Hand Tool
- 1pc Precision Japanese Double-Edged Hand Saw – Portable Mini SK5 Steel
- 10CM Wireless LED Motion Sensor Night Light – Type-C Rechargeable
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What frequency range does this SDR receiver cover?
A: This SDR receiver covers a continuous frequency range from 10 kHz to 2 GHz, encompassing LF longwave, shortwave, VHF, UHF, and microwave bands — including all amateur radio frequencies.
Q: Is this SDR receiver compatible with popular SDR software?
A: Yes. This receiver is fully compatible with all SDRPlay RSP1 software and works with popular SDR software platforms, allowing you to simultaneously monitor up to 10 MHz of spectrum and enjoy all operating modes.
Q: Does it need an external power supply?
A: No external power supply is needed. The receiver is powered entirely via its micro-USB interface, so you can run it directly from your PC or a standard USB power source — keeping your setup simple and portable.
Q: What makes the 12-bit ADC better than RTL-based devices?
A: The 12-bit ADC chip offers higher dynamic range and better signal resolution compared to typical 8-bit RTL-based chips, resulting in improved sensitivity, lower background noise, and greater selectivity when scanning the spectrum.
