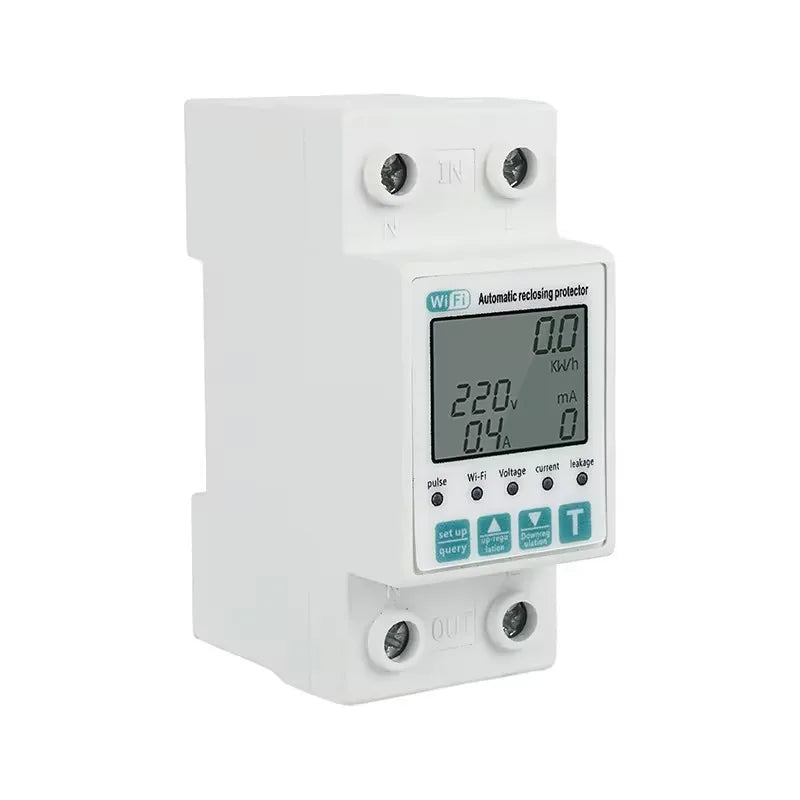

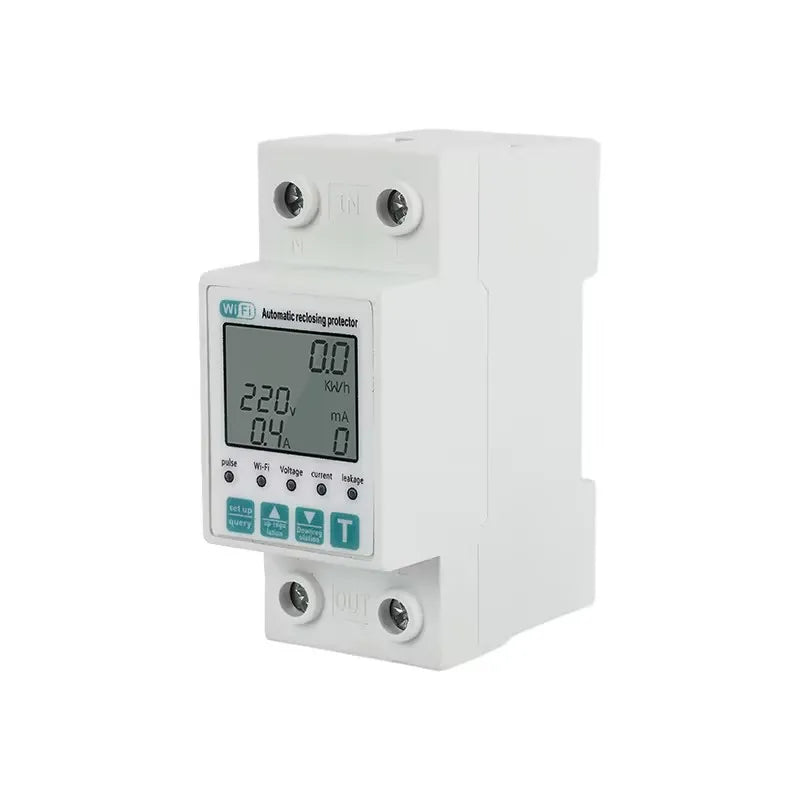

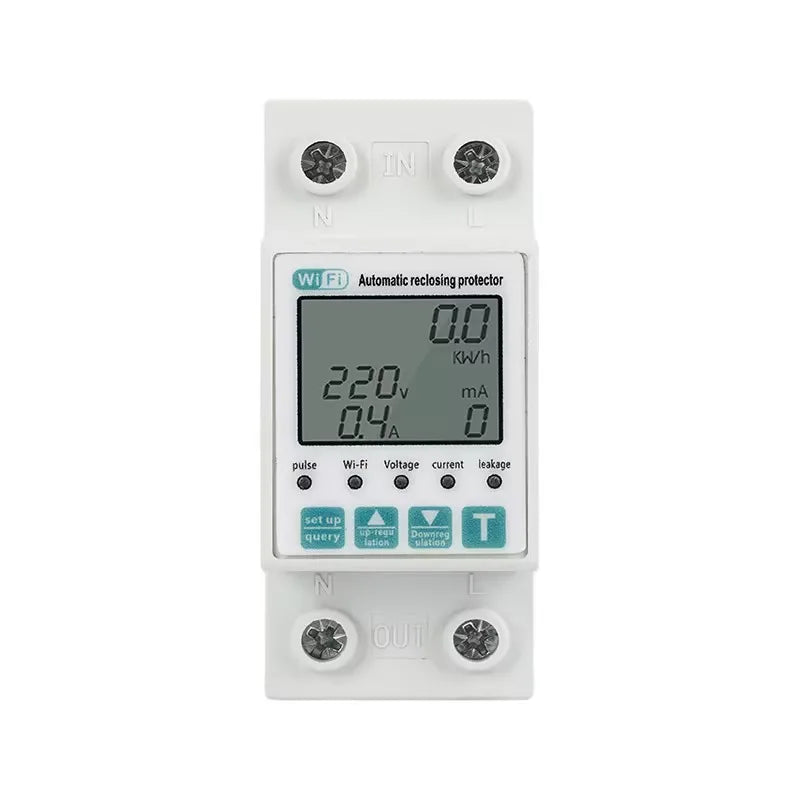

SmartLife Tuya WiFi Circuit Breaker 63A – Energy Meter & Timer
SmartLife Tuya WiFi Circuit Breaker 63A – Energy Meter & Timer
SmartLife Tuya WiFi Smart Circuit Breaker 63A | Energy Meter, Timer & Multi-Protection
Take full control of your electrical circuit from anywhere in the world with this SmartLife Tuya WiFi Smart Circuit Breaker. Rated at 63A and compatible with 110V/220V/AC230V systems, this intelligent mini circuit breaker integrates seamlessly with the SmartLife and Tuya apps — giving you real-time monitoring, smart scheduling, and comprehensive electrical protection right from your smartphone.
Made in Mainland China.
Key Features
- Remote ON/OFF Control: Switch your circuit on or off from anywhere, anytime, directly from your phone via the SmartLife / Tuya app.

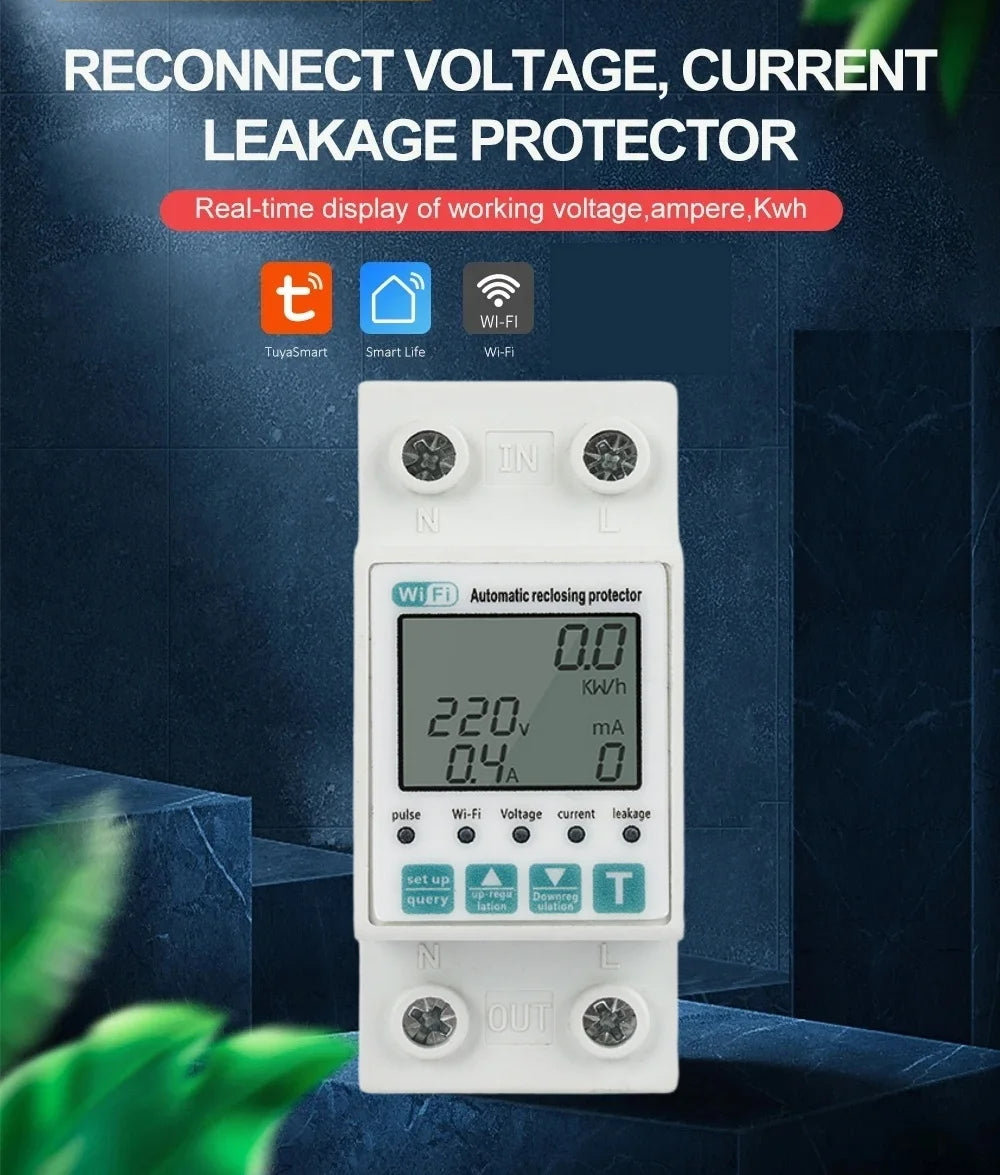

- Real-Time Energy Monitoring: View live current, voltage, leakage current, and total kWh consumption on your phone at a glance.
- Built-In Timer Function: Schedule your circuit's operation with precision using the in-app timer — perfect for automating appliances and reducing energy waste.
- Adjustable Multi-Protection Settings: Configure over-voltage, under-voltage, over-current, and leakage current thresholds directly in the app or manually on the device.
- Under-Voltage Protection: Adjustable range 85V–220V (default: 170V) to protect devices from low-voltage conditions.
- Over-Voltage Protection: Adjustable range AC230V–300V (default: 275V) for reliable high-voltage cutoff.

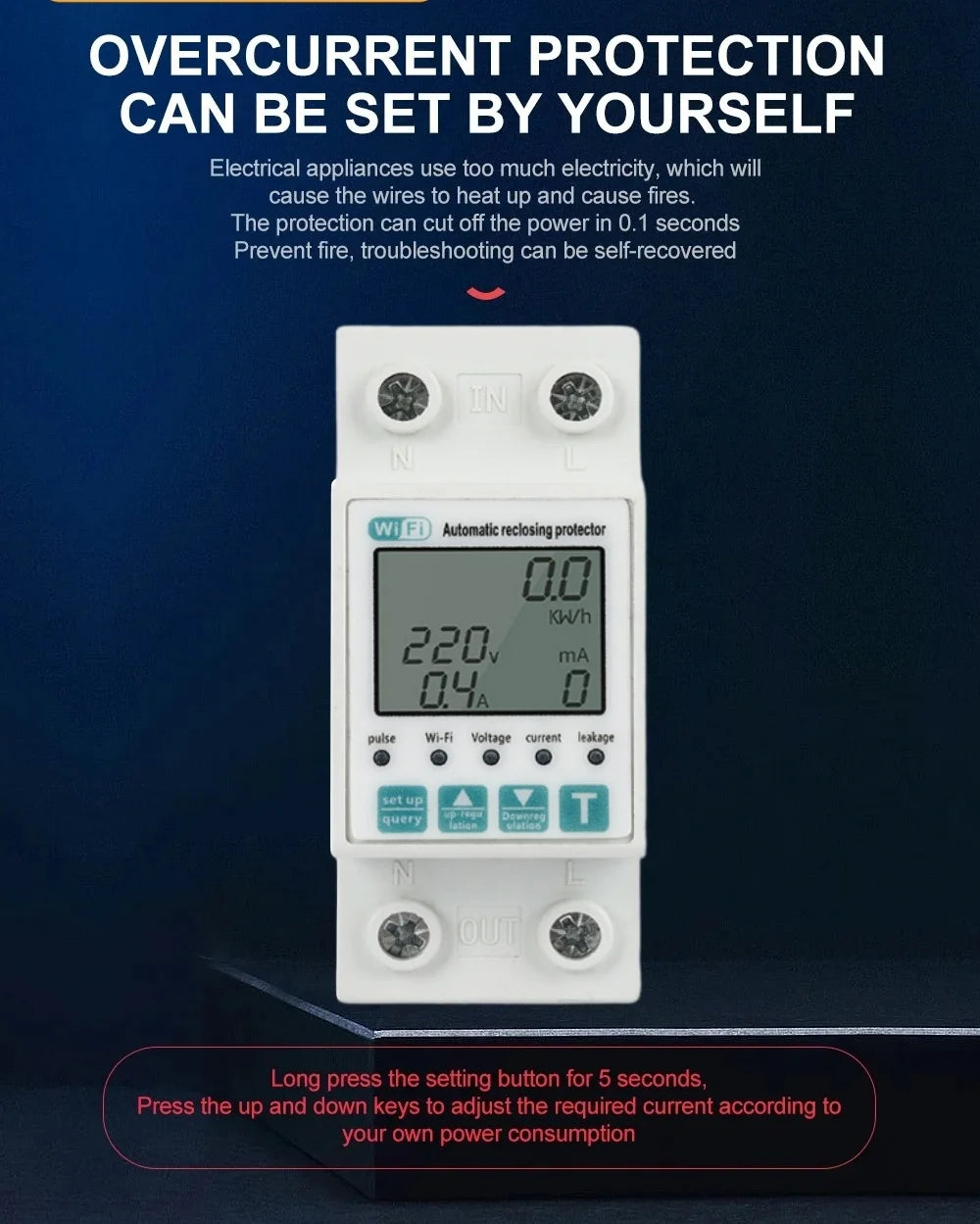

- Over-Current Protection: Adjustable from 1A to 63A (default: 63A) to guard your equipment.

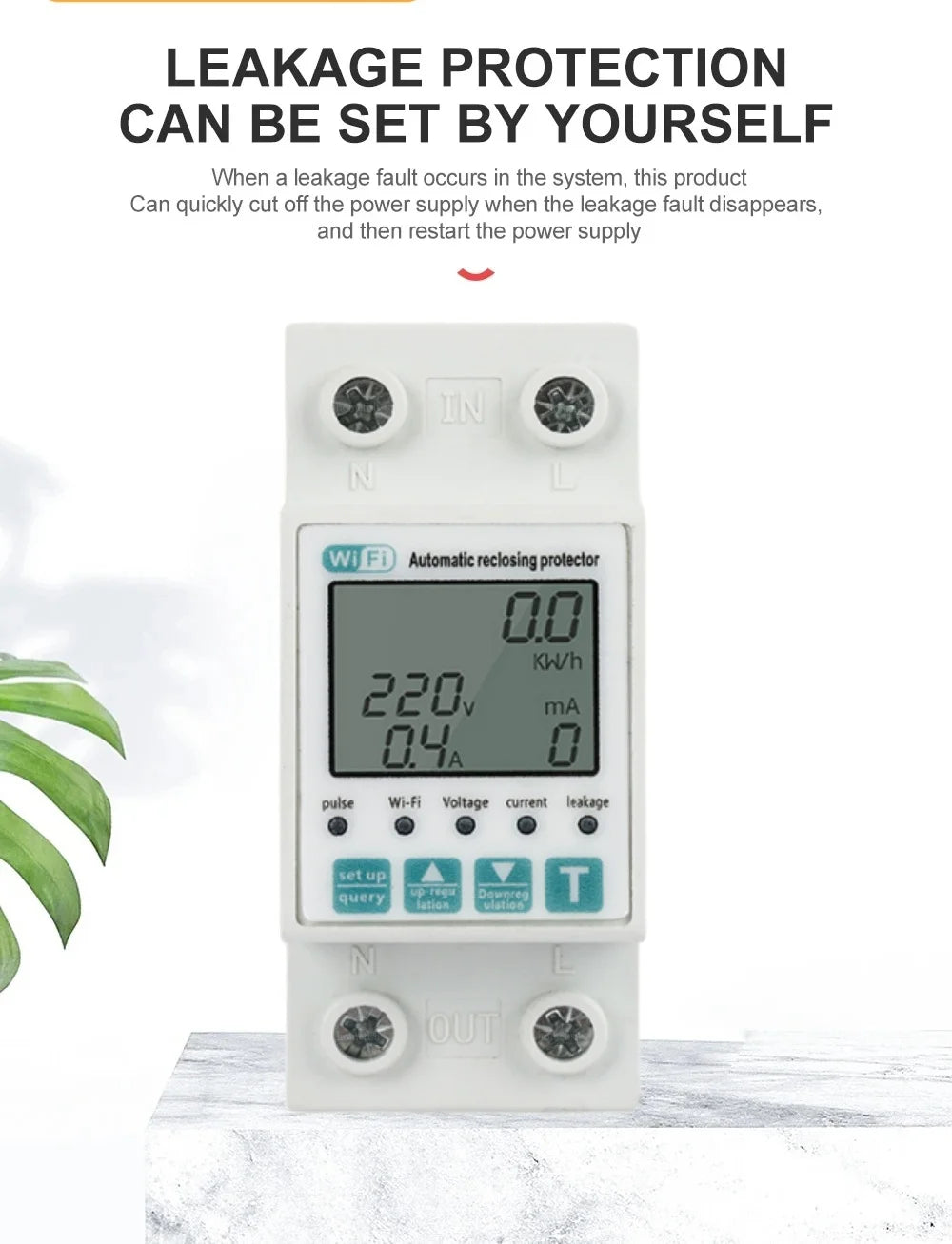

- Leakage Current Protection: Configurable between 10–99mA for added safety.
- Auto-Reconnect: Active time adjustable 1s–30s (default: 1s); reconnect time adjustable 1s–500s (default: 5s). After 3 leakage trips, auto-reconnect is disabled until the user manually verifies the circuit — keeping your home safe.
- Prepaid Function: Set energy credit limits for smarter consumption management.
- Memory Function: Retains kWh data, over-voltage events, voltage readings, and over-current records even after a power failure.
- Ultra-Low Self-Consumption: Uses less than 2W of power during operation.
Technical Specifications
| Rated Voltage | AC230V (compatible with 110V/220V systems) |
| Rated Current | 63A |
| Frequency | 50Hz / 60Hz |
| WiFi | 2.4GHz only (NOT compatible with 5GHz networks) |
| App Compatibility | SmartLife / Tuya |
| Model | CHLIUYI-63WIFI |
| Self-Consumption | <2W |
| Leakage Protection Range | 10–99mA |
Important Notes
- This device supports 2.4GHz WiFi only — it is NOT compatible with 5GHz networks.
- If the leakage protection triggers 3 times, the unit will disable auto-reconnect until you manually inspect and resolve the issue — a critical safety feature.
- Due to manual measurement, minor dimensional and weight variations may occur.
- Colors may appear slightly different due to lighting, saturation, and display settings.
You May Also Like
- 10CM Wireless LED Motion Sensor Night Light – Rechargeable Cabinet & Kitchen Lighting
- 360-Degree Rotating Storage Tray for Kitchen Spice Jars & Sundries
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: Does this WiFi smart circuit breaker work with both 110V and 220V electrical systems?
A: Yes. This SmartLife Tuya WiFi circuit breaker is compatible with 110V and 220V (AC230V) systems operating at 50Hz or 60Hz, making it suitable for a wide range of residential and commercial applications.
Q: What WiFi frequency does this smart circuit breaker support?
A: This device supports 2.4GHz WiFi networks only. It is not compatible with 5GHz networks. Please ensure your router broadcasts a 2.4GHz band before pairing with the SmartLife or Tuya app.
Q: Can I monitor my electricity usage remotely with this circuit breaker?
A: Absolutely. Through the SmartLife / Tuya app, you can monitor real-time current, voltage, leakage current, and total energy consumption (kWh) from anywhere using your smartphone.
Q: What happens if the leakage protection trips multiple times?
A: For enhanced safety, if the leakage protection activates 3 times, the circuit breaker will disable auto-reconnect. You must manually inspect the circuit to identify and resolve the issue before the breaker will reconnect — this prevents repeated exposure to potentially unsafe electrical conditions.
Q: Will my energy data be lost during a power outage?
A: No. This unit features a built-in memory function that retains kWh readings, over-voltage events, voltage data, and over-current records even after a power failure, so your records remain intact.
