TS832 & RC832 5.8GHz Wireless Audio/Video Transmission System
Upgrade your FPV or surveillance setup with the TS832 & RC832 V3.0 Wireless Audio/Video Transmission System. Operating on the 5.8GHz band with 48 selectable frequency channels and a robust 600mW transmission power, this system delivers clear, stable analog video and audio over distance — perfect for FPV drone racing, RC aircraft, CCTV, and remote monitoring applications.

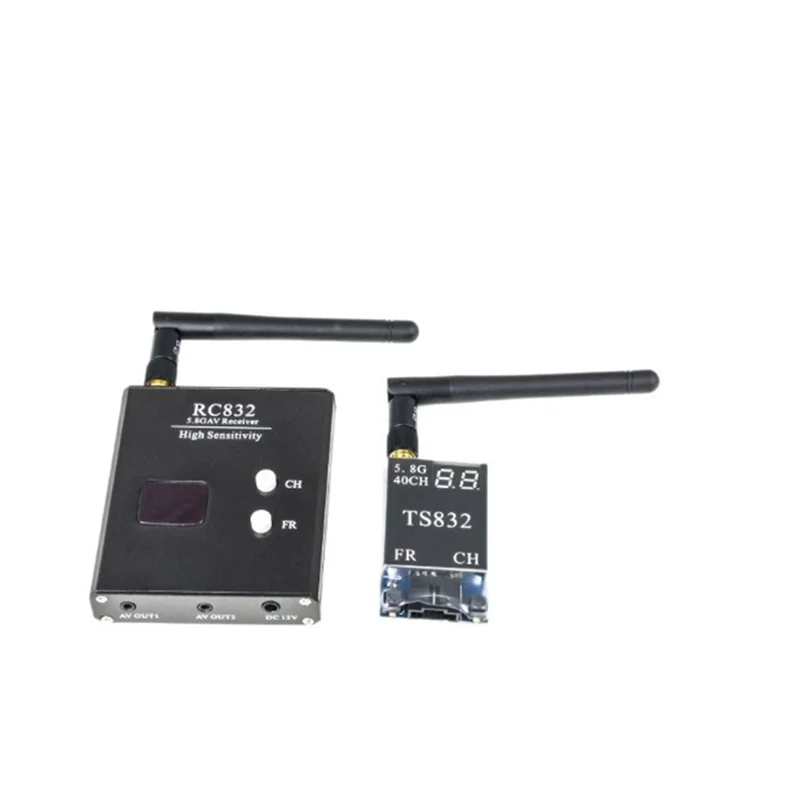

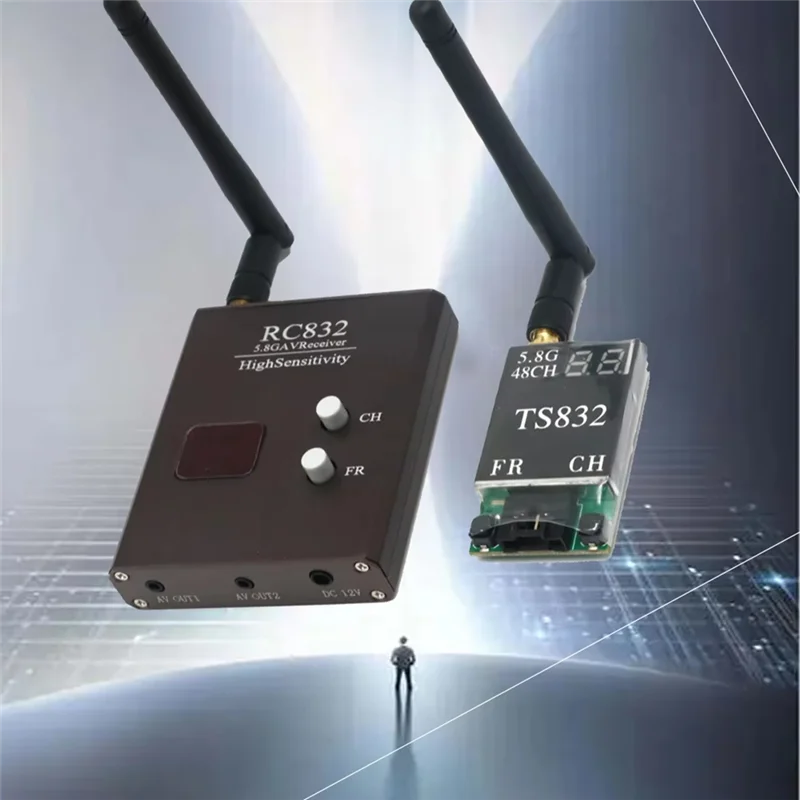

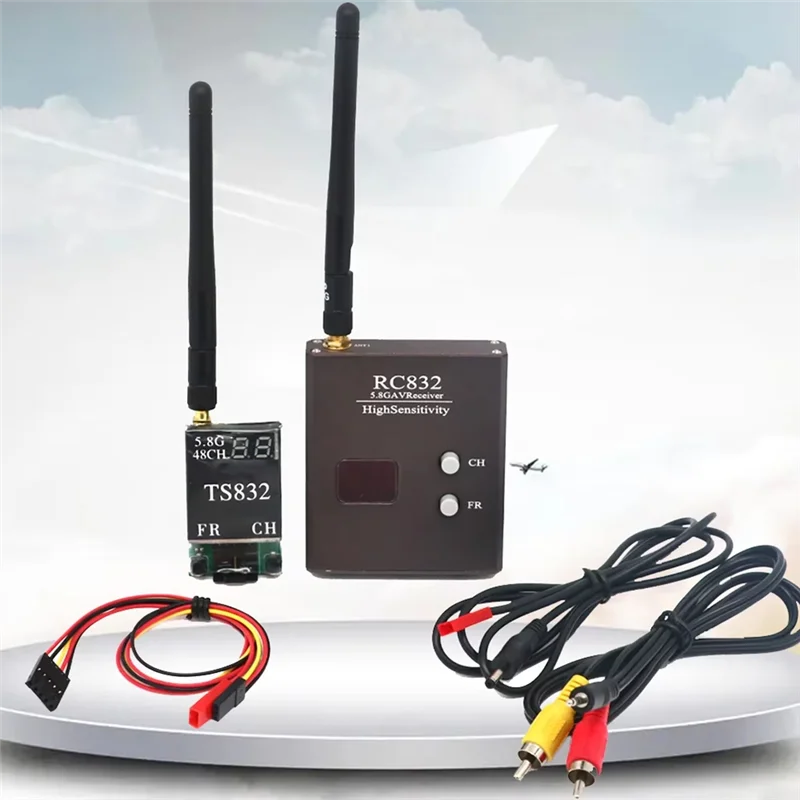

The compact TS832 transmitter and RC832 receiver work seamlessly together, supporting both NTSC and PAL video formats automatically, so no manual switching is needed. SMA antenna connectors provide a secure, interference-resistant link, and the wide input voltage range (7–16V) makes integration into a variety of power setups straightforward.
Made in Mainland China.
Key Features
- 48 Frequency Points across 5645–5945MHz for minimal interference
- 600mW Transmission Power for strong, long-range signal
- Automatic NTSC/PAL Detection — no manual setup needed
- Wide Input Voltage: 7–16V (transmitter) / 12V (receiver)
- RF SMA Connectors for reliable antenna connection
- Lightweight & Compact: Transmitter only 22g; receiver 85g
- Video Bandwidth: 8MHz | Audio Bandwidth: 6.5MHz
- Durable plastic housing rated for -10°C to 85°C operating temperature
TS832 Transmitter Specifications
- Frequency: 5.8GHz (5645–5945MHz, 48 channels)
- Transmission Power: 600mW
- Input Voltage: 7–16V
- Working Current: 220mA @ 12V
- Antenna Gain: 2dBi | Connector: RF SMA Jack / RF SMA Plug
- Video Bandwidth: 8MHz | Audio Bandwidth: 6.5MHz
- Video Format: NTSC/PAL (auto)
- Dimensions: 54 x 32 x 10mm | Weight: 22g

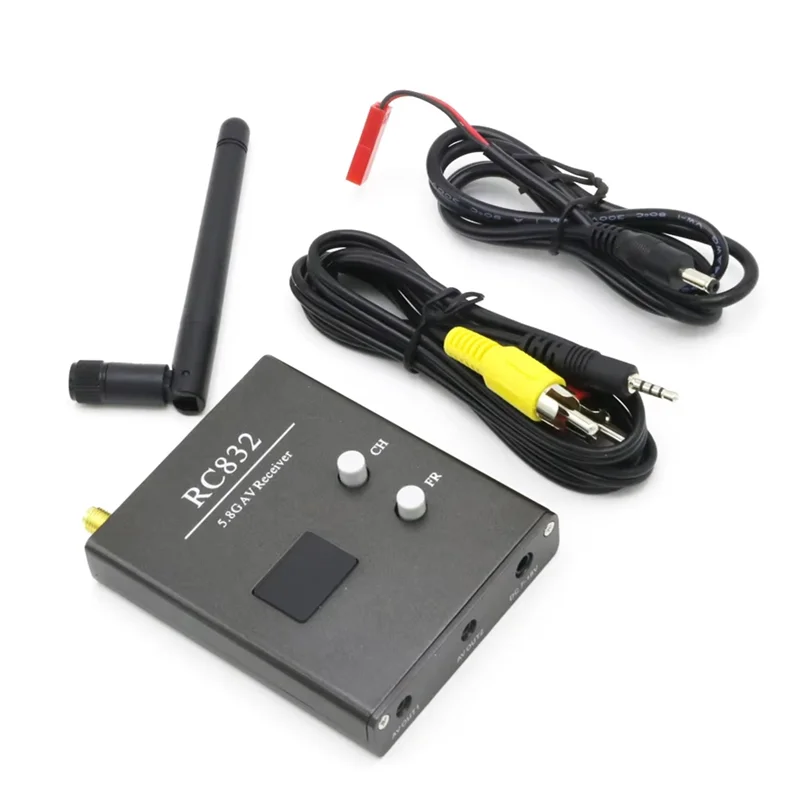

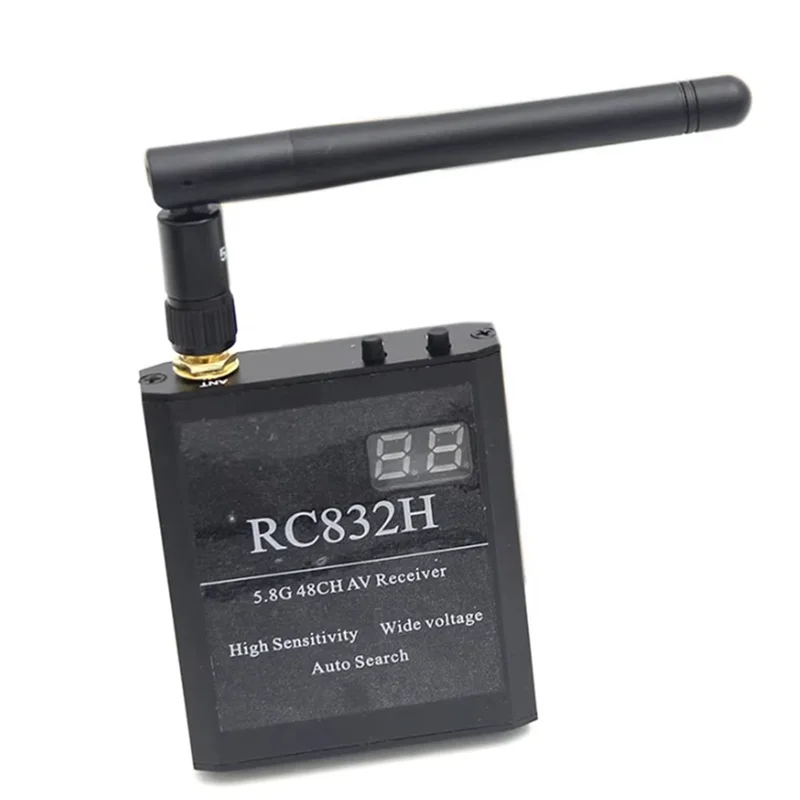

RC832 Receiver Specifications
- Frequency: 5.8GHz
- Voltage Input: 12V | Working Current: 200mA max
- Antenna Impedance: 50Ω | Connector: RP-SMA Jack / RP-SMA Plug
- Antenna Gain: 2dBi
- Video Impedance: 75Ω | Video Format: NTSC/PAL (auto)
- Dimensions: 80 x 65 x 15mm | Weight: 85g
- Material: Plastic

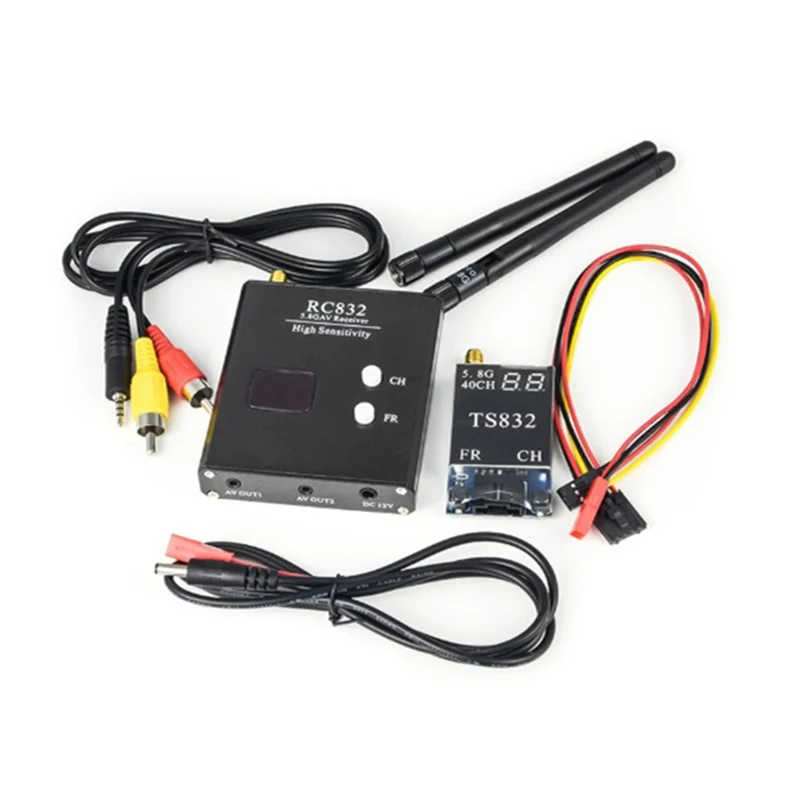

Package Contents
- 1 × TS832 Transmitter
- 1 × RC832 Receiver
Note: Battery not included. Images are for reference; slight colour variations may occur due to screen settings. Dimensions have a tolerance of ±1–3cm.
You May Also Like
- 10CM Wireless LED Motion Sensor Night Light – Type-C Rechargeable
- Crystal Car Rearview Mirror Decoration Pendant
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What frequency band does the TS832 & RC832 system use?
A: The system operates on the 5.8GHz band, spanning 5645–5945MHz with 48 selectable frequency channels to help avoid interference from other devices in crowded environments.
Q: Is the TS832 & RC832 compatible with both NTSC and PAL cameras?
A: Yes. Both the TS832 transmitter and RC832 receiver feature automatic NTSC/PAL detection, so the system works with the majority of analog cameras without any manual configuration required.
Q: What power supply does this system require?
A: The TS832 transmitter accepts a wide input voltage range of 7–16V, making it compatible with most LiPo battery configurations used in FPV and RC setups. The RC832 receiver operates at 12V. Batteries are not included.
Q: Can this system be used for FPV drone racing?
A: Absolutely. The TS832 & RC832 combo is a popular choice for FPV (first-person view) drone and RC aircraft use, offering 48 channels to avoid interference and 600mW output power for a strong, clear video feed.
