Universal Multi-Frequency Garage Door Remote Duplicator – 8 Channels, 300–915MHz

Tired of juggling multiple remotes for your garage door, gate, or barrier? This Universal Multi-Frequency Remote Control Duplicator lets you copy and store up to 8 channels of fixed-code remotes in seconds — no programming expertise required. With a broad frequency range of 300–915MHz (including 315MHz and 433MHz), it's compatible with a wide range of existing remote-controlled gates, garage doors, and home access systems.

Made in Mainland China. CE Certified.

Key Features

• Wide Frequency Range: Covers 300–915MHz, compatible with 315MHz, 433MHz, 868MHz, and more — works with most fixed-code garage door and gate remotes.
• 8 Independent Channels: Store and manage up to 8 different remote control signals on a single compact device.
• Built-In Rechargeable Battery: Powered by a 3.7V rechargeable battery; charges via USB Type-C (5V) — no disposable batteries needed.
• Easy Code Duplication: Simply hold both your original remote and this duplicator's corresponding button simultaneously until the channel display stays lit — copy confirmed!
• Channel Lock Function: Lock individual channels to prevent accidental overwriting or switching.
• Code Restore Function: Accidentally cleared a code? Use the restore function to recover saved signals quickly.
• Compact & Portable: Slim design (73 × 37.6 × 13mm) fits easily on a keychain or in your pocket.
• Reliable Range: Operates effectively at 30–50 metres from your gate or garage door receiver.
• CE Certified: Meets European conformity standards for safety and performance.

Technical Specifications

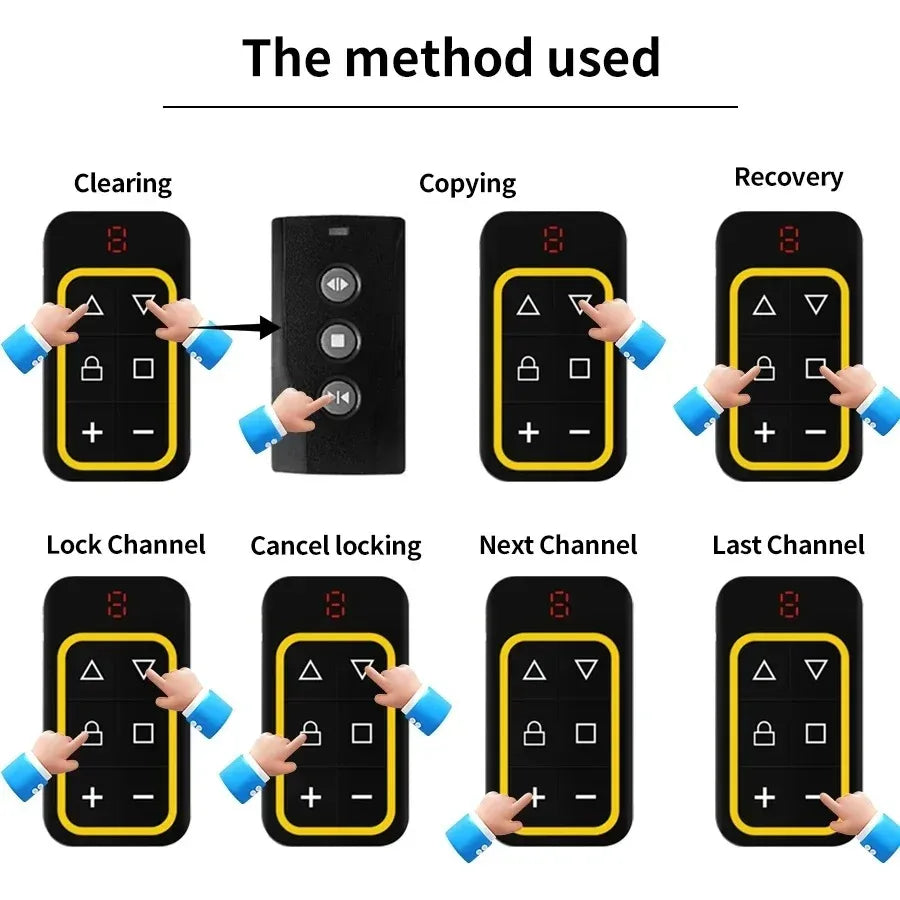

How to Use

Clearing a Channel

Press buttons 1 and 2 simultaneously and hold for 2 seconds until the LED flashes. Keep holding until the LED flashes — only release when the light is flashing. After clearing, press any key on the remote; the LED will flash and go out to confirm the clear was successful.

Copying a Remote Code

Point your old remote at this duplicator and press the corresponding button on both devices simultaneously. Hold until the channel number on the display stays continuously lit — this confirms a successful copy. Repeat for each additional button/channel. Do not release either remote's button until the display confirms the copy.

Restoring a Code

If a code is accidentally cleared, press the two bottom keys on the duplicator simultaneously and hold for 2 seconds until the LED flashes rapidly. Release and then press the relevant remote button — if the display stays lit, the code has been successfully restored.

Channel Locking

To lock a channel and prevent accidental changes, press the second button in the first row and the first button in the middle row simultaneously. A rapid LED flash confirms the channel is locked. Repeat the same action to unlock.

Related Products You May Like

• Microfiber Towels – Car Wash & Auto Detailing Cloths
• Crystal Peony Car Interior Rearview Decoration Pendant
• High-End Car Fragrance Pendant – Elegant Car Interior Accessory

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What types of garage door and gate remotes can this duplicator copy?

A: This universal remote duplicator is designed to copy fixed-code remotes operating anywhere in the 300–915MHz frequency range, including the common 315MHz and 433MHz bands. It is compatible with most standard fixed-code garage doors, barriers, and gate systems. Note: it does not support rolling-code or hopping-code remotes.

Q: How many remotes or channels can I store on this device?

A: The duplicator features 8 independent channels, allowing you to copy and store up to 8 different remote control signals on one device — ideal for households or properties with multiple access points.

Q: How do I charge the remote duplicator?

A: The device includes a built-in rechargeable battery (3.7V) and charges via a standard USB Type-C cable at 5V. No disposable batteries are required, making it an eco-friendly and cost-effective solution.

Q: What is the effective operating range of this remote?

A: Under normal conditions, the duplicator has an effective transmission range of 30 to 50 metres, which is sufficient for most residential garage doors and gate systems.
