USB Charger Doctor – 3-in-1 Digital Power Meter

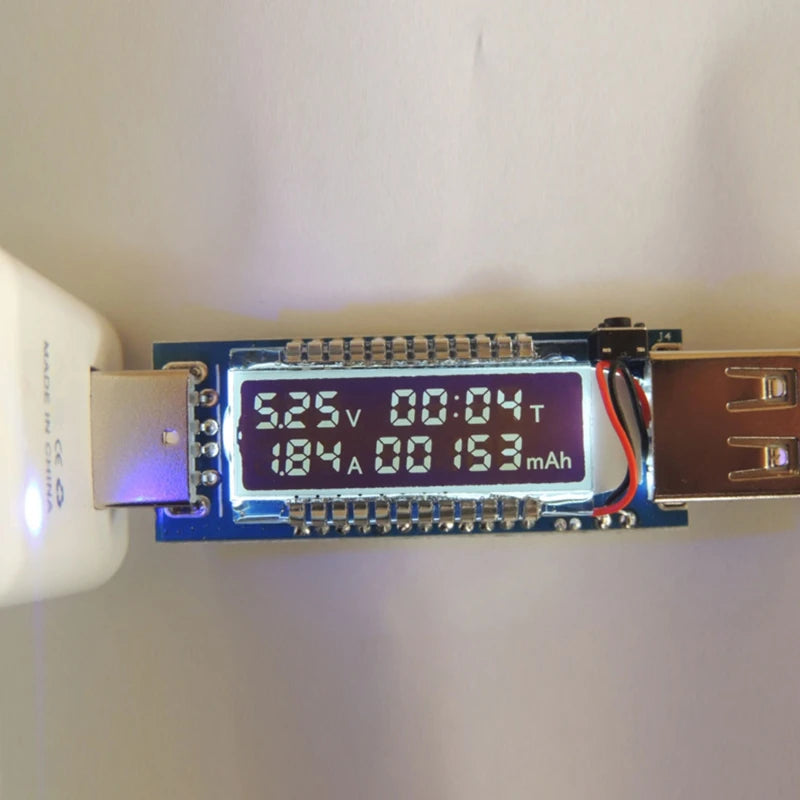

Take full control of your USB charging setup with this compact 3-in-1 USB Charger Doctor. Whether you're testing chargers, checking cable efficiency, or monitoring battery capacity, this pocket-sized digital meter gives you real-time voltage and current readings at a glance. Perfect for electronics enthusiasts, DIYers, and anyone who wants to know exactly what their USB devices are drawing.
Key Features
- 3-in-1 Measurement: Simultaneously monitors Voltage, Current, and Battery Capacity in one device.
- Wide Voltage Range: Measures 4V–20V with ±1% accuracy — compatible with most USB power sources.
- Precise Current Reading: Measures 0–3A with an impressive ±0.4% accuracy for reliable data.
- Battery Capacity Tracking: Tracks capacity from 0 to 99,999 mAh, so you can monitor exactly how much charge a device has received.
- Working Time Display: Logs charging session duration from 0–99 hours.
- Memory Function: Retains working time and capacity data even after power is disconnected — no lost data on accidental unplugs.
- Reset Button (RTZ): Simply press and hold for 3 seconds to reset all readings for a fresh session.
- Plug-and-Play USB Input: No batteries required — draws power directly from the USB source being tested.
- Transparent Blue Casing: Sleek, durable plastic housing with a clear view of the internal components.
Specifications
- Type: Digital Voltage & Current Measuring Instrument
- Material: Plastic
- Color: Transparent Blue

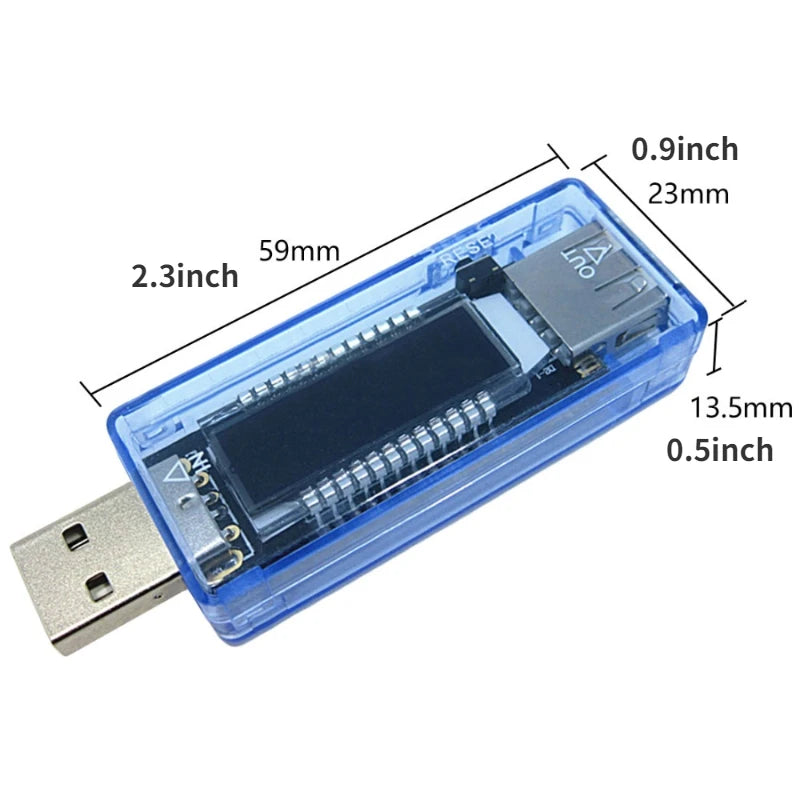

- Size: 59 × 23 × 13.5 mm
- Voltage Range: 4V – 20V (±1% accuracy)
- Current Range: 0 – 3A (±0.4% accuracy)
- Capacity Range: 0 – 99,999 mAh
- Working Time: 0 – 99 Hours
- Battery Required: No
- Country of Origin: Made in China
What's in the Box?
- 1× USB Charger Doctor Digital Voltage & Current Meter
You May Also Like
Looking for more handy tools and accessories? Check out these popular items:
- 10Pcs Wooden Handle Nylon Bristle Paint Brush – Hand Tool Set
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel
- 360-Degree Rotating Storage Tray for Kitchen & Home
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What does the USB Charger Doctor measure?
A: The USB Charger Doctor measures three key parameters simultaneously: voltage (4V–20V), current (0–3A), and accumulated battery capacity (0–99,999 mAh). It also tracks the total charging session duration up to 99 hours, making it a comprehensive USB power monitoring tool.
Q: Does this USB voltage meter need batteries to operate?
A: No batteries are required. The USB Charger Doctor is powered directly by the USB source you are testing, so it's always ready to use without any additional setup.
Q: Will the data be lost if the USB device is unplugged?
A: No. The device features a built-in memory function that retains the working time and accumulated capacity readings even when power is disconnected, so your session data is preserved.
Q: How do I reset the readings on the USB current meter?
A: Simply press and hold the RTZ (Reset) button for approximately 3 seconds. This will clear all accumulated data and start a fresh measurement session.
