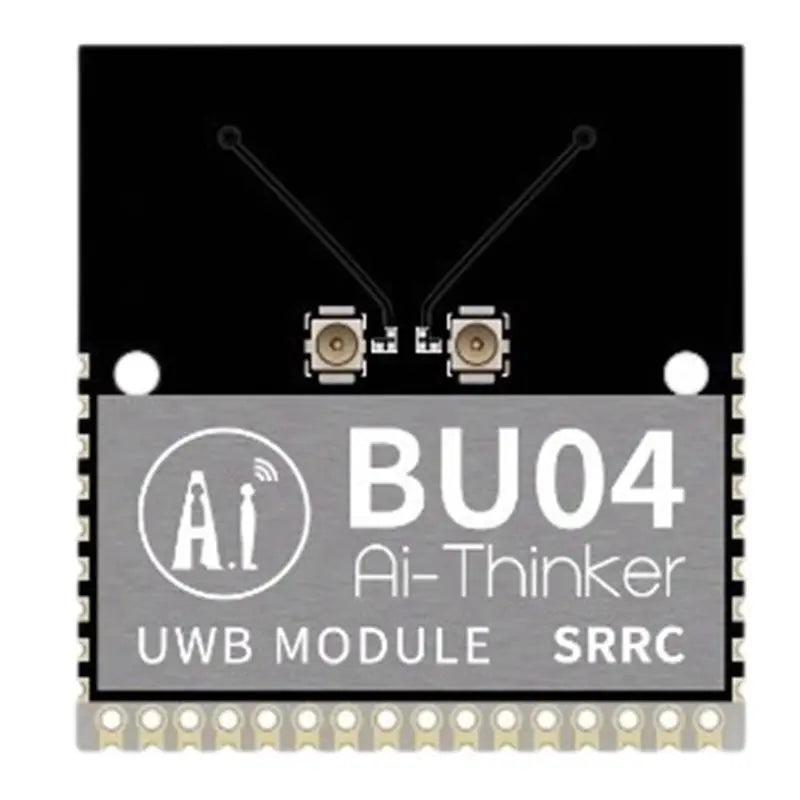

UWB BU04 Dual-Antenna Indoor High-Precision Positioning Module
Take your indoor positioning projects to the next level with the BU04 UWB Positioning Module. Featuring dual transmit/receive channels and dual antenna design, this compact module delivers outstanding 10 cm positioning accuracy — making it ideal for robotics, asset tracking, smart warehousing, drone navigation, and any application demanding precise indoor location data.

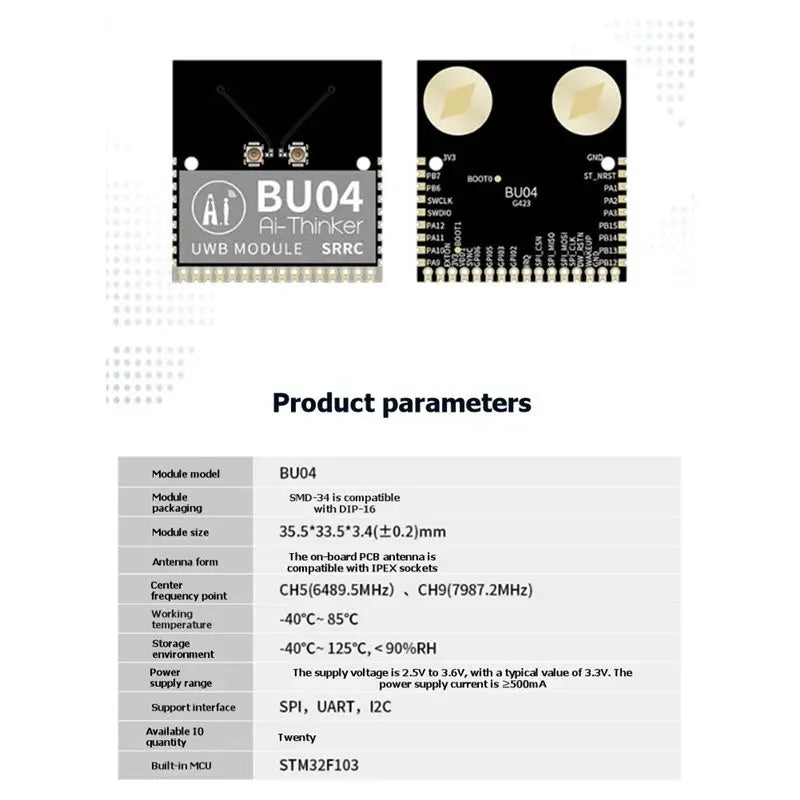

Key Specifications

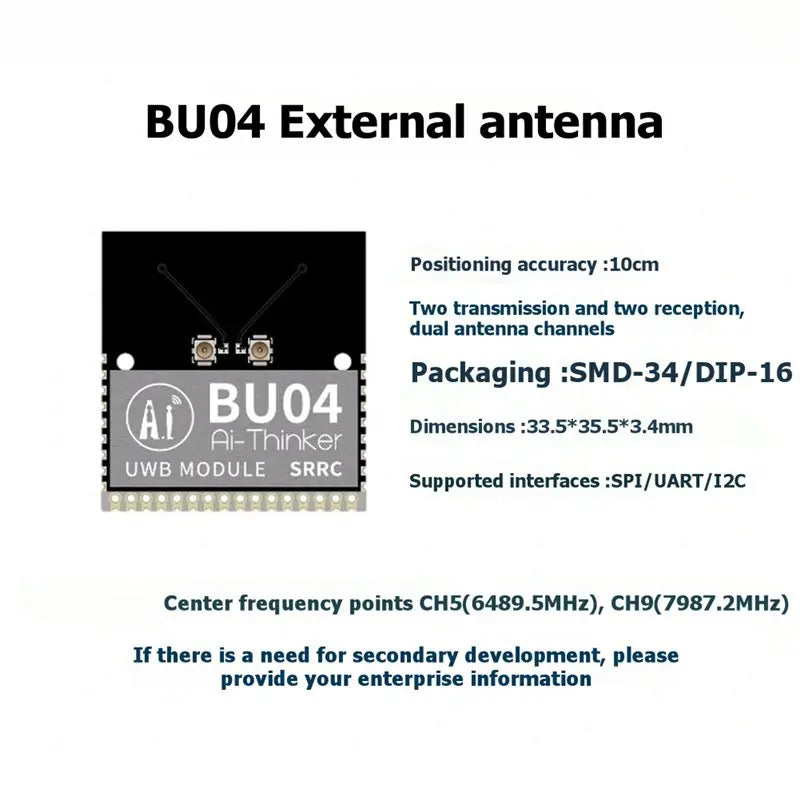

- Positioning Accuracy: 10 cm

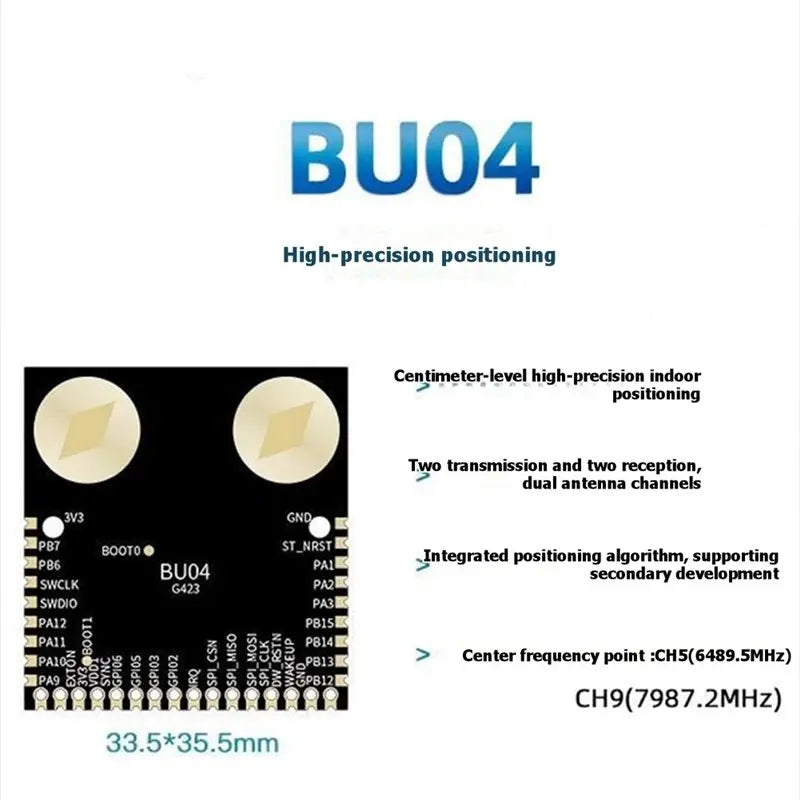

- Configuration: Two Transmitters, Two Receivers, Dual Antenna Channels

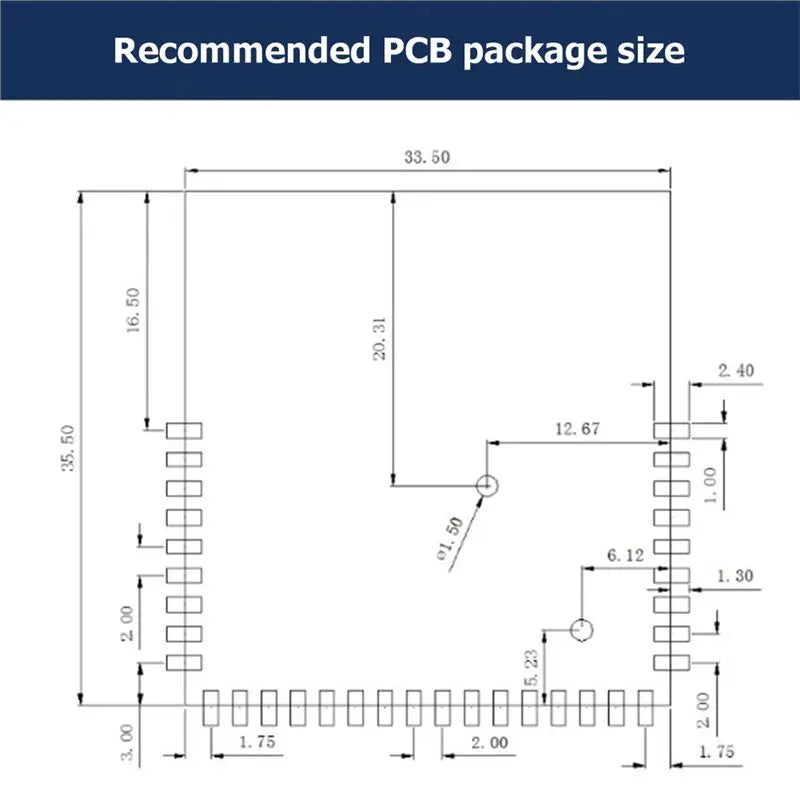

- Package Types: SMD-34 / DIP-16

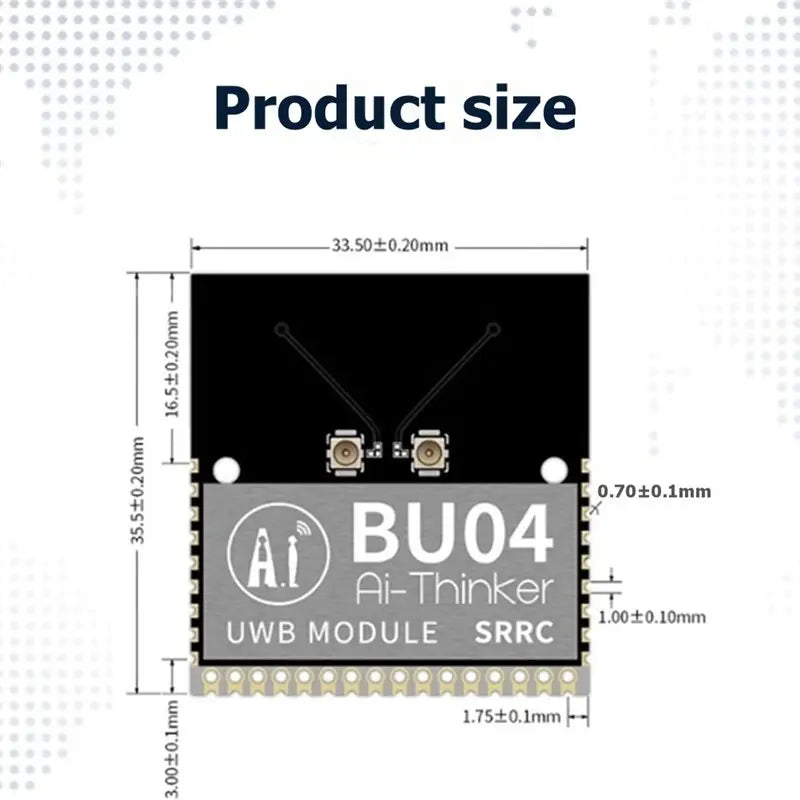

- Dimensions: 33.5 × 35.5 × 3.4 mm
- Supported Interfaces: SPI / UART / I2C
- Center Frequencies: CH5 (6489.5 MHz) & CH9 (7987.2 MHz)
- Color: Black
- Material: Plastic housing
- Country of Origin: Made in China
Why Choose the BU04 UWB Module?
- Sub-Decimeter Accuracy: Ultra-wideband technology achieves ~10 cm positional resolution, far superior to standard Bluetooth or Wi-Fi based positioning.
- Bidirectional Ranging: Supports two-way ranging for robust, reliable distance measurements even in complex indoor environments.
- Flexible Interface Support: Compatible with SPI, UART, and I2C, making integration with popular microcontrollers and development boards straightforward.
- Dual-Channel Antenna Design: Improves signal stability and overall system performance compared to single-antenna modules.
- Compact Form Factor: The small 33.5 × 35.5 × 3.4 mm footprint fits easily into embedded designs and enclosures.
- Multi-Frequency Operation: Supports CH5 and CH9 center frequencies for flexible deployment scenarios.
Package Contents
- 1 × UWB BU04 Dual-Antenna Positioning Module
Note: Only the above item is included. Other products shown in reference images are not included. Color may vary slightly due to lighting and display settings. Measurement tolerance: ±1–3 cm.
Related Products You May Like
- 10CM Wireless LED Motion Sensor Night Light – Type-C Rechargeable
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel, Portable Mini
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the positioning accuracy of the BU04 UWB module?
A: The BU04 UWB indoor positioning module achieves a positioning accuracy of approximately 10 cm, making it one of the most precise options available for indoor location and ranging applications.
Q: Which communication interfaces does the BU04 UWB module support?
A: The module supports SPI, UART, and I2C interfaces, providing broad compatibility with a wide range of microcontrollers, development boards, and embedded systems.
Q: What frequency channels does the BU04 module operate on?
A: The BU04 operates on two center frequencies: CH5 at 6489.5 MHz and CH9 at 7987.2 MHz, giving you flexibility in deployment across different indoor environments and regulatory requirements.
Q: Is this module suitable for robotics or asset-tracking projects?
A: Yes. The BU04's dual-antenna, bidirectional ranging capability and 10 cm accuracy make it an excellent choice for robotics navigation, warehouse asset tracking, drone positioning, and other precision indoor location use cases.
